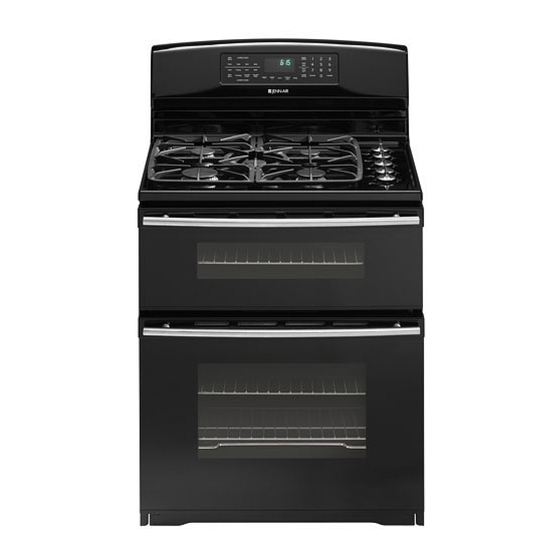

Freestanding double oven dual fuel range
Hide thumbs Also See for JDR8895AAB:
Table of Contents

Advertisement

Quick Links

Service
This manual is to be used by qualified appliance
technicians only. Maytag does not assume any
This Base Manual covers general information
responsibility for property damage or personal
Refer to individual Technical Sheet
injury for improper service procedures done by
an unqualified person.
for information on specific models
This manual includes, but is
not limited to the following:
Freestanding
JDR8895AAB/S/W
JDR8895ACS/W
Double Oven
Dual Fuel Range
16023417
August 2004
©
2004 Maytag Services

Advertisement

Table of Contents
loading

Related Manuals for Jenn-Air JDR8895AAB

Summary of Contents for Jenn-Air JDR8895AAB

  • Page 1 Refer to individual Technical Sheet injury for improper service procedures done by an unqualified person. for information on specific models This manual includes, but is not limited to the following: Freestanding JDR8895AAB/S/W JDR8895ACS/W Double Oven Dual Fuel Range 16023417 August 2004 ©...

  • Page 2: Important Information

    Important Information Pride and workmanship go into every product to provide our customers with quality products. It is possible, however, that during its lifetime a product may require service. Products should be serviced only by a qualified service technician who is familiar with the safety procedures required in the repair and who is equipped with the proper tools, parts, testing instruments and the appropriate service information.

  • Page 3: Table Of Contents

    Table of Contents Important Information ............ 2 Disassembly Procedures Safety Information Moving and/or Replacing Range ......21 Safety Practices for Servicer ........4 Leveling Legs ............21 Servicing ..............4 Anti-Tip Bracket ............21 Connecting Range to Gas ........5 Top Burner ..............

  • Page 4: Safety Practices For Servicer

    Important Safety Information Recognize this symbol as a safety precaution. W A RN IN G Due to the nature of cooking, fires can occur as a result of overcooking or excessive grease. Although a fire is unlikely, if one occurs proceed as follows: WARNING Oven Fires If the information in this manual is not followed exactly,...

  • Page 5: Connecting Range To Gas

    Important Safety Information • Ensure range is correctly adjusted by a qualified 5. Do not smoke—Never smoke while servicing gas service technician or installer for the type of gas ranges, especially when working on piping that (Natural or LP). Some ranges can be converted for use contains or has contained gas.

  • Page 6: Baking, Broiling, And Roasting

    Important Safety Information • Other areas of the oven can become hot enough to Pressure Regulator Maintains proper/steady cause burns, such as vent openings, window, oven door gas pressure oven and oven racks. controls. Regulator must be set for the type of •...

  • Page 7: General Information

    Brushed Chrome Amana Traditional White Magic Chef Traditional Almond Graffer & Prostyle Sattler Q Monochromatic Bisque Hardwick Stainless Jenn-Air Traditional Bisque Maytag W White on White Norge Frost White (True Color White) Universal Natural Bisque (True Color Bisque) Crosley Listing Fuel...

  • Page 8: Specifications

    Placement of the Oven servicer: This freestanding range must be placed in the kitchen or • For Jenn-Air product call 1-800-688-1100 or visit the comparable room. All safety guidelines must be followed Web Site at www.jennair.com (see Chapter 2) and free air flow around the range is •...

  • Page 9: Range Description

    Range Description Electronic Oven Control Backguard Data Plate Oven Vent Surface Controls Broiler Surface Burners Bake Element Oven Rack Oven Window Broiler Anti-Tip Bracket Leveling Leg Bake Element Oven Racks Door Gasket ©2004 Maytag Services 16023417...

  • Page 10: Troubleshooting Procedures

    Troubleshooting Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power and gas to oven before servicing, unless testing requires power and/or gas. CAUTION • Verify proper grounding before checking for trouble. • Be careful of the high voltage circuit. •...
  • Page 11 Troubleshooting Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power and gas to oven before servicing, unless testing requires power and/or gas. Diagnostic Code Checking Code Description When Checked Detection 1c1c Shorted key Always 1 minute 1c2c Keyboard tail disconnected Always...
  • Page 12 Troubleshooting Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power and gas to oven before servicing, unless testing requires power and/or gas. NOTES: “Action Taken” applies as long as the condition exists. If the condition goes away, the control recovers. If there is a cook function or timer active, the function continues.

  • Page 13: Component Troubleshooting

    Troubleshooting Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power and gas to oven before servicing, unless testing requires power and/or gas. Component Troubleshooting Problem Possible Cause Correction • Check power supply/circuit Power Outage..........breaker •...
  • Page 14 Troubleshooting Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power and gas to oven before servicing, unless testing requires power and/or gas. Problem Possible Cause Correction • Check to be sure plug is securely No Power ............. inserted into receptacle.
  • Page 15 Troubleshooting Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power and gas to oven before servicing, unless testing requires power and/or gas. Problem Possible Cause Correction • Check lamp and replace is Failed oven lamp ......... Failed wiring..........

  • Page 16: Testing Procedures

    Testing Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power and gas to oven before servicing, unless testing requires power and/or gas. Component Testing Illustration Component Test Procedure Results Oven light socket Remove one wire from receptacle and test resistance of terminals..
  • Page 17 Testing Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power and gas to oven before servicing, unless testing requires power and/or gas. Illustration Component Test Procedure Results Broil element, Lower Disconnect wire leads to element Approximately 18.6 Ω, if not replace.

  • Page 18: H2.5 Oven Control Testing

    Testing Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power and gas to oven before servicing, unless testing requires power and/or gas. H2.5 Control Testing H2.5 Controlled Oven temperature Press Upper Bake pad. While increasing or decreasing oven adjustment Enter 550 on the digit-pad.

  • Page 19: Quick Test Mode

    Testing Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power and gas to oven before servicing, unless testing requires power and/or gas. “Quick Test” Mode for Electronic Range Control Follow the procedure below to perform the Electronic Range Control (ERC) quick test. Instructions must be entered within 32 seconds of each other (via the touch pad) or the ERC will exit the quick test.
  • Page 20 Testing Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power and gas to oven before servicing, unless testing requires power and/or gas. Component Test Procedure Results Electronic F1−1 –Upper Oven >650°F with door unlocked......Check actual upper oven temperature, range control if >...

  • Page 21: Disassembly Procedures

    Disassembly Procedures To avoid risk of electrical shock, personal injury, or death: WARNING disconnect electrical and gas supply before servicing. Moving and/or Replacing Range Maintop Removal 1. Turn off electrical power and gas supply to the range. 1. Disconnect power before servicing. 2.

  • Page 22: Bake Element

    Disassembly Procedures To avoid risk of electrical shock, personal injury, or death: WARNING disconnect electrical and gas supply before servicing. Bake Element Oven Light Replacement 1. Disconnect power before servicing. The oven light used is a 120 volt, 20 watt Halogen bulb. 2.

  • Page 23: Door Removal

    Disassembly Procedures To avoid risk of electrical shock, personal injury, or death: WARNING disconnect electrical and gas supply before servicing. Door Removal • Open door to stop position (approximately 4"), then grasp both sides of the door and lift up off hinges. •...

  • Page 24: Lower Latch Assembly

    Disassembly Procedures To avoid risk of electrical shock, personal injury, or death: WARNING disconnect electrical and gas supply before servicing. Lower Oven Door Lower Latch Assembly NOTE: Removal of range from installation position is required. 1. Disconnect power before servicing. 2.

  • Page 25: Upper Latch Assembly

    Disassembly Procedures To avoid risk of electrical shock, personal injury, or death: WARNING disconnect electrical and gas supply before servicing. Upper Oven Door Upper Latch Assembly 1. Disconnect power before servicing. 2. Remove oven door, see "Oven Door(s)-Door Removal" procedure. 3.

  • Page 26: Oven Door Hinge

    Disassembly Procedures To avoid risk of electrical shock, personal injury, or death: WARNING disconnect electrical and gas supply before servicing. Oven Door Hinge 4. Remove screws securing top rear access panel to chassis. NOTE: Removal of range from installation position is 5.

  • Page 27: Hi-Limit Thermostat

    Disassembly Procedures To avoid risk of electrical shock, personal injury, or death: WARNING disconnect electrical and gas supply before servicing. 6. Remove by gently rotating assembly until enough Hi-Limit Thermostat clearance is established between assembly, cavity NOTE: Removal of range from installation position is wall and wire terminals/connectors.

  • Page 28: Oven Cavity Components (Electric)

    Disassembly Procedures To avoid risk of electrical shock, personal injury, or death: WARNING disconnect electrical and gas supply before servicing. Oven Cavity Components (Electric) Open or remove the oven door. The following components are accessible: Upper Oven • Racks • Oven Sensor •...
  • Page 29 Appendix A ©2004 Maytag Services 16023417 A–1...

  • Page 30: Installation Instructions

    Installation Instructions A–2 16023417 ©2004 Maytag Services...
  • Page 31 Installation Instructions ©2004 Maytag Services 16023417 A–3...
  • Page 32 Installation Instructions A–4 16023417 ©2004 Maytag Services...
  • Page 33 Installation Instructions ©2004 Maytag Services 16023417 A–5...
  • Page 34 Installation Instructions A–6 16023417 ©2004 Maytag Services...
  • Page 35 Installation Instructions ©2004 Maytag Services 16023417 A–7...
  • Page 36 Installation Instructions A–8 16023417 ©2004 Maytag Services...
  • Page 37 Installation Instructions ©2004 Maytag Services 16023417 A–9...
  • Page 38 Installation Instructions A–10 16023417 ©2004 Maytag Services...
  • Page 39 Installation Instructions ©2004 Maytag Services 16023417 A–11...
  • Page 40 Installation Instructions A–12 16023417 ©2004 Maytag Services...
  • Page 41 Installation Instructions ©2004 Maytag Services 16023417 A–13...
  • Page 42 Installation Instructions A–14 16023417 ©2004 Maytag Services...
  • Page 43 Installation Instructions ©2004 Maytag Services 16023417 A–15...
  • Page 44 Installation Instructions A–16 16023417 ©2004 Maytag Services...
  • Page 45 Installation Instructions ©2004 Maytag Services 16023417 A–17...
  • Page 46 Appendix B B–1 16023417 ©2004 Maytag Services...

  • Page 47: Use And Care

    Use and Care ©2004 Maytag Services 16023417 B–2...
  • Page 48 Use and Care B–3 16023417 ©2004 Maytag Services...
  • Page 49 Use and Care ©2004 Maytag Services 16023417 B–4...
  • Page 50 Use and Care B–5 16023417 ©2004 Maytag Services...
  • Page 51 Use and Care ©2004 Maytag Services 16023417 B–6...
  • Page 52 Use and Care B–7 16023417 ©2004 Maytag Services...
  • Page 53 Use and Care ©2004 Maytag Services 16023417 B–8...
  • Page 54 Use and Care B–9 16023417 ©2004 Maytag Services...
  • Page 55 Use and Care ©2004 Maytag Services 16023417 B–10...
  • Page 56 Use and Care B–11 16023417 ©2004 Maytag Services...
  • Page 57 Use and Care ©2004 Maytag Services 16023417 B–12...
  • Page 58 Use and Care B–13 16023417 ©2004 Maytag Services...
  • Page 59 Use and Care ©2004 Maytag Services 16023417 B–14...

  • Page 60: Cleaning Procedures

    Cleaning Procedures B–15 16023417 ©2004 Maytag Services...
  • Page 61 Cleaning Procedures ©2004 Maytag Services 16023417 B–16...
  • Page 62 Cleaning Procedures B–17 16023417 ©2004 Maytag Services...
  • Page 63 Cleaning Procedures ©2004 Maytag Services 16023417 B–18...
  • Page 64 Appendix C C–1 16023417 ©2004 Maytag Services...

  • Page 65: Lp Conversion

    LP Conversion Instructions ©2004 Maytag Services 16023417 C–2...
  • Page 66 LP Conversion Instructions C–3 16023417 ©2004 Maytag Services...
  • Page 67 LP Conversion Instructions ©2004 Maytag Services 16023417 C–4...
  • Page 68 LP Conversion Instructions C–5 16023417 ©2004 Maytag Services...
