Summary of Contents for ASROCK Fatal1ty B450 Gaming K4
- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per AsRock Fatal1ty B450 Gaming K4 o cerca il tuo prodotto tra le migliori offerte di Schede Madri...
- Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
- Page 3 If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI™...
- Page 4 Fatal1ty Story Who knew that at age 19, I would be a World Champion PC gamer. When I was 13, I actually played competitive billiards in professional tournaments and won four or five games off guys who played at the highest level. I actually thought of making a career of it, but at that young age situations change rapidly.
- Page 5 LIVIN’ LARGE Since my first big tournament wins, I have been a “Professional Cyberathlete”, traveling the world and livin’ large with lots of International media coverage on outlets such as MTV, ESPN and a 60 Minutes segment on CBS to name only a few. It's unreal - it's crazy. I’m living a dream by playing video games for a living.
-
Page 6: Table Of Contents
Contents Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Expansion Slots (PCI Express Slots) Jumpers Setup Onboard Headers and Connectors CrossFireX and Quad CrossFireX Operation Guide 2.7.1 Installing Two CrossFireX -Ready Graphics Cards... - Page 7 ASRock Live Update & APP Shop 3.3.1 UI Overview 3.3.2 Apps 3.3.3 BIOS & Drivers 3.3.4 Setting Creative SoundBlaster Cinema5 ASRock Polychrome LED Chapter 4 UEFI SETUP UTILITY Introduction 4.1.1 UEFI Menu Bar 4.1.2 Navigation Keys Main Screen OC Tweaker Screen Advanced Screen 4.4.1 CPU Configuration...
- Page 8 Security Screen Boot Screen Exit Screen...
-
Page 9: Chapter 1 Introduction
If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com. -
Page 10: Specifications
* For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) * Please refer to page 23 for DDR4 UDIMM maximum frequency support. - Page 11 Fatal1ty B450 Gaming K4 Series AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) Expansion Slot • 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)* AMD Ryzen series CPUs (Raven Ridge) • 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4...
- Page 12 Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. • Premium Blu-ray Audio support • Supports Surge Protection • ELNA Audio Caps...
- Page 13 Fatal1ty B450 Gaming K4 Series Storage • 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* • 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup- port NCQ, AHCI and Hot Plug * M2_2, SATA3_3 and SATA3_4 share lanes.
- Page 14 • ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjust- ing the setting in the BIOS, applying Untied Overclocking Technology, or using third- party overclocking tools.
-

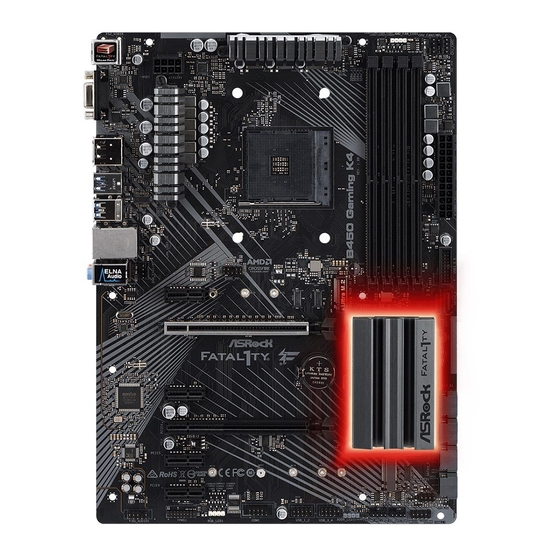

Page 15: Motherboard Layout
Fatal1ty B450 Gaming K4 Series 1.3 Motherboard Layout AMD_FAN_LED1 CPU_FAN2/WP CPU_FAN1 ATX12V1 USB 3.1 Gen2 T: USB31_TA_1 B: USB31_TC_1 USB 3.1 Gen1 T: USB1 B: USB2 USB 3.1 Gen1 T: USB3 B: USB4 CHA_FAN1/WP BIOS PCIE1 Ultra M.2 PCIe Gen3 x4... - Page 16 No. Description ATX 12V Power Connector (ATX12V1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) AMD Fan LED Header (AMD_FAN_LED1) CPU Fan / Waterpump Fan Connector (CPU_FAN2/WP) CPU Fan Connector (CPU_FAN1) ATX Power Connector (ATXPWR1) USB 3.1 Gen1 Header (USB3_5_6) SATA3 Connector (SATA3_2) SATA3 Connector (SATA3_1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
-
Page 17: I/O Panel
Fatal1ty B450 Gaming K4 Series 1.4 I/O Panel No. Description No. Description Fatal1ty Mouse Port (USB5) USB 3.1 Gen1 Ports (USB3_34) USB 2.0 Port (USB6) USB 3.1 Gen1 Ports (USB3_12) DisplayPort 1.2 USB 3.1 Gen2 Type-A Port (USB31_TA_1) LAN RJ-45 Port* USB 3.1 Gen2 Type-C Port (USB31_TC_1) - Page 18 ** To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi- channel audio feature through the audio driver. Please set Speaker Configuration to “7.1 Speaker”in the Realtek HD Audio Manager. Function of the Audio Ports in 7.1-channel Configuration: Port Function...
-
Page 19: Chapter 2 Installation
Fatal1ty B450 Gaming K4 Series Chapter 2 Installation This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings. -
Page 20: Installing The Cpu
2.1 Installing the CPU Unplug all power cables before installing the CPU. - Page 21 Fatal1ty B450 Gaming K4 Series...
-
Page 22: Installing The Cpu Fan And Heatsink
2.2 Installing the CPU Fan and Heatsink After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other. - Page 23 Fatal1ty B450 Gaming K4 Series...
- Page 24 Installing the AM4 Box Cooler SR2...
- Page 25 Fatal1ty B450 Gaming K4 Series...
- Page 26 4-pin FAN cable RGB LED Cable +12V *The diagram shown here are for reference only. Please refer to page 32 for the orientation of AMD Fan LED Header (AMD_FAN_LED1).
- Page 27 Fatal1ty B450 Gaming K4 Series Installing the AM4 Box Cooler SR3...
- Page 29 Fatal1ty B450 Gaming K4 Series...
- Page 30 +12V Please note that only one cable should be used at a time in this step. If you select AMD_FAN_LED1, please install ASRock utility "ASRock Polychrome LED". If you select USB connector, please install AMD utility "SR3 Settings Software". *The diagram shown here are for reference only. Please refer to page 32 for the orientation of...
-
Page 31: Installing Memory Modules (Dimm)
Fatal1ty B450 Gaming K4 Series 2.3 Installing Memory Modules (DIMM) This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs. - Page 32 Ryzen Series CPUs (Raven Ridge): UDIMM Memory Slot Frequency (Mhz) 2933 2667 2667 2400 2133 SR/DR SR/DR 1866 SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label...
- Page 33 Fatal1ty B450 Gaming K4 Series The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
-
Page 34: Expansion Slots (Pci Express Slots)
2.4 Expansion Slots (PCI Express Slots) There are 6 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation. -
Page 35: Jumpers Setup
Fatal1ty B450 Gaming K4 Series 2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. -
Page 36: Onboard Headers And Connectors
2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header Connect the power PLED+ PLED-... - Page 37 Fatal1ty B450 Gaming K4 Series SPEAKER Power LED and Speaker Please connect the DUMMY Header chassis power LED and DUMMY (7-pin SPK_PLED1) the chassis speaker to this (see p.7, No. 15) header. PLED+ PLED+ PLED- Serial ATA3 Connectors These six SATA3...
- Page 38 Front Panel Audio Header This header is for PRESENCE# MIC_RET (9-pin HD_AUDIO1) connecting audio devices OUT_RET (see p.7, No. 26) to the front audio panel. OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly.
- Page 39 Fatal1ty B450 Gaming K4 Series CPU Fan / Waterpump This motherboard pro- Fan Connector vides a 4-Pin CPU fan FAN_VOLTAGE CPU_FAN_SPEED (4-pin CPU_FAN2/WP) (Quiet Fan) connector. FAN_SPEED_CONTROL (see p.7, No. 4) If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.
- Page 40 RGB LED Header RGB LED header is used to con- (4-pin RGB_LED1) nect RGB LED extension cable 12V G R (see p.7, No. 24) which allows users to choose from various LED lighting ef- fects. Caution: Never install the RGB LED cable in the wrong orienta- tion;...
-
Page 41: Tm Tm
Fatal1ty B450 Gaming K4 Series 2.7 CrossFireX and Quad CrossFireX Operation Guide This motherboard supports CrossFireX and Quad CrossFireX that allows you to install up to two identical PCI Express x16 graphics cards. 1. You should only use identical CrossFireX -ready graphics cards that are AMD certified. - Page 42 Step 3 Connect a VGA cable or a DVI cable to the monitor connector or the DVI connec- tor of the graphics card that is inserted to PCIE1 slot.
-
Page 43: Driver Installation And Setup
Fatal1ty B450 Gaming K4 Series 2.7.2 Driver Installation and Setup Step 1 Power on your computer and boot into OS. Step 2 Remove the AMD drivers if you have any VGA drivers installed in your system. The Catalyst Uninstaller is an optional download. We recommend using this utility to uninstall any previously installed Catalyst drivers prior to installation. - Page 44 2.8 M.2_SSD (NGFF) Module Installation Guide (M2_1) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_1) supports type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge).
- Page 45 Fatal1ty B450 Gaming K4 Series Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location C by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut.
- Page 46 INTEL 6000P-SSDPEKKF512G7 (nvme) Intel PCIe INTEL 600P-SSDPEKKW256G7-256GB (nvme) Kingston PCIe Kingston SHPM2280P2 / 240G (Gen2 x4) SanDisk PCIe SanDisk-SD6PP4M-128G(Gen2 x2) Samsung PCIe Samsung XP941-MZHPU512HCGL(Gen2x4) For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...
- Page 47 Fatal1ty B450 Gaming K4 Series 2.9 M.2_SSD (NGFF) Module Installation Guide (M2_2) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (M2_2) supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2...
- Page 48 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
- Page 49 Fatal1ty B450 Gaming K4 Series Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw NUT2 NUT1 as this might damage the module. M.2_SSD (NGFF) Module Support List Vendor Interface...
-
Page 50: Chapter 3 Software And Utilities Operation
Chapter 3 Software and Utilities Operation 3.1 Installing Drivers The Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN”... -
Page 51: F-Stream
Fatal1ty B450 Gaming K4 Series 3.2 F-Stream F-Stream is ASRock’s multi purpose software suite with a new interface, more new features and improved utilities. 3.2.1 Installing F-Stream F-Stream can be downloaded from ASRock Live Update & APP Shop. After the installation, you will find the icon “F-Stream“... - Page 52 OC Tweaker Configurations for overclocking the system. System Info View information about the system. *The System Browser tab may not appear for certain models.
- Page 53 Configure up to five different fan speeds using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met. Settings Configure ASRock F-Stream. Click to select "Auto run at Windows Startup" if you want F-Stream to be launched when you start up the Windows operating system.
-
Page 54: Asrock Live Update & App Shop
Double-click on your desktop to access ASRock Live Update & APP Shop utility. *You need to be connected to the Internet to download apps from the ASRock Live Update & APP Shop. 3.3.1 UI Overview Category Panel Hot News... -
Page 55: Apps
Fatal1ty B450 Gaming K4 Series 3.3.2 Apps When the "Apps" tab is selected, you will see all the available apps on screen for you to download. Installing an App Step 1 Find the app you want to install. Th e most recommended app appears on the left side of the screen. Th e other various apps are shown on the right. - Page 56 Step 3 If you want to install the app, click on the red icon to start downloading. Step 4 When installation completes, you can fi nd the green "Installed" icon appears on the upper right corner. To uninstall it, simply click on the trash can icon *Th e trash icon may not appear for certain apps.
- Page 57 Fatal1ty B450 Gaming K4 Series Upgrading an App You can only upgrade the apps you have already installed. When there is an available new version for your app, you will fi nd the mark of "New Version" appears below the installed app icon.
-
Page 58: Bios & Drivers
3.3.3 BIOS & Drivers Installing BIOS or Drivers When the "BIOS & Drivers" tab is selected, you will see a list of recommended or critical updates for the BIOS or drivers. Please update them all soon. Step 1 Please check the item information before update. Click on to see more details. -
Page 59: Setting
Fatal1ty B450 Gaming K4 Series 3.3.4 Setting In the "Setting" page, you can change the language, select the server location, and determine if you want to automatically run the ASRock Live Update & APP Shop on Windows startup. -
Page 60: Creative Soundblaster Cinema5
3.4 Creative SoundBlaster Cinema5 The SoundBlaster Cinema5, powered by the SBX Pro Studio technologies, is designed to bring the same great audio experience found in live performances, films, and recording studios to the PC. With this utility, you can easily enhance your audio environment in five modes, including Headphones, Speakers, Music, Movie, Game, Voice and Custom. -
Page 61: Asrock Polychrome Led
Fatal1ty B450 Gaming K4 Series 3.5 ASRock Polychrome LED ASRock Polychrome LED is a lighting control utility specifically designed for unique individuals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connect- ing the LED strip, you can customize various lighting schemes and patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more. - Page 62 Connecting the Addressable RGB LED Strip Connect your Addressable RGB LED strip to the Addressable LED Header (ADDR_LED1) on the motherboard. ADDR_LED1 DO_ADDR VOUT FATAL 1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
- Page 63 ASRock Polychrome LED Utility Now you can adjust the RGB LED color through the ASRock Polychrome LED utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way! Drag the tab to customize your preference.
-
Page 64: Chapter 4 Uefi Setup Utility
Chapter 4 UEFI SETUP UTILITY 4.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right after you power on the computer, otherwise, the Power-On-Self-Test (POST) will continue with its test routines. -
Page 65: Navigation Keys
Fatal1ty B450 Gaming K4 Series 4.1.2 Navigation Keys Use < Use < Use < > key or < > key or < > key or < > key to choose among the selections on the menu bar, and > key to choose among the selections on the menu bar, and >... -
Page 66: Main Screen
4.2 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. -
Page 67: Oc Tweaker Screen
Fatal1ty B450 Gaming K4 Series 4.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen. - Page 68 Min: 0.90000 Max: 1.55000 CPU Vcore Voltage (offset) Configure the voltage for the Vcore. VDDCR SOC Voltage (offset) Configure the voltage for the VDDCR SOC. VPPM Configure the voltage for the VPPM. 2.50V Voltage Configure the voltage for the 2.50V PROM. DRAM Voltage Use this to select DRAM Voltage.
-
Page 69: Advanced Screen
Fatal1ty B450 Gaming K4 Series 4.4 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, North Bridge Configuration, South Bridge Configuration, Storage- Configuration, Super IO Configuration, ACPI Configuration, Trusted Computing AMD PBS. Setting wrong values in this section may cause the system to malfunction. -
Page 70: Cpu Configuration
4.4.1 CPU Configuration Cool 'n' Quiet Use this item to enable or disable AMD’s Cool ‘n’ Quiet technology. The default value is ® [Enabled]. Configuration options: [Enabled] and [Disabled]. If you install Windows OS and want to enable this function, please set this item to [Enabled]. Please note that enabling this function may reduce CPU voltage and memory frequency, and lead to system stability or compatibility issue with some memory modules or power supplies. -
Page 71: North Bridge Configuration
Fatal1ty B450 Gaming K4 Series 4.4.2 North Bridge Configuration IOMMU Enable/disable IOMMU Support. SR-IOV Support Enable/disable the SR-IOV (Single Root IO Virtualization Support) if the system has SR-IOV capable PCIe devices. Share Memory Configure the size of memory that is allocated to the integrated graphics processor... -
Page 72: South Bridge Configuration
4.4.3 South Bridge Configuration Onboard HD Audio Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and automatically disable it when a sound card is installed. Front Panel Enable/disable front panel HD audio. Deep Sleep Configure deep sleep mode for power saving when the computer is shut down. Restore on AC/Power Loss Select the power state after a power failure. -
Page 73: Storage Configuration
Fatal1ty B450 Gaming K4 Series 4.4.4 Storage Configuration SATA Controller(s) Enable/disable the SATA controllers. SATA Mode AHCI: Supports new features that improve performance. RAID: Combine multiple disk drives into a logical unit. SATA Hot Plug Enable/disable the SATA Hot Plug Function. -
Page 74: Super Io Configuration
4.4.5 Super IO Configuration Serial Port Enable or disable the Serial port. Serial Port Address Select the address of the Serial port. PS2 Y-Cable Enable the PS2 Y-Cable or set this option to Auto. -
Page 75: Acpi Configuration
Fatal1ty B450 Gaming K4 Series 4.4.6 ACPI Configuration Suspend to RAM It is recommended to select auto for ACPI S3 power saving. ACPI HPET Table Enable the High Precision Event Timer for better performance and to pass WHQL tests. PS/2 Keyboard S4/S5 Wakeup Support Allow the system to be waked up by a PS/2 Keyboard. -
Page 76: Trusted Computing
4.4.7 Trusted Computing Security Device Support Enable to activate Trusted Platform Module (TPM) security for your hard disk drives. -
Page 77: Amd Pbs
Fatal1ty B450 Gaming K4 Series 4.4.8 AMD PBS The AMD PBS menu accesses AMD specific features. -
Page 78: Tool
4.5 Tool RGB LED ASRock RGB LED allows you to adjust the RGB LED color to your liking. Easy RAID Installer Easy RAID Installer helps you to copy the RAID driver from the support CD to your USB storage device. After copying the drivers please change the SATA mode to RAID, then you can start installing the operating system in RAID mode. - Page 79 Fatal1ty B450 Gaming K4 Series pen drive before using this function. Network Configuration Use this to configure internet connection settings for Internet Flash. Internet Setting Enable or disable sound effects in the setup utility. UEFI Download Server Select a server to download the UEFI firmware.
-
Page 80: Hardware Health Event Monitoring Screen
4.6 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed and voltage. CPU_FAN1 Setting Select a fan mode for CPU Fan 1, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature. - Page 81 Fatal1ty B450 Gaming K4 Series CHA_FAN1/WP Switch Select Chassis Fan 1 or Water Pump mode. Chassis Fan 1 Control Mode Select PWM mode or DC mode for Chassis Fan 1. Chassis Fan 1 Setting Select a fan mode for Chassis Fan 1, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature.
- Page 82 4.7 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.
- Page 83 Fatal1ty B450 Gaming K4 Series 4.8 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer's boot time. In fast mode you may not boot from an USB storage device.
- Page 84 AddOn ROM Display Enable AddOn ROM Display to see the AddOn ROM messages or configure the AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed. Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the system supports 64 bit PCI decoding).
- Page 85 Fatal1ty B450 Gaming K4 Series Launch Video OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only. Select Do not launch to not execute both legacy and UEFI option ROM.
- Page 86 4.9 Exit Screen Save Changes and Exit When you select this option the following message, “Save configuration changes and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option the following message, “Discard changes and exit setup?”...
- Page 87 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp...
- Page 88 Address: Phone/Fax No: +1-909-590-8308/+1-909-590-1026 hereby declares that the product Product Name : Motherboard Fatal1ty B450 Gaming K4 Series Model Number : Conforms to the following speci cations: FCC Part 15, Subpart B, Unintentional Radiators Supplementary Information: is device complies with part 15 of the FCC Rules. Operation is subject to the...
- Page 89 EU Declaration of Conformity For the following equipment: Motherboard (Product Name) Fatal1ty B450 Gaming K4 Series / ASRock (Model Designation / Trade Name) ASRock Incorporation (Manufacturer Name) 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) (Manufacturer Address) EMC —Directive 2014/30/EU (from April 20th, 2016)
