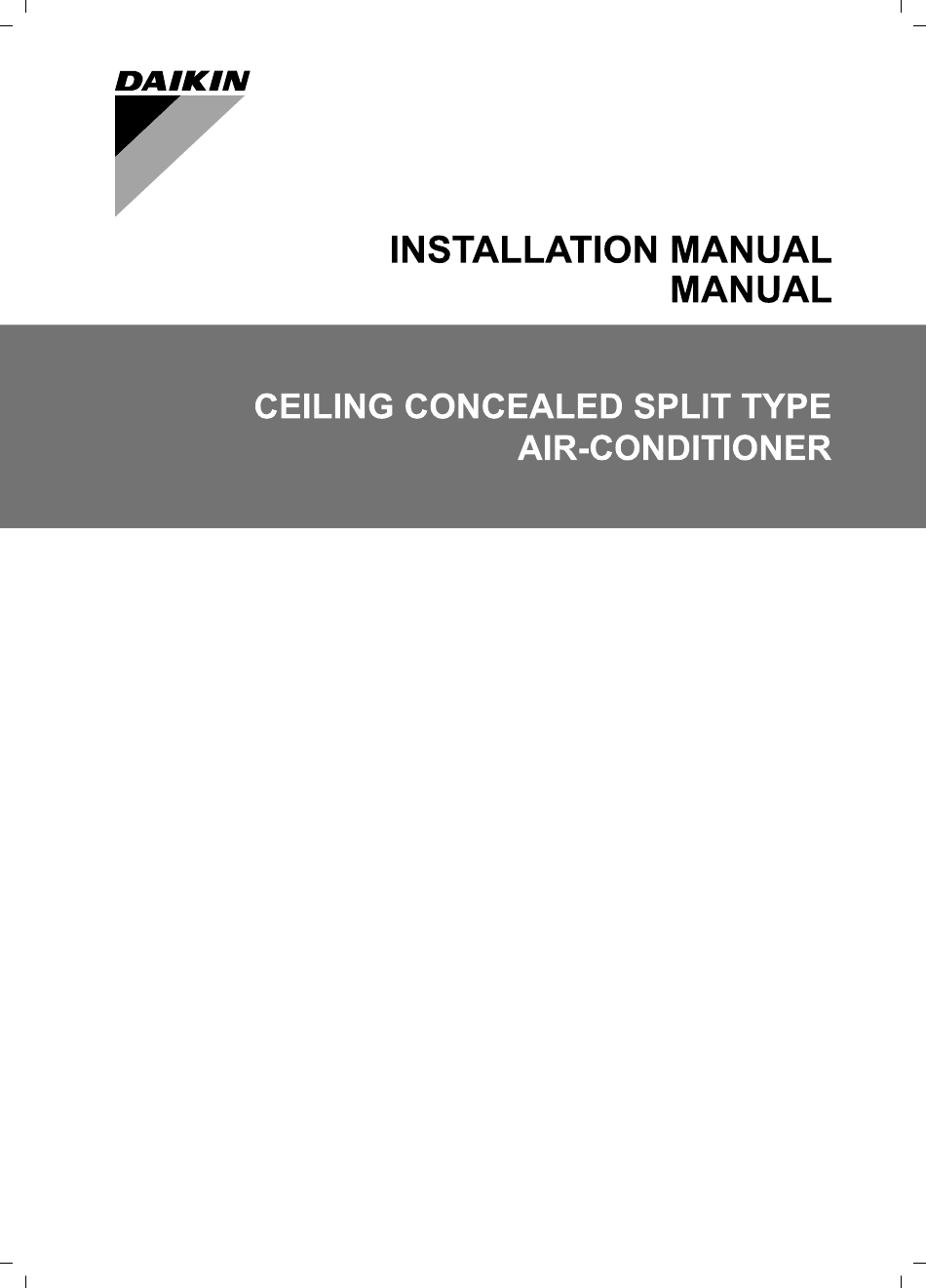

- Page 1 OPERATION FDMR36ERV16 FDR65FRV16 FDR100FRV16 FDR130FRV16 FDR130FRV162 FDR200FRY16 FD65DSV16 FD100DSV16 FD130DSV16 FD200DSY16 FD60GRV16 FD90GRV16 3P724053-1A FD120GRV16 FD180GRY16...
- Page 2 Indoor Unit FDMR36ERV16 All dimensions are in mm Indoor Unit FDR65FRV16 All dimensions are in mm...
- Page 3 Indoor Unit FDR100FRV16 All dimensions are in mm Indoor Unit FDR130FRV16 All dimensions are in mm...
- Page 4 Indoor Unit FDR130FRV162 All dimensions are in mm Indoor Unit FDR200FRY16 All dimensions are in mm...
- Page 5 Indoor Unit FD65DSV16 / FD60GRV16 All dimensions are in mm 1270 1170 1026 � • � • Indoor Unit FD100DSV16 / FD90GRV16 All dimensions are in mm 1660 1560 1358 0 CO r-- ..
- Page 6 Indoor Unit FD130DSV16 / FD120GRV16 1805 1700 1647 1126 1700 1126 Indoor Unit FD200DSY16 / FD180GRY16 All dimensions are in mm...
- Page 7 Outdoor Unit RR36ERY16 Horizontal Air Discharge All dimensions are in mm Outdoor Unit RR65FRY16/R65DSY16/R60GRY16 Horizontal Air Discharge All dimensions are in mm Outdoor Unit RR100FRY16/R100DSY16/R90GRY16 Horizontal Air Discharge All dimensions are in mm...
- Page 8 Outdoor Unit RR130FRY16/R130DSY16/R120GRY16 Horizontal Air Discharge All dimensions are in mm...
-
Page 9: Safety Precautions
INSTALLATION MANUAL This manual provides the procedures of installation to ensure a safe and good standard of operation f o r the air conditioner unit. Special adjustment may be necessary to suit local requirements. Before using your air conditioner, please read this instruction manual carefully and keep it for future reference. -
Page 10: Installation Of The Indoor Unit
Insulate securely Do not leave in water INSTALLATION OF THE INDOOR UNIT Mounting Ensure that the overhead supports are strong enough to Provide clearance for servicing and optimal air flow as hold the unit's weight. Position hanger rods and check shown in the diagram. -
Page 11: Installation Of The Outdoor Unit
INSTALLATION OF THE OUTDOOR UNIT Location For Installation Install the outdoor unit in such way that air distributed by the outdoor unit cannot be drawn in again (as in the case of short circuit of discharge air). Allow sufficient space for maintenance around the unit. Select the coolest possible place where intake air should not be higher than the outside temperature (maximum °... - Page 12 RR36ERY16 RR65FRY16 RR100FRY16 RR130FRY16 R65DSY16 R100DSY16 R130DSY16 R60GRY16 R90GRY16 R120GRY16...
- Page 13 OPTIONAL ACCESSORIES Please refer the below table for part code of remote compatible with corresponding models : Model Wired Remote Optional Wireless Remote FDMR36FRV16 FDR65FRV16 FDR100FRV16 4P408280-1 FDR130FRV16 FDR130FRV162 BRC4N151 FDR200FRY16 4P416386-1 FD65DSV16 FD60GRV16 FD100DSV16 4P408280-1 FD90GRV16 FD130DSV16 FD120GRV16 FD200DSY16 4P416386-1 FD180GRY16 Note: Above wireless remote is optional and can be used with the IR sensor provided in wired remote.
- Page 14 15 (49.2) 30 (98.5) 35 (114.8) R100DSY16 R90GRY16 RR130FRY16 40 (131.2) R130DSY16 R120GRY16 Outdoor Liquid Pipe Gas Pipe Liquid Pipe Gas Pipe Refrigerant Type Indoor FDMR36ERV16 3/8” 8/8” RR36FRY16 3/8” 5/8” FDR65FRV16 1/2” 7/8” RR65FRY16 1/2” 7/8” FDR100FRV16 1/2” 1-1/8” RR100FRY16 1/2”...
-
Page 15: Piping Connection To The Units
Special Precautions When Mounting TXV Bulb • TXV bulb should be clamped to the suction line near the evaporator outlet, and if possible, on a horizontal run. • Clean suction line completely before clamping the bulb in place. • Clamp the bulb to a free draining suction line. •... - Page 16 No. of Conductors 7.0 Each 7.0 Each Recommended fuse* A 20 Each ODU 32 Each ODU FDMR36ERV16 - RR36ERY16 FD65DSV16 - R65DSY16, FD60GRV16 - R60GRY16 FDR65FRV16 - RR65FRY16, FDR100FRV16 - RR100FRY16, FD100DSV16 - R100DSY16 , FD90GRV16 - R90GRY16 FDR130FRV16 - RR130FRY16, FD130DSV16 - R130DSY16, FD120GRV16 - R120GRY16 For FDR130FRV162 Only For FDR200FRY16, FD200DSY16 &...
-
Page 17: Overall Checking
OVERALL CHECKING Ensure the following, in particular:- 2. Watch out for the following:- 1. The unit is mounted solidly and rigid in position. Is the electric plug firmly inserted into the 2. Piping and connections are leak proof after charging. socket? 3. - Page 18 R410A type Refrigerant Charge Indoor Outdoor Liquid Pipe Gas Pipe (kg/7.5m pipe length) 3/8" 5/8" 2.65 FDMR36ERV16 RR36ERY16 FDR65FRV16 RR65 FRY16 1/2" 7/8" FDR100FRV16 RR100FRY16 1/2" 1-1/8" FDR130FRV16 RR130FRY16 5/8" 1-1/8" FDR130FRV162 2*RR65FRY16 1/2" 7/8" 2*4.4 FDR200FRY16 2*RR100FRY16 1/2"...
- Page 19 OIL REFILL CHARGE GUIDELINES Refill oil charge ltr/30m pipe length FDMR36ERV16 RR36ERY16 FDR65FRV16 RR65FRY16 1.656 FDR100FRV16 RR100FRY16 3.100 FDR130FRV16 RR130FRY16 3.100 FDR130FRV162 2 x RR65FRY16 2 x 1.656 FDR200FRY16 2 x RR100FRY16 2 x 3.100 FD65DSV16 R65DSY16 1.656 FD100DSV16 R100DSY16 3.134...
- Page 20 SPECIAL PRECAUTIONS WHEN CHARGING UNIT WITH SCROLL COMPRESSORS These precautions are intended for use with Scroll compressors only with R22, R407C, R 134A, R404A, R507 and R41 0A refrigerants but are not applied to reciprocating compressors. Scroll compressors have a very high volumetric efficiency and quickly pump a deep vacuum if there is insufficient refrigerant in the system or if refrigerant is added too slowly.
- Page 21 STANDARD OPERATING CONDITIONS Cooling only a::i <:__) ...___.. • 30 CJ.) :::, 1 9 2730 ° Indoor TemP.( COB) NOTES: The graph is based on the fol lowing conditions: Equivalent piping length: 7.5m Level difference High Air Flow Rate AUTO RANDOM RE-START FUNCTION If there is a power cut when the unit is operating, it will automatically resume the same operating mode when the power is restored.
- Page 22 11. LP Error display on Remote (LP1). 12. SPPR Error display on Remote (SPPR). 13. Airflow Error display on Remote (AF). This is caused by Communication wire break or faulty Communication Failure (C-Er) The Error will be Reset after Changing ok Communication wire If indoor coil tube temperature reaches ≤...
-
Page 23: Phase Protector
PHASE PROTECTOR The unit with Scroll Compressor can only rotate in one direction. For this reason, a protective device (phase protector) is fitted to prevent incorrect wiring of the electrical phases. When the three phases are not connected correctly, the phase protector operates, and the unit will not start. - Page 24 SPEED...
- Page 25 Note- Automatic speed selection is not available in FDR200FRY16, please refer wiring diagram for changing speed setting. "ON/OFF,FAN SPEED,MODE & MENU" key...
- Page 26 11. IR SENSOR This feature is applicable with wireless remote. [For wireless remote fuctions, please refer the operation manual of wireless remote.]...
