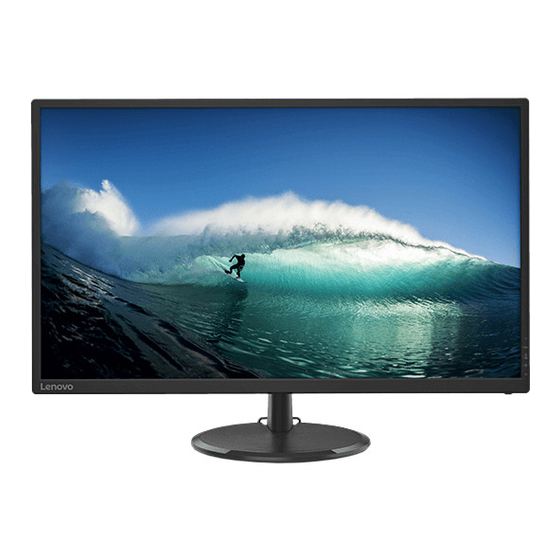

- Page 1 D32q-20/C32q-20 Simplified service manual for dismantling Model Name: Lenovo D32q-20/C32q-20...
- Page 2 Exploded Diagram...
- Page 3 1. Precaution Please read the precaution as follows to prevent any damages to the LCD Monitor. Make sure all power connector is removed. Be sure that the LCD Monitor is in power off status. Prepare soft cloth and sponge as working platform to place LCD monitor horizontally. Hold LCD by the side carefully and DON’T touch or press panel directly. ...
- Page 4 2. Appropriate tools Select the Appropriate tools for disassembly and re-assembly. Phillips screwdriver (#2) spacer screwdriver C/D disassembly tool Gloves or soft cloth ...
- Page 5 3. Disassembly SOP Remove the screw*4pcs Tool : Screwdriver #2 Take off the tapes and disconnect the connector.
- Page 6 Remove the screw*12pcs Tool: Screwdriver #2 Remove the Mylar Remove the screw*9pcs Tool: Screwdriver #2...
- Page 7 The mainframe The panel The REAR_COCER...
