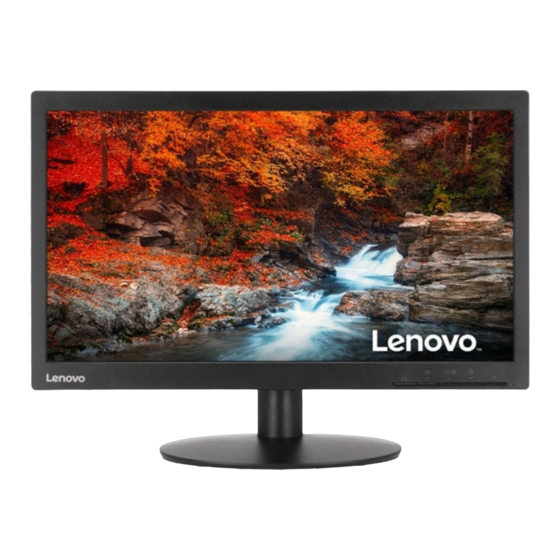

- Page 1 D20-30 Simplified service manual for dismantling Model Name: Lenovo D20-30...
- Page 2 Exploded Diagram...
- Page 3 1. Precaution Please read the precaution as follows to prevent any damages to the LCD Monitor. Make sure all power connector is removed. Be sure that the LCD Monitor is in power off status. Prepare soft cloth sponge as working platform to place LCD monitor...
- Page 4 2. Appropriate tools Select the Appropriate tools for disassembly and re-assembly. Phillips screwdriver spacer screwdriver C/D disassembly tool Hot hair dryer Gloves or soft cloth...
- Page 5 3. Disassembly SOP Put the monitor on a flat surface (Put the EPE on under the monitor) Pull out stand Remove the label * 2pcs Tool : Hot hair dryer...
- Page 6 Remove the screw * 2pcs Tool : Screwdriver Use the C/D disassembly tool to release Rear cover hook from disassemble hole on bottom Remove All tape and foil Release the middle frame from the Panel Release the keypad pcb from the the middle frame Unplug light bar line and LVDS line...
- Page 7 Take out of the chassis assembly Remove All screw. Tool : Screwdriver #4 Tool : spacer screwdriver Remove the screw * 2pcs Tool : Spacer screwdriver Take out PCB and Peel off all mylar. Take out the Thermal pads from Power pcb...
