INSTALLATION INSTRUCTIONS

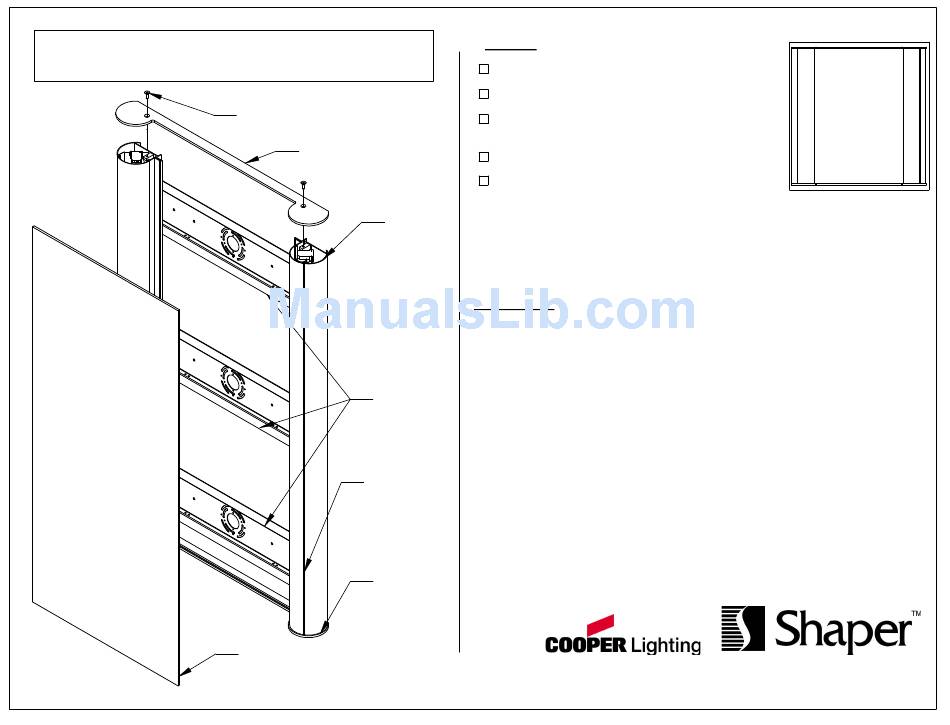

TRIM RETAINING SCREW
TOP TRIM PLATE
LAMP
ASSEMBLY
SUPPORT
CHANNELS
ACRYLIC LENS
BOTTOM TRIM
PLATE
MIRROR
(By Others)
NOTICE:
For proper installation, have a qualified
electrician install this product.
Before installation of any luminaire onto an
electrical junction box, be sure to disconnect power.
This luminaire must be wired and grounded in
accordance with the National Electrical Code, local
codes, and ordinances.
Wire supply connections must be made with U.L.
approved connectors.
Check that luminaire voltage and building voltage
are the same.
INSTRUCTIONS:
1.
Remove TRIM RETAINING SCREWS from the TOP TRIM PLATE.
2.
Mount the SUPPORT CHANNELS (3) to the wall with the holes provided.
(Contractor may add additional holes if needed)
3.
Using U.L. approved wire connectors: connect the luminaire
neutral (white) to the supply neutral, connect the luminaire line
wire (black) to the supply line wire. Fasten green ground
wire(s) to ground screw.
4.
Remove the ACRYLIC LENS from the LAMP ASSEMBLY and install the
lamp. Test the fixture and make sure the power is off before continuing.
5.
Reinstall the ACRYLIC LENS by snapping into groove on either side.
6.
Install the MIRROR (By others) into the groove at BOTTOM TRIM PLATE
and reinstall the TOP TRIM PLATE and TRIM RETAINING SCREWS.
1141 Marina Way South, Richmond, CA 94804 Phone: (510)234-2370 Fax:(510) 234-2371
11506210
MODEL 601V-48
A
9/4/2007
