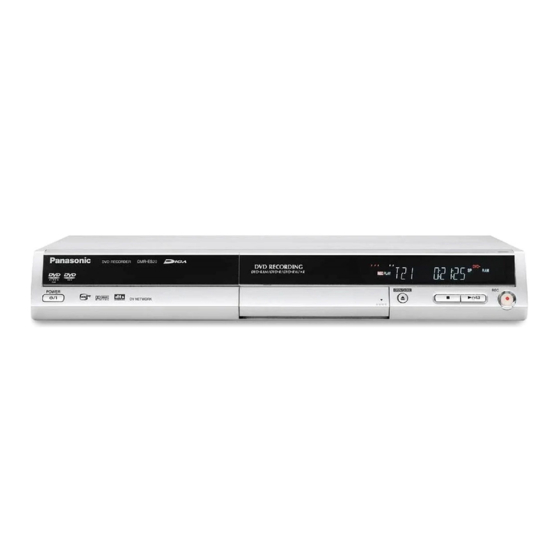

Panasonic DMR-ES20 Setup Manual

Set Up Guide
DMR-ES20

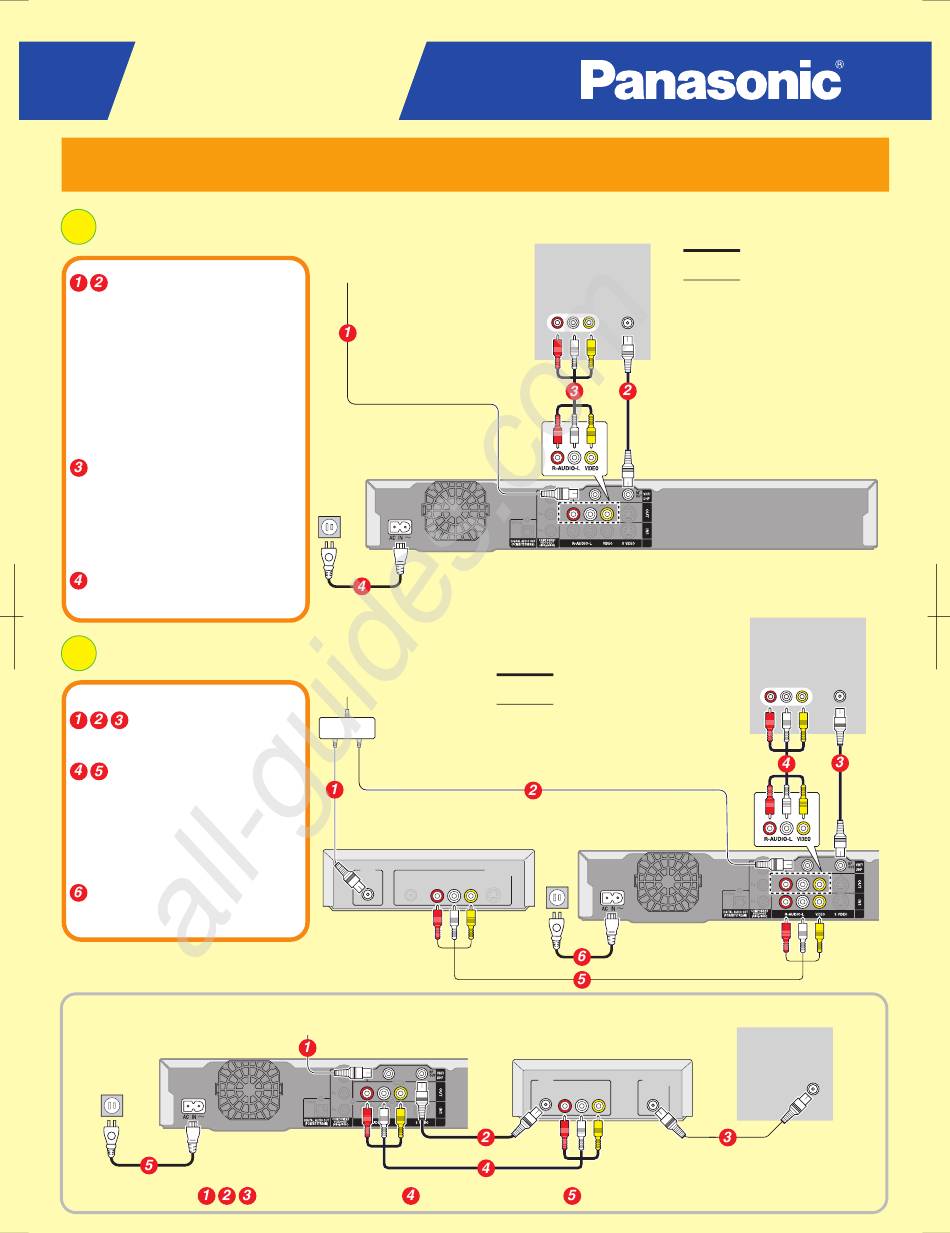

Connection
A If you do not use a cable TV box
Connect 75 Ω coaxial cables.
RF OUT terminal (This unit)
The picture and sound signal from
this unit does not go through the RF
OUT terminal to the television.
Connect the OUT terminal on this
unit to the Audio/Video In terminals
on the television through the
Audio/Video cable.
Connect Audio/Video cable.
If your television does not have
Audio/Video terminals, an RF
modulator is necessary (see
below).
Connect the AC power supply
cord.
B If you use a cable TV box
Connect 75 Ω coaxial cables.
Connect Audio/Video cables.
If your television does not have
Audio/Video terminals, an RF
modulator is necessary (see
below).
Connect the AC power supply
cord.
If your television does not have Audio/Video terminals, an RF Modulator is necessary
Cable from wall or antenna signal
All manuals and user guides at all-guides.com
Cable from wall
or antenna signal
Cable from wall
(not included)
Splitter
IN
AUDIO
R
RF
This unit
RF
IN
Audio/Video cable
75 Ω coaxial cable
Television
VIDEO
AUDIO IN VHF/UHF
IN
R L RF IN
RF
IN
If you want to transfer VHS tapes to DVD,
refer to page 7 of the operating instructions.
indicates included
accessories.
indicates accessories
not included.
Cable TV box This unit
OUT
L VIDEO S-VIDEO
RF Modulator
(example only)
IN
AUDIO
RF R L VIDEO
AC power supply cord
indicates included
accessories.
indicates accessories
not included.
This unit
Television
VIDEO
AUDIO IN
IN
R L
RF
IN
Television
VHF/UHF
RF IN
OUT
RF
VHF/UHF
RF IN
