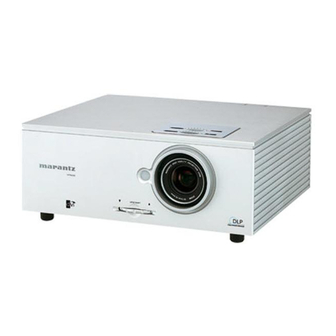

Marantz VP8600 Throw Distance Manual

VP8600̲eng 05.10.25 9:33 AM ページ14
VP8600 Throw Distance
Screen Size and Projection Distance (inch) VP8600
Screen size
(Diagonal)
❖
16 : 9 Screen
In case of displaying the
16:9 picture on the whole
of the 16:9 screen.
Width
: Image size = Screen size
❖
4 : 3 Screen
In case of displaying the
16:9 picture on the whole
of the 4:3 screen.
Width
: Image size
: Screen size
All manuals and user guides at all-guides.com
Projection distance
16:9 Screen Size (1.77:1 Aspect Ratio)
Diagonal Width Height
inch inch inch
60 52.29 29.41
70 61.01 34.32
62.75 35.30
72
69.72 39.22
80
71.47 40.20
82
84 73.21 41.18
90 78.44 44.12
92 80.18 45.10
87.16 49.02
100
92.38 51.97
106
95.87 53.93
110
104.59 58.83
120
123 107.20 60.30
133 115.92 65.20
117.66 66.18
135
130.73 73.54
150
148.16 83.34
170
174.31 98.05
200
250 217.89 122.56
300 261.47 147.07
4:3 Screen Size (1.33:1 Aspect Ratio)
Diagonal Width Height
inch inch inch
60 48.00 36.00
70 56.00 42.00
72 57.60 43.20
80 64.00 48.00
82 65.60 49.20
84 67.20 50.40
90 72.00 54.00
92 73.60 55.20
100 80.00 60.00
106 84.80 63.60
110 88.00 66.00
120 96.00 72.00
123 98.40 73.80
133 106.40 79.80
135 108.00 81.00
150 120.00 90.00
170 136.00 102.00
200 160.00 120.00
250 200.00 150.00
300 240.00 180.00
Screen Size and Projection Distance (mm) VP8600
❖
16 : 9 Screen
Projection Distance
Minimum Maximum
In case of displaying the
inch inch
16:9 picture on the whole
94.13 125.50
of the 16:9 screen.
109.82 146.42
112.95 150.60
125.50
167.34
128.64
171.52
Width
131.78 175.71
141.19 188.26
144.33 192.44
156.88 209.17
166.29
221.72
172.57
230.09
188.26
251.01
192.96 257.28
: Image size = Screen size
208.65 278.20
211.79 282.38
235.32 313.76
266.70
355.59
313.76
418.35
392.20 522.93
470.64 627.52
❖
4 : 3 Screen
Projection Distance
In case of displaying the
Minimum Maximum
inch inch 16:9 picture on the whole
86.40 115.20
of the 4:3 screen.
100.80 134.40
103.68 138.24
115.20 153.60
Width
118.08 157.44
120.96 161.28
129.60 172.80
132.48 176.64
144.00 192.00
152.64 203.52
158.40 211.20
172.80 230.40
177.12 236.16
191.52 255.36
: Image size
194.40 259.20
216.00 288.00
: Screen size
244.80 326.40
288.00 384.00
360.00 480.00
432.00 576.00
Screen size
(Diagonal)
Projection distance
16:9 Screen Size (1.77:1 Aspect Ratio)
Diagonal Width Height
inch mm mm
60 1328 747
70 1550 872
1594 897
72
1771 996
80
1815 1021
82
84 1860 1046
90 1992 1121
92 2037 1146
100 2214 1245
2347 1320
106
2435 1370
110
120 2656 1494
123 2723 1532
133 2944 1656
135 2989 1681
150 3321 1868
170 3763 2117
200 4427 2490
250 5534 3113
300 6641 3736
4:3 Screen Size (1.33:1 Aspect Ratio)
Diagonal Width Height
inch mm mm
60 1219 914
70 1422 1067
72 1463 1097
1626 1219
80
1666 1250
82
84 1707 1280
90 1829 1372
92 1869 1402
100 2032 1524
106 2154 1615
110 2235 1676
120 2438 1829
123 2499 1875
133 2703 2027
135 2743 2057
150 3048 2286
170 3454 2591
200 4064 3048
250 5080 3810
300 6096 4572
Projection Distance
Minimum Maximum
mm mm
2391 3188
2789 3719
2869 3825
3188 4250
3267 4357
3347 4463
3586 4782
3666 4888
3985 5313
4224 5632
4383 5844
6376
4782
4901 6535
5300 7066
5379 7173
5977 7969
6774 9032
10626
7969
9962 13282
11954 15939
Projection Distance
Minimum Maximum
mm mm
2195 2926
2560 3414
2633 3511
2926 3901
2999 3999
3072 4097
3292 4389
3365 4487
3658 4877
3877 5169
4023 5364
4389 5852
4499 5998
4865 6486
4938 6584
5486 7315
6218 8291
7315 9754
9144 12192
10973 14630
