Graco MAGNUM 243060 Operating Instructions

Pressure roller

Download this manual

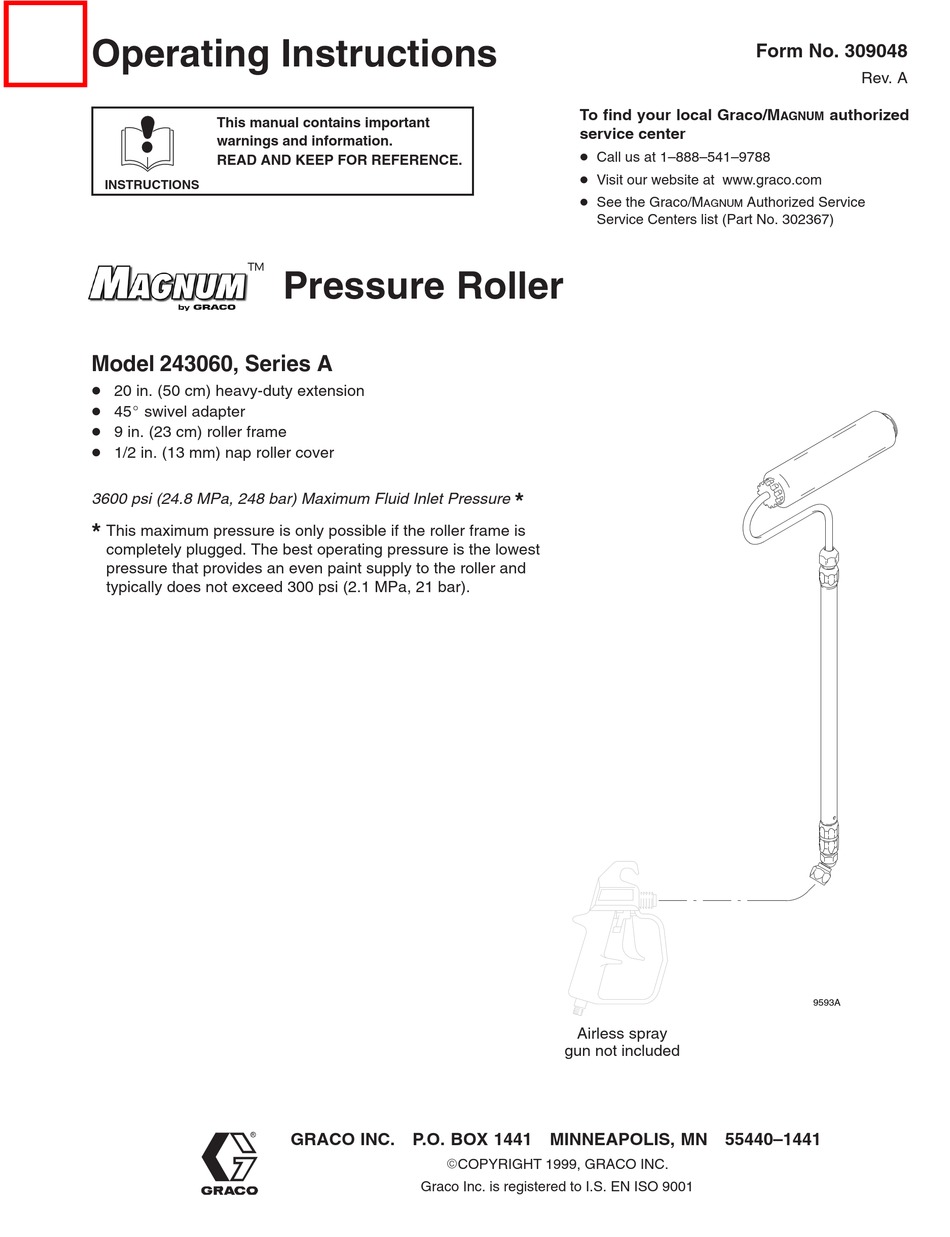

Operating Instructions

This manual contains important

warnings and information.

READ AND KEEP FOR REFERENCE.

INSTRUCTIONS

Model 243060, Series A

D 20 in. (50 cm) heavy-duty extension

D 45_ swivel adapter

D 9 in. (23 cm) roller frame

D 1/2 in. (13 mm) nap roller cover

3600 psi (24.8 MPa, 248 bar) Maximum Fluid Inlet Pressure

This maximum pressure is only possible if the roller frame is

completely plugged. The best operating pressure is the lowest

pressure that provides an even paint supply to the roller and

typically does not exceed 300 psi (2.1 MPa, 21 bar).

Pressure Roller

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

Graco Inc. is registered to I.S. EN ISO 9001

To find your local Graco/M

service center

D Call us at 1–888–541–9788

D Visit our website at www.graco.com

D See the Graco/M

Service Centers list (Part No. 302367)

Airless spray

gun not included

Form No. 309048

Rev. A

authorized

AGNUM

Authorized Service

AGNUM

9593A

Page 1 300 psi (2.1 MPa, 21 bar). 9593A Airless spray gun not included GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 ECOPYRIGHT 1999, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
Page 2 For pressure roller and damaging it. See Flushing on storage, flush the system with Graco Pump Armort or page 3. mineral spirits/paint thinner. See Flushing on page 3.
Page 3 If you are going to store the airless equipment for an Parts List extended period of time after flushing with water-base fluid, flush again with Graco Pump Armor or mineral Ref. spirits/paint thinner. Leave the fluid in the system Part No.
Page 4 Graco’s printed recommendations and instructions. This warranty applies for one year from the date of purchase. This warranty does not cover and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by improper use, accidents, user negligence, use of non-Graco component parts or service or repair performed by anyone other than a Graco authorized service center.
