Summary of Contents for Transcend DrivePro 230

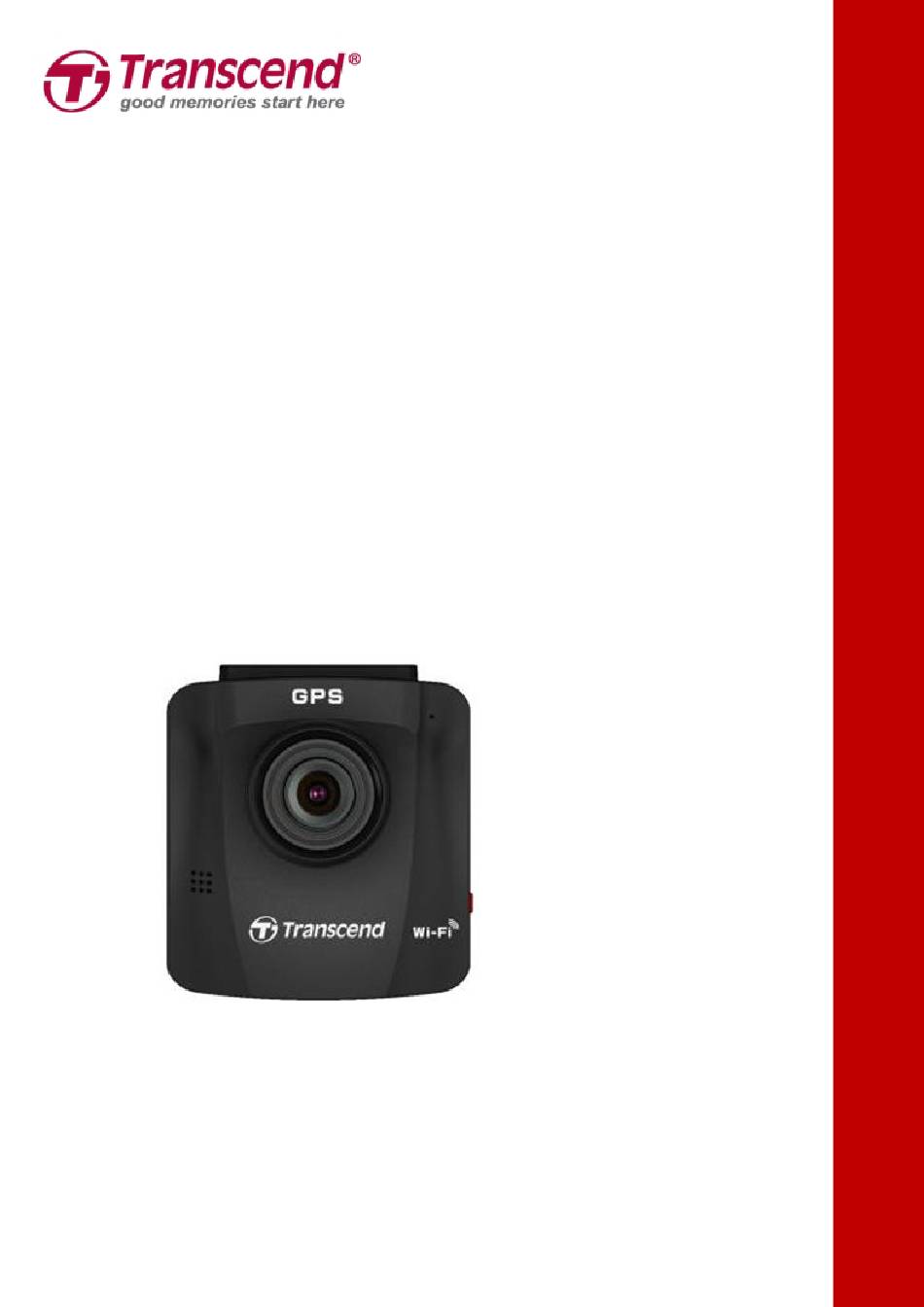

- Page 1 User’s Manual Dashcam DrivePro™ 230 (Version 1.0)
-
Page 2: Table Of Contents
Table of Contents Introduction....................2 System Requirements................3 Package Contents..................3 Getting Started..................5 4-1 Overview............................5 4-2 Inserting a microSD Memory Card................... 5 4-3 Mounting the DrivePro™......................6 4-4 Connecting to Power........................7 4-5 Function Buttons...........................9 4-6 LED Indicator Reference Chart....................9 4-7 Setting the Date and Time......................10 4-8 Setting UTC Timezone....................... -
Page 3: Introduction
1. Introduction Thank you for purchasing Transcend DrivePro™ 230 - an advanced dashcam that is specifically designed to capture real time video of events happening outside your vehicle while driving. Mounted on your car’s windshield, the DrivePro™ uses a 130° wide angle lens for the best field of view, and records videos in crystal clear Full HD 1080P to ensure all the important details of your trip are recorded. -
Page 4: System Requirements
2. System Requirements System requirements for connecting the DrivePro™ to a computer and for using the DrivePro™™ Toolbox: A desktop or a laptop with a working USB port Windows® 7 Windows® 8 Windows® 8.1 Windows® 10 ... - Page 5 A 16GB microSD Memory Card A Quick Start Guide A Warranty Card...
-
Page 6: Getting Started
4. Getting Started 4-1 Overview Receiver USB Connector Microphone Bracket Socket Memory Card Socket Emergency Button Reset Button LED Indicator Function 2.4” LCD Display Speaker Lens Buttons 4-2 Inserting a microSD Memory Card You must insert a microSD memory card into the DrivePro™ before you can start recording. Please use a MLC-based microSD memory card with 8GB, 16GB, 32GB, 64GB or 128GB capacity (Class 10 or above). -
Page 7: Mounting The Drivepro
2. To remove, push to eject the memory card out of the slot. WARNING: Do not remove the memory card during shutdown to avoid damages to the memory card and loss of recorded videos The following table shows approximate recording time according to capacity and resolution (for reference only): Card Capacity... -
Page 8: Connecting To Power
3. Peel off the protective film from the mount bracket’s foam sticker, and firmly attach the DrivePro™ to the windshield. 4. Turn the adjustment knob anticlockwise to loosen, and then adjust the DrivePro™’s position. 5. After the DrivePro™ is in the best position, turn the adjustment knob clockwise to make sure that the DrivePro™... - Page 9 2. Connect the other end of the car adapter to your car’s lighter socket. 3. After the car engine is switched on, the DrivePro™ will automatically turn on and start recording. 4. After the car engine is switched off, the DrivePro™ will automatically save the current recording, and power off.
-
Page 10: Function Buttons
4-5 Function Buttons Mode Video Recording Power/WiFi Browse Files Settings Take Photos Browse/Settings Back* Down Video Playback Back* Play/Pause Protected/Unprotected Delete View Photos Back* Down Delete 1. Press and hold the button for 3 seconds to manually turn on/off the DrivePro™ in any mode. -
Page 11: Setting The Date And Time
4-7 Setting the Date and Time To set the current date and time: 1. During video recording, press the Settings button 2. Use to select Date/Time Settings, and press 3. Use to adjust values, and press to move to the next block. 4. -
Page 12: Recording Videos
5. Recording Videos 5-1 Recording Screen Recording status indicator Video resolution WI-FI on indicator GPS fix indicator Voice record status Battery status Time After the car engine is switched on, the DrivePro™ will automatically turn on and start recording. By default, one video file is saved for every 3 minutes of recording. To adjust the recording length, please refer to the Settings section in this manual. - Page 13 30% of the storage space will be saved for emergency video files. Video files recorded in emergency mode are protected from being overwritten. Manual Emergency Recording: During video recording, press the emergency button on the left-hand side of the DrivePro™ to manually activate emergency recording mode. The emergency icon will appear on the screen when activated.
-
Page 14: Browsing Photos And Playing Videos
Note: Please fully charge the DrivePro before using. 6. Browsing Photos and Playing Videos 6-1 Playing Videos / Browsing Photos 1. During video recording, press the Browse button 2. Use to select either Normal, Emergency or Snapshot, and press 3. Use to select the desired video file, and press 4. -
Page 15: Deleting Videos
5. Press to return to the video file list. 6-2 Deleting Videos 1. During playback of a video file, press . The message, “Delete?” will pop up. 2. Use to select “Yes,” and press to delete the file. 6-3 Protecting Videos 1. -
Page 16: Settings
7. Settings In the Settings menu, you can adjust settings of video resolution, recording time and G-Sensor sensitivity. You can also set the date/time/time zone, change the interface language, format the memory card, and upgrade firmwares. 1. During video recording, press the Settings button 2. - Page 17 Video Stamp: Display the current time of the event or GPS information of the video being recorded. Available options: Disable / Enable Microphone: Turn on/off the microphone during video recording. Available options: Disable / Enable Volume: Set the speaker volume level. Available options 0 ~7 (You can choose 0 to switch on Silent Mode) Light Frequency: Select the appropriate frequency to avoid flashing A/C light.
- Page 18 WARNING: Formatting will erase all the data stored in the card. Firmware Upgrade: Keep your DrivePro™ up-to-date with the latest version downloaded from Transcend website http://www.transcend-info.com/Support/service. 1. After downloading the firmware from Transcend website, decompress it and put it in the “SYSTEM” folder in the microSD memory card.
- Page 19 WARNING: NEVER remove the power cord or the microSD memory card while the firmware is being upgraded. If the DrivePro™ cannot be turned on due to firmware upgrade failure, please contact Transcend customer service for technical support. Restore Defaults: Reset all settings to factory default settings. Available options: No / Yes Information: Display the DrivePro™’s current firmware version, card capacity and free...
-
Page 20: Using The Drivepro™ App
8. Using the DrivePro™ App Developed specifically for iOS and Android devices, the free download DrivePro™ App allows you to wirelessly view real-time video footages during recording, control DrivePro™ functions and play videos directly from your mobile devices. 8-1 Downloading and Installing the App 1. -
Page 21: Drivepro™ Toolbox Software
DrivePro™, and see your driving paths of the recorded videos displayed on maps without the need to install separate codecs. Download the installation files from: http://www.transcend-info.com/downloads Install DrivePro™ Toolbox software on your desktop or laptop. The useful features include: Video Sorting Easily sort videos by filename, recording date or group. -
Page 22: Transferring Files To A Computer
10. Transferring Files to a Computer To transfer files between the DrivePro™’s memory card and your computer: Option 1: Take the microSD memory card out of the DrivePro™, and insert to a compatible card reader to transfer files to your computer. Option 2: 1. - Page 23 appear in the Windows System Tray. *Note: (I:) is an example drive letter – the letter in your “My Computer” window may differ. Your DrivePro™ is now ready to transfer data just like an external hard drive. To transfer videos, simply drag-and-drop files from the folder that represents the DrivePro™.
- Page 24 1. WARNING: To prevent data loss, always follow the proper removal procedures when disconnecting the DrivePro™ from your computer. 2. When the DrivePro™ is connected to a computer, it can only be used for transferring files. You will not be able to use any of the DrivePro™’s features at this time.
-
Page 25: Troubleshooting
DrivePro™ for repair. If you cannot find any ideal solution to your question below, please consult your dealer, service center, or local Transcend branch office for further help. You can also visit Transcend website for FAQ and Technical Support services. For any Hardware issues, please refer to the DrivePro™... -
Page 26: Safety Cautions
Do not use the DrivePro™ in an environment with strong magnetic fields or excessive vibration. Only use the car adapter provided by Transcend. Other car adapters may not compatible with the DrivePro™. Lighter sockets of some types of vehicles will still supply power after the car engine is turned off. -
Page 27: Specifications
computer, please check if the computer is installed correct USB drivers. If you are not sure how to check this, please refer to the User’s Manual of the computer or motherboard for USB driver information. 13. Specifications 2.4" color LCD Panel: 1.0 Watt / 0.5 mA (built-in) Speaker / Microphone:... - Page 28 Using TLC-based memory cards on your car video recorder might result in unstable performance. 2. Besides the bundled microSD card, we recommend Transcend’s High Endurance microSD card as an Note: additional purchase to reach the most stable recording performance. Please see below for the recommend microSD cards: ...
-
Page 29: Recycling And Environmental Protection
14. Recycling and Environmental Protection Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means that the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste. -
Page 30: Federal Communications Commission (Fcc) Statement
15. Federal Communications Commission (FCC) Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. -
Page 31: Two-Year Limited Warranty
Under special circumstances, Transcend may refund or credit the current value of the product at the time the warranty claim is made. The decision made by Transcend shall be final and binding upon you. Transcend may refuse to provide inspection, repair or replacement service for products that are out of warranty, and will charge fees if these services are provided for out-of-warranty products. -
Page 32: Gnu General Public License (Gpl) Disclosure
WITHOUT ANY WARRANTY, without even implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. The entire risk as to the quality and performance of the GPL Software is with you. Transcend does not provide any support for the GPL software. - Page 33 (a) This Agreement constitutes the entire agreement between Transcend and Customer concerning the subject matter hereof, and it may only be modified by a written amendment signed by an authorized executive of Transcend. (b) Except to the extent applicable law, if any, provides otherwise, this Agreement will be governed by the law of the Republic of China, excluding its conflict of law provisions.
- Page 34 (e) Transcend may assign its rights under this Agreement without condition. (f) This Agreement will be binding upon and will inure to the benefit of the parties, their successors and permitted assigns.
