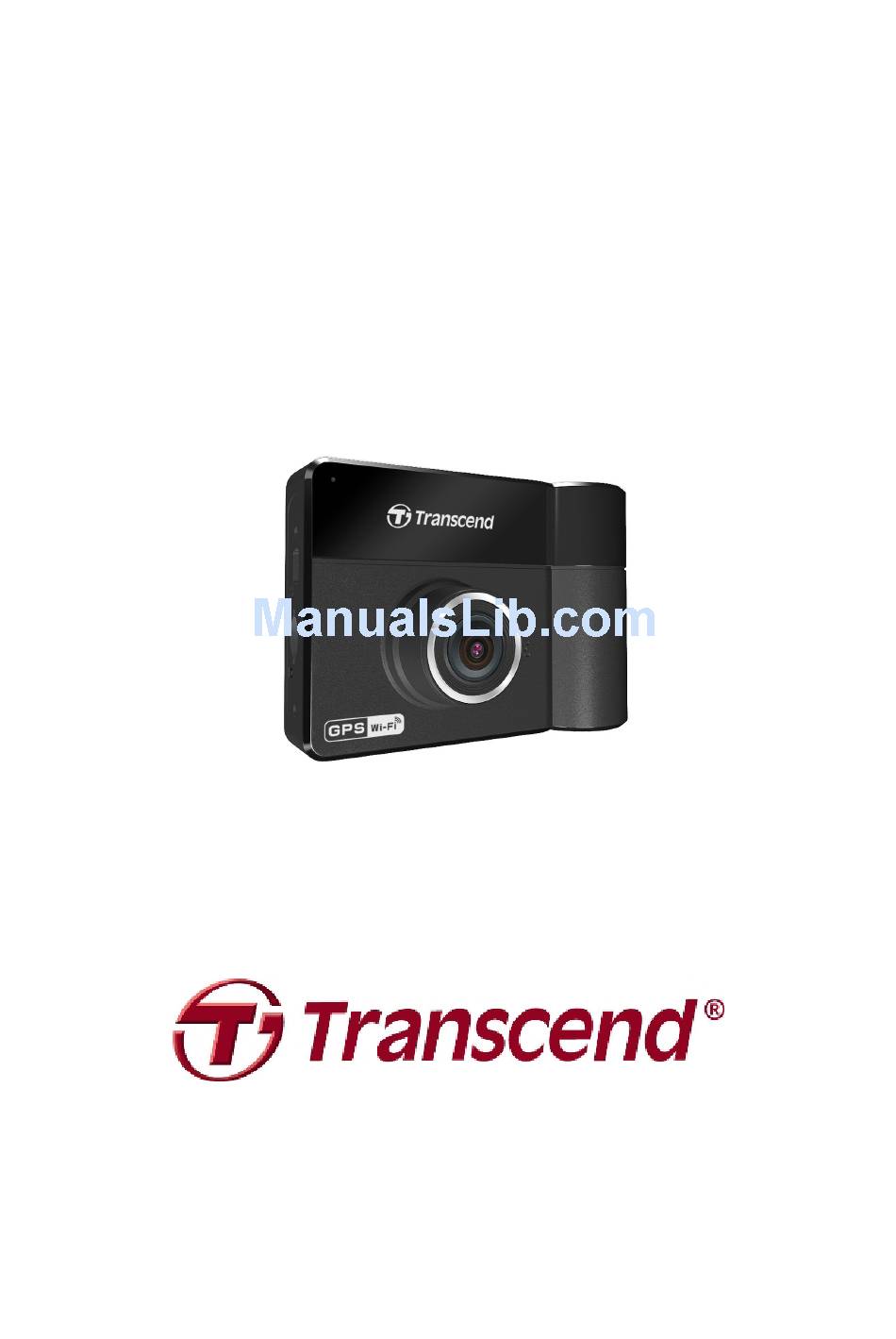

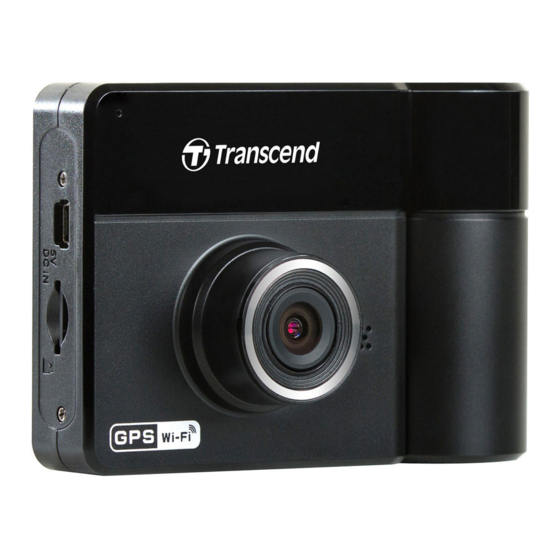

  • Page 1 User’s Manual DrivePro 520 Car Video Recorder (Version 2.2)

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction︱.............................3 2. Features︱............................3 3. Package Contents︱......................... 4 4. System Requirements︱........................5 5. Safety Precautions︱........................5 6. Getting Started︱..........................6 Inserting a microSD Memory Card......................8 Mounting the DrivePro..........................9 Connecting to Power..........................10 Recording Screen............................11 Function Buttons............................11 LED Indicator Reference Chart........................

  • Page 3: Introduction

    Mounted on your car’s windshield, the DrivePro 520’s front lens uses a 130° wide angle lens for the best field of view, and records videos in crystal clear Full HD 1080P (30 FPS) with its F/1.8 large aperture to ensure all the important details of your trip are recorded;...

  • Page 4: Package Contents

    3. Package Contents︱ The DrivePro Car Video Recorder package includes the following items: DrivePro Car Video Recorder Adhesive Mount or Suction Mount Car Adapter 32GB microSD Memory Card Quick Start Guide Warranty Card...

  • Page 5: System Requirements

    4. System Requirements︱ System requirements for connecting the DrivePro to a desktop or a laptop with a working USB port:  ® Windows  Windows ®  Windows ®  ® Windows  ® OS X 10.8.2 or later  Linux ®...

  • Page 6: Safety Precautions

     Do not use the DrivePro in an environment with strong magnetic fields or excessive vibration.  Only use the car adapter provided by Transcend. Other car adapters may not compatible with the DrivePro.  Lighter sockets of some types of vehicles will still supply power after the car engine is turned off. If your car is of this type, please unplug your car video recorder from the lighter socket to avoid unnecessary power consumption and unexpected issues.

  • Page 7: Getting Started

    6. Getting Started︱ Bracket Socket Built-in Microphone Front Lens Built-in Speaker 2.4” LCD Display Infrared LED Rotatable Rear Lens Recording Indicator Reset Button Emergency Button Power Button Function Buttons mini USB Slot microSD Slot...

  • Page 8: Inserting A Microsd Memory Card

    Settings button during recording, and select Format Card. WARNING: 1. DrivePro 520 can only support FAT32 file format, but not NTFS. 2. Be sure to set the Allocation Unit Size to 32 KB when formatting the microSD card.

  • Page 9: Mounting The Drivepro

    Mounting the DrivePro Insert the mount bracket into the top of the DrivePro, and slide sideways until you hear a click. Thoroughly clean and dry the area of the windshield you wish to mount the DrivePro. If possible, mount the DrivePro in the middle of the windshield near the rear-view mirror for the best field of view.

  • Page 10: Connecting To Power

    After the DrivePro is in the best position, turn the adjustment knob clockwise to make sure that the DrivePro is securely locked in place. Connecting to Power Note: Insert a microSD memory card before connecting the DrivePro to your car’s lighter socket. 1.

  • Page 11: Recording Screen

    Recording Screen (1) Recording indicator (2) Video resolution (3) WI-FI indicator (4) GPS indicator (5) Voice record status (6) Battery status (7) Date/Time Function Buttons Mode Video Recording Power / Wi-Fi Browse Files Settings Snapshot Browse/Settings Back* Down Video Playback Back* Play/Pause Protected/Unprotected...

  • Page 12: Led Indicator Reference Chart

    LED Indicator Reference Chart Wi-Fi Status Definition ● Flashing Recording with Wi-Fi Solid Standby with Wi-Fi ● Flashing Recording Solid Standby Setting the Date, Time and Time Zone  To set the current date and time: During video recording, press the Settings button to select Date/Time Settings, and press to adjust values, and press to move to the next block.

  • Page 13: Recording Videos

    7. Recording Videos︱ After the car engine is switched on, the DrivePro will automatically turn on and start recording. By default, one video file is saved for every 3 minute of recording. To adjust the recording length, please refer to the Settings section in this manual. After the car engine is switched off, the DrivePro will automatically save the current recording and power off.

  • Page 14: Low Battery

    G-Sensor Event Recording: During video recording, the DrivePro will automatically activate Emergency Recording mode when detecting a collision. If the G-Sensor sensitivity is set to “High”, even minor shocks will activate Emergency Recording  mode.  If the G-Sensor sensitivity is set to “Low”, only significant shocks will activate Emergency Recording mode.

  • Page 15: Playing Videos And Browsing Photos

    8. Playing Videos and Browsing Photos︱ Playing Videos / Browsing Photos 1. During video recording, press the Browse button 2. Use to select either Normal, Emergency or Snapshot, and press 3. Use to select the desired file, and press to preview 4.

  • Page 16: Deleting Videos/Photos

    Deleting Videos/Photos 1. Press to delete video/photo files. 2. Use to cancel or confirm the deletion of the video/photo file, and press Protecting Videos 1. Press to protect the video file. 2. Use to select the desired option and press...

  • Page 17: Settings

    9. Settings︱ In the Settings menu, you can adjust settings of video resolution, recording time and G-Sensor sensitivity. You can also set the date/time, change the interface language, format the memory card, and upgrade firmwares etc. 1. Press the Settings button 2.
  • Page 18 Menu Options Resolution: Set the resolution/quality for video recording (front lens+rear lens). Available options: FHD+480P / 1080P+720P / 720P+720P Exposure Value: Adjust exposure composition value to lighten or darken the preview screen. Available options: +2.0 ~ -2.0 Video Length: Set the recording length of each recorded video file. Available options: 1 min / 3 mins / 5 mins Video Stamp: Display the current time of the event or GPS information of the video being recorded.
  • Page 19 Upgrade Firmware: Keep your DrivePro up-to-date with the latest version downloaded from Transcend website http://www.transcend-info.com/Support/service. After downloading the firmware from Transcend website, decompress it and put it in the “SYSTEM” folder in the microSD memory card. Insert the microSD memory card that contains the latest firmware version.
  • Page 20 WARNING: NEVER remove the power cord or the microSD memory card while the firmware is being upgraded. The DrivePro 520 will shut down and the red LED light will flash while the firmware is being upgraded. After the upgrade is complete, the DrivePro will restart automatically.

  • Page 21: Using The Drivepro App

    10.Using the DrivePro App︱ Developed specifically for iOS and Android devices, the free download DrivePro App allows you to wirelessly view real-time video footages during recording, control DrivePro functions and play videos directly from your mobile devices. Downloading and Installing the App 1.

  • Page 22: Drivepro Toolbox™ Software

    Connect the DrivePro or use a microSD card slot supported card reader or adapter to play back recorded video events on your Windows OS computer. 3. Show Your Driving Paths See your driving paths of the recorded video displayed on maps (this feature only works with DrivePro 220 & DrivePro 520’s GPS receiver).

  • Page 23: Transferring Files To A Computer

    12.Transferring Files to a Computer︱ To transfer files between the DrivePro’s memory card and your computer: Option 1: Take the microSD memory card out of the DrivePro, and insert to a compatible card reader to transfer files to your computer. Option 2: Insert the microSD memory card into the DrivePro.
  • Page 24 *Note: (E:) is an example drive letter – the letter in your “My Computer” window may differ. Your DrivePro is now ready to transfer data just like an external hard drive. To transfer videos, simply drag-and-drop files from the folder that represents the DrivePro. Proper removal of your DrivePro from Windows: Click once on the Removable Hardware icon in the system tray.
  • Page 25 NEVER use the “format” or “initialize disk” function while the DrivePro is connected to your computer, even if prompted to do so.

  • Page 26: Troubleshooting

    DrivePro for repair. If you cannot find any ideal solution to your question below, please consult your dealer, service center, or local Transcend branch office for further help. You can also visit Transcend website for FAQ and Technical Support services. For any Hardware issues, please refer to the DrivePro User’s Manual.

  • Page 27: Specifications

    14.Specifications︱ Display Type & Size 2.4" color LCD Connect Interface: USB 2.0 MLC-based microSD, 8GB / 16GB / 32GB (Class 10 or Storage Capacity: above) 96.2 mm (L) × 64.5mm (W)× 43.9 mm (H) Dimensions: 3.79” (L) x 2.54” (W) x 1.73” (H) 108g Weight: 3.81 oz...
  • Page 28 Using TLC-based memory cards on your car video recorder might result in unstable performance. 2. Transcend offers Ultimate microSD card series (633x & Note: 600x) for selection to reach the most stable recording performance in addition to the bundled microSD card.

  • Page 29: Recycling And Environmental Protection

    15.Recycling and Environmental Protection︱ Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means that the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste.

  • Page 30: Federal Communications Commission (Fcc) Statement

    16.Federal Communications Commission (FCC) Statement︱ This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.

  • Page 31: Two-Year Limited Warranty

    Under special circumstances, Transcend may refund or credit the current value of the product at the time the warranty claim is made. The decision made by Transcend shall be final and binding upon you. Transcend may refuse to provide inspection, repair or replacement service for products that are out of warranty, and will charge fees if these services are provided for out-of-warranty products.

  • Page 32: Gnu General Public License (Gpl) Disclosure

    WITHOUT ANY WARRANTY, without even implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. The entire risk as to the quality and performance of the GPL Software is with you. Transcend does not provide any support for the GPL software.
  • Page 33 (a) This Agreement constitutes the entire agreement between Transcend and Customer concerning the subject matter hereof, and it may only be modified by a written amendment signed by an authorized executive of Transcend. (b) Except to the extent applicable law, if any, provides otherwise, this Agreement will be governed by the law of the Republic of China, excluding its conflict of law provisions.
