M8460S/ Opposite Hand

Parts List

SATO America, Inc.
10350-A Nations Ford Rd.
Charlotte, NC 28273
Tel (704) 644-1650
Fax (704) 644-1662
P/N 9001062
REV. C

Advertisement

Table of Contents
loading

Related Manuals for SATO M8460S

Summary of Contents for SATO M8460S

  • Page 1: Parts List

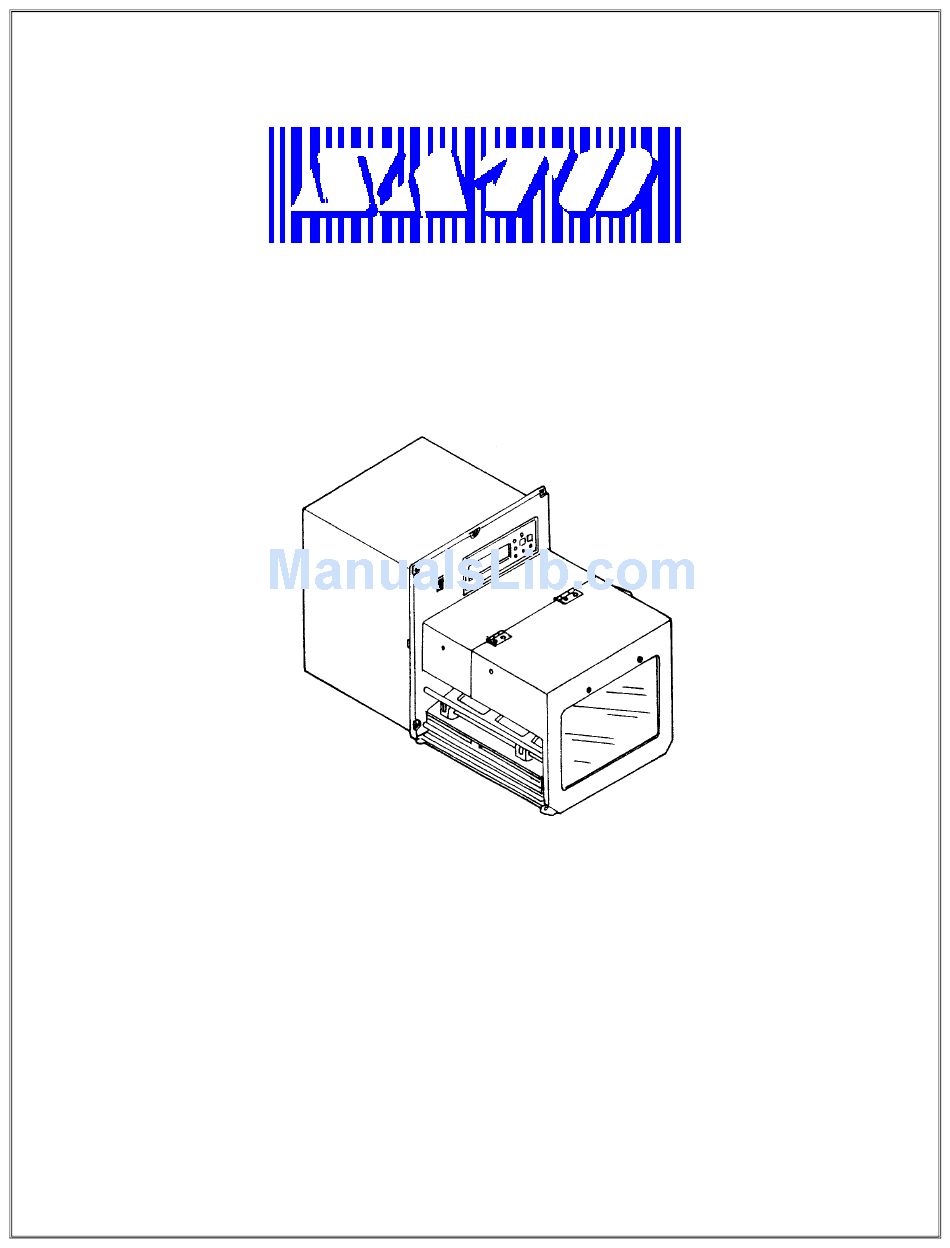

    M8460S/ Opposite Hand Parts List SATO America, Inc. 10350-A Nations Ford Rd. Charlotte, NC 28273 Tel (704) 644-1650 Fax (704) 644-1662 P/N 9001062 REV. C...

  • Page 2: Table Of Contents

    M8460S Opposite Hand Table of Content Frame Assembly Thermal Head Assembly Platen Frame Assembly Ribbon Assembly Cover Assembly Main PCB Assembly Check PCB Assembly Memory Card PCB Assembly (Option) 3 – 8 9 – 11 12 – 18 19 – 24 25 –...

  • Page 3: Frame Assembly

    M8460S Opposite Hand Frame Assembly...
  • Page 4 M8460S Opposite Hand Frame Assembly...
  • Page 5 M8460S Opposite Hand Frame Assembly...
  • Page 6 M8460S Opposite Hand Frame Assembly...
  • Page 7 M8460S Opposite Hand Frame Assembly ITEM # Part Number Description PR1734600 Engine frame MD3300822 Pan head screw MA0301022 Pan head screw MT1300522 Hex nut PB0734200 Guide post MC0401022 Pan head screw PR1734700 Stay MN0401224 Hex bolt PA3739400 Guide plate (head bracket)
  • Page 8 M8460S Opposite Hand Frame Assembly ITEM # Part Number Description MD3300822 Pan head screw RH1731600 DSW cable set PB0731701 Shaft (idle) PE8730100 Gear PE8730300 Pulley PT1112060 Ball supporter ND0040030 E-snap ring PT8150064 Timing belt (motor) PT8085048 Timing belt PA1730500 Shaft bracket...

  • Page 9: Thermal Head Assembly

    M8460S Opposite Hand Thermal Head Assembly...
  • Page 10 M8460S Opposite Hand Thermal Head Assembly...
  • Page 11 M8460S Opposite Hand Thermal Head Assembly ITEM # Part Number Description PV3739200 Head frame MN0401024 Hex bolt PA1730300 Plate (adjust) PL2730100 Adjust collar MN0400824 Hex bolt NA0040022 Plain washer PR1734800 Pressure cam ND0060030 E-snap ring PD1730600 Handle (A) PA2730600 Latch handle (C)

  • Page 12: Platen Frame Assembly

    M8460S Opposite Hand Platen Frame Assembly...
  • Page 13 M8460S Opposite Hand Platen Frame Assembly...
  • Page 14 M8460S Opposite Hand Platen Frame Assembly...
  • Page 15 M8460S Opposite Hand Platen Frame Assembly...
  • Page 16 M8460S Opposite Hand Platen Frame Assembly ITEM # Part Number Description MN0401024 Hex bolt MN0402024 Hex bolt PR4731700 Platen frame PB2740100 Collar PE3720300 Roller MJ9301022 Thin head screw PB0730501 Post (latch) PA4730700 Plate spring PB0733500 Shaft (holder) NB0040022 Spring washer...
  • Page 17 M8460S Opposite Hand Platen Frame Assembly ITEM # Part Number Description MN0300624 Hex bolt RH1732500 SEN 1 cable MD4300622 Pan head screw PA3738000 Micro switch bracket MC0300622 Pan head screw RH1731500 SEN 7 cable MA0200821 Pan head screw RB2736100 Paper lid...
  • Page 18 M8460S Opposite Hand Platen Frame Assembly ITEM # Part Number Description PE3720200 Roller PE3720500 Roller PA3739700 Paper guide (lid) MC0300622 Pan head screw RB6730500 Pressure roller PL1731400 Roller holder (pressure) PB0735300 Pressure roller PT1108040 Ball supporter PA4730300 Plate spring MJ9300622...

  • Page 19: Ribbon Assembly

    M8460S Opposite Hand Ribbon Assembly...
  • Page 20 M8460S Opposite Hand Ribbon Assembly...
  • Page 21 M8460S Opposite Hand Ribbon Assembly...

  • Page 22: Cover Assembly

    M8460S Opposite Hand Cover Assembly...
  • Page 23 M8460S Opposite Hand Ribbon Assembly ITEM # Part Number Description PT1112080 Ball supporter PC0730100 Spring (back) PR1731900 Pulley PR1734400 Pulley MH0300822 P-tight screw PA1731800 Ribbon frame MC0401022 Pan head screw PA1731000 Adjust plate MD4300622 Pan head screw PV9730100 Bush PC0740200...
  • Page 24 M8460S Opposite Hand Ribbon Assembly ITEM # Part Number Description PE4720200 Plate holder MA0301822 Pan head screw PA0730100 Guide plate MH1250621 P-tight screw PA0730200 Hold plate PA0680300 Lining PE1681100 Guide plate (B) PR1720300 Ribbon boss PA4690900 Spring MH0300521 P-tight screw...
  • Page 25 M8460S Opposite Hand Cover Assembly...
  • Page 26 M8460S Opposite Hand Cover Assembly ITEM # Part Number Description PH1731002 Close cover (A) MC0301022 Pan head screw MC0401022 Pan head screw PH1732200 Close cover (B) MC0301022 Pan head screw PH1732000 Close cover (C) MD4300622 Pan head screw PA1730900 Sub cover...
  • Page 27 M8460S Opposite Hand Cover Assembly ITEM # Part Number Description MC0301022 Pan head screw MC0401022 Pan head screw RH1732000 POW 1 cable RH1732100 POW 2 cable...

  • Page 28: Main Pcb Assembly

    M8460S Opposite Hand Main PCB Assembly Main PCB Assembly ITEM # Part Number Description RJ1731100 Main PCB PA3735400 PCB bracket (af) PA3735500 PCB bracket (bf) MD4300622 Pan head screw MD4300622 Pan head screw PC9730100 Spring (lock) PC9680000 Lock spring...

  • Page 29: Check Pcb Assembly

    M8460S Opposite Hand Check PCB Assembly Check PCB Assembly ITEM # Part Number Description RJ4730600 Check PCB RH4730000 Check cable PA3736600 PCB bracket PT9681600 Spacer NA0030022 Plain washer MT1300522 Hex nut MD4300822 Pan head screw...

  • Page 30: Memory Card Pcb Assembly (Option)

    M8460S Opposite Hand Memory Card PCB Assembly (Option) Memory Card PCB Assembly ITEM # Part Number Description RJ1723100 Card PCB set PT9730000 Spacer MD3300622 Pan head screw (Option)
