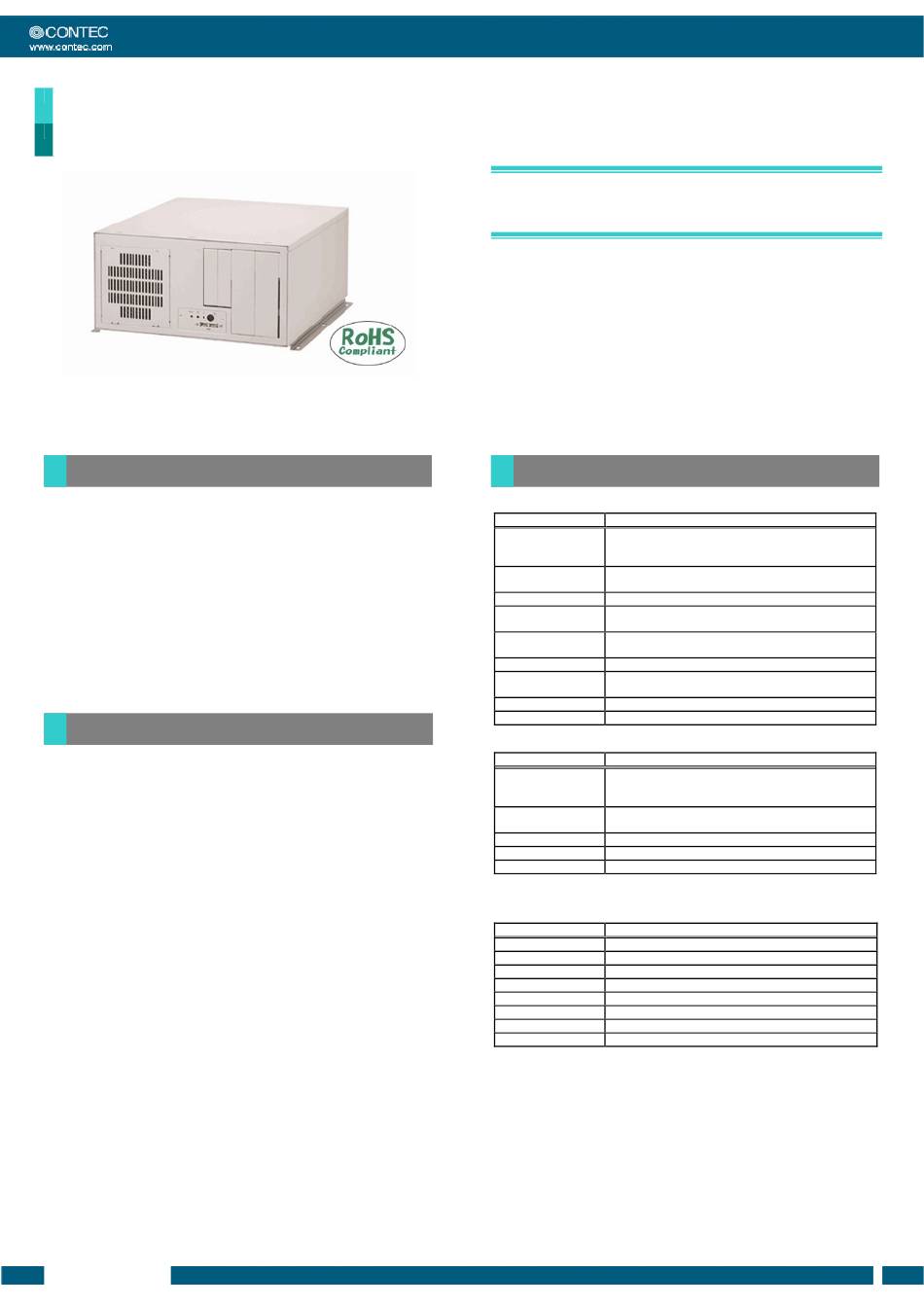

Contec FA-UNIT-F11BE Quick Start Manual

Wall-Mount / Desk-Top Chassis for SBCs
FA-UNIT-F11BE
* Specifications, color and design of the products are subject to
change without notice.
Features
A PICMG compliant, PCI bus or ISA bus backplane can be
mounted.
Equipped with 5-inch-drive bay x 2 and 3.5-inch drive bay x 2.
Equipped with a power switch, reset switch, and USB
connectors at the front.
Equipped with a built-in cooling fan. The dustproof filter and
cooling fan can be replaced externally. These fans can easily
be replaced externally, without removing the top cover.
A chassis fixing bracket is attached as standard.
Configuration
Backplanes are sold separately. You need prepare a CONTEC
backplane corresponding to this product, separately. For more
details of the corresponding backplanes, see "Option".
When using a third-party's backplane, pay attention to the
positions of the backplane installation holes, installable size,
and power supply specifications of this product.
This product has a space that can contain two 5-inch drives
and two 3.5-inch drives. It also has a power ON/OFF switch,
power supply LED, HDD access LED, reset switch and two
USB connectors on the front surface of the case.
* Depending on the combination of the backplane, SBC and expansion board mounted on
this product, one of the three installable 3.5-inch drives may not be installed. For details,
contact our general information center.
FA-UNIT-F14BE
This product is a chassis used to mount a backplane and SBC
and configure a computer system in combination with
expansion boards and various drives.
Specification
General specifications
Item
Number of user slots 9 full-size slot
+
2 half- size slot
Installable board (mm) Full-size : 340.5(L) x 122.0(H) (Max.)
Half-size : 220.0(L) x 122.0(H) (Max.)
Rack mountable EIA 19-inch rack mountable
Fan Inlet x 1
(Excluding power supply fan)
Drives 5-inch x 2
3.5-inch x 2
Number of slot holes 11
Installable Backplane 246.4(W) x 264.2(D) (Max.)
dimensions (mm) BPM-1111, BPI-1111, BPC-1111
Dimensions (mm) 364(W) x 177(H) x 420(D) (Excluding raised parts)
Weight About 11kg (Excluding backplane, motherboard, drives, etc.)
Power supply specifications
Item
Power capacity *1 +5V 25A -5V 0.3A
+3.3V 25A -12V 0.8A
+12V 15A +5VSB 2A
Overall maximum power 300W
supply capacity
AC Power Voltage *2 115VAC/230VAC(50/60Hz) (SW selection)
Input current 10A(115VAC)/5A(230VAC)
AC Outlet None
*1 Total of +5V and +3V shall not exceed the power of 200W.
*2 Input voltage range for AC power supply : 90 - 132VAC / 180 - 250VAC
Environmental specification
Item
Operating temperature 0 - 50°C
Operating humidity 10 - 80%RH(No condensation)
Storage temperature 0 - 60°C
Storage humidity 10 - 90%RH(No condensation)
Vibration resistance 10 - 57Hz/semi-amplitude 0.075mm 57 - 150Hz/1.0G
Impact resistance 10G, half-sine shock for 11 ms
Floating dust particles Not to be excessive
Corrosive gases None
* The values in the above are constrained with the boards or the components such as
drives installed inside the product, so the figures do not necessarily represent the
tolerances for every operating condition.
Ver.1.01
