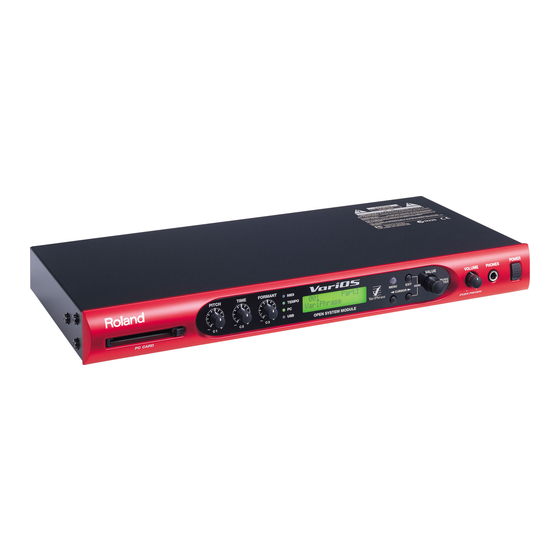

Roland VariOS User Manual

Sound module
Hide thumbs Also See for VariOS:

Advertisement

Introduction
VariOS-8 is a trial application that transforms your VariOS into a completely different sound module.
When the VariOS-8 program is installed, you can use the VariOS as an analog modeling synthesizer.
You can use a rich array of parameters to produce realistic analog synthesizer sounds.
Copyright © 2003 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND
CORPORATION.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
Windows® is known officially as: "Microsoft® Windows® operating system."
Apple and Macintosh are registered trademark of Apple Computer, Inc.
MacOS is a trademark of Apple Computer, Inc.
Pentium is a registered trademark of Intel Corporation.
About this program

File structure

• VariOS-8 main program
If this program is installed in the VariOS's internal flash ROM, the VariOS can function as an analog modeling synthesizer.
• VariOS-8 controller software (Windows/Macintosh)
This is editor software that lets you control the functions of the VariOS-8 from your computer.
Features
Once you have installed the program into the internal flash ROM of the VariOS, you can use a simple button operation to start up
the VariOS as the VariOS-8. Since the previous program will still remain, the normal power-on operation will start up the VariOS
with its conventional functionality.
1

Advertisement

Table of Contents
loading

Summary of Contents for Roland VariOS

  • Page 1: File Structure

    Features Once you have installed the program into the internal flash ROM of the VariOS, you can use a simple button operation to start up the VariOS as the VariOS-8. Since the previous program will still remain, the normal power-on operation will start up the VariOS...
  • Page 2: Specifications/System Requirements

    * Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the VariOS-8 Controller, Roland cannot guarantee that a given computer can be used satisfactorily with the VariOS-8 Controller based solely on the fact that it meets the above requirements.
  • Page 3: Names Of Things And What They Do

    Names of Things and What They Do Refer to "Names of Things and What They Do" in the "VariOS User Guide." The following points will be different when you use VariOS-8. Front Panel B. PITCH/TIME/FORMANT Knobs PITCH (C1) Knob TIME (C2) Knob FORMANT (C3) Knob C.
  • Page 4: Before You Begin Installation

    1. Hold down the three buttons [MENU], [<CURSOR], and [VOLUME] of the VariOS, and turn on the power of it. 2. Connect your computer and the VariOS via a USB cable. The internal flash ROM of the VariOS will be detected by your computer as a drive, and will be mounted under the drive name shown in the following table.
  • Page 5: Startup And Settings

    Before you start up VariOS-8 Controller, you must connect the VariOS to your computer via a USB cable and start up VariOS-8. If you first start up VariOS-8 Controller and then start up VariOS-8 or connect the USB cable, or if you have turned off the power of the VariOS or disconnected the USB cable while VariOS-8 Controller is running, you must close VariOS-8 Controller and then restart it.
  • Page 6 If you’ve connected a MIDI keyboard, set this channel to match the channel your MIDI keyboard is using for transmission. * The setting of the Receive Ch field is linked with the [Menu2 Receive Channel] setting of the VariOS hardware module. Refer to “Setting the MIDI Receive Channel” on p. 8.
  • Page 7: Basic Operation

    Turn the [VALUE] knob to select patches. Playing from a connected keyboard (MIDI Mode) You can connect your MIDI keyboard to the VariOS. In this case, you can change the MIDI routing (PC mode, Internal mode) in the following ways.
  • Page 8: Internal Mode

    3. Turn the [VALUE] knob to switch the setting between “Internal” or “PC.” fig.042-0054+_75 The “PC indicator” on the front panel of the VariOS shows the current MIDI Mode status. When this is lit, “PC” mode is selected. When dark, “Internal” mode is selected.
  • Page 9: Selecting A Patch

    Basic operation Basic operation for VariOS-8 Controller Changing Skins You can change the appearance of VariOS-8 by choosing [Skin] from the [Setup] menu. Selecting a patch To select a patch from a list, click the [LIST] button. Editing a value You can edit values by clicking (and dragging) buttons, sliders, or knobs.
  • Page 10 Renaming a patch To rename a patch, click the [NAME] button. Writing a patch Click the [WRITE] button to open the Write dialog box. Select the write-destination patch number, and click the OK button. Patches will be saved in the VariOS itself.
  • Page 11: Screen Reference

    Adjusts the overall tuning. The display of 440 Hz shows the frequency of the A4 note (center A). READ Loads settings from the VariOS-8 into VariOS-8 controller so that the Controller screen matches the settings of the unit itself. ARPEGGIO...
  • Page 12 Screen reference KBD (Keyboard) Parameter Value Description VELO SENS -63–+63 Set this when you want the amount of the envelope to change depending on the force with which you press the keys. Set this to a positive (+) value to have the changes in envelope amount increase the more forcefully the keys are played;...
  • Page 13 MOD (Modulator) Selects the type of modulator. Value Description Add OSC1 and OSC2. RING Use OSC2 to apply ring modulation to OSC1. Use OSC2 to apply FM (frequency modulation) to OSC1. ENV RING Use the envelope of OSC2 to control the volume of OSC1. OSC SYNC Synchronize the output waveform of OSC1 to the output waveform of OSC2.
  • Page 14 Screen reference Parameter Value Description LEVEL 0–127 Specifies the volume of the patch. 0–127 Specifies the attack time of the envelope (the time from when you press a key until the envelope level reaches the maximum value). 0–127 Specifies the decay time of the envelope (the time from when the envelope level reaches the maximum value until it falls to a constant value).
  • Page 15 EFFECTS Parameter Description Switch multi-effects on/off. Switch chorus on/off. Switch reverb on/off. DETAIL When you click the Detail button, the Effects dialog box will open. Here you can make more detailed settings. -> p. 19 PORTAMENTO Parameter Value Description ON/OFF OFF, ON Specifies whether the portamento effect will be applied (ON) or not (OFF).
  • Page 16 Screen reference BENDER Click BENDER to display the Bender dialog box. Parameter Value Description BEND RANGE 0–48 Specifies the degree of pitch change in semitones when the Pitch Bend lever is all the way left. For DOWN example if this is set to “48” and you move the pitch bend lever all the way to the left, the pitch will fall 4 octaves.
  • Page 17 OSC1/2 screen 1. OSC LFO1/2 Parameter Value Description RATE 0–127 Adjusts the modulation rate, or speed, of the LFO. DELAY 0–127 Delay Time (LFO Delay Time) specifies the time elapsed before the LFO effect is applied (the ef- fect continues) after the key is pressed (or released). FADE IN 0–127 Specifies the time over which the LFO amplitude will reach the maximum.
  • Page 18 Screen reference TVF screen 1. TVF LFO Parameter Value Description RATE 0–127 Adjusts the modulation rate, or speed, of the LFO. DELAY 0–127 Delay Time (LFO Delay Time) specifies the time elapsed before the LFO effect is applied (the ef- fect continues) after the key is pressed (or released).
  • Page 19: Effects Screen

    Effects screen Parameter Value Description MFX SEND 0–127 Sets the level of the signal sent to MFX. CHO SEND 0–127 Sets the level of the signal sent to chorus. REV SEND 0–127 Sets the level of the signal sent to reverb. TO CHO 0–127 Adjusts the amount of chorus for the sound that passes through MFX.
  • Page 20 Screen reference RING Parameter Value Freq 0–127 Balance DRY100:0WET–DRY0:100WET Volume balance between the direct sound (DRY) and the ring modulated sound Parameter Value Description Low Freq 50–4000 Hz Frequency of the low range Low Gain -15– +15 dB Gain of the low range Mid Freq 50–20000 Hz Frequency of the middle range...
  • Page 21 DELAY Parameter Value Description DelayTime 0–1300 ms Adjusts the delay time from the direct sound until the delay sound is heard. Feedbk -98– +98 % Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings will invert the phase.
  • Page 22: About Midi Channels

    When playing VariOS-8 from a sequencer, choose Roland VariOS MIDI as the output port for the corresponding track in your sequencer, and set the MIDI output channel to match the MIDI Receive Channel of the VariOS. You can use either of the following two methods to set the VariOS’s MIDI Receive Channel.
  • Page 23 First use the "Installation" (p. 4) procedure described in this manual to copy VA.prj to the internal flash ROM of the VariOS. 1. Make sure that a PC card is not inserted in the PC card slot of the VariOS. Then use a USB cable to connect the VariOS to your computer, and start up the computer.
  • Page 24 This completes the installation. Refer to "Usage," below. Usage 1. When you insert the PC card into the VariOS and power-on the VariOS, the VariOS trial application that was written to the PC card will start up. If you want to start up the internal program of the VariOS, remove the PC card and power-on the VariOS.
  • Page 25: Midi Implementation

    * Transmission of “#” marked address is divided to some packets. For example, ABH in hexadecimal notation will be divided to 0AH and 0BH, and is sent/received in this order. ■VariOS-8 (ModelID = 00H 6DH) +------------------------------------------------------------------------------+ | Start Address |...
  • Page 26 MIDI Implementation ❍Patch Effect +------------------------------------------------------------------------------+ | Offset Address | Description |-------------+----------------------------------------------------------------| 00 01 | 0aaa aaaa | MFX Chorus Send Level 00 02 | 0aaa aaaa | MFX Reverb Send Level 00 03 | 0aaa aaaa | (reserved) 00 04 | 0aaa aaaa | (reserved) 00 05 | 0aaa aaaa | (reserved) 00 06 | 0aaa aaaa | (reserved) 00 07 | 0aaa aaaa | (reserved)
  • Page 27 MIDI Control Change Table VariOS-8 MIDI Control# MIDI Controller Name Bank Select MSB Modulation Breath Type Foot Type Portament Time Data Entry MSB Volume Balance Expression General Purpose Controller 1 MSB General Purpose Controller 2 MSB General Purpose Controller 3 MSB...
  • Page 28 Phaser Data Increment Data Decrement NRPN LSB NRPN MSB RPN LSB RPN MSB * Parameters shown in parentheses ( ) cannot be edited using VariOS-8 Controller. Parameter Name Range TVF Reso Sustain Level 0–127 TVF Reso Env Release Time 0–127 TVF Reso Velocity Sens 1–127...
