Instructions - Parts List

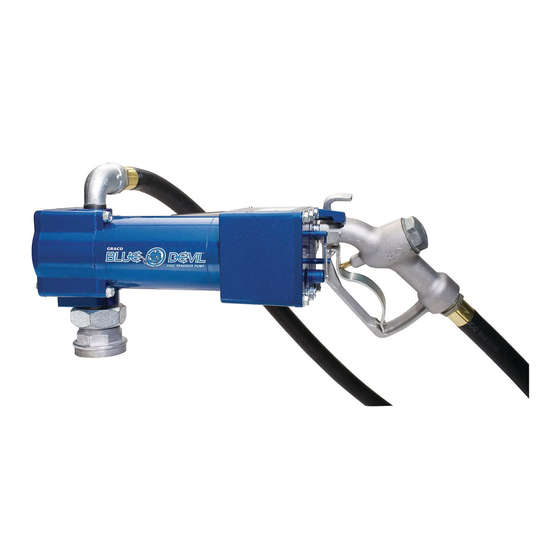

Fuel Transfer Pump
For pumping gasoline, diesel fuel, and kerosene. Do not use to pump other fluids
including water.
Models 260000 through 260017, 260019 and 260024,
10 gpm (38 lpm), 12 VDC (CSA C/US listed motor)
Models 260020 and 260021, 10 gpm (38 lpm), 24 VDC
Models 260022 and 260023, 12 gpm (45 lpm), 230 VAC
Models 260025 through 260028, 12 gpm (45 lpm), 115 VAC
10 psi (0.07 MPa, 0.7 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Contents
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Mounting Pump . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Mounting Hose and Nozzle . . . . . . . . . . . . . . . . . 5
Electrical Installation 12 VDC and 24 VDC . . . . . 5
Priming Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Parts Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Performance Chart . . . . . . . . . . . . . . . . . . . . . . . 13
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 14
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 14
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2005, Graco Inc. is registered to I.S. EN ISO 9001
311304 rev.C
CSA mark applies only to 12 VDC motors
for Class I, Div I, Group D Hazardous
Locations
Advertisement
Table of Contents
Related Manuals for Graco BLUE DEVIL 260000
Summary of Contents for Graco BLUE DEVIL 260000
-
Page 1: Table Of Contents
Graco Standard Warranty ....14 Graco Information ......14... -
Page 2: Models
Models Models Part No. Hose Nozzle 12 VDC, 10 gpm (38 lpm), 12.5 amps 260000 260069 - 12 ft (3.66 m) grounded 260079 - manual, leaded/diesel 260001 260069 - 12 ft (3.66 m) grounded 260082 - automatic, regular 260002 260069 - 12 ft (3.66 m) grounded 260078 - manual, unleaded 260003 260069 - 12 ft (3.66 m) grounded... -
Page 3: Warnings
Warnings Warnings The following general warnings are for the setup, use, grounding, maintenance, and repair of this equipment. Addi- tional, more specific warnings may be found throughout the body of this manual where applicable. Symbols appear- ing in the body of the manual refer to these general warnings. When these symbols appear throughout the manual, refer back to these pages for a description of the specific hazard. - Page 4 Read fluid and solvent manufacturer’s warnings. For complete information about your material, request MSDS forms from distributor or retailer. • Check equipment daily. Repair or replace worn or damaged parts immediately with genuine Graco replacement parts only. •...
-
Page 5: Installation
Suction tubes longer than 60 in. (1.52 m) require a foot valve (Graco Part No. 5. Slide strain relief (6b) over end of power cable (6c) 260217) at the bottom of the tube to prevent loss of on the end just stripped. -
Page 6: Electrical Installation 115 Vac And 230 Vac
Connect black wire to negative bat- tery terminal. 3. To hold fluid in the suction tube, a check valve (Graco Part No. 260217) may be required on the bottom of tanks with a suction height over 5 ft (1.52 Electrical Installation 115 VAC and 230 VAC 4. -
Page 7: Operation
Operation Operation Maintenance 1. Clean inlet strainer (3b) after every 50 hours of operation. Before servicing, turn pump off and open the nozzle to relieve pressure. 2. To remove inlet strainer (3b), remove four screws (3c) and strainer cover (3a). Remove and clean strainer. -
Page 8: Troubleshooting
Troubleshooting Troubleshooting Problem Cause Solution Motor runs but pump will not prime. Motor rotation wrong. (12 VDC and Check wiring instructions for possible 24 VDC units only.) problems. Missing relief valve o-ring seal Remove gear cover (1b) inspect seal (4c/7a). (4c/7a), replace if missing or damaged. - Page 9 Troubleshooting Problem Cause Solution Motor stalls when nozzle is closed. Bypass relief valve (4a) stuck. Inspect relief valve, making sure poppet is free. Replace if damaged. Low supply voltage. Check supply voltage. Gears (1c/10a) damaged and Inspect gears. Gears should turn binding.
-
Page 10: Parts Drawing
Parts Drawing Parts Drawing Models 260000 through 260017, 260019, and 260024, 12 VDC 260456 Models 260020 and 260021, 24 VDC 3d/7e Models 260022 and 260023, 230 VAC Models 260025 through 260028, 115 VAC Packing Kit 260434 includes items 7a-7f 260458 which are also included in other kits. -
Page 11: Parts List
Parts List Parts List Models 260000 through 260017, 260019, and 260024, 12 VDC Models 260020 and 260021, 24 VDC Models 260022 and 260023, 230 VAC Models 260025 through 260028, 115 VAC Ref. No. Description Qty. Ref. No. Description Qty. GUIDE, nozzle 260458 KIT, pump with swivel, blue (includes items 1a-1k) - Page 12 Parts List (continued) Parts List (continued) Models 260000 through 260017, 260019, and 260024, 12 VDC Models 260020 and 260021, 24 VDC Models 260022 and 260023, 230 VAC Models 260025 through 260028, 115 VAC Ref. No. Description Qty. 260433 KIT, switch, blue (includes items 8a-8g) 253718 KIT, switch, black...
-
Page 13: Technical Data
Technical Data Technical Data Working pressure 10 psi (0.07 MPa, 0.7 bar) Inlet size 1 in. npt Outlet size 3/4 in. npt Weight 20 lb (9 kg) Power cable 18 ft (5.5 m), 14 AWG (12 VDC and 24 VDC models only) Current draw 12 VDC models: 12.5 amps 24 VDC models: 7 amps... -
Page 14: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
