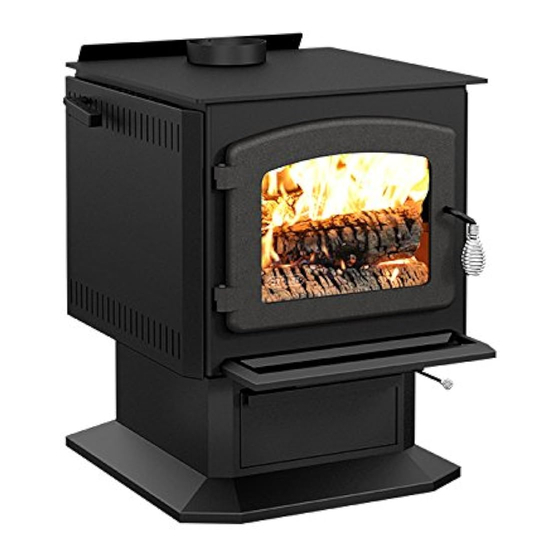

OWNER`S MANUAL
DROLET NG1800 WOODSTOVES:
AUSTRAL, AZIMUTH, BALTIC, LEGEND AND
MYRIAD
US ENVIRONMENTAL PROTECTION
AGENCY PHASE II CERTIFIED
WOODSTOVES
Verified and tested following
ULC S627 and UL 1482 Standards by:
Intertek Testing Services
Manufactured by : STOVE BUILDER INTERNATIONAL INC..
1700, Léon-Harmel, Québec (Québec) G1N 4R9
Tel : (418 ) 527-3060
Fax : (418 ) 527-4311
www.drolet.ca
READ AND KEEP THIS MANUAL FOR REFERENCE
45063A_rev. fev.03.doc
Advertisement
Table of Contents
Related Manuals for Drolet AUSTRAL
Summary of Contents for Drolet AUSTRAL
- Page 1 OWNER`S MANUAL DROLET NG1800 WOODSTOVES: AUSTRAL, AZIMUTH, BALTIC, LEGEND AND MYRIAD US ENVIRONMENTAL PROTECTION AGENCY PHASE II CERTIFIED WOODSTOVES Verified and tested following ULC S627 and UL 1482 Standards by: Intertek Testing Services Manufactured by : STOVE BUILDER INTERNATIONAL INC..
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION....................... 2 TECHNICAL SPECIFICATIONS ..................3 ASSEMBLY ........................4 BALTIC .......................... 4 AUSTRAL, AZIMUTH, LEGEND AND MYRIAD ............5 DOOR ADJUSTMENT ....................6 INSTALLATION......................... 7 POSITIONING THE STOVE ..................7 FLOOR PROTECTOR ....................8 CLEARANCES FROM COMBUSTIBLES ..............9 REDUCED CLEARANCES (CANADA ONLY) ............. -
Page 3: Introduction
INTRODUCTION SBI INC., one of the most important wood stove and fireplace manufacturers in Canada, congratulates you on your purchase and wishes to help you get maximum satisfaction from your wood stove. In the pages that follow, we will give you advice on wood heating and controlled combustion as well as technical specifications regarding installation, operation and maintenance of the model you have chosen. -
Page 4: Technical Specifications
23 ¾ x 26 ½ x 31 ½ " Baltic, Myriad : (603 x 673 x 800mm) Austral, Legend : 23 ¾ x 26 ½ x 30 ¼ " (603 x 673 x 768mm) 23 7/8 x 30 ¼ x 29 ½ "... -
Page 5: Assembly
ASSEMBLY BALTIC Pedestal Base Installation: 1. Slide the front part of the pedestal base around the pedestal and fix the rear part with the two supplied screws. 2. Slide the ash pan in position. Side Panels and Ash Lip Installation: 1. -
Page 6: Austral, Azimuth, Legend And Myriad
AUSTRAL, AZIMUTH, LEGEND AND MYRIAD Ash Pan Installation:... -
Page 7: Door Adjustment
DOOR ADJUSTMENT In order for your stove to operate properly, the door should be adjusted periodically to provide an air tight fit. To adjust: • Remove the lock pin (spring pin) by pulling and turning it using pliers ("wise grip") •... -
Page 8: Installation
INSTALLATION SAFETY NOTICE • I F THIS STOVE IS NOT PROPERLY INSTALLED A HOUSE FIRE MAY RESULT O REDUCE THE RISK OF FIRE FOLLOW THE INSTALLATION INSTRUCTIONS AILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE BODILY INJURY OR EVEN DEATH •... -
Page 9: Floor Protector
FLOOR PROTECTOR Your wood stove should be placed on a non-combustible surface with a R value of 1.0. For multiple layers, add R-values of each layer to determine the overall R-value. The floor protector should be under the stove, eighteen inches beyond the front and eight inches beyond each side of the fuel loading and ash removal opening. -
Page 10: Clearances From Combustibles
It is of outmost importance that the clearances to combustible materials be scrupulously respected upon installation of the stove you have selected. Refer to the tables below : Single pipe / Double pipe Model AZIMUTH 23/24 16/17 13.7/12.7 34.9/35.9 27.9/28.9 AUSTRAL 23/24 16/17 13.7/12.7 34.9/35.9 27.9/28.9 BALTIC 12/12 8.5/8.5 12.7/12.7 23.9/23.9 20.4/20.4... -
Page 11: Reduced Clearances (Canada Only)
REDUCED CLEARANCES (CANADA ONLY) You may decrease the clearances by installing heat radiation shields between the walls or the ceiling and the stove. These heat radiation shields must be installed permanently, and can include sheet metal, a rigid non-combustible sheet or a masonry wall. Clearances of not less than 1"... -
Page 12: Chimney
CHIMNEY Your wood stove may be hooked up with a factory built or masonry chimney. If you are using a factory built chimney, it must comply with UL 103 or ULC S629 standards; therefore it must be a Type HT (2100°F). It is extremely important that it be installed according to the manufacturer's specifications. -
Page 13: Chimney Connector (Stove Pipe)
CHIMNEY CONNECTOR (STOVE PIPE) Your chimney connector and chimney must have the same diameter as the stove outlet. If this is not the case, we recommend you contact your dealer in order to insure there will be no problem with the draught. The stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021"... -
Page 14: Typical Installations
TYPICAL INSTALLATIONS FACTORY BUILT CHIMNEY: RAIN CAP ROOF FLASHING 18" CLEARANCE RADIATION SHIELD WALL RADIATION SHIELD WALL SUPPORT CEILING SUPPORT Wall installation Vertical installation... - Page 15 MASONRY CHIMNEY: C lay liner Thimb le C lean out door...
- Page 16 FACTORY BUILT THIMBLE:...
- Page 17 BRICK THIMBLE:...
-
Page 18: Outside Combustion Air
OUTSIDE COMBUSTION AIR Your DROLET stove is approved to be installed with an outside air intake which is necessary for a mobile home. This type of installation is also required in air tight houses and houses with negative pressure problems. You can purchase this option through your DROLET dealer. -
Page 19: Woodstove Utilisation
WOODSTOVE UTILISATION Your heating unit was designed to burn wood only; no other materials should be burnt. Wastes and other flammable materials should not be burnt in your wood stove. Any type of wood may be used in your stove, but specific varieties have better energy yields than others. -
Page 20: Testing Your Wood
Smaller pieces of wood will dry faster. All logs exceeding 6" in diameter should be split. The wood should not be stored directly on the ground. Air should circulate through the cord. A 24" to 48" air space should be left between each row of logs, which should be placed in the sunniest location possible. -
Page 21: Heating
If you push on it until it stops the combustion air is reduced to a minimum. Your DROLET stove burnt between .954 kg\h et 2.556 kg\h. of wood during EPA testing. Real operating conditions may give very different results than those obtained in the lab according to the species of wood used, its moisture content, the size and density of the pieces, the length of the chimney, altitude and outside temperature. -
Page 22: Reloading
RELOADING Once you have obtained a good bed of embers, you should reload the unit. In order to do so, open the air controls to maximum a few seconds prior to opening the stove's door. Then proceed by opening the door very slowly; open it one or two inches for 5 to 10 seconds, before opening it completely to increase the draught and thus eliminate the smoke which is stagnant in a state of slow combustion in the stove. -
Page 23: Ash Disposal
ASH DISPOSAL Ashes should be removed from the stove every few days or when ashes get to 2 to 3 inches deep. Always empty the stove when it is cold, such as in the morning. Always dispose of ashes in a metal container with a tight fitting lid. Place this container on a non combustible floor or on the ground, well away from all combustible materials, pending final disposal. -
Page 24: Maintenance
Do not abuse the glass door by striking or slamming shut. Do not use the stove if the glass is broken. • If the glass on your stove breaks, replace only with glazing supplied from the Drolet dealer. -
Page 25: Limited Lifetime Warranty
Gold plating (tarnishing) 1 year Shall your unit or a components be defective, contact immediately your Drolet dealer. Prior to your call make sure you have the following information necessary to your warranty claim treatment: • You name, address and telephone number;...
