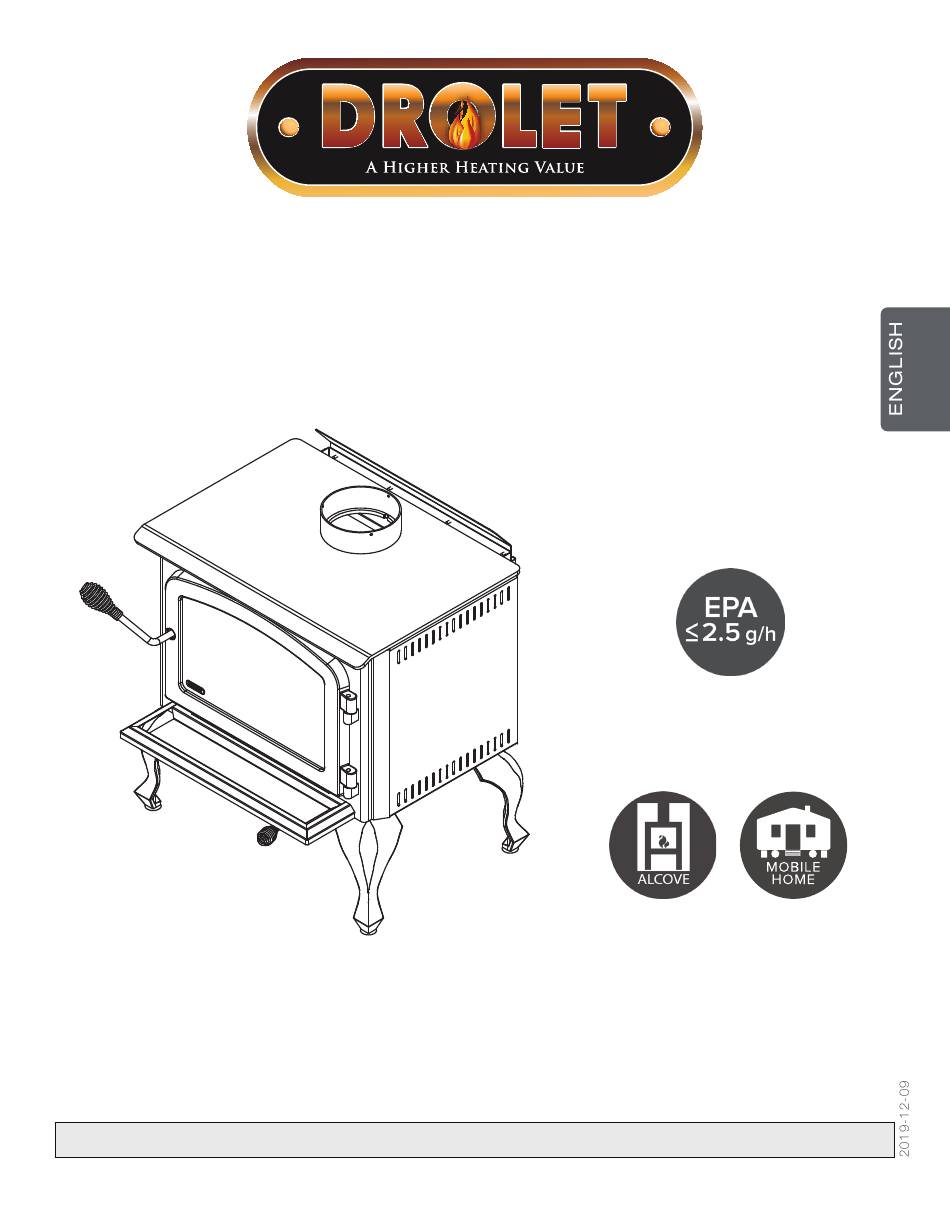

Installation and Operation Manual

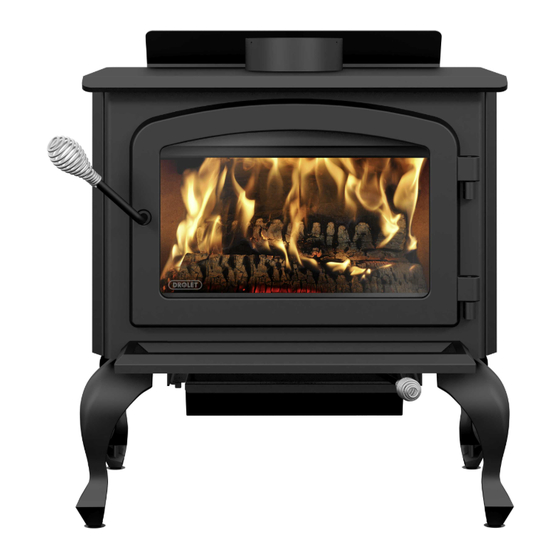

COLUMBIA II
(DB03016 model)
US Environmental Protection Agency
phase II certified wood stove compliant
with 2020 cord wood standard
Safety tested according to ULC S627,
UL 1482 and UL 737 standards by an
accredited laboratory.
MOBILE
HOME
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN
LOCAL AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD STOVE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
READ AND KEEP THIS MANUAL FOR REFERENCE
Printed in Canada
46145A

Advertisement

Table of Contents
loading

Summary of Contents for Drolet COLUMBIA II

  • Page 1 Installation and Operation Manual COLUMBIA II (DB03016 model) US Environmental Protection Agency phase II certified wood stove compliant with 2020 cord wood standard Safety tested according to ULC S627, UL 1482 and UL 737 standards by an accredited laboratory. MOBILE...
  • Page 3 It is also highly recommended to register the warranty online at https://www.drolet.ca/en/warranty/warranty-registration/ Registering the warranty will help to quickly find the information needed on the unit. Installation and Operation Manual - Columbia II Page 3...
  • Page 4: Table Of Contents

    6.5 Exhaust System ........................24 PART B - INSTALLATION ......................26 7. Safety Information and Standards ..................26 7.1 Mobile Home ........................26 7.2 Regulations Covering Stove Installation ................26 7.3 Location of the Certification Label ..................27 Page 4 Installation and Operation Manual - Columbia II...
  • Page 5 Appendix 6: Air Tubes and Baffle Installation ................47 Appendix 7: Mobile Home Installation ..................49 Appendix 8: Exploded Diagram and Parts List ................ 50 DROLET Limited Lifetime Warranty ................... 53 Dealer: Installer: Phone Number: Serial Number: Installation and Operation Manual - Columbia II Page 5...
  • Page 6 CERTIFICATION PLATE Page 6 Installation and Operation Manual - Columbia II...
  • Page 7: Part A - Operation And Maintenance

    This product can expose you to chemicals including carbon monoxide, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov/ Installation and Operation Manual - Columbia II Page 7...
  • Page 8: General Information

    This appliance is officially tested and certified by an independent agency. Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and draft ASTM WK47329-14 Carbon monoxide. Page 8 Installation and Operation Manual - Columbia II...
  • Page 9: Specifications

    CAN/CSA- Z240 MH standard. Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and draft ASTM WK47329-14. Installation and Operation Manual - Columbia II Page 9...
  • Page 10: Dimensions

    650mm Side view Combustion chamber - side view 8" 202mm 17 1/4" 438mm 8" 202mm 17 1/4" 19 5/8" 438mm 498mm 13 1/2" 343mm Combustion chamber - front view Door opening Page 10 Installation and Operation Manual - Columbia II...
  • Page 11: Materials

    Although the stove may be able to heat the main living areas of the house to an adequate temperature, it is strongly recommended to also have a conventional oil, gas or electric heating system to provide backup heating. Installation and Operation Manual - Columbia II Page 11...
  • Page 12: Emissions And Efficiency

    Hardwoods are denser than softwoods. Homeowners with access to both hardwood and softwood use both types for different purposes. Page 12 Installation and Operation Manual - Columbia II...
  • Page 13: Log Length

    Do not burn compressed logs made of wax impregnated sawdust or logs with any chemical additives. Follow the manufacturer’s instructions and warnings. Installation and Operation Manual - Columbia II Page 13...
  • Page 14: Drying Time

    − Dry wood is much lighter in weight than wet wood, − The face of a fresh cut feels warm and dry; − The moisture content read by a moisture meter is between 15% to 20%. Page 14 Installation and Operation Manual - Columbia II...
  • Page 15: Operating The Stove

    Ensure the blower power cord is not in contact with any surface of the stove to prevent electrical shock or fire damage. Do not run the power cord underneath the Airflow with a blower stove. Installation and Operation Manual - Columbia II Page 15...
  • Page 16: Burning Wood Efficiently

    The conventional method to build a wood fire is to crumple 5 to 10 sheets of newspaper and place them into the firebox and hold them in place with ten pieces of kindling wood. The kindling should be placed on and behind the newspaper. Page 16 Installation and Operation Manual - Columbia II...
  • Page 17: Combustion Cycles

    Installation and Operation Manual - Columbia II Page 17...
  • Page 18: Rekindling A Fire

    The best time to remove ash is in the morning, after an overnight fire when the heater is relatively cold, but there is still a little chimney draft to draw the ash dust into the heater and prevent going out into the room. Page 18 Installation and Operation Manual - Columbia II...
  • Page 19: Air Intake Control

    This kind of fire is good for mild weather and should provide enough heat for up to four hours. Small fires like this are a good time to use softer wood species and avoid overheating the house. Installation and Operation Manual - Columbia II Page 19...
  • Page 20 5.7.5 Logs Orientation In a relatively square firebox, the wood can be loaded north-south (ends of the logs visible) or east-west (sides of the logs visible). Page 20 Installation and Operation Manual - Columbia II...
  • Page 21: Maintenance

    This is normal and can be easily removed when the heater is cold by wiping with a damp cloth or paper towel and then drying. Installation and Operation Manual - Columbia II Page 21...
  • Page 22 Reinstall the glass, being careful to centre the glass in the door and not to over-tightening the retaining screw. The two main causes of broken door glass are uneven placement in the door and over- tightening the retaining screws. Page 22 Installation and Operation Manual - Columbia II...
  • Page 23: Door

    Remove the split pin by pulling and turning it using pliers. Turn the handle one counterclockwise turn to increase pressure. Reinstall the split pin with a small hammer. Removing the retaining pin Reinstalling the retaining pin Installation and Operation Manual - Columbia II Page 23...
  • Page 24: Exhaust System

    Establish a routine for the fuel, wood burner and firing technique. Check daily for creosote build-up until experience shows how often you need to clean to be safe. Page 24 Installation and Operation Manual - Columbia II...
  • Page 25 Do not use the appliance again until the stove and its chimney have been inspected by a qualified chimney sweep or a fire department inspector. Installation and Operation Manual - Columbia II Page 25...
  • Page 26: Part B - Installation

    This stove must be connected to a chimney complying with the requirements for Type HT chimneys in the Standard for Factory-Built Chimneys for Residential Type and Building Heating Appliances, UL 103 and ULC S629 or to a code-approved masonry chimney with a flue liner. Page 26 Installation and Operation Manual - Columbia II...
  • Page 27: Location Of The Certification Label

    For a safe way to reduce clearances refer to section «8.3 Reducing Clearances Safely» Installation and Operation Manual - Columbia II Page 27...
  • Page 28 48" 36" 122 cm 92 cm Clearances - Top Clearances - Corner 84" (L) 213 cm Clearances - Side Page 28 Installation and Operation Manual - Columbia II...
  • Page 29: Clearances

    6" (153 mm) from combustible materials must be used. Only in this case, the same clearances as a certified double wall pipe connector can be used. Installation and Operation Manual - Columbia II Page 29...
  • Page 30 6" (153 mm) from combustible materials must be used. Only in this case, the same clearances as a certified double wall pipe connector can be used. Page 30 Installation and Operation Manual - Columbia II...
  • Page 31 11 ¾" (298 mm) 11 ¾" (298 mm) The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Installation and Operation Manual - Columbia II Page 31...
  • Page 32: Floor Protection

    The floor protection at the back of the stove is limited to the stove’s required clearance if such clearance is smaller than 8 inches (203 mm). Only required under the horizontal section (Ho) of the connector. Must exceed each side of the connector by at least 2 inches (51 mm). See «Figure 13: Clearances - Side» Page 32 Installation and Operation Manual - Columbia II...
  • Page 33 Brick, with a minimum of 24 gauge (0.61 mm) sheet metal backing, spaced out at least 1" (25 mm)* by non-combustible spacers 12" (305 mm) * In Canada this space can be ⅞" (21 mm). Installation and Operation Manual - Columbia II Page 33...
  • Page 34 Mounting hardware must not be located closer than 8" (200 mm) from the vertical centre line of the appliance. G) Edge clearance for ceiling shields to side and back walls: 3" (75 mm). Shield extension beyond each side of the appliance: 18" (450 mm). Page 34 Installation and Operation Manual - Columbia II...
  • Page 35 Heat shield clearances Heat shield clearances Heat shield clearances Installation and Operation Manual - Columbia II Page 35...
  • Page 36: The Venting System

    Only components intended for the brand and model of chimney should be used. Never fabricate or substitute parts from other chimney brands. The chimney must be a type suitable for solid fuel. Page 36 Installation and Operation Manual - Columbia II...
  • Page 37 Do not downsize the flue to less than 6" unless the venting system is straight and exceeds 25 feet in height. When passing through a combustible wall, the use of an insulated listed thimble is required. Installation and Operation Manual - Columbia II Page 37...
  • Page 38: Minimum Chimney Height

    Called ‘stack effect’, it produces a slightly negative pressure in the lower part of the house (compared to the outside) and a slightly positive pressure zone in the high part of the house. Page 38 Installation and Operation Manual - Columbia II...
  • Page 39: Supply Of Combustion Air

    (such as a kitchen range exhaust) causes the pressure in the house to become negative relative to outdoors. Air supply in conventional houses Installation and Operation Manual - Columbia II Page 39...
  • Page 40: Installing The Chimney Connector

    Best Acceptable Avoid The rules below are based on those found in the CSA B365 installation code. Please carefully follow these installation instruction rules, or those enforced by the local code. Page 40 Installation and Operation Manual - Columbia II...
  • Page 41 • A straight flue pipe assembly offers the least restriction to gas flow and results in a stronger draft. Straight assemblies also need less maintenance because there are no corners to collect creosote. • The chimney connector must be clean and in good condition. Installation and Operation Manual - Columbia II Page 41...
  • Page 42: Appendix 1: Optional Fresh Air Intake Kit Installation

    (HVAC type, must meet ULC S110 or UL 181 class 0 or class 1) (B), sold separately. Refer to air intake kit installation instructions for more details. Page 42 Installation and Operation Manual - Columbia II...
  • Page 43: Appendix 2: Optional Fire Screen Installation

    Lift the fire screen upwards and push the bottom part towards the stove then let the fire screen rest on the bottom of the door opening. Warning: Never leave the stove unattended while in use with the fire screen. Installation and Operation Manual - Columbia II Page 43...
  • Page 44: Appendix 3: Optional Blower Installation

    Ensure that the blower’s power cord is not in contact with any surface of the stove to prevent electrical shock or fire damage. Do not run the power cord beneath the stove. Page 44 Installation and Operation Manual - Columbia II...
  • Page 45: Appendix 4: Optional Thermodisc Installation

    Screw the thermodisc (A) with the screws (B) provided on the back of the stove. The electrical cord of the thermodisc should not touch any surface of the stove to avoid electric shock or fire. Do not run the power cord under the stove. Installation and Operation Manual - Columbia II Page 45...
  • Page 46: Appendix 5: Removing The Decorative Panels

    APPENDIx 5: REMOVING THE DECORATIVE PANELS To remove the decorative panels (A), remove the screws (B) and push forward on the panel to unhook it from the support (C). Page 46 Installation and Operation Manual - Columbia II...
  • Page 47: Appendix 6: Air Tubes And Baffle Installation

    Put the baffle in place. Repeat steps 1 and 2 for the three other tubes. To remove the tubes use the above steps in reverse order. Installation and Operation Manual - Columbia II Page 47...
  • Page 48 Note that secondary air tubes (B) can be replaced without removing the baffle board (A) and that all tubes are identical. Page 48 Installation and Operation Manual - Columbia II...
  • Page 49: Appendix 7: Mobile Home Installation

    APPENDIx 7: MOBILE HOME INSTALLATION Installation and Operation Manual - Columbia II Page 49...
  • Page 50: Appendix 8: Exploded Diagram And Parts List

    APPENDIx 8: ExPLODED DIAGRAM AND PARTS LIST Page 50 Installation and Operation Manual - Columbia II...
  • Page 51 POWER CORD 96" X 18-3 type SJT (50 pcs per carton) 44085 RHEOSTAT KNOB 44087 RHEOSTAT NUT PL09909-02 BLOWER HOUSING 44080 RHEOSTAT WITHOUT NUT (MODEL KBMS-13BV) 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM Installation and Operation Manual - Columbia II Page 51...
  • Page 52 BLACK HEX NUT 1/4 - 20 30185 17/64" AA TYPE WASHER BLACK PL70707 LEFT OR RIGHT LEG SUPPORT PL24098 BLACK PAINTED CAST IRON LEG WITH LEVELING BLOT 30050 LEVELING BOLT 3/8-16 X 1 1/2" Page 52 Installation and Operation Manual - Columbia II...
  • Page 53: Drolet Limited Lifetime Warranty

    Shall your unit or a component be defective, contact immediately your DROLET dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information when calling: •...
  • Page 54 NOTES :...
  • Page 56 Resale is strictly prohibited. The manufacturer may update St-Augustin-de-Desmaures (Québec) Canada this document from time to time and cannot be responsible G3A 2H3 for problems, injuries, or damages arising out of the use 418-908-8002 of information contained in any document obtained from https://www.drolet.ca/en/ unauthorized sources. tech@sbi-international.com...
