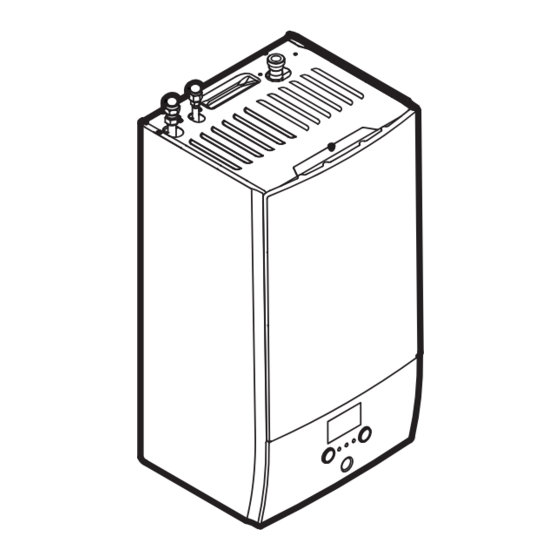

- Page 1 Installation manual Daikin Altherma 3 R MT W https://daikintechnicaldatahub.eu ELBH12E▲6V▼ ELBH12E▲9W▼ ELBX12E▲6V▼ ELBX12E▲9W▼ Installation manual English ▲= 1, 2, 3, …, 9, A, B, C, …, Z Daikin Altherma 3 R MT W ▼= , , 1, 2, 3, …, 9...
-
Page 2: Table Of Contents
6.3.4 To connect the electricity meters ........ 20 6.3.5 To connect the domestic hot water pump ....20 ▪ Format: Digital files on https://www.daikin.eu. Use the search 6.3.6 To connect the alarm output ........21 function to find your model. -
Page 3: Specific Installer Safety Instructions
Chimney connection. When connecting a chimney, take Daikin website (publicly accessible). the following into account: ▪ The full set of latest technical data is available on the Daikin ▪ Unit's connection point for the chimney = 1" male Business Portal (authentication required). -
Page 4: About The Box
Operation manual Addendum book for optional equipment Addendum software changelog Addendum commercial warranty WLAN cartridge Sealing ring for shut-off valves Shut-off valve Differential pressure bypass valve Wall bracket Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 5: Unit Installation
Install the indoor unit at a minimum distance of 1 m from Make sure installation, servicing, maintenance and repair other heat sources (>80°C) (e.g. electrical heater, oil comply with instructions from Daikin and with applicable heater, chimney) and combustible materials. Otherwise the legislation and are executed ONLY by authorised persons. -
Page 6: Installation Patterns
▪ Unit's connection point for the chimney = 1" male thread. Use a compatible counterpart for the chimney. ▪ Make sure the connection is airtight. ▪ The chimney material is unimportant. Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... - Page 7 ▪ Must be a permanent opening that cannot be closed. ▪ Must be ≥50% of A (minimum bottom opening area). nv-min Min. 50% ▪ Must be ≥1.5 m from the floor. of A nv-min (≥A nv-min ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03...
- Page 8 Ventilation openings must comply with A and with nv-min "Conditions ventilation openings" on previous page). Min. 50% Min. 50% ΔH1 of A of A nv-min nv-min (≥A (≥A nv-min nv-min Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03...
- Page 9 8.00 m² 10.00 m² 12.00 m² 14.00 m² 3.25 kg 3.53 m 2.35 m 2.01 m 3.45 kg 3.75 m 2.50 m 2.14 m 3.65 kg 3.96 m 2.64 m 2.26 m 2.02 m 3.85 kg 4.18 m 2.79 m 2.38 m 2.13 m 4.05 kg 4.40 m 2.93 m 2.51 m 2.24 m 2.05 m ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03...
- Page 10 3.043 dm² 2.154 dm² 1.335 dm² 0.506 dm² 2.10 m 4.575 dm² 2.484 dm² 1.516 dm² 0.625 dm² 2.25 m 4.132 dm² 1.967 dm² 0.924 dm² 2.40 m 3.721 dm² 1.485 dm² 0.371 dm² 2.55 m 3.339 dm² 1.034 dm² 2.70 m 2.981 dm² 0.610 dm² 2.85 m 2.645 dm² 0.209 dm² 3.00 m 2.328 dm² Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03...
-
Page 11: Opening And Closing The Unit
9.4 dm² 3.55 kg 9.5 dm² 3 If you have to do work behind the switch box, open the switch box. 3.65 kg 9.7 dm² 3.75 kg 9.8 dm² 3.85 kg 9.9 dm² 3.95 kg 10.0 dm² 4.05 kg 10.2 dm² ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 12: To Close The Indoor Unit
4 Optional: If you want to fix the unit to the wall from inside the NOTICE unit: When closing the indoor unit cover, make sure that the tightening torque does NOT exceed 4.1 N•m. Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 13: To Connect The Drain Hose To The Drain
Connect both ends without brazing. If brazing should be needed, take the guidelines in the installer reference guide into account. ▪ Flare connections: Only use annealed material. ▪ Piping diameter: ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 14: Preparing Water Piping
When circulation in each space heating/cooling loop is controlled by remotely controlled valves, it is important that the minimum water volume is guaranteed, even if all of the valves are closed. Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 15: To Fill The Water Circuit
RH 80%, the thickness of the insulation materials should be at least 20 mm to prevent condensation on the surface of the insulation. Electrical installation DANGER: RISK OF ELECTROCUTION ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 16: About Electrical Compliance
[9.B.2] Ext. amb. sensor offset Alarm output "6.3.6 To connect the alarm [9.B.3] Averaging time output" [ 4 21]. Space cooling/heating "6.3.7 To connect the space cooling/ output" [ 4 21]. operation control heating ON/OFF Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 17: To Connect The Main Power Supply
Maximum running current: 13 A [9.4] Booster heater 6.3.1 To connect the main power supply unit" [ 4 11]): 1 Open the following (see "4.2.1 To open the indoor ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 18: To Connect The Backup Heater Power Supply
3~ 230 V (6T1) 3+GND contact shall ensure the minimum applicable load of 15 V DC, 10 mA. 3N~ 400 V 4+GND [9.8] Benefit kWh power supply [9.3] Backup heater Connect X11Y to X11YB. Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... - Page 19 Earth leakage circuit breaker (field supply) Switch box Q1DI Terminal (field supply) Factory-mounted cable connected to the contactor of the backup heater, inside the switch box (K5M) Field wiring (see table below) ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03...
-
Page 20: To Connect The Shut-Off Valve
[9.2.3] DHW pump schedule 3 Fix the cable with cable ties to the cable tie mountings. unit" [ 4 11]): 1 Open the following (see "4.2.1 To open the indoor Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 21: To Connect The Alarm Output
Wires connected to the alarm output Wire between X2M and A4P Wire between X2M and A4P A4P Installation of EKRP1HBAA is required. A4P Installation of EKRP1HBAA is required. ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 22: To Connect The Changeover To External Heat Source
1 Front panel 2 Switch box cover 3 Switch box 2 Connect the changeover to external heat source cable to the appropriate terminals as shown in the illustration below. Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 23: To Connect The Safety Thermostat (Normally Closed Contact)
Smart Grid relay kit (EKRELSG). The 2 incoming Smart Grid contacts can activate the following Smart Grid modes: Smart Grid contact Smart Grid operation mode Free running ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... - Page 24 X5M.9 X5M.6 S11S X5M.5 ×4 X10M K1A, K2A Relays X10M Terminal block Screws for X10M Screws for K1A and K2A Sticker to put on the high voltage wires Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03...
-
Page 25: To Connect The Wlan Cartridge (Delivered As Accessory)
[D] Wireless gateway 1 Insert the WLAN cartridge into the cartridge slot on the user interface of the indoor unit. 3 Connect the high voltage wiring as follows: ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 26: Configuration
2 Go to [9.I]: Installer settings > Overview field settings. 7.1.1 To access the most used commands To change the user permission level You can change the user permission level as follows: Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 27: Configuration Wizard
[7.2] Set the local time and date Code Item EKHWS*D* / EKHWSU*D* 150/180 200/250/300 [9.2.1] [E‑07] Tank type 0: EKHWS/E, 3: EKHWS/E, small volume big volume ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... - Page 28 Main LWT zone: Lowest temperature INFORMATION c Mixing station If [4‑03]=1 or 3, then Emergency = Manual is not applicable for the booster heater. Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03...
-
Page 29: Configuration Wizard: Backup Heater
It is important to set Emitter type correctly and in accordance with your system layout. The target delta T for the main zone depends on ▪ For a 9W model, this is fixed to 400V, 3ph. ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 30: Configuration Wizard: Additional Zone
Indicates if the desired leaving water temperature is according to a ▪ In Weather dependent mode, the desired leaving water zone" [ 4 29]. schedule. Also see "7.2.5 Configuration wizard: Main temperature depends on the outdoor ambient temperature. Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 31: Configuration Wizard: Tank
It is the higher desired temperature when a storage building, the curve can be adjusted by an installer or user. comfort action is scheduled. ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 32: 2-Points Curve
Possible actions on this screen X1, X2 Examples of outdoor ambient temperature Go through the temperatures. Change the temperature. Go to the next temperature. Confirm changes and proceed. Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 33: Using Weather-Dependent Curves
[3.5] Additional zone > the room frost protection is only possible if [C.2] Space Heating WD curve heating/cooling=On. Additional zone – Cooling [3.6] Additional zone > Cooling WD curve ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 34: Additional Zone
▪ 2: 2 contacts 7.4.3 Information Dealer information The installer can fill in his contact number here. Code Description [8.3] Number that users can call in case of problems. Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 35: Menu Structure: Overview Installer Settings
Solar kit settings are shown but are NOT applicable for this Depending on the selected installer settings and unit type, unit. Settings shall NOT be used or changed. settings will be visible/invisible. ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 36: Commissioning
Next commissioning instructions in this chapter, a general ▪ Between the local supply panel and the indoor unit commissioning checklist is also available on the Daikin ▪ Between the indoor unit and the valves (if applicable) Business Portal (authentication required). -
Page 37: To Check The Minimum Flow Rate
2 Go to [A.1]: Commissioning > Operation test ▪ Bizone direct pump test (bizone kit EKMIKPOA or run. EKMIKPHA) 3 Select a test from the list. Example: Heating. ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 38: To Perform An Underfloor Heating Screed Dryout
▪ Show the user what to do for the maintenance of the unit. ▪ Explain the user about energy saving tips as described in the operation manual. Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... -
Page 39: Technical Data
10 Technical data Technical data A subset of the latest technical data is available on the regional Daikin website (publicly accessible). The full set of latest technical data is available on the Daikin Business Portal (authentication required). 10.1 Piping diagram: Indoor unit... -
Page 40: Wiring Diagram: Indoor Unit
# Low voltage Smart Grid contact On/OFF thermostat (wireless) ON/OFF thermostat (wireless) SS1 (A4P) * Selector switch Ext. thermistor External thermistor Power supply transformer Heat pump convector Heat pump convector Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03... - Page 41 For HV smartgrid For high voltage Smart Grid For LV smartgrid For low voltage Smart Grid For safety thermostat For safety thermostat For smartgrid For Smart Grid Inrush Inrush current ELBH/X12E Installation manual Daikin Altherma 3 R MT W 4P708482-1 – 2023.03...
- Page 42 10 Technical data Electrical connection diagram For more details, please check the unit wiring. Installation manual ELBH/X12E Daikin Altherma 3 R MT W 4P708482-1 – 2023.03...
- Page 44 4P708482-1 0000000R 4P708482-1 2023.03 Verantwortung für Energie und Umwelt...
