Honeywell Performance HE42XD2G Quick Installation Manual

Performance Series Cameras

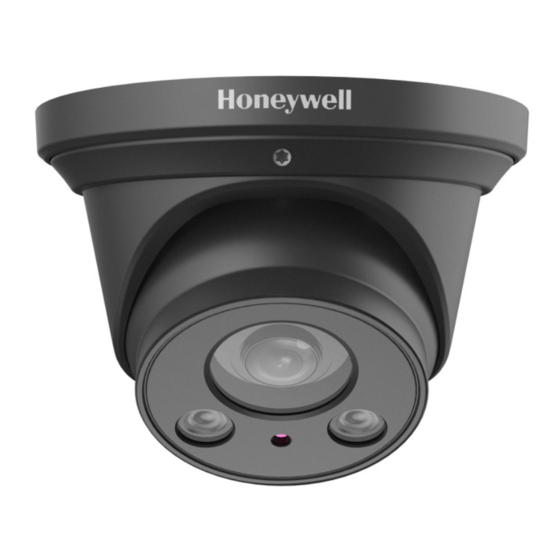

HE42XD2G TDN 1080p IR Ball Camera
Quick Installation Guide
Document 800-23521 - Rev C - 08/2017
Thank you for purchasing a Honeywell Performance
Series HQA HE42XD2G camera. Follow the instructions
in this guide to install and log in to your camera.
Warnings and Cautions
WARNING
This device is configured for 12 VDC operation. Do not connect to a higher voltage.
Use only with NRTL-approved Class 2 power supplies.
CAUTION IR emitted from this product. Do not view directly with optical instruments. Do not
stare directly into the lamp at a distance of less than 3.3 ft (1 m).
CAUTION
Class 1 LED product. Invisible LED radiation (850 nm). Avoid exposure to beam.
Important Safeguards
• Read and keep these instructions.
• Confirm the installation surface can support at least three times the weight of the camera.
• Do not apply power to the camera before completing installation.
• Do not aim the camera toward a bright light source for extended periods.
• Avoid operating the unit under or close to unstable light sources (may cause flickering), or close to
fluorescent lamps or objects reflecting light.
• Do not touch the camera lens.
• Do not drop the camera or subject it to physical shock.
• Do not use a strong or abrasive detergent when cleaning the camera.
• Avoid operating or storing the unit in extremely humid, dusty, hot/cold environments, where the
operating temperature is outside the recommended range of -40°F to 140°F (-40°C to 60°C).
Before You Begin
Before you begin, check that you have received all of the parts listed below. If any parts are missing or
damaged, contact your dealer immediately.
• Camera • Self-tapping screws (×5)
• Mounting template • Plastic anchors (×5)
CAUTION
Installation and servicing should be performed only by qualified and experienced
technicians to conform to all local codes and to maintain your warranty.
Preparing the Mounting Surface
1. Apply the mounting template to the mounting surface.
2. Using the mounting template as a guide, drill four pilot holes in the mounting surface, then hammer
the supplied anchors into the holes.
3. Drill a cable entry hole in the mounting surface, then pull the required cables through the hole.
• Hex key (L-wrench)
• Power pigtail
Mounting surface
Anchors
Base
Self-tapping screws
Body
Hex key
Locking screw
Enclosure
