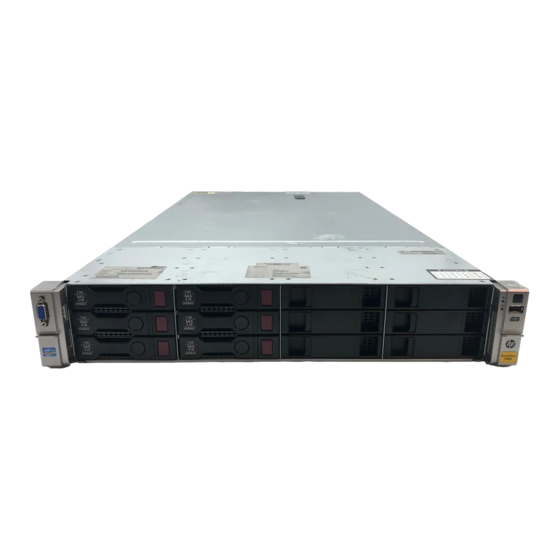

HP StoreOnce 4700 Service And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
StoreOnce 2700, 2900, 4500, 4700, and
4900 Service and Maintenance Guide
Abstract
This is the Maintenance and Service guide for the HPE StoreOnce 2700, 2900, 4500, 4700,
and 4900 Backup products and has been updated for 3.16.1 software. These products are
also referred to as StoreOnce Backup single node rack products.
Part Number: BB877-90943
Published: July 2018
Edition: 8
