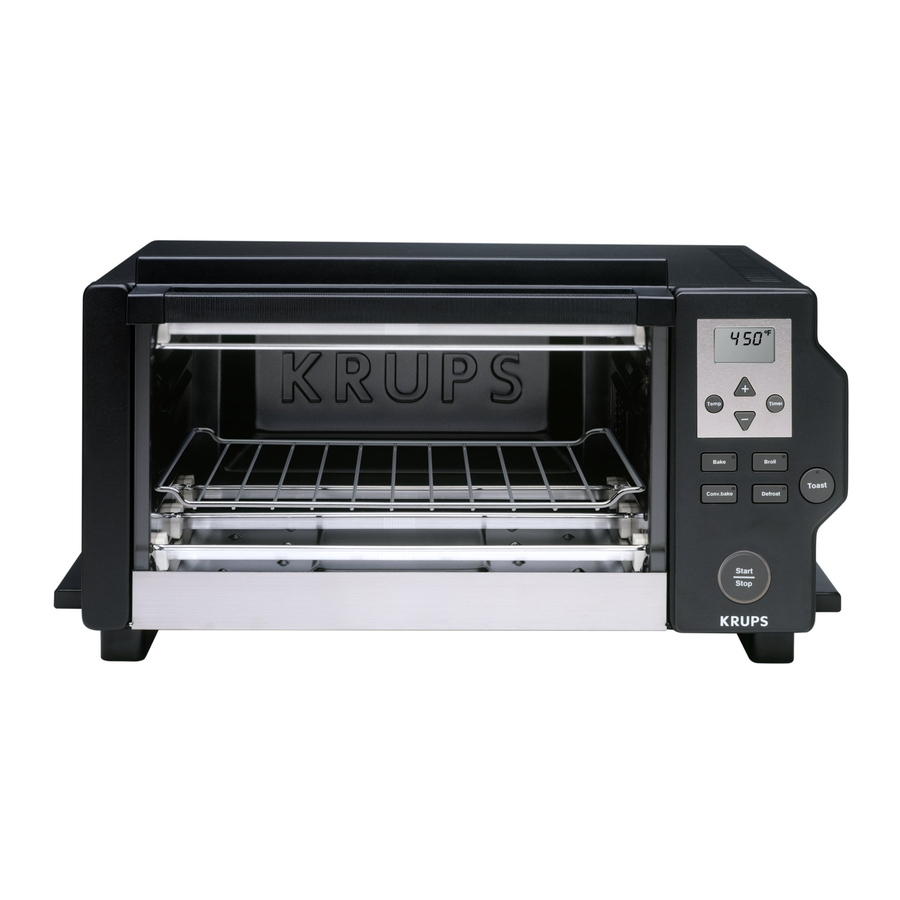

KRUPS FBC213 - Digital Convection Toaster Oven Manual

Features

1. Door handle
2. Control panel
   1. Display
   2. Temperature setting
   3. Cooking time setting
   4. "+" or "-" adjustment button
   5. BAKE function, cooking
   6. BROIL function, grilling
   7. CONVECTION BAKE cooking
   8. DEFROST function
   9. TOAST function, toasting
   10. START/STOP button
   11. Expert Controlled Cooking*
       selector switch: (thin pizza, thick pizza, cookies, brownies, bagels, pastry)
3. Ventilation slots
4. Non stick side-walls*
5. Quartz top elements
6. Crumb tray / Expert Heat Reflector
7. Quartz bottom elements
8. Shelf supports
9. Non-stick broil pan*
10. Non-stick bake sheet*
11. 2 reversible shelves*
12. Bread tongs*

* Depending on model

Advantages

• Large capacity allows toasting of up to 6 slices of bread, and provides space to heat more ofyour favorite foods.
• Versatility to bake, reheat, toast, broil and defrost.
• Convection Bake cooking function uses a fan to distribute hot air throughout the oven for fastresults.
• Patented "Expert Quartz Cycling Technology" cooks faster, and toasts better than other ovens.
• shelf positions allow you to vary the distance of the food from the top or bottom heatingelements to customize your results.
• Electronic thermostat can be precisely adjusted from 100°F to 450°F (in 25°F increments).
• Electronic browning control for toast to your taste.
• Six pre-programmed recipes*.
• Stainless steel crumb tray reflects heat during cooking and pulls out for easy cleaning.
• User-friendly electronic display with digital clock and easy-to-use soft touch controls.

*Depending on model

Before using for the first time

• Unpack the appliance and remove packaging including the self-adhesive display sticker on the LCD screen and product information tags from door handle (not on all models).

• Read all the instructions for use and the important safeguards andfollow them carefully.
• Remove all accessories and wash them in warm, soapy water. Rinse and dry carefully.
• Unroll the power cord completely.
• Wipe the outside of the appliance with a damp cloth and dry.

• Plug in the toaster oven. It will beep.

In order to remove any possible residues from manufacturing, run the appliance empty for 15 minutes.

Select the temperature

• Press the "Bake" button. The "Bake" indicator lamp will light.

• The default temperature of 350°F will be shown blinking on the
• Press on "+" to select a temperature of 450°F.

Select the cooking time

• Press the "Timer" button.
• The default cooking time of "0:30" (30 minutes) will be shownblinking on the display.

• Set the cooking time to 15 minutes by pressing the "-" button.
• Press "Start". The appliance will beep and the oven will start.

• The time will be counted down in one-minute intervals.
• At the end of the cooking time, the appliance will beep five times andthe oven will turn off.

You may observe smoke escaping from the oven. This is normal and will gradually disappear with use.

Setting the clock

• When the oven is first plugged in "12:00" appears on the display.
• Press the "Timer" button twice. The display will begin to blink "12:00".
• Adjust the time in steps of one minute by pressing the "+" or "-"buttons.

• If you hold the button pressed down for more than 6 seconds, thetime will change quicker.
• Press the "Timer" button to enter the time in the system.


If you do not press the "Timer" button, the time will be entered automatically after 30 seconds.

Using the control panel

Cooking time and temperature can be adjusted before or during the cooking cycle.
To adjust cooking times: Press « Timer » button once. Time remaining will be displayed, blinking. Cooking time can be adjusted in 1 minute increments up to a maximum of 1 hour 30 minutes, using the « + » and « - » buttons.
Press « Timer » again to set new time.
To adjust temperature: Press « Temp ». Current temperature setting will be displayed, blinking. Temperature can be adjusted in 25 increments up to a maximum of 450° using the « + » and « - » buttons.
Press « Temp » again to set new temperature.

SHELF POSITIONS:

• For all functions the position of the cooking shelf will play an important role in thefinal result.
• Note that there are 4 separate positions for the cooking shelf.
• Place your food in the center of the tray or on the shelf at the desired height.

Shelf position:

Shelf position #1: best for frozen pizza, and many baking and reheating uses.
Shelf position #2: best for cookies, brownies, toasting bread, and many baking and reheating uses.
Shelf position #3: best for toasting bagels, and broiling meats, or bacon.

Heating performance

This toaster oven employs Krups patented Expert Quartz Cycling Technology™. The top 3 heating elements and bottom 3 heating elements are powered alternately at full power to heat food more quickly and provide ultra precise temperature control. Monitor results carefully as cooking time can be reduced by as much as 30%.
It is normal for one set of elements to turn off while the other set is heating at full power.
The ends of each heating element will glow more brightly than the middle of the element. This is normal. The elements are specially designed to produce a balanced level of heat throughout the chamber.
During baking, quartz elements heat even if they are not lighting up.

BAKE function

Never leave unattended during use.

Select the temperature

• Press the "Bake" button. The "Bake" indicator lamp will light.

• The default temperature of 350°F will be shown blinking on thedisplay.
• Press the "+" and "-" buttons to select the desired temperature.
  The temperature can be changed in steps of 25°F.
• The display will continue to blink.

Select the cooking time

• Press the "Timer" button.

• The default cooking time of "0:30" (30 minutes) will be shownblinking on the display.
• Set the cooking time according to your recipe by pressing the "+" and"-" buttons, up to a maximum of 1 hour 30 minutes.
• Press "Start". The appliance will beep and cooking will start.
• The time will be counted down in one-minute intervals.
• At the end of the cooking time, the appliance will beep five timesand cooking will stop.
• You can stop the cooking at any time by pressing the "Stop" button.

Changing the temperature or cooking time

• You can change the cooking time or temperature at any time during a baking cycle.
• Press « Timer » or « Temp » and use the « + » and « - » buttons to change settings.

• Press « Timer » or « Temp » again to confirm the new setting.


CONVECTION BAKE function

Convection bake uses an internal fan to circulate heated air around the food. This function produces fast, even cooking results. Please note: The convection function will reduce cooking times. Some foods may not be ideal for convection bake.

• The "Conv. Bake" indicator lamp will light.
• Select a temperature using the « + » and « - » buttons.
• Select a cooking time by pressing « Timer » then use the « + » and « - » buttons.
• Press Start.

BROIL/Grill function

(Only the top heating elements are used. There are two broil settings: "High" and "Low").

Never leave oven unattended when in use.

The Broil tray is designed to drain grease and fats away from meats for healthier cooking.

• Place the broil tray on the bake sheet.

• Use shelf position #3.
• There must be a minimum space of 1 inch (2 cm) between the foodand the top element.
• Close the door.

Choosing the grill setting:

• Press the "Broil" button. The "Broil" indicator lamp will light.

• The default setting of "High" (fast broiling), will appear on thedisplay.
• If you wish to reduce the broiling temperature, press the "-" buttonand "Low" will appear on the display.

• The display will blink.
• The default "broil" time is set at 10 minutes.
• You can adjust the cooking time by pressing « Timer », then the « + » and « - » buttons.
• To change broil temperature at any time press the « Temp » button and use « + » and « - » buttons to choose high or low.

For best results turn the food once during broiling.
For example try broiling meats for 10 minutes on HIGH, turning the food over after 7 minutes, and then broiling for another 3 minutes.

TOAST function

(the top and bottom heating elements operate alternately).

Never leave oven unattended when in use.

Shelf position for toasting bread and bagels:
For toasting bread:

• Use shelf position #2. The shelf is inverted and placed in the lowerguides. This centers the bread in the chamber.

For toasting bagels:

• Use shelf position #3. The shelf is placed in the upper guides.
• The bagels should be arranged with cut side facing up. This causesthe cut side to be toasted while the crust is warmed.

• For best results on bagels use a higher browning setting.
  Try browning settings between 6 – 9.

Results of toasting will vary depending on the bread type, freshness and browning level selected.

Browning level:

• Press the "Toast" button. The "Toast" indicator lamp will light.

• The default setting, "4" will appear on the display. Press the "+"and "-" buttons to select the desired toasting setting.

• There are 9 possible toasting settings. Adjust the browning level toyour preference and considering the type, thickness and freshness of bread.
• Browning levels increase between setting 1, which is warmed, andsetting 9, which is very toasted. The toast settings 1-9 do not refer to the number of minutes for each setting. The oven will adjust the time for each setting depending on heat already present in the chamber.
• Press "Start"; the appliance will beep and toasting will start.
• The remaining time will be counted down in one-second intervals.
• At the end of the cooking time, the appliance will beep five timesand cooking will stop.
• You can stop the toasting at any time by pressing the "Stop" button.

DEFROST function

The defrost function uses the convection fan and minimal heat to thaw frozen foods gently and evenly without cooking.

• Use shelf position #1.
• Use the broil tray together with the bake pan to catch water as thefood is defrosted.
• Press the "Defrost" button.

• The default defrost time of 45 minutes will be shown blinking on the display.
• You can adjust the defrosting time required by pressing the "+"and "- " buttons.


The time needed to defrost is dependant on the thickness and the quantity of the frozen food. Examples:

• Press "Start". The appliance will beep and defrosting will begin.
• The time will be counted down in one-minute intervals.
• At the end of the defrosting time, the appliance will beep fivetimes and defrosting will stop.
• You can stop defrosting at any time by pressing the "Stop" button.

Changing the time during defrosting:

• The defrosting time is counting down.
• Press the "Timer" button; the time display will start to blink.

• Set the new defrosting time as desired by pressing the "+" and "-" buttons.
• Press the "Timer" button again to enter the time in the system.
• The display will show the new remaining defrosting time.

Expert Controlled Cooking function

FBC3 - FBC4 models only*

6 different programmed cooking cycles, each with preset cooking times and temperatures.
When first using each preset function monitor the cooking carefully to ensure good result.

Changes to the preset cooking times and temperatures may be necessary depending on the recipe, the amount of food and your personal taste.

Cooking results are significantly affected by the position of the cooking shelf.
We highly recommend using the shelf position proposed for each type of food listed.

Turn the Expert Controlled Cooking dial to one of 6 food selections:
Thin Pizza, Thick Pizza, Cookies, Brownies, Bagels, or Pastries.

To adjust any preset recipe cooking times and temperatures:

• Press « Timer », and use the « + » and « - » buttons to adjustcooking time in one-minute increments.

• Press « Timer » again to confirm again to confirm the new time. *Depending on model
• Press « Temp » and use the « + » and « -» buttons to adjustcooking temperature in increments of 25°.

• Press « Temp » again to confirm the new temperature.

You can stop the cooking at any time by pressing the "Start/Stop" button.

Thin pizza

• Preset: 450°F - 10 minutes – Use shelf position #1.
• The Thin Pizza program is for cooking frozen pizza, approximately 10 '' diameter.
• We recommend you to adjust the time and/or temperatureaccording to the size of your pizza and your taste.
  For 8 '' frozen pizza substract 1 minute.
  For 12'' frozen pizza, add 1 minute.
• For best results always rotate the pizza 180º halfway through thecooking cycle.

Thick pizza

• Preset: 450°F - 15 minutes – Use shelf position #1.
• The Thick pizza program is for a cooking frozen pizza, (or deepdish) approximately 8 '' diameter.
• Due to the variety of fresh and frozen pizza on the market werecommend you to adjust the time and/or temperature according to the size of your pizza and to your taste.
• For best results always rotate the pizza 180º halfway through thecooking cycle.

Cookies

• Preset: 300° - 10 minutes – Use shelf position #2.
• Cookies can be made using the non-stick bake pan included inyour toaster oven. If you choose to use an aluminium pan you will need to decrease the cooking time.
• Cooking times vary depending on:
  • The starting temperature of the dough (refrigerated or fresh).
  • The amount of dough per cookie.
  • The thickness of each portion of dough.
• We recommend you to adjust the time and/or temperature according to the type of cookies and the browning you prefer.

Brownies

• Preset: 300° - 30 minutes – shelf position #2.
• The brownies program is based on typical packaged brownie mix, baked in a nonstick 8" x 8" pan. Aluminium pans will require less cooking time.
• Adjustments to time and temperature will be necessary whenusing a larger bake pan (ie. 9'' x 9'') or for larger amounts of mix.

Bagels

• Use shelf position #3.
• Arrange bagels directly on the shelf with cut side facing up. Do notuse the bake pan.
• There are 9 possible browning settings.
• The default browning level is 4, but you can adjust it to your tasteby pressing "+" or "-".
• For best results use a browning level between 6 – 9.

Pastry

• Preset: 450°F - 20 minutes. Use shelf position #1 (for the Appletart recipe below).
• The pastry function alternates quickly between heating with topand bottom heating elements. The function can be used for baking breads, pies and pastries, with your customized adjustments to time and temperature. Try this Apple Tart recipe listed below.

APPLE TART

Ingredients:

• 1 cup all purpose flour
• ¹/₄ tsp. salt
• 5 TBS. cold butter, cut into chunks
• 2 - 4 TBS. ice cold water
• ¹/₂ cup heavy cream
• 1 egg
• 2 apples, cored and thinly sliced
• ¹/₄ cup sugar
• 1 tsp. cinnamon

• Put flour and salt in food processor and pulse until mixed, about 2 seconds.
• Add chunks of butter and pulse 3 – 4 times until crumbly.
• Sprinkle minimum amount of water evenly over mixture and pulse 2 – 4 times until dough forms a ball and pulls away from bowl.
• Add slightly more water as needed.

• On lightly floured surface, roll ball into a circle 2 inches larger than pie plate or tart pan. Line pan with pastry.
• Combine cream with well beaten egg. Pour evenly over pastry.
• Arrange apple slices over cream mixture.
• Combine sugar and cinnamon and sprinkle liberally over apples.

• Choose the Pastry function and press start.

Expert Controlled Cooking Function (model FBC412)

Preselected recipe table - You may have to adjust time + temperature to your taste.

Cleaning and care

Never touch or clean the quartz heating elements.

Do not allow grease to accumulate in the appliance.

• Before cleaning, care or storage disconnect the appliance andleave it to cool.
• A quick wipe with a sponge is sufficient to clean the outside of theappliance.
• Do not use cleaning products intended for metals (for stainlesssteel, copper etc.).
• Clean the door, enameled or lacquered surfaces and translucentparts with a damp sponge and a mild detergent.


Do not use aggressive cleaning products (especially oven cleaners or metal or abrasive pads).

• The inside walls of the oven are non-stick and will clean easily withwater and detergent.

• All accessories* (shelf, bake sheet, broiling pan) can be cleaned withwater and detergent.

*Depending on model

Expert Heat Reflector - The stainless steel crumb tray

Do not wash the crumb tray in the dishwasher.

• Leave the crumb tray in place while the appliance is in operation.
• Do not touch the metal part of the crumb tray during or immediatelyafter operation. Allow to cool completely.
• The crumb tray should be cleaned in warm soapy water.

• Do not use abrasive scouring pads to avoid damaging the highlypolished surface.

*Depending on model

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download KRUPS FBC213 - Digital Convection Toaster Oven Manual
