- Page 1 VoIP Analog Telephone Adapter VIP-156/VIP156PE/VIP-157/VIP-157S User’s manual Version 2.0...
- Page 2 PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
- Page 3 Revision User’s Manual for PLANET VoIP Analog Telephone Adapter: Model: VIP-156/VIP-156PE/VIP-157/VIP-57S Rev: 2.0 (November, 2006) Part No. EM-VIP_ATAV2...
-
Page 4: Table Of Contents
Table of Contents Chapter 1 ...........................6 Introduction ..........................6 Overview............................... 6 Package Content ............................7 Physical Details ............................7 LED Display & Button........................10 Chapter 2 Preparations & Installation .................12 Physical Installation Requirement......................12 LAN IP address configuration via web configuration interface ............13 Chapter 3 Network Service Configurations.................17 Configuring and monitoring your Phone Adapter from web browser .......... - Page 5 Case 6: Call Forward Feature_Example 2..................45 Case 7: Call Forward Feature_Example 3..................47 Case 8: Call Forward Feature_Example 4..................49 Case 9: Auto Answer Feature_IP to PSTN ..................50 Case 10: Auto Answer Feature_PSTN to IP..................52 Appendix B VIP-156/VIP-156PE/VIP-157/VIP-157S Specifications............. 54...
-
Page 6: Chapter 1
Chapter 1 Introduction Overview Based on years of VoIP manufacturing experiences, PLANET Technology VoIP total solutions are known for advanced implementation of standards based telephony with mass deployment capability. Cost-effective, easy-to-install and simple-to-use, the PLANET VIP-156/VIP-157/VIP-157S VoIP Phone Adapter (“ATA” in the following term) converts standard telephones to IP-based networks. The service providers and enterprises offer users traditional and enhanced the telephony communication services via the existing broadband connection to the Internet or corporation network. -
Page 7: Package Content

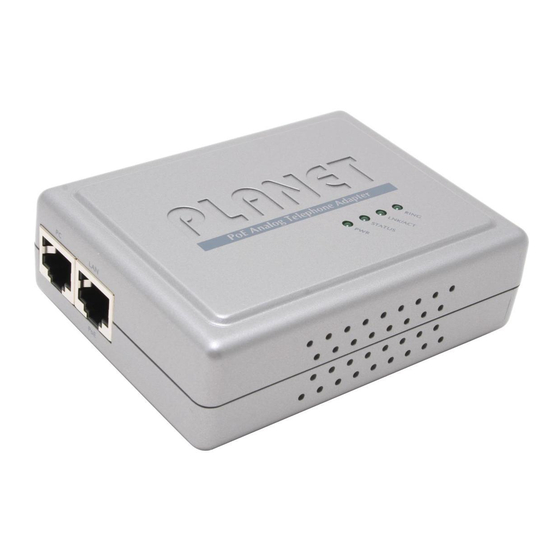

Physical Details The following figure illustrates the front/rear panel of ATA. Respective model/descriptions are shown below: VIP-156: SIP Analog Telephone Adapter VIP-156PE: 802.3af PoE SIP Analog Telephone Adapter VIP-157: 1 FXS/ 1 FXO SIP Analog Telephone Adapter VIP-157S: 2-port FXS SIP Analog Telephone Adapter... - Page 8 Left / Right Panel of VIP-156 Front Panel of VIP-156PE Left / Right Panel of VIP-156PE...
- Page 9 Front Panel of VIP-157 Left / Right Panel of VIP-157 Front Panel of VIP-157S...
-
Page 10: Led Display & Button
Left / Right Panel of VIP-157S LED Display & Button RJ-45 connector, to maintain the existing network structure, connected directly to the PC through straight CAT-5 cable RJ-45 connector, for Internet access, connected directly to Switch/Hub through straight CAT-5 cable. The LAN interface also can be connected with 802.3af PoE switch or converter for power supply (VIP-156PE) 12V DC Power input outlet... - Page 11 LED display of VIP-156 / VIP-156PE LED Indicators Descriptions Power is supplied to the device. The Status LED will be flashing when the machine is operational STATUS OFF: the device is connected to LAN at 10Mb/s. LNK/ACT ON: the device is connected to LAN at 100Mb/s.
-
Page 12: Chapter 2 Preparations & Installation
TCP/IP protocol must be installed on all PCs. For Internet Access, an Internet Access account with an ISP, and either of a DSL or Cable modem Administration Interface PLANET ATA provides GUI (Web based, Graphical User Interface) for machine management and administration. Web configuration access... -
Page 13: Lan Ip Address Configuration Via Web Configuration Interface
Please locate your PC in the same network segment Note (192.168.0.x) of ATA. If you’re not familiar with TCP/IP, please refer to related chapter on user’s manual CD or consult your network administrator for proper network configurations. LAN IP address configuration via web configuration interface Execute your web browser, and insert the IP address (default: 192.168.0.1) of VIP in the adddress bar. - Page 14 Use the * (star) key #115xxx*xxx*xxx* Set Primary DNS Server when entering a decimal Must set Static IP first. xxx# point. For PLANET IPX -2000 IP #136# Enable auto-config mode None PBX System For PLANET IPX -2000 IP #137# Disable auto-config mode...
- Page 15 In initially firmware version: V1.0, the VIP-157 default machine operation is at PSTN mode. If user want to make a VoIP phone call, please press the “*” key to switch to PSTN Hint mode. After latest firmware version: V2.0 or higher, the VIP-157 is at VoIP mode.
- Page 16 fter confirming the modification you’ve done, Please click on the Submit button to apply settings and rowse to “Save & Reboot” menu to reboot the machine to make the settings effective. Connection Type Data required. In most circumstances, it is no need to configure the DHC Fixed IP settings.
-
Page 17: Chapter 3 Network Service Configurations
Chapter 3 Network Service Configurations Configuring and monitoring your Phone Adapter from web browser The ATA integrates a web-based graphical user interface that can cover most configurations and machine status monitoring. Via standard web browser, you can configure and check machine status from anywhere around the world. - Page 18 When users login the web page, users can see the Phone Adapter system information like firmware version, company…etc in this main page. VoIP Phone Adatper main page...
-
Page 19: Chapter 4 Voip Telephone Adapter Configurations
Chapter 4 VoIP Telephone Adapter Configurations Speed Dial Setting In Speed Dial setting function you can add/delete Speed Dial number. You can input maximum 10 entries speed dial list. If you need to add a phone number into the Speed Dial list, you need to input the position, the name, and the phone number (by URL type). -
Page 20: Call Forward Setting
When you finished the setting, please click the Submit button. Note: When you finished the setting, please click the Submit button. Call Forward function for VIP-156/VIP-156PT/VIP-157S Call Forward to PSTN (VIP-157): VIP-157 not only supports Call Forward to IP calls, but also can forward the calls to PSTN.
