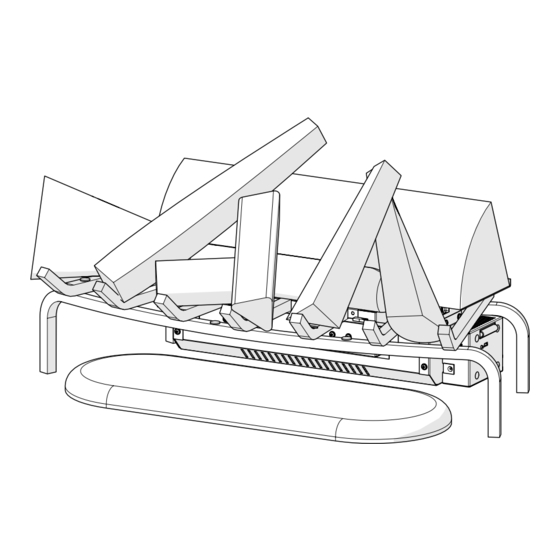

- Page 1 SILVERTON SVT20 The product complies with the required Product Safety, Electromagnetic Compatibility and Environmental Standards. This product is fully compliant with LVD,EMC. RoHs and EcoDesign Directives. 08/35674/0 Issue 6 OCN 11797...
-
Page 2: Table Of Contents
Table of Contents Welcome and Congratulations ............. 2 Important Instructions ..............3 Site Selection and Preparation ............. 4 Log Grate Assembly ..............6 Log Grate Installation ..............11 Operation ..................12 Maintenance ................13 Additional Information ..............14 Troubleshooting ................15 Always use a qualified technician or service agent to repair this Log grate Note: Procedures and techniques that are considered important enough to emphasise Caution: Procedures and techniques which, if not carefully followed, will result in damage to the... -
Page 3: Welcome And Congratulations
Welcome and Congratulations Thank you and congratulations for choosing to purchase a Silverton from Dimplex. Please carefully read and save these instructions. Caution: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the warranty... -
Page 4: Important Instructions
Important Instructions Please read this information guide carefully to be able to safely install, use and maintain your product When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following: 1. -
Page 5: Site Selection And Preparation
CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. This instruction can be found at WWW.DIMPLEX.CO.UK 8. USAGE Do not burn wood or other materials in the log grate... - Page 6 4. Unpack the transducer (contained within the water reservoir) which has been wrapped to protect it during shipping. See Figure 1. To access the transducer; • Remove the top cover by turning the retaining tabs on both ends of the water reservoir. •...
-
Page 7: Log Grate Assembly
Log Grate Assembly Caution: Handle logs carefully, they are fragile and can easily crack or break, if dropped. - Page 8 Log Grate Assembly Each log is a separate component that needs to be placed on the grate. Position each log so that the hook and loop pad on the backside of the log lines up with the corresponding hook and loop pad on the log grate.
- Page 9 Log Grate Assembly...
- Page 10 Log Grate Assembly...
- Page 11 Log Grate Assembly Caution: Ensure that the logs are placed so that they are not blocking the flame effect outlet...
-
Page 12: Log Grate Installation
Log Grate Installation Only use filtered tap water in this appliance. Once installed, never move this appliance or lay it on its back, without draining the water from the sump and water tank. If you intend not using the appliance for longer than 1 week, drain the water from the reservoir and refill container. -
Page 13: Operation
Operation The manual controls for the Log Grate are located on the right side (Figure 3). A. On /Standby Switch. Supplies power to the Log Grate B. Momentary Button Pressing this button toggles between Logs, Logs and flame effect, and Off. Remote Control The unit is supplied with a radio frequency remote control. -
Page 14: Maintenance
Note: Once the mist has been activated, the unit will have to be turned Off, using either the momentary button, on the unit, on the Off button or the remote control, then back on to return to Level 1 - Logs and Lights only in operation. Battery Replacement To replace the battery, Slide the battery cover open on the remote control (Figure 4) -
Page 15: Additional Information
Should you require after sales information or assistance with this product please go to www.dimplex.co.uk and select “Customer Support” or ring our help desk on 0344 879 3588 (UK) or 01 842 4833 (R. O. I.). Spare parts are also available on the web site. -
Page 16: Troubleshooting
