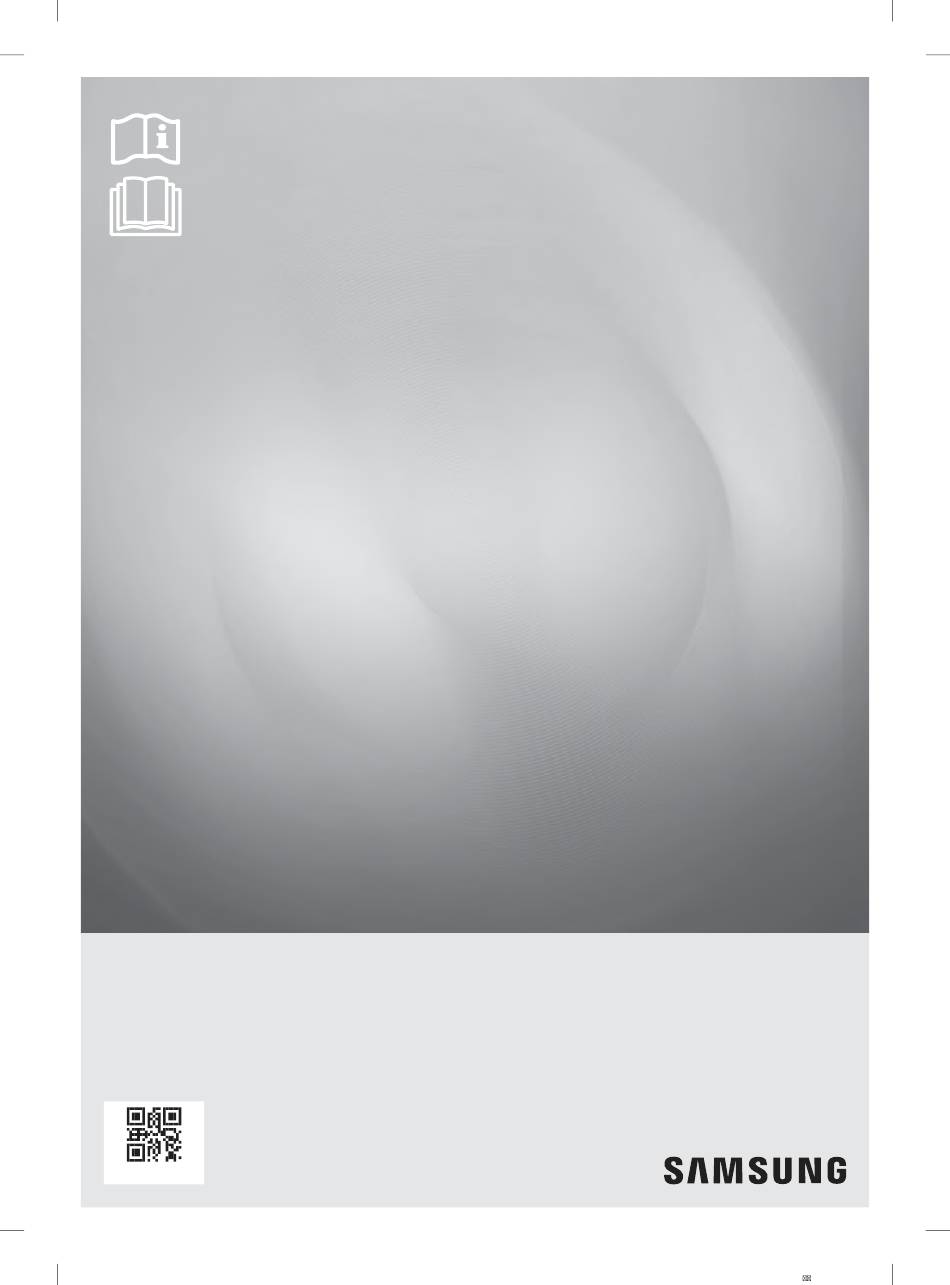

Dishwasher
user manual
imagine
the possibilities
Thank you for purchasing this Samsung product.
DW60M6050**
DW60M6051**
DW60M6040**
D159STS
D159W
D157STS
D157W
2017-06-22
2017-06-22
2:31:05
2:31:05

Advertisement

Table of Contents
loading

Related Manuals for Samsung DW60M6051 Series

Summary of Contents for Samsung DW60M6051 Series

  • Page 1 All manuals and user guides at all-guides.com DW60M6050** DW60M6051** DW60M6040** D159STS D159W D157STS D157W Dishwasher user manual imagine the possibilities Thank you for purchasing this Samsung product. DD81-02437G-00 DW5500M_DD81-02437G-00_EN.indd 1 DW5500M_DD81-02437G-00_EN.indd 1 2017-06-22 2017-06-22 2:31:05 2:31:05...
  • Page 2 All manuals and user guides at all-guides.com Safety instructions Congratulations on your new Samsung dishwasher. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your dishwasher’s many benefits and features.
  • Page 3 All manuals and user guides at all-guides.com To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: WARNING 1. This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction...
  • Page 4 All manuals and user guides at all-guides.com Safety instructions 8. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
  • Page 5 All manuals and user guides at all-guides.com INSTRUCTIONS WHEN USING YOUR DISHWASHER This dishwasher is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments such as: • Shops • Offices and showrooms and by residents in establishments such as: •...
  • Page 6 All manuals and user guides at all-guides.com Safety instructions Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. WARNING INSTRUCTIONS FOR PROTECTING YOUR CHILDREN This appliance is not a toy! To avoid the risk of injury, keep children well away and do not allow them to play in or around the dishwasher or to use the controls.
  • Page 7 All manuals and user guides at all-guides.com INSTRUCTIONS FOR INSTALLING YOUR DISHWASHER Before setting up the appliance, check it for any externally visible damage. Under no circumstances should you use a damaged appliance. A damaged appliance could be dangerous. WARNING The dishwasher must only be plugged into the electricity supply via a suitable switched socket.
  • Page 8 All manuals and user guides at all-guides.com Safety instructions The integrated waterproof system offers protection from water damage, provided the following conditions are met: CAUTION • The dishwasher is correctly installed and plumbed in. • The dishwasher is properly maintained and parts are replaced where it can be seen that this is necessary.
  • Page 9 Make sure that your dishwasher’s hardness level setting is correct as your area. (Refer to the “Water softener mode (Water hardness level setting)” section on page 19.) For information on Samsung’s environmental commitments and product specific regulatory obligations e.g. REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html Safety instructions _9 DW5500M_DD81-02437G-00_EN.indd 9...

  • Page 10: Table Of Contents

    All manuals and user guides at all-guides.com Contents PARTS AND FEATURES Dishwasher features Control panel Displays USING THE DETERGENT AND WATER Water softener mode (Water hardness level setting) SOFTENER Loading the salt into the softener Using detergent Using rinse aid How to use the Multi tap option LOADING THE DISHWASHER RACKS Loading the upper basket...

  • Page 11: Parts And Features

    All manuals and user guides at all-guides.com Parts and features DISHWASHER FEATURES Front & Rear view (D159STS/D159W/DW60M6050**) 3rd Rack Upper Basket Lower Basket Duct Nozzle Salt Container Dispenser Cup Shelf Spray arms Filter assembly Inlet hose Drain hose Accessory parts - User manual, Salt funnel, cutlery basket. Part and features _11 DW5500M_DD81-02437G-00_EN.indd 11 DW5500M_DD81-02437G-00_EN.indd 11...
  • Page 12 All manuals and user guides at all-guides.com Parts and features Front & Rear view (DW60M6051**) 3rd Rack Upper Basket Lower Basket Duct Nozzle Salt Container Dispenser Cup Shelf Spray arms Filter assembly Inlet hose Drain hose Accessory parts - User manual, Salt funnel, cutlery basket. 12_ Part and features DW5500M_DD81-02437G-00_EN.indd 12 DW5500M_DD81-02437G-00_EN.indd 12...
  • Page 13 All manuals and user guides at all-guides.com Front & Rear view (D157STS/D157W/DW60M6040**) Upper Basket Lower Basket Duct Nozzle Salt Container Dispenser Cup Shelf Spray arms Filter assembly Drain hose Inlet hose Accessory parts - User manual, Salt funnel, cutlery basket. Part and features _13 DW5500M_DD81-02437G-00_EN.indd 13 DW5500M_DD81-02437G-00_EN.indd 13...
  • Page 14 All manuals and user guides at all-guides.com Parts and features CONTROL PANEL D159STS/D159W/DW60M6050U*/DW60M6050S* DW60M6051F*/DW60M6051U*/DW60M6051S* D157STS/D157W/DW60M6040U*/DW60M6040S* D159 DW60M6050 DW60M6051 D157 DW60M6040 POWER Press this button to turn on your dishwasher: the screen lights up. Program To select washing program press this button. For small amount of loading items, use either the upper or lower basket only to save energy.
  • Page 15 All manuals and user guides at all-guides.com • When the door is open only the POWER button will operate. • You can select options (Multi tap, Delay start and/or Half load) before starting a cycle. IMPORTANT: To get the best performance from your dishwasher, read all the operating instructions before using it for the first time.
  • Page 16 All manuals and user guides at all-guides.com Parts and features This option allows you to lock the buttons on the control panel so children cannot accidentally start the dishwasher by pressing the buttons on the panel. Control lock To lock and unlock the buttons on the control panel, hold down both the Control lock buttons for three (3) seconds.
  • Page 17 All manuals and user guides at all-guides.com DISPLAYS D159STS/D159W/DW60M6050U*/DW60M6050S* DW60M6051F*/DW60M6051U*/DW60M6051S* D157STS/D157W/DW60M6040U*/DW60M6040S* D159/DW60M6050/DW60M6051 D157/DW60M6040 Program icons Press the Program button to select each program. Intensive Heavily soiled items include pots and pans Lightly to heavily soiled daily using items, automatic detection of the Auto wash amount of soils.
  • Page 18 All manuals and user guides at all-guides.com Parts and features DW60M6050BB/DW60M6040BB DW60M6050 DW60M6040 Program icons Press the Program button to select each program. Lightly to heavily soiled daily using items, automatic detection of the Auto wash amount of soils. Normally soiled daily using items, with reduced energy and water consumptions.

  • Page 19: Using The Detergent And Water Softener

    All manuals and user guides at all-guides.com Using the detergent and water softener WATER SOFTENER MODE (WATER HARDNESS LEVEL SETTING) The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimise the level of salt consumption. To set the salt consumption, proceed as below: 1.
  • Page 20 All manuals and user guides at all-guides.com Using the detergent and water softener LOADING THE SALT INTO THE SOFTENER Always use salt intended for use with dishwasher. The salt container is located beneath the lower rack and should be filled as follows: ATTENTION •...
  • Page 21 All manuals and user guides at all-guides.com USING DETERGENT All dishwasher cycles require detergent in the detergent compartment. Add the correct amount of detergent for the selected cycle to ensure the best performance. CAUTION: Use dishwasher detergent only. Regular detergent produces too much foam, which may decrease the dishwasher’s performance or cause it to malfunction.
  • Page 22 All manuals and user guides at all-guides.com Using the detergent and water softener USING RINSE AID Filling the rinse aid reservoir When the Rinse Refill indicator lights up on the control panel, refill with rinse aid. Your dishwasher has been designed to use liquid rinse aid only. Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction.
  • Page 23 All manuals and user guides at all-guides.com HOW TO USE THE MULTI TAP OPTION Your dishwasher has a Multi tap option which does not need salt and rinse aid but a 3 In1 tablet. This option can select on Intensive, Eco program only. The Multi tap setting is only for use with Multi tap tablets.

  • Page 24: Loading The Dishwasher Racks

    All manuals and user guides at all-guides.com Loading the dishwasher racks For best performance of the dishwasher, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model. Attention before or after loading the dishwasher racks Scrape off any large amounts of leftover food.
  • Page 25 All manuals and user guides at all-guides.com Adjusting the Upper Basket The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. 1. To lower the upper rack, press the “A” levers located at the left and right sides of the upper basket and push the upper basket downwards slightly at the same...
  • Page 26 All manuals and user guides at all-guides.com Loading the dishwasher racks LOADING THE LOWER BASKET We recommend that you place large items which are most difficult to clean in to the lower rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.
  • Page 27 All manuals and user guides at all-guides.com CUTLERY(SILVERWARE) TRAY Silverware should be placed in the cutlery tray with handles at the bottom: The spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket.
  • Page 28 All manuals and user guides at all-guides.com Loading the dishwasher racks D157/DW60M6040 Soup spoons Dessert spoons Forks Serving spoons Knives Serving forks Teaspoons Gravy ladles WARNING • Do not let any item extend through the bottom. • Always load sharp utensils with the sharp point down! 28_ Loading the dishwasher racks DW5500M_DD81-02437G-00_EN.indd 28 DW5500M_DD81-02437G-00_EN.indd 28...
  • Page 29 All manuals and user guides at all-guides.com FOR WASHING IN THE DISHWASHER THE FOLLOWING CUTLERY/ DISHES Are not suitable Are of limited suitability Plastic items that are not heat resistant. Some types of glasses can become dull after a large number of washes. Older cutlery with glued parts that is not temperature resistant.

  • Page 30: Washing Programmes

    All manuals and user guides at all-guides.com Washing programmes TURNING ON THE APPLIANCE Starting a cycle wash 1. Draw out the lower and upper basket, load the dishes and push them back.. It is recommended to load the lower basket fi rst, then the upper one (see the section entitled “Loading the dishwasher racks”).
  • Page 31 All manuals and user guides at all-guides.com AT THE END OF THE WASH CYCLE When the working cycle has finished, the buzzer of dishwasher will beep shortly, then stop. In the digital display appears “0”, only in this case the programme has ended. 1.
  • Page 32 All manuals and user guides at all-guides.com Washing programmes Detergent Running Energy Program Description of Cycle Water (ℓ) (Prewash/Main wash) (g) time (min) (kWh) Pre Wash (50 °C) Wash (60 °C) Express 5/30 1.15 Rinse (60 °C) Drying Pre Wash (50 °C) Wash (60 °C) Express + Hygiene 5/30...

  • Page 33: Cleaning And Care

    All manuals and user guides at all-guides.com Cleaning and care CLEANING THE FILTERS Filtering system For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter, and the fine filter.
  • Page 34 All manuals and user guides at all-guides.com Cleaning and care CLEANING THE SPRAY ARMS It is necessary to clean the spray arms regularly as hard water chemicals may clog the spray arm jets and bearings. To remove the middle spray arm, hold the nut, rotate the arm clockwise to remove it.
  • Page 35 All manuals and user guides at all-guides.com HOW TO MAINTAIN YOUR DISHWASHER • After Every Wash After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odours not trapped inside. •...

  • Page 36: Setting Up Your Dishwasher

    All manuals and user guides at all-guides.com Setting up your dishwasher WARNING : Electrical shock hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. ATTENTION: The installation of the pipes and electrical equipments should be done by professionals. About electricity connecting CAUTION, for personal safety: DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
  • Page 37 All manuals and user guides at all-guides.com Hot water connection The water supply to the appliance can also be connected to the house hot water line (centralized system, heating system), as long as it does not exceed a temperature of 60 °C. In this case, the wash cycle time will be shortened by about 15 minutes and the wash efficiency slightly reduced.
  • Page 38 All manuals and user guides at all-guides.com Setting up your dishwasher CONNECTION OF DRAIN HOSES Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be at a height between 40 and 100 cm. The free end of the hose must not be immersed in water to avoid the back flow of it.

  • Page 39: Installing Your Dishwasher

    All manuals and user guides at all-guides.com Installing your dishwasher BUILT UNDER, SEMI BUILT IN, FULLY BUILT IN DISHWASHER Be sure that you or your installer follow these instructions closely so that your new dishwasher works properly and that you’re not at risk of injury when washing dishes. New installation If the dishwasher is a new installation, most of the installation work must be done before the dishwasher is moved into place.
  • Page 40 All manuals and user guides at all-guides.com Installing your dishwasher STEP 2. CHECKING WATER SUPPLY AND ELECTRICAL REQUIREMENTS • The water supply line pressure must be between 0.04-1.0 MPa. • Supply cold water only. Make sure that the water temperature does not exceed 60 ˚C. CAUTION •...
  • Page 41 All manuals and user guides at all-guides.com Fully built in 1. Install the hook on the custom wooden panel and put the hook into the slot of the outer door of dishwasher. 2. After positioning of the panel, fi x the panel onto the outer door by screws and bolts. CAUTION: Use a custom panel between 3~8 kg.
  • Page 42 All manuals and user guides at all-guides.com Installing your dishwasher STEP 4. TENSION ADJUSTMENT OF THE DOOR SPRING (FOR FULLY BUILT IN AND SEMI BUILT IN DISHWASHER) 1. The door springs are set at the factory to the proper tension for the outer door. If custom wooden panel are installed, you will have to adjust the door spring tension.
  • Page 43 All manuals and user guides at all-guides.com STEP 5. DISHWASHER INSTALLATION 1. Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. (For Fully built in and Semi built in dishwasher) 2.
  • Page 44 All manuals and user guides at all-guides.com Installing your dishwasher STEP 6. LEVELLING THE DISHWASHER Check level front to back Check level side to side Dishwasher must be level for proper dish rack operation and wash performance. 1. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. 2.

  • Page 45: Troubleshooting

    All manuals and user guides at all-guides.com Troubleshooting The manufacturer, following a policy of constant development and up-dating of the product, may make modifications without giving prior notice. BEFORE CALLING FOR SERVICE PROBLEM POSSIBLE CAUSE WHAT TO DO Dishwasher doesn’t •...
  • Page 46 All manuals and user guides at all-guides.com Troubleshooting PROBLEM POSSIBLE CAUSE WHAT TO DO Spots and filming on 1. Extremely hard water. To remove spots from glassware: glasses and flatware 2. Low inlet temperature. 1. Take out all metal utensils out of the dishwasher.
  • Page 47 All manuals and user guides at all-guides.com PROBLEM POSSIBLE CAUSE WHAT TO DO Dishwasher leaks • Overfill dispenser or rinse • Be careful not to overfill the rinse aid aid spills. dispenser. Spilled rinse aid could cause overusing and lead to overflowing. Wipe away any spills with a damp cloth.

  • Page 48: Error Codes

    All manuals and user guides at all-guides.com Troubleshooting ERROR CODES If an error occurs an error code may be displayed to inform you: Codes Meanings Possible Causes Faucets is not opened, or water intake is Water supply check restricted,or water pressure is too low Leakage Some element of dishwasher leaks.
  • Page 49 All manuals and user guides at all-guides.com Appendix SPECIFICATIONS DW60M6050US D159STS/D159W DW60M6050UW D157STS/D157W DW60M6051US DW60M6050BB DW60M6050FS Model DW60M6050SS DW60M6051UW DW60M6040BB DW60M6050FW DW60M6040FS DW60M6040US DW60M6040FW DW60M6040UW Type Freestanding Built Under Semi Built in Fully Built in Power 220-240 V~, 50 Hz Water pressure 0.04 - 1.0 Mpa Rated power usage...
  • Page 50 All manuals and user guides at all-guides.com Appendix PRODUCT DIMENSION 1150 1175 D159STS/D159W DW60M6050US/DW60M6050UW D157STS/D157W DW60M6051US/DW60M6051UW DW60M6050FS/DW60M6050FW DW60M6040US/DW60M6040UW DW60M6040FS/DW60M6040FW DW60M6050SS 1150 DW60M6050BB/DW60M6040BB 50_ Appendix DW5500M_DD81-02437G-00_EN.indd 50 DW5500M_DD81-02437G-00_EN.indd 50 2017-06-22 2017-06-22 2:31:36 2:31:36...
  • Page 51 All manuals and user guides at all-guides.com For standard test D159/DW60M6050/DW60M6051 The information for comparability test in accordance with EN 50242, as follows: The diagrams below show the proper way to load the baskets based on the European Standards (EN50242). •...
  • Page 52 All manuals and user guides at all-guides.com For standard test D157/DW60M6040 The information for comparability test in accordance with EN 50242, as follows: The diagrams below show the proper way to load the baskets based on the European Standards (EN50242). •...
  • Page 53 All manuals and user guides at all-guides.com Product fiche REGULATION (EU) NO 1059/2010 Supplier SAMSUNG D159 D157 Model name DW60M6050 DW60M6040 DW60M6051 Rated Capacity (place setting) Energy efficiency class Annual energy consumption, (AE c) (kWh/year) Standard cycle energy consumption, (E t) (kWh) 0.92...
  • Page 54 All manuals and user guides at all-guides.com Terminology for dishwasher A motor that sucks the water remaining on the floor of the dishwater and 1. Circulation Motor infects water using high pressure through the internal water passages to the top Middle and lower nozzles. The pump that drains the polluted water from the dishwater generated 2.
  • Page 55 All manuals and user guides at all-guides.com Note DW5500M_DD81-02437G-00_EN.indd 55 DW5500M_DD81-02437G-00_EN.indd 55 2017-06-22 2017-06-22 2:31:42 2:31:42...
  • Page 56 All manuals and user guides at all-guides.com QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT 021-8255 [CE] IRAN www.samsung.com/iran/support 021-42132 [HHP] DW5500M_DD81-02437G-00_EN.indd 56 DW5500M_DD81-02437G-00_EN.indd 56 2017-06-22 2017-06-22 2:31:42 2:31:42...
  • Page 57 All manuals and user guides at all-guides.com DW60M6050** DW60M6051** DW60M6040** D159STS D159W D157STS D157W ‫ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﺋﯽ‬ ‫دﻓﺘﺮﭼﻪ راﻫﻨﻤﺎی ﮐﺎرﺑﺮ‬ ‫را ﺗﺼﻮر ﮐﻨﯿﺪ‬ ‫اﻣﮑﺎﻧﺎت‬ .‫ﺑﺎﺑﺖ ﺧﺮﯾﺪ اﯾﻦ ﻣﺤﺼﻮل ﺳﺎﻣﺴﻮﻧﮓ از ﺷﻤﺎ ﺗﺸﮑﺮ ﻣﯽ ﮐﻨﯿﻢ‬ DD81-02437G-00 DW5500M_DD81-02437G-00_FA.indd 1 DW5500M_DD81-02437G-00_FA.indd 1 2017-06-26 2017-06-26 6:38:50 6:38:50...
  • Page 58 ‫راﻫﻨﻤﺎ ﻣﺘﻔﺎوت ﺑﻮده و ﲤﺎم ﻋﻼﺋﻢ ﻫﺸﺪاردﻫﻨﺪه در ﻣﻮرد آن ﺻﺪق ﻧﮑﻨﻨﺪ. اﮔﺮ ﺳﺆال ﯾﺎ ﻣﺸﮑﻠﯽ دارﯾﺪ، ﺑﺎ ﻧﺰدﯾﮏ ﺗﺮﯾﻦ ﻣﺮﮐﺰ ﺧﺪﻣﺎﺗﯽ ﲤﺎس ﮔﺮﻓﺘﻪ و ﯾﺎ ﺑﺮای‬ .‫ ﻣﺮاﺟﻌﻪ ﮐﻨﯿﺪ‬www.samsung.com ‫درﯾﺎﻓﺖ ﮐﻤﮏ و اﻃﻼﻋﺎت در اﯾﻨﺘﺮﻧﺖ ﺑﻪ ﻧﺸﺎﻧﯽ‬ ‫ﻋﻼﺋﻢ اﯾﻤﻨﯽ و ﻧﮑﺎت اﺣﺘﯿﺎﻃﯽ ﻣﻬﻢ‬...
  • Page 59 All manuals and user guides at all-guides.com ،‫ﺑﻪ ﻣﻨﻈﻮر ﮐﺎﻫﺶ اﺣﺘﻤﺎل ﺧﻄﺮ آﺗﺶ ﺳﻮزی، ﺑﺮق ﮔﺮﻓﺘﮕﯽ، ﯾﺎ ﺟﺮاﺣﺖ ﺑﻪ اﻓﺮاد در ﻫﻨﮕﺎم اﺳﺘﻔﺎده از دﺳﺘﮕﺎه ﺧﻮد، ﻧﮑﺎت اﺳﺎﺳﯽ اﺣﺘﯿﺎﻃﯽ و اﯾﻤﻨﯽ‬ :‫ﺷﺎﻣﻞ ﻣﻮارد زﯾﺮ را ﻣﺮاﻋﺎت ﮐﻨﯿﺪ‬ ‫ﻫﺸﺪﺍﺭ‬ ١ . ،‫اﯾﻦ...
  • Page 60 All manuals and user guides at all-guides.com ‫دﺳﺘﻮراﻟﻌﻤﻞ ﻫﺎی اﯾﻤﻨﯽ‬ ٨ . ‫اﺣﺘﯿﺎط: ﺑﻪ ﻣﻨﻈﻮر ﺟﻠﻮﮔﯿﺮی از ﺧﻄﺮات ﻧﺎﺷﯽ از رﯾﺴﺖ ﺷﺪن ﻧﺎﺧﻮاﺳﺘﻪ ﻗﻄﻊ‬ ‫ﮐﻨﻨﺪه ﺣﺮارﺗﯽ، ﺑﺮق اﯾﻦ دﺳﺘﮕﺎه ﻧﺒﺎﯾﺪ از ﻃﺮﯾﻖ ﯾﮏ وﺳﯿﻠﻪ ﻗﻄﻊ و وﺻﻞ ﮐﻨﻨﺪه‬ ‫ﺑﯿﺮوﻧﯽ ﻣﺎﻧﻨﺪ ﯾﮏ ﺗﺎﯾﻤﺮ ﺗﻐﺬﯾﻪ ﺷﻮد، ﯾﺎ ﺑﻪ ﻣﺪاری ﻣﺘﺼﻞ ﮔﺮدد ﮐﻪ ﻣﺮﺗﺒ ﺎ ﹰ ﺗﻮﺳﻂ‬ .‫ﺷﺒﮑﻪ...
  • Page 61 All manuals and user guides at all-guides.com ‫دﺳﺘﻮراﻟﻌﻤﻞ ﻫﺎی اﺳﺘﻔﺎده از ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﺋﯽ‬ ‫اﯾﻦ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ ﺑﺮای اﺳﺘﻔﺎده در ﻣﺤﯿﻂ ﲡﺎری ﻃﺮاﺣﯽ ﻧﺸﺪه اﺳﺖ. ﮐﺎرﺑﺮد ﻣﻮرد ﻧﻈﺮ آن در ﻣﻨﺎزل و در ﺷﺮاﯾﻂ ﮐﺎری و ﻣﺴﮑﻮﻧﯽ ﻣﺸﺎﺑﻪ ﻣﯽ‬ :‫ﺑﺎﺷﺪ از ﻗﺒﯿﻞ‬ ‫ﻓﺮوﺷﮕﺎه...
  • Page 62 All manuals and user guides at all-guides.com ‫دﺳﺘﻮراﻟﻌﻤﻞ ﻫﺎی اﯾﻤﻨﯽ‬ ‫دﺳﺘﻮراﻟﻌﻤﻞ ﻫﺎی ﻣﺤﺎﻓﻈﺖ از ﮐﻮدﮐﺎن‬ ‫اﯾﻦ ﻣﺎﺷﯿﻦ اﺳﺒﺎب ﺑﺎزی ﻧﯿﺴﺖ! ﺑﺮای ﺟﻠﻮﮔﯿﺮی از ﺧﻄﺮ ﺟﺮاﺣﺖ، اﺟﺎزه ﻧﺪﻫﯿﺪ ﮐﻮدﮐﺎن ﺑﻪ دﺳﺘﮕﺎه ﻧﺰدﯾﮏ ﺷﺪه و ﻧﮕﺬارﯾﺪ ﺑﺎ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﺋﯽ‬ ‫ﯾﺎ داﺧﻞ آن ﺑﺎزی ﮐﻨﻨﺪ و ﯾﺎ ﺑﻪ ﮐﻨﺘﺮل ﻫﺎ دﺳﺖ ﺑﺰﻧﻨﺪ. آﻧﻬﺎ ﻣﺘﻮﺟﻪ ﺧﻄﺮات اﺣﺘﻤﺎﻟﯽ اﯾﻦ ﮐﺎرﻫﺎ ﻧﯿﺴﺘﻨﺪ. آﻧﻬﺎ ﺑﺎﯾﺪ ﻫﺮ وﻗﺖ ﮐﻪ در آﺷﭙﺰﺧﺎﻧﻪ ﮐﺎر ﻣﯽ‬ ‫ﻫﺸﺪﺍﺭ‬...
  • Page 63 All manuals and user guides at all-guides.com ‫دﺳﺘﻮراﻟﻌﻤﻞ ﻫﺎی ﻧﺼﺐ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﺋﯽ‬ ‫ﻗﺒﻞ از راه اﻧﺪازی اﯾﻦ ﻣﺎﺷﯿﻦ، ﺑﺮای ﻫﺮﮔﻮﻧﻪ آﺳﯿﺐ ﻣﺸﻬﻮد ﺑﺮ روی ﺑﺪﻧﻪ ﮐﻨﺘﺮل ﮐﻨﯿﺪ. ﲢﺖ ﻫﯿﭻ ﺷﺮاﯾﻄﯽ ﻧﺒﺎﯾﺪ از ﯾﮏ دﺳﺘﮕﺎه آﺳﯿﺐ دﯾﺪه اﺳﺘﻔﺎده‬ .‫ﮐﺮد. ﯾﮏ دﺳﺘﮕﺎه آﺳﯿﺐ دﯾﺪه ﻣﯽ ﺗﻮاﻧﺪ ﺧﻄﺮﻧﺎک ﺑﺎﺷﺪ‬ ‫ﻫﺸﺪﺍﺭ‬...
  • Page 64 All manuals and user guides at all-guides.com ‫دﺳﺘﻮراﻟﻌﻤﻞ ﻫﺎی اﯾﻤﻨﯽ‬ :‫ﺳﯿﺴﺘﻢ ﺿﺪ آب ﺟﺎﻣﻊ ﻣﺤﺎﻓﻈﺖ در ﻣﻘﺎﺑﻞ آﺳﯿﺐ ﺑﺎ آب را ﻋﺮﺿﻪ ﻣﯽ ﮐﻨﺪ در ﺻﻮرﺗﯿﮑﻪ ﺷﺮاﯾﻂ زﯾﺮ ﺑﺮآورده ﺷﻮﻧﺪ‬ ‫ﺍﺣﺘﯿﺎﻁ‬ .‫ﻧﺼﺐ و ﻟﻮﻟﻪ ﮐﺸﯽ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﺋﯽ ﺑﻄﻮر ﺻﺤﯿﺢ و اﺻﻮﻟﯽ اﳒﺎم ﺷﺪه ﺑﺎﺷﺪ‬ •...
  • Page 65 (.‫)ﺑﻪ ﺑﺨﺶ ”ﺣﺎﻟﺖ ﻧﺮم ﮐﻨﻨﺪه آب )ﺗﻨﻈﯿﻢ ﻣﯿﺰان ﺳﺨﺘﯽ آب(“ در ﺻﻔﺤﻪ ٩١ ﻣﺮاﺟﻌﻪ ﮐﻨﯿﺪ‬ :‫، از اﯾﻦ ﺗﺎرﳕﺎ ﺑﺎزدﯾﺪ ﮐﻨﯿﺪ‬REACH ‫ﺑﺮای ﮐﺴﺐ اﻃﻼﻋﺎت در ﻣﻮرد ﺗﻌﻬﺪات ﺳﺎﻣﺴﻮﻧﮓ در ﻣﻮرد ﻣﺤﯿﻂ زﯾﺴﺖ و وﻇﺎﯾﻒ ﺗﻨﻈﯿﻤﯽ ﺧﺎص ﻣﺤﺼﻮل، ﻣﻨﺠﻤﻠﻪ‬ samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html ٩_ ‫دﺳﺘﻮراﻟﻌﻤﻞ ﻫﺎی اﯾﻤﻨﯽ‬...
  • Page 66 All manuals and user guides at all-guides.com ‫ﻓﻬﺮﺳﺖ ﻣﻄﺎﻟﺐ‬ ‫ﻗﻄﻌﺎت و وﯾﮋﮔﯽ ﻫﺎ‬ ‫وﯾﮋﮔﯽ ﻫﺎی ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ ١١ ١١ ‫ﺻﻔﺤﻪ ﮐﻨﺘﺮل‬ ١۴ ‫ﳕﺎﯾﺸﮕﺮﻫﺎ‬ ١٧ ‫اﺳﺘﻔﺎده از ﺷﻮﯾﻨﺪه و ﻧﺮم ﮐﻨﻨﺪه آب‬ (‫ﺣﺎﻟﺖ ﻧﺮم ﮐﻨﻨﺪه آب )ﺗﻨﻈﯿﻢ ﻣﯿﺰان ﺳﺨﺘﯽ آب‬ ١٩ ١٩...
  • Page 67 All manuals and user guides at all-guides.com ‫ﻗﻄﻌﺎت و وﯾﮋﮔﯽ ﻫﺎ‬ ‫وﯾﮋﮔﯽ ﻫﺎی ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ (D159STS/D159W/DW60M6050**) ‫ﳕﺎی ﺟﻠﻮ و ﻋﻘﺐ‬ ١ ٧ ٢ ۴ ١ ‫ﻗﻔﺴﻪ ﺳﻮم‬ ٢ ٣ ‫ﺳﺒﺪ ﻓﻮﻗﺎﻧﯽ‬ ٨ ٣ ‫ﺳﺒﺪ ﲢﺘﺎﻧﯽ‬ ٩ ۵ ۴ ‫ﻧﺎزل ﻣﺠﺮا‬ ۵...
  • Page 68 All manuals and user guides at all-guides.com ‫ﻗﻄﻌﺎت و وﯾﮋﮔﯽ ﻫﺎ‬ (DW60M6051**) ‫ﳕﺎی ﺟﻠﻮ و ﻋﻘﺐ‬ ١ ٧ ٢ ۴ ١ ٨ ‫ﻗﻔﺴﻪ ﺳﻮم‬ ٣ ٢ ‫ﺳﺒﺪ ﻓﻮﻗﺎﻧﯽ‬ ٩ ۵ ٣ ‫ﺳﺒﺪ ﲢﺘﺎﻧﯽ‬ ۴ ‫ﻧﺎزل ﻣﺠﺮا‬ ۵ ‫ﻣﺤﻔﻈﻪ ﳕﮏ‬ ۶ ۶...
  • Page 69 All manuals and user guides at all-guides.com (D157STS/D157W/DW60M6040**) ‫ﳕﺎی ﺟﻠﻮ و ﻋﻘﺐ‬ ۶ ١ ٣ ١ ‫ﺳﺒﺪ ﻓﻮﻗﺎﻧﯽ‬ ٢ ٢ ‫ﺳﺒﺪ ﲢﺘﺎﻧﯽ‬ ٧ ٣ ٨ ‫ﻧﺎزل ﻣﺠﺮا‬ ۴ ۴ ‫ﻣﺤﻔﻈﻪ ﳕﮏ‬ ۵ ‫ﭘﺨﺸﮕﺮ‬ ۵ ۶ ‫ﻗﻔﺴﻪ ﻓﻨﺠﺎن‬ ٧ ‫ﺑﺎزوﻫﺎی اﺳﭙﺮی‬ ٣...
  • Page 70 All manuals and user guides at all-guides.com ‫ﻗﻄﻌﺎت و وﯾﮋﮔﯽ ﻫﺎ‬ ‫ﺻﻔﺤﻪ ﮐﻨﺘﺮل‬ D159STS/D159W/DW60M6050U*/DW60M6050S* DW60M6051F*/DW60M6051U*/DW60M6051S* D157STS/D157W/DW60M6040U*/DW60M6040S* ٧ ٢ D159 ١ ۶ DW60M6050 DW60M6051 ۴ ٩ ۵ ٣ ٨ ٢ ٧ D157 ١ ۶ DW60M6040 ۴ ٩ (‫ )ﻧﯿﺮو‬POWER ١ .‫اﯾﻦ دﮐﻤﻪ را ﺑﺮای روﺷﻦ ﮐﺮدن ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ ﻓﺸﺎر دﻫﯿﺪ: ﳕﺎﯾﺸﮕﺮ روﺷﻦ ﻣﯽ ﺷﻮد‬ ‫ﺑﺮﻧﺎﻣﻪ‬...
  • Page 71 All manuals and user guides at all-guides.com .‫ )ﻧﯿﺮو( ﮐﺎر ﺧﻮاﻫﺪ ﮐﺮد‬POWER ‫ﻫﻨﮕﺎﻣﯿﮑﻪ درﯾﭽﻪ ﺑﺎز اﺳﺖ، ﺗﻨﻬﺎ دﮐﻤﻪ‬ • .‫ﻣﯽ ﺗﻮاﻧﯿﺪ ﮔﺰﯾﻨﻪ ﻫﺎ )ﻗﺮص ﭼﻨﺪﮐﺎره, ﺷﺮوع ﺗﺎﺧﯿﺮی و/ﯾﺎ ﻧﯿﻤﻪ ﭘﺮ( را ﻗﺒﻞ از ﺷﺮوع ﺳﯿﮑﻞ اﻧﺘﺨﺎب ﮐﻨﯿﺪ‬ • ‫ﻧﮑﺘﻪ ﻣﻬﻢ: ﺑﺮای دﺳﺘﯿﺎﺑﯽ ﺑﻪ ﺑﻬﺘﺮﯾﻦ ﻋﻤﻠﮑﺮد ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ، ﻫﻤﻪ دﺳﺘﻮراﻟﻌﻤﻞ ﻫﺎی اﺳﺘﻔﺎده را ﻗﺒﻞ از اﺳﺘﻔﺎده ﺑﺮای اوﻟﯿﻦ ﺑﺎر ﻣﻄﺎﻟﻌﻪ‬ .‫ﮐﻨﯿﺪ‬...
  • Page 72 All manuals and user guides at all-guides.com ‫ﻗﻄﻌﺎت و وﯾﮋﮔﯽ ﻫﺎ‬ ‫اﮔﺮ ﻧﺸﺎﻧﮕﺮ ﭘﺮ ﮐﺮدن ﻣﺎده آﺑﮑﺸﯽ ﯾﺎ ﭘﺮ ﮐﺮدن ﳕﮏ روﺷﻦ ﺑﺎﺷﺪ، ﺑﺪﯾﻦ ﻣﻌﻨﯽ اﺳﺖ ﮐﻪ ﻻزم اﺳﺖ آﺑﮑﺸﯽ ﯾﺎ ﳕﮏ‬ .‫را ﻣﺠﺪد ا ﹰ ﭘﺮ ﮐﺮد‬ ‫ﻧﺸﺎﻧﮕﺮ ﺷﺮوع ﺗﺎﺧﯿﺮی‬ ‫اﮔﺮ...
  • Page 73 All manuals and user guides at all-guides.com ‫ﳕﺎﯾﺸﮕﺮﻫﺎ‬ D159STS/D159W/DW60M6050U*/DW60M6050S* DW60M6051F*/DW60M6051U*/DW60M6051S* D157STS/D157W/DW60M6040U*/DW60M6040S* D159/DW60M6050/DW60M6051 D157/DW60M6040 ٢ ٣ ١ ٢ ٣ .‫دﮐﻤﻪ ﺑﺮﻧﺎﻣﻪ را ﺑﺮای اﻧﺘﺨﺎب ﻫﺮ ﺑﺮﻧﺎﻣﻪ ﻓﺸﺎر دﻫﯿﺪ‬ ‫ﳕﺎدﻫﺎی ﺑﺮﻧﺎﻣﻪ‬ ١ ‫ﺷﺪﯾﺪ‬ ‫اﻗﻼم ﺧﯿﻠﯽ ﮐﺜﯿﻒ ﺷﺎﻣﻞ ﻗﺎﺑﻠﻤﻪ و ﻣﺎﻫﯽ ﺗﺎﺑﻪ ﻫﺎ‬ ‫ﺷﺴﺘﺸﻮی...
  • Page 74 All manuals and user guides at all-guides.com ‫ﻗﻄﻌﺎت و وﯾﮋﮔﯽ ﻫﺎ‬ DW60M6050BB/DW60M6040BB DW60M6050 ١ ٢ ٣ DW60M6040 .‫دﮐﻤﻪ ﺑﺮﻧﺎﻣﻪ را ﺑﺮای اﻧﺘﺨﺎب ﻫﺮ ﺑﺮﻧﺎﻣﻪ ﻓﺸﺎر دﻫﯿﺪ‬ ‫ﳕﺎدﻫﺎی ﺑﺮﻧﺎﻣﻪ‬ ١ ‫ﺷﺴﺘﺸﻮی ﺧﻮدﮐﺎر‬ .‫اﻗﻼم ﻋﺎدی ﺑﺮای ﻣﺼﺮف روزاﻧﻪ ﺑﺎ ﮐﺜﯿﻔﯽ ﮐﻢ ﺗﺎ زﯾﺎد، ﺗﺸﺨﯿﺺ ﺧﻮدﮐﺎر ﻣﯿﺰان ﮐﺜﯿﻔﯽ‬ ‫ﻣﻘﺮون...
  • Page 75 All manuals and user guides at all-guides.com ‫اﺳﺘﻔﺎده از ﺷﻮﯾﻨﺪه و ﻧﺮم ﮐﻨﻨﺪه آب‬ (‫ﺣﺎﻟﺖ ﻧﺮم ﮐﻨﻨﺪه آب )ﺗﻨﻈﯿﻢ ﻣﯿﺰان ﺳﺨﺘﯽ آب‬ ‫اﯾﻦ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ ﻃﻮری ﻃﺮاﺣﯽ ﺷﺪه ﺗﺎ ﻣﻘﺪار ﳕﮏ ﻣﺼﺮف ﺷﺪه را ﺑﺮاﺳﺎس ﺳﺨﺘﯽ آب اﺳﺘﻔﺎده ﺷﺪه ﺗﻨﻈﯿﻢ ﮐﻨﺪ. ﻣﻨﻈﻮر ﺑﻬﯿﻨﻪ ﺳﺎزی ﻣﯿﺰان‬ :‫ﻣﺼﺮف...
  • Page 76 All manuals and user guides at all-guides.com ‫اﺳﺘﻔﺎده از ﺷﻮﯾﻨﺪه و ﻧﺮم ﮐﻨﻨﺪه آب‬ ‫ﭘﺮ ﮐﺮدن ﳕﮏ در ﻧﺮم ﮐﻨﻨﺪه‬ .‫ﻫﻤﯿﺸﻪ از ﳕﮑﯽ اﺳﺘﻔﺎده ﮐﻨﯿﺪ ﮐﻪ ﺑﻪ ﻣﻨﻈﻮر اﺳﺘﻔﺎده ﺑﺎ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ ﺑﺎﺷﺪ‬ :‫ﻣﺤﻔﻈﻪ ﳕﮏ در زﯾﺮ ﻗﻔﺴﻪ ﲢﺘﺎﻧﯽ ﻗﺮار دارد و ﺑﺎﯾﺴﺘﯽ ﺑﻪ ﺗﺮﺗﯿﺐ زﯾﺮ ﭘﺮ ﺷﻮد‬ ‫ﺗﻮﺟﻪ‬...
  • Page 77 All manuals and user guides at all-guides.com ‫اﺳﺘﻔﺎده از ﺷﻮﯾﻨﺪه‬ .‫ﺑﺮای ﻫﻤﻪ ﺳﯿﮑﻞ ﻫﺎی ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﺋﯽ ﺑﺎﯾﺪ ﺷﻮﯾﻨﺪه در ﻣﺨﺰن ﺷﻮﯾﻨﺪه ﺑﺮﯾﺰﯾﺪ‬ .‫ﺑﺮای ﺗﻀﻤﯿﻦ ﺑﻬﺘﺮﯾﻦ ﻋﻤﻠﮑﺮد، ﻣﻘﺪار ﺻﺤﯿﺢ ﺷﻮﯾﻨﺪه را ﺑﺮ اﺳﺎس ﺳﯿﮑﻞ اﻧﺘﺨﺎب ﺷﺪه اﺿﺎﻓﻪ ﮐﻨﯿﺪ‬ ‫اﺣﺘﯿﺎط: ﺗﻨﻬﺎ از ﺷﻮﯾﻨﺪه ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ اﺳﺘﻔﺎده ﮐﻨﯿﺪ. ﺷﻮﯾﻨﺪه ﻣﻌﻤﻮﻟﯽ ﮐﻒ ﺧﯿﻠﯽ زﯾﺎدی ﺗﻮﻟﯿﺪ ﻣﯽ ﮐﻨﺪ و ﺑﺎﻋﺚ اﻓﺖ ﻋﻤﻠﮑﺮد ﻣﺎﺷﯿﻦ‬ .‫ﻇﺮﻓﺸﻮﺋﯽ...
  • Page 78 All manuals and user guides at all-guides.com ‫اﺳﺘﻔﺎده از ﺷﻮﯾﻨﺪه و ﻧﺮم ﮐﻨﻨﺪه آب‬ ‫اﺳﺘﻔﺎده از ﻣﺎده ﮐﻤﮏ آﺑﮑﺸﯽ‬ ‫ﻣﺨﺰن ﻣﺎده ﮐﻤﮏ آﺑﮑﺸﯽ را ﭘﺮ ﮐﻨﯿﺪ‬ .‫ﻫﻨﮕﺎﻣﯿﮑﻪ ﻧﺸﺎﻧﮕﺮ ﭘﺮ ﮐﺮدن ﻣﺎده آﺑﮑﺸﯽ در ﺻﻔﺤﻪ ﮐﻨﺘﺮل روﺷﻦ ﺷﺪ، ﻣﺎده ﮐﻤﮏ آﺑﮑﺸﯽ را دوﺑﺎره ﭘﺮ ﮐﻨﯿﺪ‬ .‫ﻣﺎﺷﯿﻦ...
  • Page 79 All manuals and user guides at all-guides.com ‫ﻧﺤﻮه اﺳﺘﻔﺎده از ﮔﺰﯾﻨﻪ ﻗﺮص ﭼﻨﺪﮐﺎره‬ ‫ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ ﺷﻤﺎ ﯾﮏ ﮔﺰﯾﻨﻪ ﻗﺮص ﭼﻨﺪﮐﺎره دارد ﮐﻪ ﺑﻪ ﳕﮏ و ﻣﺎده آﺑﮑﺸﯽ ﻧﯿﺎزی ﻧﺪاﺷﺘﻪ ﺑﻠﮑﻪ ﺑﻪ ﻗﺮص ٣ در ١ ﻧﯿﺎز دارد. از اﯾﻦ ﮔﺰﯾﻨﻪ ﺗﻨﻬﺎ ﻣﯽ ﺗﻮان‬ .‫در...
  • Page 80 All manuals and user guides at all-guides.com ‫ﭘﺮ ﮐﺮدن ﻗﻔﺴﻪ ﻫﺎی ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ ‫ﺑﺮای ﺑﻬﺘﺮﯾﻦ ﻋﻤﻠﮑﺮد ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ، از اﯾﻦ رﻫﻨﻤﻮدﻫﺎی ﻗﺮار دادن ﻇﺮوف ﭘﯿﺮوی ﮐﻨﯿﺪ. وﯾﮋﮔﯽ ﻫﺎ و ﻇﺎﻫﺮ ﻗﻔﺴﻪ‬ .‫ﻫﺎ و ﺳﺒﺪﻫﺎی ﻗﺎﺷﻖ و ﭼﻨﮕﺎل ﳑﮑﻦ اﺳﺖ ﺑﺎ ﻣﺪل ﺷﻤﺎ ﺗﻔﺎوت داﺷﺘﻪ ﺑﺎﺷﻨﺪ‬ ‫ﺗﻮﺟﻪ...
  • Page 81 All manuals and user guides at all-guides.com ‫ﺗﻨﻈﯿﻢ ﺳﺒﺪ ﻓﻮﻗﺎﻧﯽ‬ .‫ارﺗﻔﺎع ﺳﺒﺪ ﻓﻮﻗﺎﻧﯽ را ﻣﯽ ﺗﻮان ﻃﻮری ﺗﻨﻈﯿﻢ ﮐﺮد ﮐﻪ ﻓﻀﺎی ﺑﯿﺸﺘﺮی ﺑﺮای ﻟﻮازم آﺷﭙﺰی ﺑﺰرگ ﺑﺮای ﺳﺒﺪ ﻓﻮﻗﺎﻧﯽ/ ﲢﺘﺎﻧﯽ اﯾﺠﺎد ﺷﻮد‬ ١ . ‫“ را ﮐﻪ در‬A” ‫ﺑﺮای ﭘﺎﯾﯿﻦ آوردن ﻗﻔﺴﻪ ﻓﻮﻗﺎﻧﯽ، اﻫﺮم ﻫﺎی‬ ‫ﺳﻤﺖ...
  • Page 82 All manuals and user guides at all-guides.com ‫ﭘﺮ ﮐﺮدن ﻗﻔﺴﻪ ﻫﺎی ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ ‫ﭘﺮ ﮐﺮدن ﺳﺒﺪ ﲢﺘﺎﻧﯽ‬ ‫ﺗﻮﺻﯿﻪ ﻣﯽ ﮐﻨﯿﻢ اﻗﻼم ﺑﺰرگ ﮐﻪ ﲤﯿﺰ ﮐﺮدن آﻧﻬﺎ ﻣﺸﮑﻞ ﺗﺮ اﺳﺖ را در ﺳﺒﺪ ﲢﺘﺎﻧﯽ ﻗﺮار دﻫﯿﺪ: ﻗﺎﺑﻠﻤﻪ، ﻣﺎﻫﯽ ﺗﺎﺑﻪ، ﻇﺮوف و ﮐﺎﺳﻪ ﻫﺎ، ﺑﻪ ﺻﻮرﺗﯿﮑﻪ در ﳕﻮدار‬ .‫ﺳﻤﺖ...
  • Page 83 All manuals and user guides at all-guides.com ‫ﺳﯿﻨﯽ ﻗﺎﺷﻖ و ﭼﻨﮕﺎل‬ ‫ﻗﺎﺷﻖ و ﭼﻨﮕﺎل ﻫﺎ را ﺑﺎﯾﺪ ﺑﺎ دﺳﺘﻪ ﻫﺎی ﺑﻪ ﺳﻤﺖ ﭘﺎﯾﯿﻦ در ﺳﯿﻨﯽ ﻗﺎﺷﻖ و ﭼﻨﮕﺎل ﻗﺮار داد. ﻗﺎﺷﻖ ﺑﺎﯾﺪ ﺑﻪ ﻃﻮر ﺟﺪاﮔﺎﻧﻪ در ﺷﮑﺎف ﻫﺎی ﻣﻨﺎﺳﺐ ﻗﺮار داده‬ .‫ﺷﻮد،...
  • Page 84 All manuals and user guides at all-guides.com ‫ﭘﺮ ﮐﺮدن ﻗﻔﺴﻪ ﻫﺎی ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ D157/DW60M6040 ٨ ٢ ٣ ۵ ۴ ١ ١ ٢ ۵ ۴ ١ ۵ ۴ ۴ ٣ ١ ١ ۴ ١ ۵ ۴ ١ ۵ ۵ ۵ ۴ ١...
  • Page 85 All manuals and user guides at all-guides.com ‫ﻗﺎﺷﻖ و ﭼﻨﮕﺎل/ﻇﺮوف زﯾﺮ ﺑﺮای ﺷﺴﺘﺸﻮ در ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ ‫ﻣﻨﺎﺳﺒﺖ ﻣﺤﺪود دارﻧﺪ‬ ‫ﻣﻨﺎﺳﺐ ﻧﯿﺴﺘﻨﺪ‬ ‫ﺑﺮﺧﯽ اﻧﻮاع ﻟﯿﻮان و ﺷﯿﺸﻪ آﻻت ﭘﺲ از ﭼﻨﺪﯾﻦ ﺑﺎر ﺷﺴﺘﺸﻮ ﳑﮑﻦ اﺳﺖ‬ .‫اﻗﻠﻼم ﭘﻼﺳﺘﯿﮑﯽ ﮐﻪ در ﻣﻘﺎﺑﻞ ﮔﺮﻣﺎ ﻣﻘﺎوم ﻧﯿﺴﺘﻨﺪ‬ .‫ﮐﺪر...
  • Page 86 All manuals and user guides at all-guides.com ‫ﺑﺮﻧﺎﻣﻪ ﻫﺎی ﺷﺴﺘﺸﻮ‬ ‫روﺷﻦ ﮐﺮدن دﺳﺘﮕﺎه‬ ‫ﺷﺮوع ﺳﯿﮑﻞ ﺷﺴﺘﺸﻮ‬ ١ . .‫ﺳﺒﺪ ﲢﺘﺎﻧﯽ و ﻓﻮﻗﺎﻧﯽ را ﺑﯿﺮون ﺑﮑﺸﯿﺪ، ﻇﺮوف را ﻗﺮار داده و آﻧﻬﺎ را ﺑﻪ داﺧﻞ ﻓﺸﺎر دﻫﯿﺪ‬ ‫ﺗﻮﺻﯿﻪ ﻣﯽ ﺷﻮد ﮐﻪ اﺑﺘﺪا ﺳﺒﺪ ﲢﺘﺎﻧﯽ و ﺳﭙﺲ ﺳﺒﺪ ﻓﻮﻗﺎﻧﯽ را ﭘﺮ ﮐﻨﯿﺪ )ﺑﻪ ﺑﺨﺶ ﲢﺖ ﻋﻨﻮان "ﭘﺮ ﮐﺮدن ﻗﻔﺴﻪ ﻫﺎی ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ" ﻣﺮاﺟﻌﻪ‬ .(‫ﮐﻨﯿﺪ‬...
  • Page 87 All manuals and user guides at all-guides.com ‫در ﺧﺎﲤﻪ ﺳﯿﮑﻞ ﺷﺴﺘﺸﻮ‬ ‫ﻫﻨﮕﺎﻣﯿﮑﻪ ﺳﯿﮑﻞ در ﺣﺎل اﺟﺮا ﺧﺎﲤﻪ ﭘﯿﺪا ﮐﺮد، زﻧﮓ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ ﺑﻪ ﻣﺪت ﮐﻮﺗﺎه ﺑﯿﭗ ﮐﺮده و ﺳﭙﺲ ﻣﺘﻮﻗﻒ ﺧﻮاﻫﺪ ﺷﺪ. "٠" ﺗﻨﻬﺎ در ﺻﻮرﺗﯽ در‬ .‫ﳕﺎﯾﺸﮕﺮ دﯾﺠﯿﺘﺎل ﻇﺎﻫﺮ ﻣﯽ ﺷﻮد ﮐﻪ ﺑﺮﻧﺎﻣﻪ ﺧﺎﲤﻪ ﭘﯿﺪا ﮐﺮده ﺑﺎﺷﺪ‬ .‫...
  • Page 88 All manuals and user guides at all-guides.com ‫ﺑﺮﻧﺎﻣﻪ ﻫﺎی ﺷﺴﺘﺸﻮ‬ ‫ﻣﺪت اﳒﺎم‬ ‫ﺷﻮﯾﻨﺪه‬ ‫اﻧﺮژی )ﮐﯿﻠﻮوات‬ (‫آب )ﻟﯿﺘﺮ‬ ‫ﺷﺴﺘﺸﻮ‬ ‫)ﭘﯿﺶ ﺷﺴﺘﺸﻮ/ﺷﺴﺘﺸﻮی‬ ‫ﺗﻮﺻﯿﻒ ﺳﯿﮑﻞ‬ ‫ﺑﺮﻧﺎﻣﻪ‬ (‫در ﺳﺎﻋﺖ‬ (‫)دﻗﯿﻘﻪ‬ (‫اﺻﻠﯽ( )ﮔﺮم‬ ‫ﭘﯿﺶ ﺷﺴﺘﺸﻮ‬ (‫ﺷﺴﺘﺸﻮ )٠۴ درﺟﻪ ﺳﺎﻧﺘﯽ ﮔﺮاد‬ ١٣ ١/٠ ١۴٠ ۵ ‫آﺑﮑﺸﯽ‬ ‫ﻇﺮﯾﻒ...
  • Page 89 All manuals and user guides at all-guides.com ‫ﲤﯿﺰی و ﻣﺮاﻗﺒﺖ‬ ‫ﲤﯿﺰ ﮐﺮدن ﻓﯿﻠﺘﺮﻫﺎ‬ ‫ﺳﯿﺴﺘﻢ ﻓﯿﻠﺘﺮ‬ ‫ﺑﺮای آﺳﺎﯾﺶ ﺷﻤﺎ، ﭘﻤﭗ ﺗﺨﻠﯿﻪ و ﺳﯿﺴﺘﻢ ﻓﯿﻠﺘﺮ را ﺑﺮای دﺳﺘﺮﺳﯽ آﺳﺎن در داﺧﻞ ﺗﺸﺖ ﻗﺮار داده اﯾﻢ. ﺳﯿﺴﺘﻢ ﻓﯿﻠﺘﺮﯾﻨﮓ ﺳﻪ ﮐﺎﻣﭙﻮﻧﻨﺖ‬ .‫دارد: ﻓﯿﻠﺘﺮ اﺻﻠﯽ، ﻓﯿﻠﺘﺮ درﺷﺖ و ﻓﯿﻠﺘﺮ ﻇﺮﯾﻒ‬ ‫ﻓﯿﻠﺘﺮ...
  • Page 90 All manuals and user guides at all-guides.com ‫ﲤﯿﺰی و ﻣﺮاﻗﺒﺖ‬ ‫ﲤﯿﺰ ﮐﺮدن ﺑﺎزوﻫﺎی اﺳﭙﺮی‬ ‫ﻻزم اﺳﺖ ﮐﻪ ﺑﺎزوﻫﺎی اﺳﭙﺮی ﺑﻪ ﻃﻮر ﻣﺮﺗﺐ ﲤﯿﺰ ﺷﻮﻧﺪ ﭼﻮن ﻣﻮاد ﺷﯿﻤﯿﺎﯾﯽ آب ﳑﮑﻦ اﺳﺖ اﻓﺸﺎﻧﻪ ﻫﺎ و ﻣﻮﻗﻌﯿﺖ‬ ‫ﺑﺎزوﻫﺎی اﺳﭙﺮی را ﻣﺴﺪود ﮐﻨﺪ. ﺑﺮای ﺟﺪا ﮐﺮدن ﺑﺎزوی اﺳﭙﺮی ﻣﯿﺎﻧﯽ، ﻣﻬﺮه را ﻧﮕﻪ داﺷﺘﻪ، ﺑﺎزو را ﺑﺮای ﺑﺮداﺷﱳ آن‬ .‫در...
  • Page 91 All manuals and user guides at all-guides.com ‫ﻧﺤﻮه ﺣﻔﻆ و ﻧﮕﻬﺪاری ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ ‫ﺑﻌﺪ از ﻫﺮ ﺷﺴﺘﺸﻮ‬ • .‫ﺑﻌﺪ از ﻫﺮ ﺷﺴﺘﺸﻮ، ﺗﻐﺬﯾﻪ آب دﺳﺘﮕﺎه را ﻗﻄﻊ ﮐﺮده و درﯾﭽﻪ را ﻗﺪری ﺑﺎز ﺑﮕﺬارﯾﺪ ﺗﺎ رﻃﻮﺑﺖ و ﺑﻮ در داﺧﻞ آن ﺣﺒﺲ ﻧﺸﻮد‬ ‫دوﺷﺎﺧﻪ...
  • Page 92 All manuals and user guides at all-guides.com ‫راه اﻧﺪازی ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﺋﯽ‬ ‫ﻫﺸﺪار: ﺧﻄﺮ ﺑﺮق ﮔﺮﻓﺘﮕﯽ‬ .‫ﺟﺮﯾﺎن ﺑﺮق را ﻗﺒﻞ از ﻧﺼﺐ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ ﻗﻄﻊ ﮐﻨﯿﺪ‬ .‫ﻗﺼﻮر در اﳒﺎم اﯾﻨﮑﺎر ﳑﮑﻦ اﺳﺖ ﻣﻨﺠﺮ ﺑﻪ ﻣﺮگ ﯾﺎ ﺑﺮق ﮔﺮﻓﺘﮕﯽ ﺷﻮد‬ .‫ﺗﻮﺟﻪ: ﻧﺼﺐ ﻟﻮﻟﻪ ﻫﺎ و وﺳﺎﺋﻞ ﺑﺮﻗﯽ ﺑﺎﯾﺪ ﺗﻮﺳﻂ اﺷﺨﺎص ﻣﺘﺨﺼﺺ اﳒﺎم ﺷﻮد‬ ‫درﺑﺎره...
  • Page 93 All manuals and user guides at all-guides.com ‫اﺗﺼﺎل آب ﮔﺮم‬ ۶٠ ‫ﺗﻐﺬﯾﻪ آب ﺑﻪ دﺳﺘﮕﺎه را ﻧﯿﺰ ﻣﯽ ﺗﻮان ﺑﻪ ﻟﻮﻟﻪ آب ﮔﺮم ﺧﺎﻧﮕﯽ )ﺳﯿﺴﺘﻢ ﻣﺮﮐﺰی، ﺳﯿﺴﺘﻢ ﮔﺮم ﮐﻨﻨﺪه( وﺻﻞ ﮐﺮد، ﺗﺎ زﻣﺎﻧﯿﮑﻪ از دﻣﺎی‬ ‫درﺟﻪ ﺳﺎﻧﺘﯽ ﮔﺮاد ﲡﺎوز ﻧﮑﻨﺪ. در اﯾﻦ ﺻﻮرت زﻣﺎن ﺳﯿﮑﻞ ﺷﺴﺘﺸﻮ ﺗﺎ ﺣﺪود ۵١ دﻗﯿﻘﻪ ﮐﺎﻫﺶ ﯾﺎﻓﺘﻪ و ﮐﺎرآﯾﯽ ﺷﺴﺘﺸﻮ ﻗﺪری اﻓﺖ ﻣﯽ‬ .‫ﮐﻨﺪ.
  • Page 94 All manuals and user guides at all-guides.com ‫راه اﻧﺪازی ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﺋﯽ‬ ‫اﺗﺼﺎل ﺷﯿﻠﻨﮓ ﻫﺎی ﺗﺨﻠﯿﻪ‬ ‫ﺷﯿﻠﻨﮓ ﺗﺨﻠﯿﻪ را ﺑﻪ ﻟﻮﻟﻪ ﺗﺨﻠﯿﻪ ﺑﺎ ﺣﺪاﮐﺜﺮ ﻗﻄﺮ ۴ ﺳﺎﻧﺘﯽ ﻣﺘﺮ وارد ﮐﻨﯿﺪ ﯾﺎ آﻧﺮا در ﺳﯿﻨﮏ ﻗﺮار داده ﻣﻄﻤﺌﻦ ﺷﻮﯾﺪ ﮐﻪ ﺗﺎ ﻧﺨﻮرد ﯾﺎ ﭼﯿﻦ دار ﻧﺸﻮد. ﺑﺎﻻی‬ .‫ﺷﯿﻨﻠﮓ...
  • Page 95 All manuals and user guides at all-guides.com ‫ﻧﺼﺐ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ ‫ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ، ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ ﺗﻮﮐﺎر و ﻧﯿﻤﻪ ﺗﻮﮐﺎر‬ ‫ﻣﻄﻤﺌﻦ ﺷﻮﯾﺪ ﮐﻪ ﺷﻤﺎ ﯾﺎ ﻧﺼﺎب ﺷﻤﺎ اﯾﻦ دﺳﺘﻮراﻟﻌﻤﻞ ﻫﺎ را ﺑﻪ دﻗﺖ ﻣﺮاﻋﺎت ﮐﻨﯿﺪ ﺗﺎ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﺋﯽ ﺟﺪﯾﺪ ﺑﻪ ﺧﻮﺑﯽ ﮐﺎر ﮐﺮده و در ﺣﯿﻦ ﺷﺴﺘﺸﻮی‬ .‫ﻇﺮوف...
  • Page 96 All manuals and user guides at all-guides.com ‫ﻧﺼﺐ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ ‫ﮐﻨﺘﺮل ﺟﺮﯾﺎن آب و ﻟﺰوﻣﺎت ﺑﺮﻗﯽ‬ .٢ ‫ﻣﺮﺣﻠﻪ‬ .‫ﻓﺸﺎر ﺗﻐﺬﯾﻪ آب ﺑﺎﯾﺪ ﺑﯿﻦ ۴٠/٠ ﺗﺎ ٠/١ ﻣﮕﺎﭘﺎﺳﮑﺎل ﺑﺎﺷﺪ‬ • .‫ﻓﻘﻂ آب ﺳﺮد را ﺗﺄﻣﯿﻦ ﮐﻨﯿﺪ. ﻣﻄﻤﺌﻦ ﺷﻮﯾﺪ ﮐﻪ دﻣﺎی آب از ٠۶ درﺟﻪ ﺳﺎﻧﺘﯽ ﮔﺮاد ﲡﺎوز ﻧﮑﻨﺪ‬ •...
  • Page 97 All manuals and user guides at all-guides.com ‫ﮐﺎﻣ ﻼ ﹰ ﺗﻮﮐﺎر‬ ١ . .‫ﻗﻼب روی ﭘﺎﻧﻞ ﭼﻮﺑﯽ ﻣﺨﺼﻮص را ﻧﺼﺐ ﮐﺮده و ﻗﻼب را در ﺷﮑﺎف درﯾﭽﻪ ﺧﺎرﺟﯽ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ ﻗﺮار دﻫﯿﺪ‬ ٢ . .‫ﭘﺲ از ﻗﺮار دادن ﭘﺎﻧﻞ، آﻧﺮا ﺑﺎ ﭘﯿﭻ و ﻣﻬﺮه ﻫﺎ روی درﯾﭽﻪ ﺧﺎرﺟﯽ ﻣﺤﮑﻢ ﮐﻨﯿﺪ‬ .‫اﺣﺘﯿﺎط: از...
  • Page 98 All manuals and user guides at all-guides.com ‫ﻧﺼﺐ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ ‫ﺗﻨﻈﯿﻢ ﻣﯿﺰان ﮐﺸﺶ ﻓﻨﺮ درﯾﭽﻪ‬ .۴ ‫ﻣﺮﺣﻠﻪ‬ (‫)ﺑﺮای ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ ﮐﺎﻣ ﻼ ﹰ ﺗﻮﮐﺎر و ﻧﯿﻤﻪ ﺗﻮﮐﺎر‬ ١ . ‫ﻓﻨﺮﻫﺎی درﯾﭽﻪ در ﮐﺎرﺧﺎﻧﻪ ﺗﻨﻈﯿﻢ ﺷﺪه اﻧﺪ ﺗﺎ ﮐﺸﺶ ﻣﻨﺎﺳﺐ درﯾﭽﻪ ﺧﺎرﺟﯽ ﺣﻔﻆ ﺷﻮد. اﮔﺮ ﭘﺎﻧﻞ ﭼﻮﺑﯽ ﻣﺨﺼﻮص ﻧﺼﺐ ﺷﺪه ﺑﺎﺷﺪ، ﻻزم ﺧﻮاﻫﺪ‬ .‫ﺑﻮد...
  • Page 99 All manuals and user guides at all-guides.com ‫ﻧﺼﺐ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ .۵ ‫ﻣﺮﺣﻠﻪ‬ ١ . ‫درب دﮐﻮر را ﺑﺎ اﺳﺘﻔﺎده از ﺑﺴﺖ ﻫﺎی اراﺋﻪ ﺷﺪه روی درﯾﭽﻪ ﺧﺎرﺟﯽ ﻧﺼﺐ ﮐﻨﯿﺪ. ﺑﺮای ﻣﺤﻞ ﻗﺮار دادن ﺑﺴﺖ ﻫﺎ ﺑﻪ اﻟﮕﻮ ﻣﺮاﺟﻌﻪ ﮐﻨﯿﺪ. )ﺑﺮای ﻣﺎﺷﯿﻦ‬ (‫ﻇﺮﻓﺸﻮﯾﯽ...
  • Page 100 All manuals and user guides at all-guides.com ‫ﻧﺼﺐ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ ‫ﺗﺮاز ﮐﺮدن ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ .۶ ‫ﻣﺮﺣﻠﻪ‬ ‫ﺗﺮاز ﺑﻮدن را از ﺟﻠﻮ ﺗﺎ‬ ‫ﻋﻘﺐ ﮐﻨﺘﺮل ﮐﻨﯿﺪ‬ ‫ﺗﺮاز ﺑﻮدن را از ﮐﻨﺎر‬ ‫ﺗﺎ ﮐﻨﺎر ﮐﻨﺘﺮل‬ .‫ﮐﻨﯿﺪ‬ .‫ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ ﺑﺮای ﻋﻤﻠﮑﺮد ﺻﺤﯿﺢ ﻗﻔﺴﻪ ﻇﺮف و ﮐﺎرآﯾﯽ ﺷﺴﺘﺸﻮ ﺑﺎﯾﺪ ﺗﺮاز ﺑﺎﺷﺪ‬ ١...
  • Page 101 All manuals and user guides at all-guides.com ‫رﻓﻊ ﻣﺸﮑﻼت‬ .‫ﺳﺎزﻧﺪه در ﭘﯿﺮوی از ﺳﯿﺎﺳﺖ ﺑﻬﺒﻮد و ﺑﺮوزآوری داﺋﻢ ﻣﺤﺼﻮل، ﳑﮑﻦ اﺳﺖ ﺗﻐﯿﯿﺮاﺗﯽ را ﺑﺪون اﻃﻼع ﻗﺒﻠﯽ اﯾﺠﺎد ﮐﻨﺪ‬ ‫ﻗﺒﻞ از ﲤﺎس ﺑﺮای ﺗﻌﻤﯿﺮات‬ ‫ﭼﻪ ﺑﺎﯾﺪ ﮐﺮد‬ ‫دﻟﯿﻞ اﺣﺘﻤﺎﻟﯽ‬ ‫ﻣﺸﮑﻞ‬ ‫ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ ﮐﺎر ﳕﯽ ﮐﻨﺪ‬ .‫ﻓﯿﻮز...
  • Page 102 All manuals and user guides at all-guides.com ‫رﻓﻊ ﻣﺸﮑﻼت‬ ‫ﭼﻪ ﺑﺎﯾﺪ ﮐﺮد‬ ‫دﻟﯿﻞ اﺣﺘﻤﺎﻟﯽ‬ ‫ﻣﺸﮑﻞ‬ ١ . ‫ﻟﮑﻪ و ﻗﺸﺮ ﺑﺮ روی ﻟﯿﻮان ﻫﺎ و‬ ‫آب ﺷﺪﯾﺪ ا ﹰ ﺳﺨﺖ‬ :‫ﺑﺮای ﺑﺮﻃﺮف ﮐﺮدن ﻟﮑﻪ از ﺷﯿﺸﻪ آﻻت‬ ‫ﺑﺸﻘﺎب ﻫﺎ‬ ١ . ٢...
  • Page 103 All manuals and user guides at all-guides.com ‫ﭼﻪ ﺑﺎﯾﺪ ﮐﺮد‬ ‫دﻟﯿﻞ اﺣﺘﻤﺎﻟﯽ‬ ‫ﻣﺸﮑﻞ‬ ‫دﮐﻤﻪ ﻫﺎ ﻫﻨﮕﺎﻣﯿﮑﻪ ﻣﺎﺷﯿﻦ‬ ‫ﻫﻨﮕﺎﻣﯿﮑﻪ درﯾﭽﻪ ﺑﺎز اﺳﺖ، دﮐﻤﻪ ﻫﺎ ﺑﻪ ﻏﯿﺮ از دﮐﻤﻪ‬ • .‫درﯾﭽﻪ ﺑﺎز اﺳﺖ‬ • ‫ )ﻧﯿﺮو( ﮐﺎر ﳕﯽ ﮐﻨﻨﺪ. درﯾﭽﻪ را ﺑﺴﺘﻪ و دﮐﻤﻪ را‬POWER ‫روﺷﻦ...
  • Page 104 All manuals and user guides at all-guides.com ‫رﻓﻊ ﻣﺸﮑﻼت‬ ‫ﮐﺪﻫﺎی ﺧﻄﺎ‬ :‫اﮔﺮ ﺧﻄﺎﯾﯽ ﭘﯿﺶ ﺑﯿﺎﯾﺪ، ﳑﮑﻦ اﺳﺖ ﮐﺪ ﺧﻄﺎ ﺑﺮای آﮔﺎﻫﯽ دادن ﺑﻪ ﺷﻤﺎ ﳕﺎﯾﺶ داده ﺷﻮد‬ ‫دﻻﯾﻞ اﺣﺘﻤﺎﻟﯽ‬ ‫ﻣﻌﺎﻧﯽ‬ ‫رﻣﺰﻫﺎ‬ ‫ﺷﯿﺮ آب ﺑﺎز ﻧﯿﺴﺖ ﯾﺎ ﻣﺼﺮف آب ﻣﺤﺪود ﺷﺪه ﯾﺎ ﻓﺸﺎر آب‬ ‫ﮐﻨﺘﺮل...
  • Page 105 All manuals and user guides at all-guides.com ‫ﺿﻤﯿﻤﻪ‬ ‫ﻣﺸﺨﺼﺎت ﻓﻨﯽ‬ DW60M6050US D159STS/D159W DW60M6050UW D157STS/D157W DW60M6050BB DW60M6051US DW60M6050FS DW60M6050SS ‫ﻣﺪل‬ DW60M6040BB DW60M6051UW DW60M6050FW DW60M6040US DW60M6040FS DW60M6040UW DW60M6040FW ‫ﻧﻮع‬ ‫ﮐﺎﻣ ﻼ ﹰ ﺗﻮﺳﺎزی ﺷﺪه‬ ‫ﻧﯿﻤﻪ ﺗﻮﺳﺎزی ﺷﺪه‬ ‫زﯾﺮ ﺳﺎزی ﺷﺪه‬ ‫ﺧﻮد اﯾﺴﺘﺎ‬ ‫روﺷﻦ/ﺧﺎﻣﻮش‬...
  • Page 106 All manuals and user guides at all-guides.com ‫ﺿﻤﯿﻤﻪ‬ ‫اﺑﻌﺎد ﻣﺤﺼﻮل‬ ۵٩٨ ۶٠٠ ۵٩٨ ۵٧٠ ٨۴۵ ٨١۵ ١١۵٠ ١١٧۵ DW60M6050US/DW60M6050UW D159STS/D159W DW60M6051US/DW60M6051UW D157STS/D157W DW60M6040US/DW60M6040UW DW60M6050FS/DW60M6050FW DW60M6050SS DW60M6040FS/DW60M6040FW ۵٩٨ ۵۵٠ ٨١۵ ١١۵٠ DW60M6050BB/DW60M6040BB ‫٠۵_ ﺿﻤﯿﻤﻪ‬ DW5500M_DD81-02437G-00_FA.indd 50 DW5500M_DD81-02437G-00_FA.indd 50 2017-06-26 2017-06-26 6:39:18 6:39:18...
  • Page 107 All manuals and user guides at all-guides.com ‫ﺑﺮای آزﻣﺎﯾﺶ ﻣﺘﻌﺎرف‬ D159/DW60M6050/DW60M6051 :‫ ﺑﺪﯾﻦ ﺗﺮﺗﯿﺐ اﺳﺖ‬EN 50242 ‫اﻃﻼﻋﺎت ﺑﺮای آزﻣﺎﯾﺶ ﻣﻘﺎﯾﺴﻪ ﭘﺬﯾﺮی ﺑﺮ اﺳﺎس‬ .‫( در ﺗﺼﺎوﯾﺮ زﯾﺮ ﻧﺸﺎن داده ﺷﺪه اﺳﺖ‬EN50242) ‫ﺷﯿﻮه ﺻﺤﯿﺢ ﭘﺮ ﮐﺮدن ﺳﺒﺪﻫﺎ ﺑﺮ اﺳﺎس اﺳﺘﺎﻧﺪاردﻫﺎی اروﭘﺎﯾﯽ‬ ‫ﻇﺮﻓﯿﺖ...
  • Page 108 All manuals and user guides at all-guides.com ‫ﺑﺮای آزﻣﺎﯾﺶ ﻣﺘﻌﺎرف‬ D157/DW60M6040 :‫ ﺑﺪﯾﻦ ﺗﺮﺗﯿﺐ اﺳﺖ‬EN 50242 ‫اﻃﻼﻋﺎت ﺑﺮای آزﻣﺎﯾﺶ ﻣﻘﺎﯾﺴﻪ ﭘﺬﯾﺮی ﺑﺮ اﺳﺎس‬ .‫( در ﺗﺼﺎوﯾﺮ زﯾﺮ ﻧﺸﺎن داده ﺷﺪه اﺳﺖ‬EN50242) ‫ﺷﯿﻮه ﺻﺤﯿﺢ ﭘﺮ ﮐﺮدن ﺳﺒﺪﻫﺎ ﺑﺮ اﺳﺎس اﺳﺘﺎﻧﺪاردﻫﺎی اروﭘﺎﯾﯽ‬ ‫ﻇﺮﻓﯿﺖ...
  • Page 109 All manuals and user guides at all-guides.com ‫ﻣﺸﺨﺼﺎت ﻣﺤﺼﻮل‬ (EU) 1059/2010 ‫ﻣﻘﺮرات ﺷﻤﺎره‬ ‫ﺳﺎﻣﺴﻮﻧﮓ‬ ‫ﺗﻮزﯾﻊ ﮐﻨﻨﺪه‬ D159 D157 ‫ﻧﺎم ﻣﺪل‬ DW60M6050 DW60M6040 DW60M6051 (‫ﻇﺮﻓﯿﺖ اﺳﻤﯽ )ﻣﺤﻞ ﻗﺮاردادن ﻇﺮوف‬ ١۴ ١٣ ‫ﮔﺮوه ﺑﻨﺪی راﻧﺪﻣﺎن اﻧﺮژی‬ (‫( )ﮐﯿﻠﻮوات در ﺳﺎﻋﺖ/ﺳﺎل‬AE c) ،‫ﻣﺼﺮف ﺳﺎﻟﯿﺎﻧﻪ اﻧﺮژی‬ (١...
  • Page 110 All manuals and user guides at all-guides.com ‫اﺻﻄﻼﺣﺎت ﺑﺮای ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ‬ ‫ﻣﻮﺗﻮری ﮐﻪ آب ﺑﺎﻗﯿﻤﺎﻧﺪه در ﭘﺎﯾﯿﻦ ﻣﺎﺷﯿﻦ ﻇﺮﻓﺸﻮﯾﯽ را ﻣﮑﺶ ﮐﺮده و آب را ﺑﺎ اﺳﺘﻔﺎده از ﻓﺸﺎر زﯾﺎد از ﻃﺮﯾﻖ ﮔﺬرﮔﺎه‬ ١ . ‫ﻣﻮﺗﻮر ﮔﺮدﻧﺪه‬ .‫ﻫﺎی آب داﺧﻠﯽ ﺑﻪ ﻧﺎزل ﻫﺎی ﺑﺎﻻ در ﻣﯿﺎن و ﲢﺘﺎﻧﯽ ﺳﺮاﯾﺖ ﻣﯽ دﻫﺪ‬ ٢...
  • Page 111 All manuals and user guides at all-guides.com ‫ﯾﺎدداﺷﺖ‬ DW5500M_DD81-02437G-00_FA.indd 55 DW5500M_DD81-02437G-00_FA.indd 55 2017-06-26 2017-06-26 6:39:26 6:39:26...
  • Page 112 All manuals and user guides at all-guides.com ‫ﺳﻮال ﯾﺎ ﻧﻈﺮی دارﯾﺪ؟‬ ‫ﻧﺸﺎﻧﯽ اﯾﻨﺘﺮﻧﺘﯽ‬ ‫ﺷﻤﺎره ﲤﺎس‬ ‫ﮐﺸﻮر‬ 021-8255 [CE] www.samsung.com/iran/support IRAN 021-42132 [HHP] DW5500M_DD81-02437G-00_FA.indd 56 DW5500M_DD81-02437G-00_FA.indd 56 2017-06-26 2017-06-26 6:39:26 6:39:26...

This manual is also suitable for:

Dw60m6050 seriesDw60m6040 seriesDw60m6050u7 seriesDw60m6050s seriesDw60m6051f7 seriesDw60m6051u7 series ... Show all

Table of Contents
