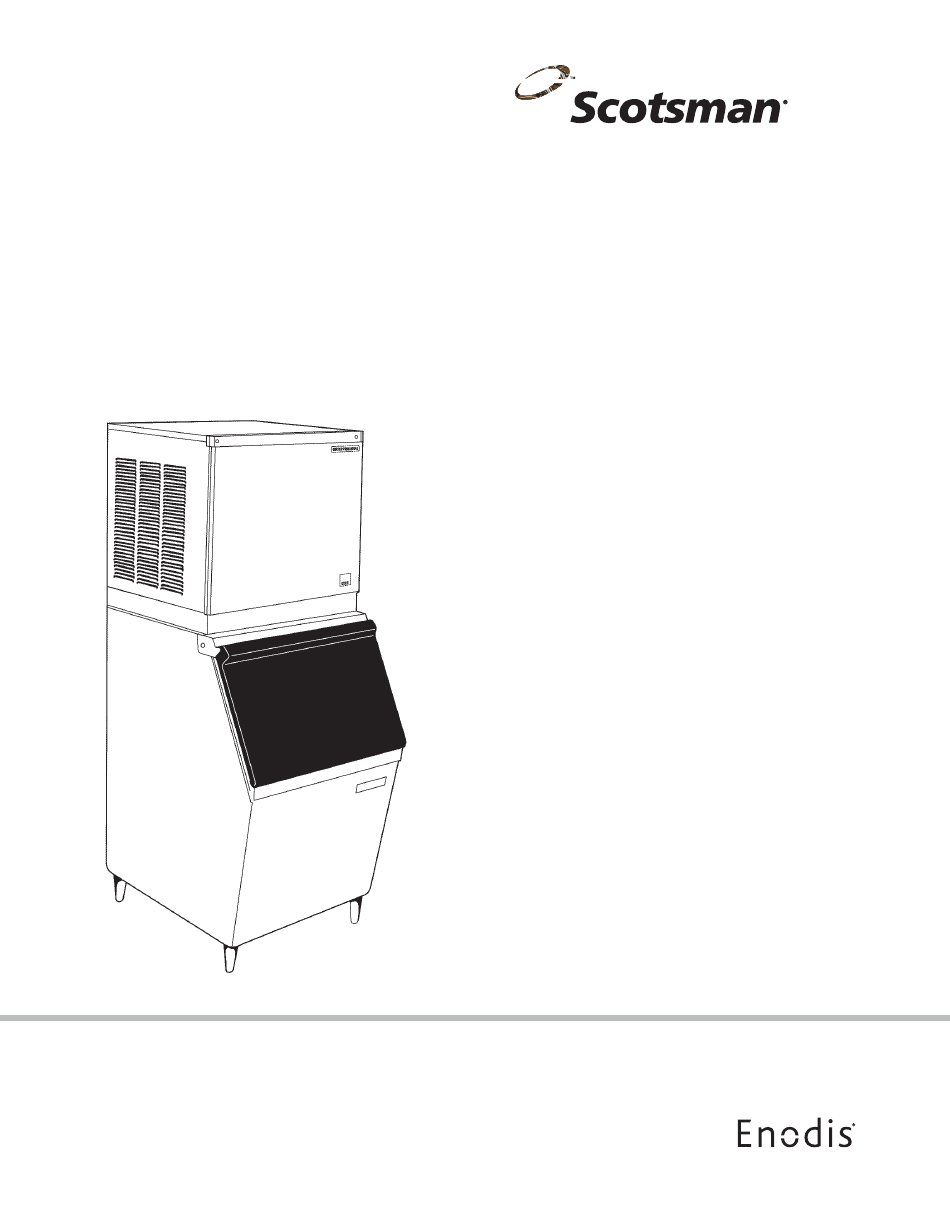

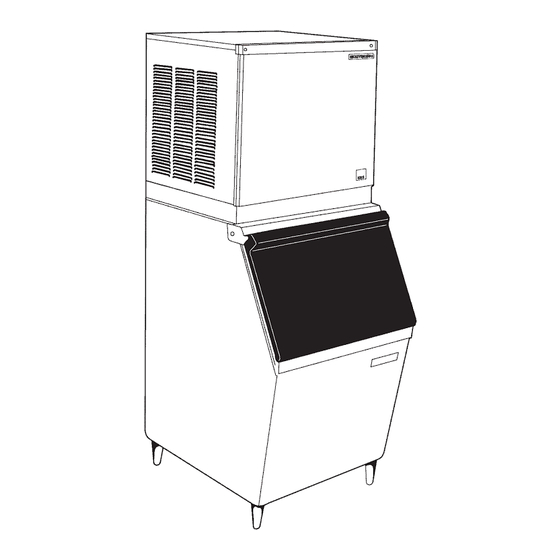

- Page 1 Installation and User's Manual for Modular Cuber Models: CME256, CME506, CME656 and CME806...
-
Page 2: Table Of Contents
CME256, 506, 656, 806: AutoIQ Cubers Introduction: This product manual contains the information Be certain that the information applies to the needed for the setup, installation, initial start up, model in question. If no model is listed, the sanitation and maintenance of this ice machine. information applies to all models, including A Keep it for future reference. -
Page 3: Specifications
CME256, 506, 656, 806: AutoIQ Cubers Specifications: These ice machines are designed to be installed All models will fit a standard, 30" wide Scotsman indoors, in a controlled environment. They can Ice Storage Bin. Some examples are: operate satisfactorily under a wide variety of •... -
Page 4: Pre-Installation
That water rinse, combined with water filters, prolongs the times between needed water system cleaning. Note: All Scotsman CM 3 models, like those described in this manual, feature Scotsman’s AutoIQ™ control system and ReliaClean™ water Back View Diagram (air cooled) system cleaning process. -
Page 5: Location & Assembly
CME256, 506, 656, 806: AutoIQ Cubers Location & Assembly: Cabinet Panel Removal: Air cooled models take room temperature air in from the left and right sides, and discharge warm Note: The top panel holds the upper edges of the air out the back. If installed in a corner or with side panels in place. -
Page 6: Plumbing
The ice storage bin will have a drain out the back cabinet. or base, depending upon the model. Note: Scotsman HTB555 (shown in this manual) may be Water Cooled drained either out the back or the base. Potable Water... -
Page 7: Electrical
CME256, 506, 656, 806: AutoIQ Cubers Electrical: All models must be installed with the correct wire size and type per the National Electric Code. Locate the nameplate on the back of the cabinet and find the numbers for Voltage, Phase, Minimum Circuit Ampacity and Maximum Fuse Size. -
Page 8: After Utility Connections
CME256, 506, 656, 806: AutoIQ Cubers After Utility Connections: 1. Level the cabinet, use the leg levelers on the end of the legs to adjust the cabinet height. 2. Wash out the bin. If desired, the interior of the bin could be sanitized. 3. -
Page 9: Initial Start Up
Initial Start Sequence • 9. Fill out the Customer Evaluation and Warranty The Freeze light is blinking. Registration. Send it to Scotsman. • The Hot Gas Solenoid valve is open. • The inlet water valve opens to fill the 10. -
Page 10: Adjustments
CME256, 506, 656, 806: AutoIQ Cubers Adjustments: If there was a problem during Initial Start How to Adjust the Amount of Water Purge Adjustment is done by use of the control buttons on the AutoIQ Controller. Examine the next section If an error light came on, check the following. -
Page 11: How To Operate The Autoiq Controller
CME256, 506, 656, 806: AutoIQ Cubers How To Operate The AutoIQ Controller The AutoIQ Controller is a microprocessor based device that receives input from several sources and switches various components on and off. Its manual control is thru the use of the Push Button Control Switches 1. -
Page 12: Sanitation And Cleaning
21. Return the front panel to its normal position 8. Mix a solution of 8 ounces of Scotsman scale and secure it to the machine with the original remover and 1 gallon of warm (95-115 o F.) water. -
Page 13: Additional Maintenance
Water Distributor build up, some may be present. Soak or scrub the distributors in or with a solution of Scotsman Ice Machine Cleaner and warm potable water. 9. Return the water distributors to their normal installed position. -
Page 14: Additional Maintenance: Bin Controls, Condenser
CME256, 506, 656, 806: AutoIQ Cubers Additional Maintenance: Bin Controls, Condenser Air Filter Replacement The bin controls use a system of infrared emitting and receiving components to sense the build up of ice in the bin. They are located at the bottom of the ice outlet port. -
Page 15: Before Calling For Service
CME256, 506, 656, 806: AutoIQ Cubers Before Calling for Service Check the following: 1. Has the water supply to the ice machine or building been shut off? If it has, the ice machine will automatically restart within 25 minutes after water begins to flow to it. 2. - Page 16 SCOTSMAN ICE SYSTEMS 775 Corporate Woods Parkway, Vernon Hills, IL 60061 800-533-6006 www.scotsman-ice.com 17-3173-01...
