Installation & Operation Manual
Steam Jacketed Kettles
EL-20, EL-25, EL-30, EL-40, EL-60, EL-80 & EL-100
EP-20, EP-25, EP-30, EP-40, EP-60, EP-80 & EP-100
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating and maintenance instructions thoroughly before installing or
M
R
ANUAL 10068
EV 7 (05/21)
$21.00
Self-Generating

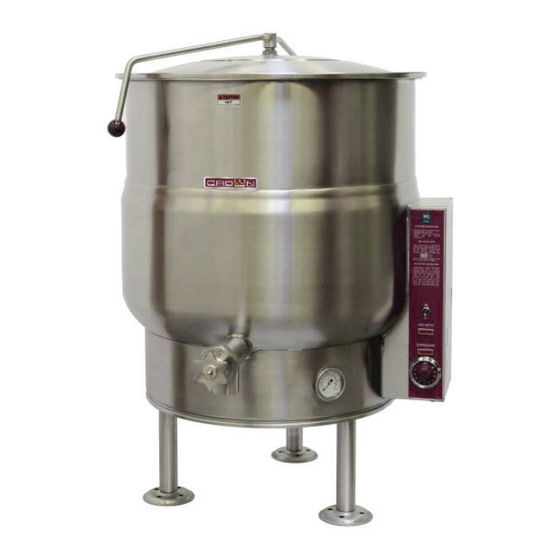

Model EL
servicing this equipment.
CROWN FOOD SERVICE EQUIPMENT
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000
WARNING
A Middleby Company
www.crownsteamgroup.com
SELF-GENERATING STEAM JACKETED KETTLES
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: _____________________
Model EP
M
ANUAL
S
CO
ECTION
Advertisement
Table of Contents
Related Manuals for Crown EL
Summary of Contents for Crown EL
- Page 1 Serial #: ___________________________ Date Purchased: _____________________ Installation & Operation Manual Self-Generating Steam Jacketed Kettles EL-20, EL-25, EL-30, EL-40, EL-60, EL-80 & EL-100 EP-20, EP-25, EP-30, EP-40, EP-60, EP-80 & EP-100 Model EL Model EP WARNING Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.
-
