Panasonic WV-Q118E Instructions

FEATURES

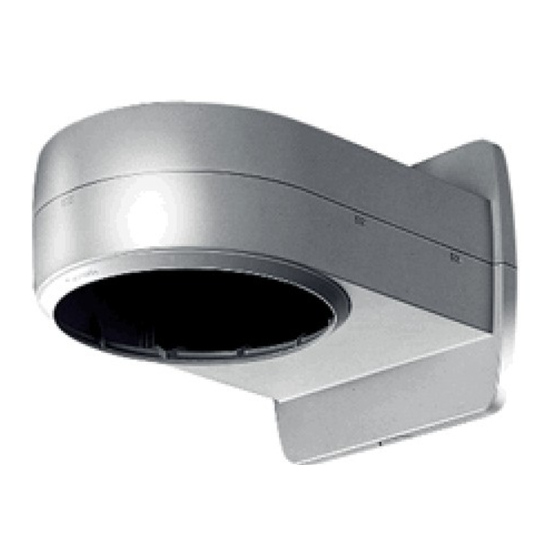

Wall mounting bracket:
Attach the wall bracket to a concrete or other stur-
dy wall to install the combination camera.
PRECAUTIONS
• Fasten the bracket to a ceiling strong enough
to support the camera weight (approx. 3
kg.{6.60 lbs}).
• Wipe the bracket regularly using a soft and
dry cloth, or a cloth moistened with a water
solution of an ordinary kitchen detergent.
• Do not use chemicals for cleaning the enclo-
sure as it may damage the surface.
• All the necessary steps required for installing
this product must be taken by a qualified ser-
vice person or system installer.
Wall Mount Bracket
Instructions
WV-Q118/WV-Q118E
Model No.
Before attempting to connect or install this product,
please read these instructions carefully and
save this manual for future use.
The model number is abbreviated in some descrip-
tions in this manual.
AF0205-6012 3TR003444GAA Printed in Japan
• Be sure to use the Fall Prevention Wire.
• Do not use this bracket except with suitable
cameras.
• Follow all applicable local and national elec-
trical, fire and safety codes when installing
the camera with this ceiling mount bracket.
The model numbers in this Operating Instruc-
tions are shown without suffix.
PLACES OF INSTALLATION
There are various ways of installing the camera as shown below.
Wall Box
Wall box
Concrete
Concrete slab
INSTALLATION
1 Make four holes in the wall using the template
(provided).
Wrap the camera cables with the Protection
2
Cover (provided) as appropriate to the
Diecast Case.
3 Remove the Mounting Screw (M3, provided),
pull up the Camera Mounting Base off the
camera, and turn the camera counterclock-
wise.
4 Cut the Diecast Case as shown.
Note: Be sure to protect the Video and Power
Cables with the Protection
( provided ).
Wood Siding Board
Wood Siding Board
Strong enough to support the
camera weight
(approx. 3 kg {6.60 lbs})
Concrete slab
Wall
Template
(provided)
Protection Cover
(provided)
Part to be cut
Rotate
Remove the Camera Mounting
Base by pulling up.
Cover
Mounting
Screw
15°
Cut here
