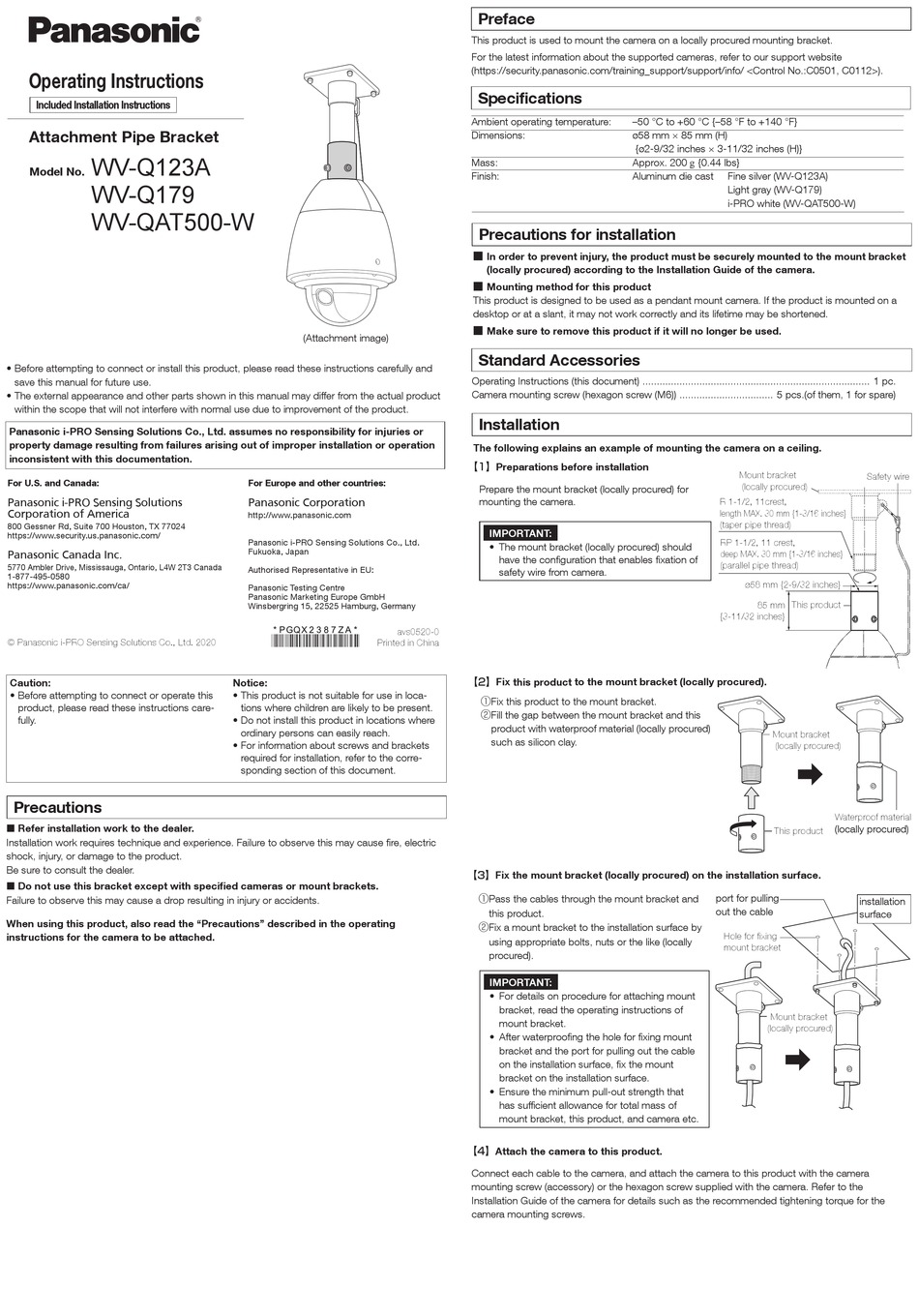

Panasonic WV-Q123A Operating Instructions

Operating Instructions
Included Installation Instructions
Attachment Pipe Bracket
WV-Q123A
Model No.
WV-Q179
WV-QAT500-W
• Before attempting to connect or install this product, please read these instructions carefully and
save this manual for future use.
• The external appearance and other parts shown in this manual may differ from the actual product
within the scope that will not interfere with normal use due to improvement of the product.
Panasonic i-PRO Sensing Solutions Co., Ltd. assumes no responsibility for injuries or
property damage resulting from failures arising out of improper installation or operation
inconsistent with this documentation.
For U.S. and Canada:
Panasonic i-PRO Sensing Solutions
Corporation of America
800 Gessner Rd, Suite 700 Houston, TX 77024
https://www.security.us.panasonic.com/
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada
1-877-495-0580
https://www.panasonic.com/ca/
© Panasonic i-PRO Sensing Solutions Co., Ltd. 2020
Caution:
• Before attempting to connect or operate this
product, please read these instructions care-
fully.
Precautions
  R efer installation work to the dealer.
Installation work requires technique and experience. Failure to observe this may cause fire, electric
shock, injury, or damage to the product.
Be sure to consult the dealer.
  D o not use this bracket except with specified cameras or mount brackets.
Failure to observe this may cause a drop resulting in injury or accidents.
When using this product, also read the "Precautions" described in the operating
instructions for the camera to be attached.
(Attachment image)
For Europe and other countries:
Panasonic Corporation
http://www.panasonic.com
Panasonic i-PRO Sensing Solutions Co., Ltd.
Fukuoka, Japan
Authorised Representative in EU:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
avs0520-0
Printed in China
Notice:
• This product is not suitable for use in loca-
tions where children are likely to be present.
• Do not install this product in locations where
ordinary persons can easily reach.
• For information about screws and brackets
required for installation, refer to the corre-
sponding section of this document.
Preface
This product is used to mount the camera on a locally procured mounting bracket.
For the latest information about the supported cameras, refer to our support website
(https://security.panasonic.com/training_support/support/info/ <Control No.:C0501, C0112>).
Specifications
Ambient operating temperature: –50 °C to +60 °C {–58 °F to +140 °F}
Dimensions: ø58 mm × 85 mm (H)
{ø2-9/32 inches × 3-11/32 inches (H)}
Approx. 200 g {0.44 lbs}
Mass:
Finish: Aluminum die cast
Precautions for installation
■ I n order to prevent injury, the product must be securely mounted to the mount bracket
(locally procured) according to the Installation Guide of the camera.
■ M ounting method for this product
This product is designed to be used as a pendant mount camera. If the product is mounted on a
desktop or at a slant, it may not work correctly and its lifetime may be shortened.
■ M ake sure to remove this product if it will no longer be used.
Standard Accessories
Operating Instructions (this document) ................................................................................ 1 pc.
Camera mounting screw (hexagon screw (M6)) ................................. 5 pcs.(of them, 1 for spare)
Installation
The following explains an example of mounting the camera on a ceiling.
【1】Preparations before installation
Prepare the mount bracket (locally procured) for
mounting the camera.
IMPORTANT:
• The mount bracket (locally procured) should
have the configuration that enables fixation of
safety wire from camera.
【2】Fix this product to the mount bracket (locally procured).
①Fix this product to the mount bracket.
② Fill the gap between the mount bracket and this
product with waterproof material (locally procured)
such as silicon clay.
【3】Fix the mount bracket (locally procured) on the installation surface.
① Pass the cables through the mount bracket and
this product.
② Fix a mount bracket to the installation surface by
using appropriate bolts, nuts or the like (locally
procured).
IMPORTANT:
• For details on procedure for attaching mount
bracket, read the operating instructions of
mount bracket.
• After waterproofing the hole for fixing mount
bracket and the port for pulling out the cable
on the installation surface, fix the mount
bracket on the installation surface.
• Ensure the minimum pull-out strength that
has sufficient allowance for total mass of
mount bracket, this product, and camera etc.
【4】Attach the camera to this product.
Connect each cable to the camera, and attach the camera to this product with the camera
mounting screw (accessory) or the hexagon screw supplied with the camera. Refer to the
Installation Guide of the camera for details such as the recommended tightening torque for the
camera mounting screws.
Fine silver (WV-Q123A)
Light gray (WV-Q179)
i-PRO white (WV-QAT500-W)
Mount bracket
Safety wire
(locally procured)
R 1-1/2, 11crest,
length MAX. 30 mm {1-3/16 inches}
(taper pipe thread)
RP 1-1/2, 11 crest,
deep MAX. 30 mm {1-3/16 inches}
(parallel pipe thread)
ø58 mm {2-9/32 inches}
85 mm This product
{3-11/32 inches}
Mount bracket
(locally procured)
➡
Waterproof material
(locally procured)
This product
port for pulling
installation
out the cable
surface
Hole for fixing
mount bracket
Mount bracket
(locally procured)
➡
