E2018 Lennox Industries Inc.
Dallas, Texas, USA
THIS MANUAL MUST BE LEFT WITH THE
HOMEOWNER FOR FUTURE REFERENCE
General
This SPB*H4 outdoor heat pump is designed for use with
HFC-410A refrigerant only. This unit must be installed with
an approved indoor air handler or coil. See the Lennox
SPB*H4 Product Specifications bulletin (EHB) for ap
proved indoor component match-ups.
These instructions are intended as a general guide and do
not supersede local codes in any way. Consult authorities
having jurisdiction before installation.

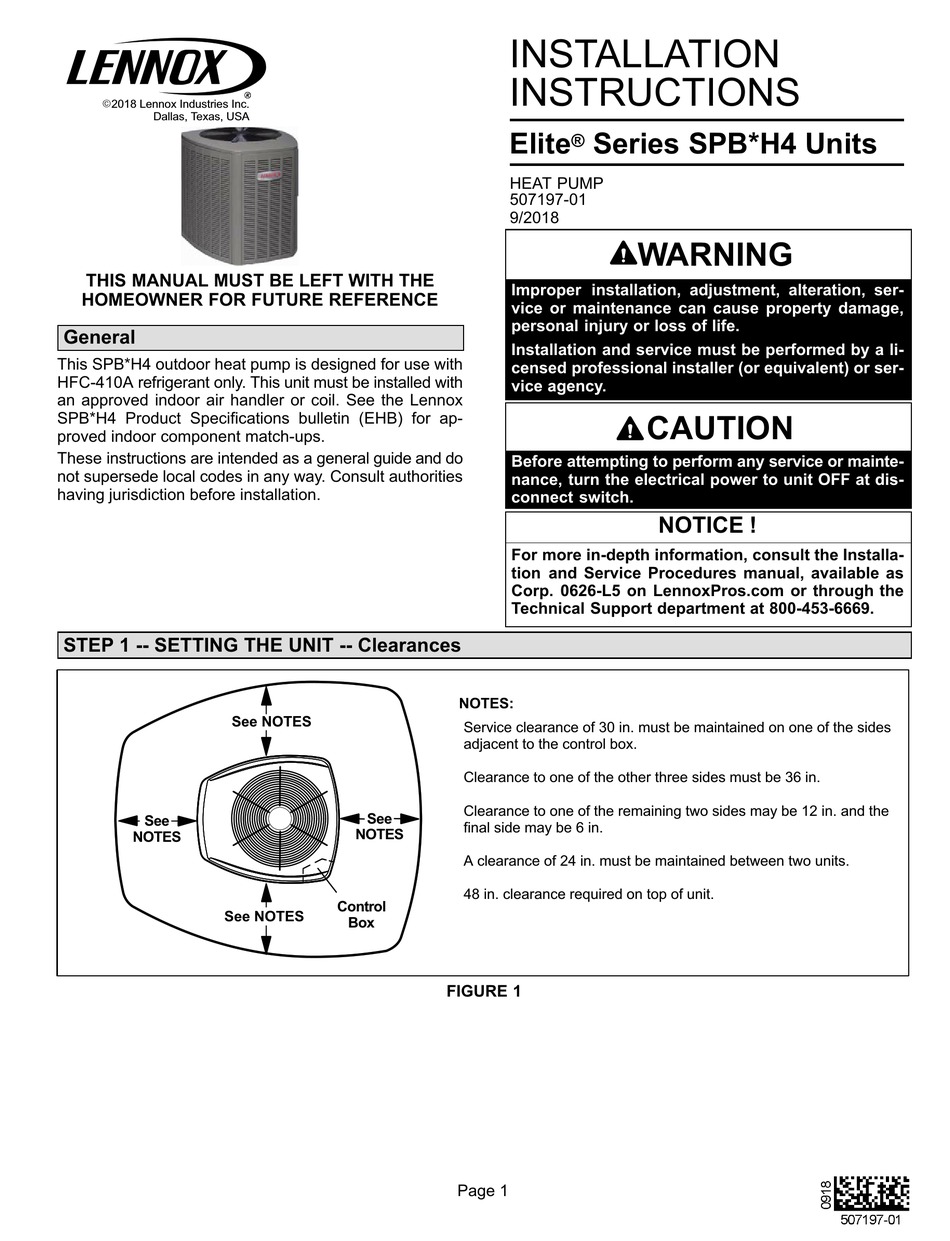

STEP 1 -- SETTING THE UNIT -- Clearances
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
See NOTES
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
See
Í Í Í Í Í Í Í Í Í Í Í Í Í
NOTES
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
See NOTES
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
INSTALLATION
INSTRUCTIONS
Elite
HEAT PUMP
507197-01
9/2018
Improper installation, adjustment, alteration, ser
vice or maintenance can cause property damage,
personal injury or loss of life.
Installation and service must be performed by a li
censed professional installer (or equivalent) or ser
vice agency.
Before attempting to perform any service or mainte
nance, turn the electrical power to unit OFF at dis
connect switch.
For more in-depth information, consult the Installa
tion and Service Procedures manual, available as
Corp. 0626-L5 on LennoxPros.com or through the
Technical Support department at 800-453-6669.
NOTES:
Service clearance of 30 in. must be maintained on one of the sides
adjacent to the control box.
Clearance to one of the other three sides must be 36 in.
Clearance to one of the remaining two sides may be 12 in. and the
See
final side may be 6 in.
NOTES
A clearance of 24 in. must be maintained between two units.
48 in. clearance required on top of unit.
Control
Box
FIGURE 1
Page 1
Series SPB*H4 Units
®
WARNING
CAUTION
NOTICE !
