Installation Space Requirements

The imagePROGRAF
installation space requirements may differ, depending on how the printer is
configured. Always ensure that there is enough space for service and
operation of the device.
Refer to the imagePROGRAF iPF850, imagePROGRAF iPF840 or the
imagePROGRAF iPF830 Service Manual for details on transportation and
installation of the printer.
IMPORTANT
• For the imagePROGRAF iPF850, make sure that at least 59" (1,500 mm)
of space is available in front of the printer. For the imagePROGRAF
iPF840/iPF830, make sure that at least 23.6" (600 mm) of space is
available in front of the printer
• Make sure that at least and at least 3.9" (100 mm) is available in back of
the printer for the proper servicing of the equipment
• Make sure that at least 7.9" (200 mm) is available on the left, and right
sides of the printer for the proper servicing of the equipment.
• Make sure that at least 5.9" (150 mm) is available above the printer for the
proper servicing of the equipment.
• The floor must be level (with no bows) and flat for the stabilization and
support of the printer.
• The weight of the printer is primarily supported by the wheels.

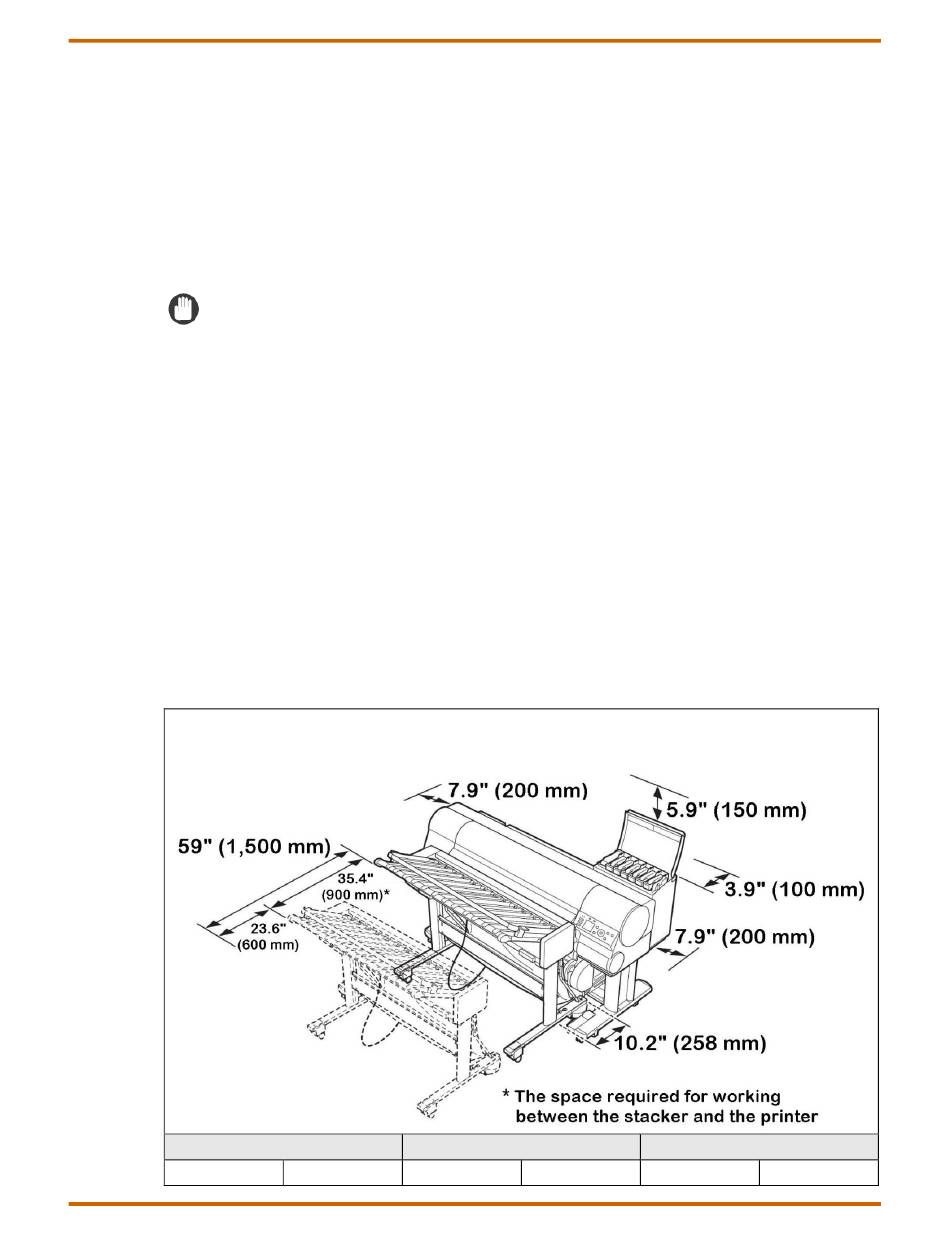

Table 15 – imagePROGRAF iPF850 Installation Space Requirements
59.76"
imagePROGRAF iPF850/iPF840/iPF830 Service Guide
iPF850/iPF840/iPF830
imagePROGRAF iPF850 Installation Space
(with printer stand lower roll, lower rail L/R, and stacker)
Height
1,518 mm
imagePROGRAF iPF850/iPF840/iPF830 Service Guide
Width
90.3" 2,293 mm
printer's approximate
Depth
118.8" 3,017 mm
July 2015
Page 13
