Rear View - Watchguard Firebox NV5 Hardware Manual

Indicator Indicator Color
Green
10/100
Blinks (speed of blink increases as the data flow
increases)
Status
The Status indicator is lit when there is a management connection to the device. The Status
indicator is lit for 30 seconds after you connect to the device with the Fireware Web UI or the
command line interface. It is also lit when the device is polled by WatchGuard System Manager.
Mode
The Mode indicator shows the status of the external network connection. If the device can connect
to the external network and send traffic, the indicator is green. The indicator flashes if the device
cannot send traffic to the external network.
Attn
The Attn indicator is yellow when you start the device with the Reset button pressed. For more
information, see
Power ( )
The Power indicator is lit to indicate power status. It is green when the Firebox is powered on.

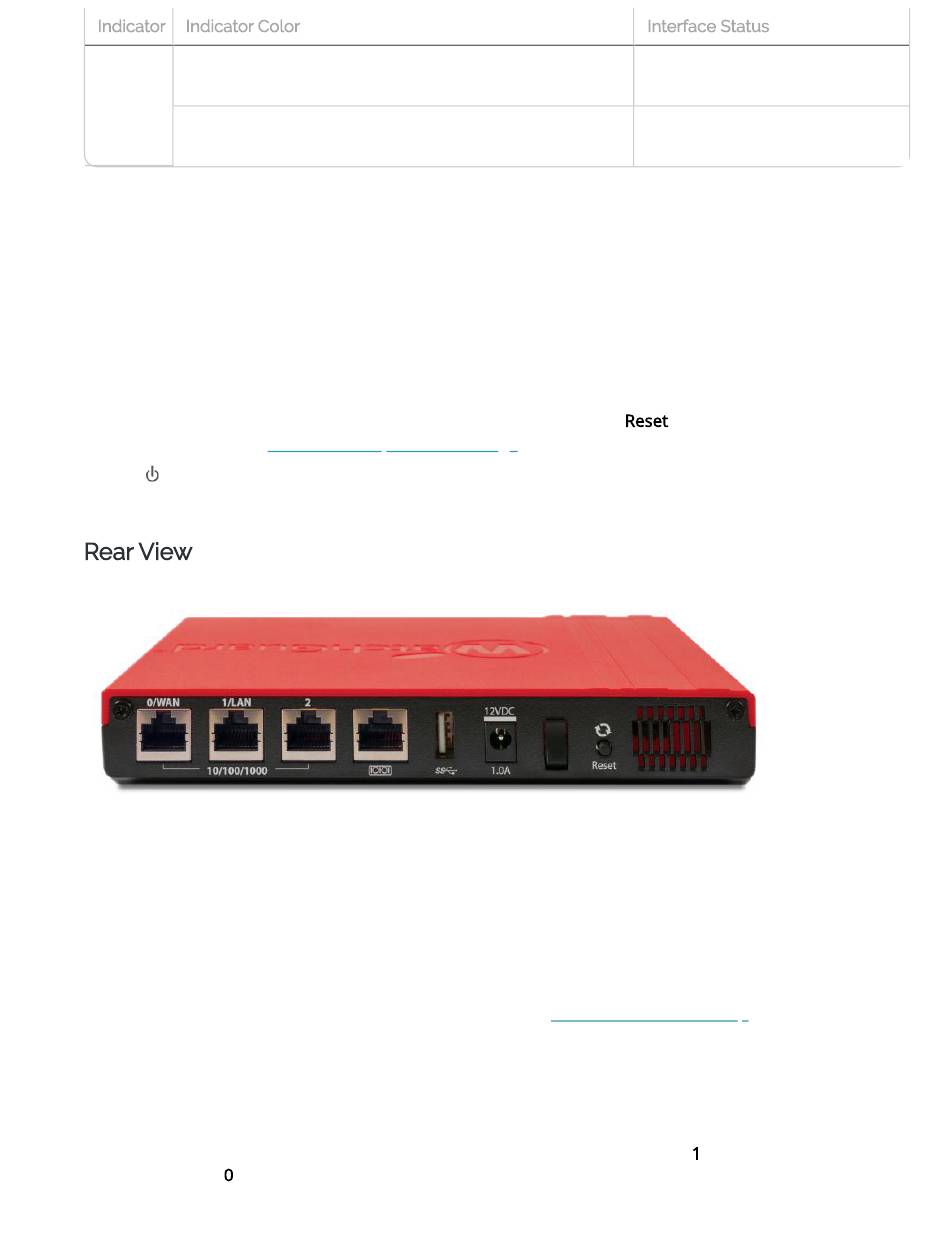

Rear View

Rear view of the Firebox:
Network Interfaces
The Ethernet interfaces have standard RJ45 connectors and support link speeds of 10, 100, or 1000
Mbps. The Firebox NV5 has three network interfaces. These interfaces are labeled 0, 1, and 2.
Console (Serial Port)
An RJ45 serial console port. An RJ45 serial cable is not included with the device.
USB Interfaces
The device has one USB interface. Connect a USB storage device for USB backup and restore, or to
store a support snapshot. For more information, see
Power Input
A 12V/1A power supply is included with your device. Connect the AC adapter to the device and to a
power source. The power supply tip is plus (+) polarity. Use only the supplied AC power adapter.
Power Switch
Controls the power supplied to the device. Move the switch to position 1 to power on the device,
or position 0 to power it off.
Restore Factory Default Settings.
Contents ● Fireware
Interface Status
Link speed: 10 Mbps or 100
Mbps
Data sent and received
Help.
