Cooper Lighting Metalux DIM Specification

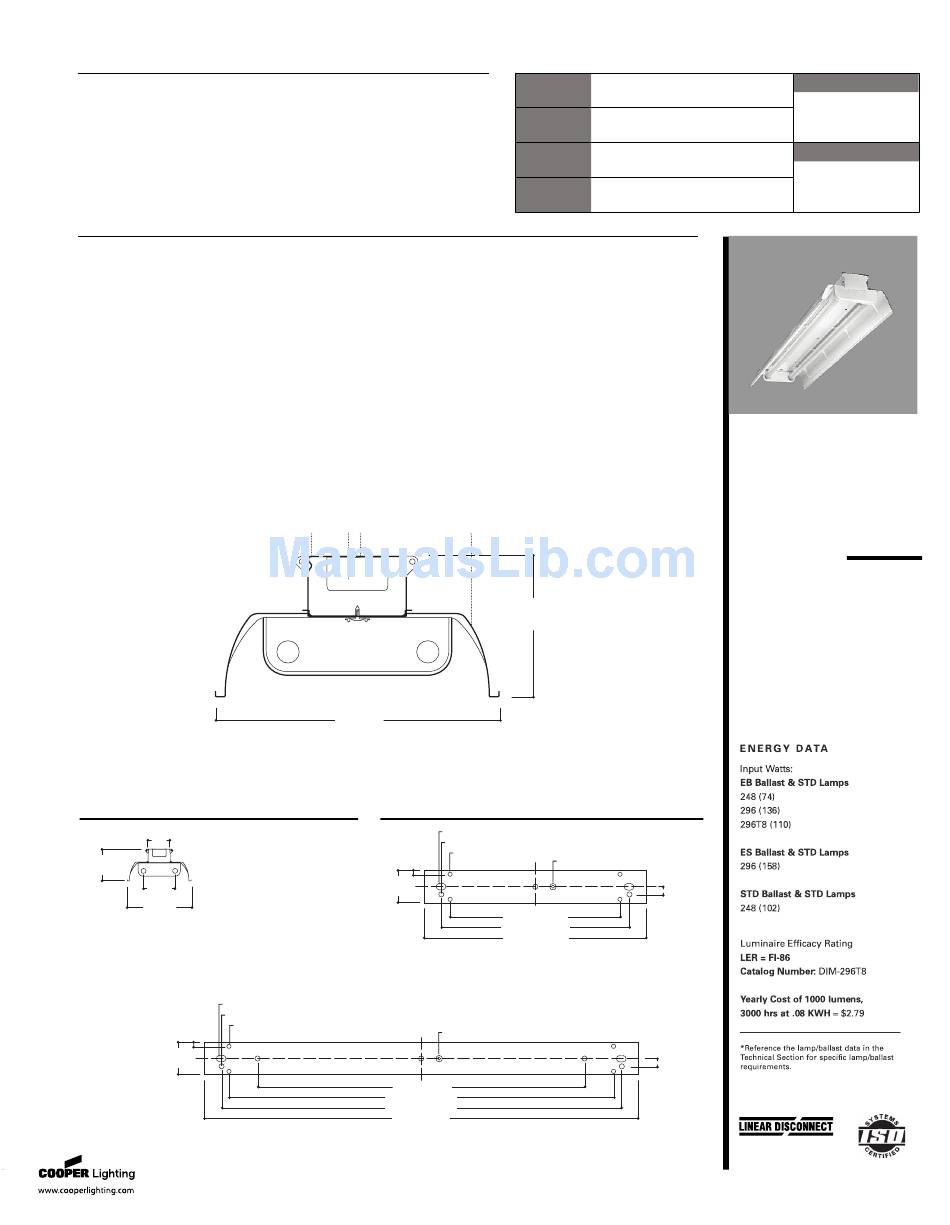

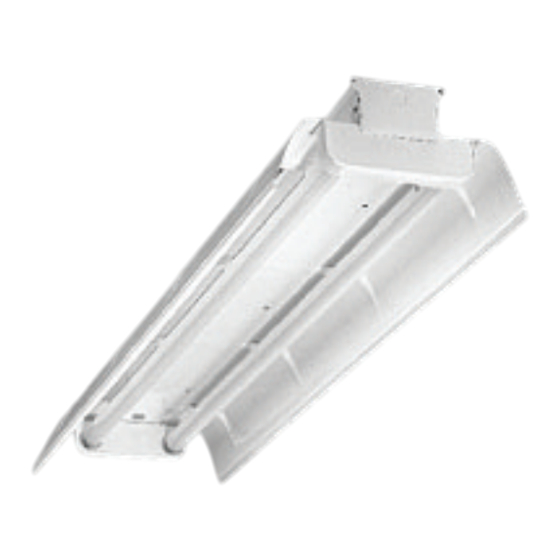

DESCRIPTION
The DIM Series is an energy efficient family of industrials that feature
premium performance and durability. The industrial series incorporates
heavy duty, embossed, reflectors that precisely direct and effectively control
light. The versatile DIM Series can be installed using various mounting
methods and numerous options and accessories are available.
The DIM Series can be utilized in simple task and area lighting to the most
demanding industrial applications.
SPECIFICATION FEATURES
A ... Construction
Channel is code gauge prime cold
rolled steel. Die formed with deep
V-grooves for tong hanger. Die
formed channel connector assures
straight rows and continuity of
ground through set screws.
Lampholder mounting brackets are
easily inserted with snap-in action.
LAMP CONFIGURATIONS
X
6-1/8"
[156mm]
6"
X=4-1/4"
[152mm]
[108mm]
13-1/2"
[343mm]
11/16" [17mm] x 1 K.O. (2)
7/8" [22mm] K.O. (5)
7/32" [6mm] x 3/8" [10mm] K.O. (4)
5/16"
[8mm]
4-1/4"
[108mm]
Specifications and Dimensions subject to change without notice.
COOPER LIGHTING - METALUX
B ... Electrical*
Ballast are CBM/ETL Class "P" and
positively secured by mounting
bolts. Metal clad lampholders are
spring loaded for turret safety.
UL/CUL listed. Suitable for damp
locations.
C ... Finish
Multistage iron phosphate
pretreatment ensures maximum
bonding and rust inhibitor.
Lighting grade, baked white
enamel finish.
A B C
D
13-1/2"
[343mm]
MOUNTING DATA
11/16" [17mm] x 1 K.O. (2)
7/8" [22mm] K.O. (3)
7/32" [6mm] x 3/8" [10mm] K.O. (4)
5/16"
[8mm]
4-1/4"
[108mm]
Ground Screw Bump
76" [1930mm]
85-1/4" [2165mm]
89-1/2" [2273mm]
96" [2438mm]
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
D ... Reflectors
Die formed prime steel, code
gauge. Deep draw full width ribs
formed with one press stroke. Side
flanges lend strength with upward
turn. Easily cleaned. Baked white
enamel 13-1/2" width. Four foot
sections. Reflectors secured by
positive retaining screw. Reflector
aligners provided. Standard with
20% uplight (DIM). Closed top
reflector (DCIM). Optional
industrial fixtures are available
incorporating silver technology
enhancements. (SilverLining)
6-1/8"
[156mm]
Ground Screw Bump
1-1/16"
[27mm]
37-1/4" [946mm]
43-1/4" [1099mm]
49-3/4" [1264mm]
1-1/16"
[27mm]
®
Type
Date
DIM
248
296
296T8
4' OR 8' INDUSTRIAL
2 LAMP
SLIMLINE
Heavy Duty Industrial
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
disconnecting power
