COOPER LIGHTING - METALUX
SNL SERIES
SSL SERIES
2 ' , 3 ' , 4 ' , 6 ' o r 8 ' S t r i p
1 o r 2 L a m p s
N A R R O W S TA G G E R E D
S T R I P L I T E ( S N L )
S TA G G E R E D S T R I P L I T E
( S S L )
• Equipped with energy
saving ballast/complies
with federal energy
efficiency standards
• For shadow free
continuous illumination in
cove lighting applications
• Pressure lock lampholders
• Die formed channel
• Can be surface or pendant
mounted, individual or in
rows
• Baked white enamel finish
• Easy wireway
access/wireway cover
removed without tools
• Numerous KO's for easy
installation
• UL/CUL Listed. Suitable for
damp locations.
440
COOPER LIGHTING
D E S C R I P T I O N
The SNL Series (narrow staggered)
and the SSL Series (staggered) make
up a functional, multi-purpose
staggered strip family that
incorporates premium performance
and construction durability. These
energy efficient staggered strips can
be surface or pendant mounted
individually or in rows using various
mounting methods. Both series
provide 4" lamp overlap to produce
shadow-free illumination when used
in continuous rows. Numerous
options and accessories are
available for use with both series.
The SNL Series is an excellent choice
for size restrictive architectural coves,
showcases and displays. The SSL
Series is perfect for normal sized
coves, showcases and display areas.
NOTE:
O R D E R I N G I N F O R M AT I O N :
S A M P L E N U M B E R : S S L - 2 3 2 - 1 2 0 V - E B 8 1 - U
Number
Tandem
of Lamps
Blank=2', 3'
1 or 2 lamps
or 4' Length
(Not included)
6T=6' Length
8T=8' Length
Wattage (Length)
20=20W T12 (24")
Series
17=17W T8 (24"T8)
SSL=Staggered
30=30W T12 (36")
Strip
25=25W T8 (36"T8)
SNL=Narrow
40=40W T12 (48")
Staggered Strip
32=32W T8 (48")
96=75W T12 (96")SL
96T8=59W T8 (96")SL
96T8HO=86W T8 (96") HO
Starting Type
LTS=Low Trigger Start
(20 Watt only) (120V only)
HTS=High Trigger Start
(20 Watt only)
LRS=Low Rapid Start
(3' or 4') (T12 only) (120V only)
HRS=High Rapid Start
(3' or 4') (T12 only)
(1)
Voltage
120V=120 Volt
277V=277 Volt
347V=347 Volt
UNV=Universal Voltage 120-277
Options
GL=Single Element Fuse
GM=Double Element Fuse
Emergency - for EM installed, see EM options table
(1)
NOTES:
Products also available in non-US voltages and frequencies for international markets.
(3)
(4)
96" high output available in T8 only.
Not availble for 2' versions.
only one fixture, an additional row starter kit must also be ordered.
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting
Representative for availability and ordering information.
®

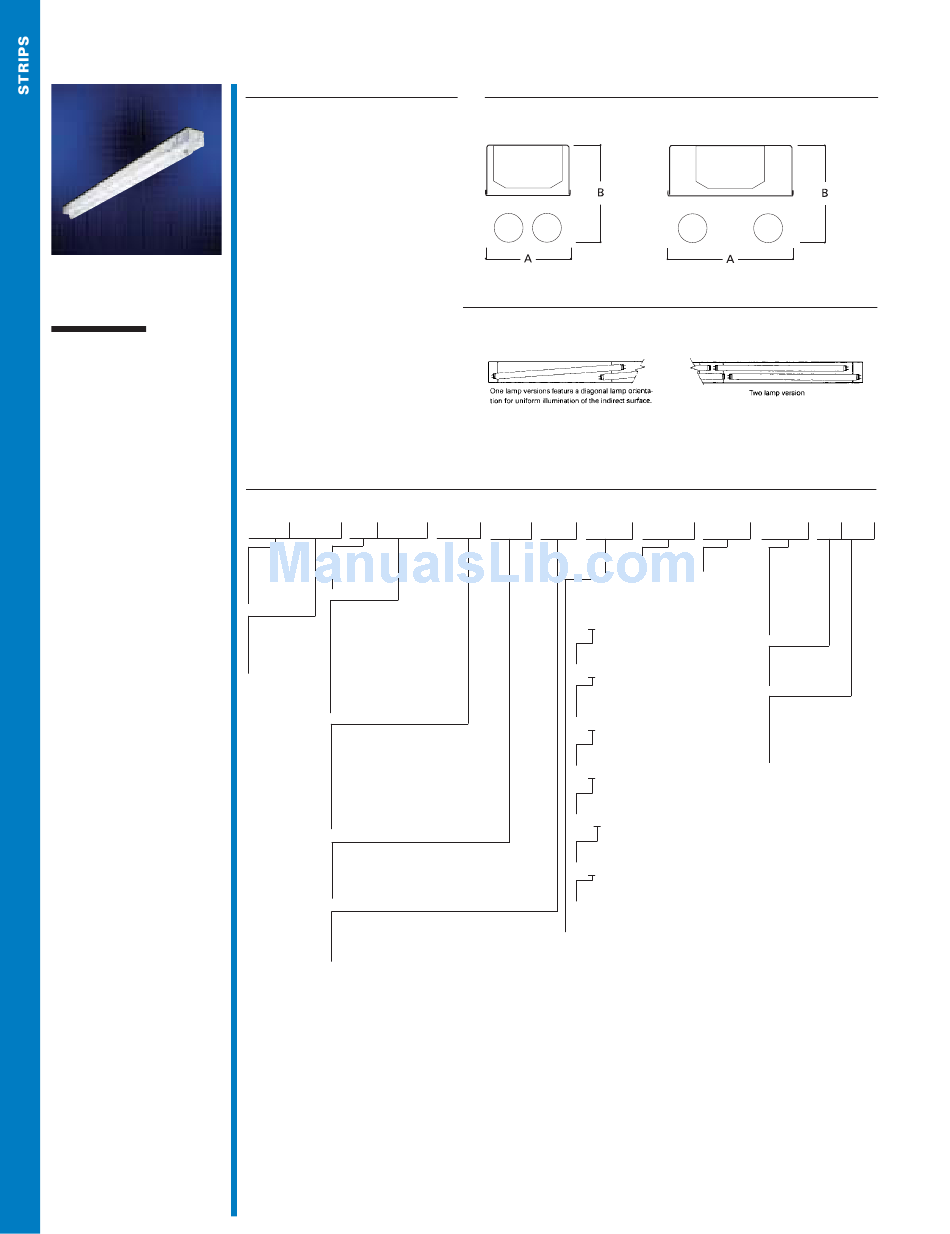

D I M E N S I O N S
SNL Series
NOMINAL LENGTH
(SNL) 2', 3', 4', 6' and 8'
(SSL) 2', 3', 4', 6' and 8'
Two SSL-1, SNL-1 or SSL-2, SNL-2 Starter Kits required per row. One Starter Kit: provided with each fixture
Ballast Type
Blank=Standard Magnetic Ballast
LE3=T12 Magnetic Energy Saving
EB8 = T8 Electronic Instant Start.
Total Harmonic Distortion < 10%
No. of Ballast
1, 2 or 3
EB8 /PLUS= T8 Electronic Instant Start.
(3) (6)
No. of
(3) (6)
Ballast
(3) (6)
1, 2 or 3
ER8 = T8 Electronic Program Rapid Start.
Total Harmonic Distortion < 10%
No. of Ballast
1, 2 or 3
EB5 = T5 Biax Electronic Instant Start.
Total Harmonic Distortion < 20%
No. of Ballast
1, 2 or 3
TEB5 =T5 Biax Electronic Instant Start.
No. of Ballast
1, 2 or 3
EB2 =T12 Electronic Rapid Start.
No. of Ballast
(2)
1 or 2
DLS=Digital Lighting System Dimming
(For complete details on generic or to specify
manufacturer's ballast see pg. 469)
(4)
(2)
(5)
Sufficient starter kits are provided with each fixture for multiple fixture rows. If rows consist of
(6)
SSL only.
SSL Series
A
B
2-3/4" (70mm)
3-5/8" (92mm)
4-1/4" (108mm)
3-3/8" (86mm)
A D D I T I O N A L S T A R T E R K I T S
S A M P L E N U M B E R : S S L - 2
Series
Packaging
Options
SSL=
(See Options
U=Unit Pack
Staggered
Section)
Strip
(1)
SNL=
Narrow
Staggered
Strip
Number of
Lamps
1 or 2 lamps
(not included)
High Ballast Factor >1.13. Total
Harmonic Distortion < 20%
Type
(Slimline Lamps Only)
Blank=Bipin rapid
start lamp
SL=Slimline or HO
lamp
Total Harmonic Distortion < 10%
Not available when specifying emergencies, voltage must be specific.
( 5 )
( 5 )
