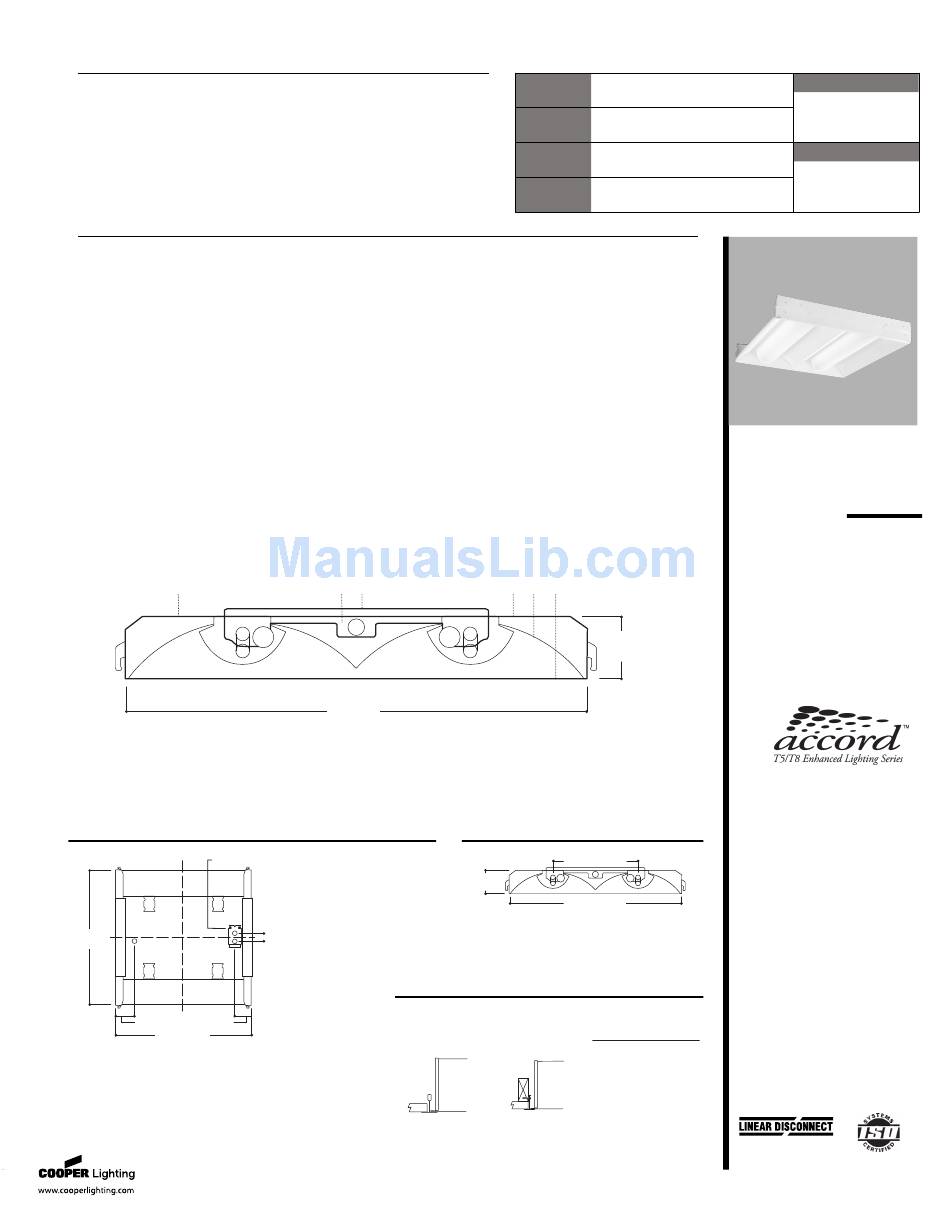

Cooper Lighting 2AC Specification

DESCRIPTION
The accord(TM) redefines fluorescent lighting by improving on aesthetics,
comfort and energy savings. The accord(TM) provides the right amount of
light while eliminating surface shadows commonly found in parabolics.
Therefore, accord(TM) increases the comfort level while providing
significant energy savings.
The accord(TM) is the ideal solution for offices, schools, hospitals, retail and
other applications.
SPECIFICATION FEATURES
A ... Construction
Shallow 3-1/4" deep housing is die
formed of code gauge, prime cold
rolled steel. Heavy gauge end
plates are securely attached with
screws for strength and rigidity
and the elimination of gaps. Four
auxiliary fixture end suspension
points are provided. KOs for
continuous row wiring. Large
access plate for supply connection.
B ... Electrical*
Ballasts are Class "P" and are
positively secured. UL/CUL listed.
Suitable for damp locations.
A
MOUNTING DATA
Access Plate
23-3/4"
[603mm]
3-3/8" 3-1/16"
[86mm] [78mm]
24" [610mm]
COOPER LIGHTING - METALUX
C ... Ballast Access
Ballast can be removed from
below without tools.
D ... Finish
Durable cold rolled steel with
multistage, iron phosphate
pretreatment and white enamel
finish to ensure maximum bonding
and rust inhibition.
B C
23-3/4"
[603 mm]
1-1/2"
[39mm]
CEILING COMPATIBILITY
G
Grid/Lay-in
Standard
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
E ... Reflectors
Reflector has high reflectance
baked matte white enamel finish
for luminous uniformity.
F ... Shielding
Positiviely retained frosted acrylic
profile lenses provide a soft but
effective distribution of light.
G ... Air Return
Optional Air Return model
provides air flow through air slots
in the housing.
D E F
3-1/4"
[83mm]
LAMP CONFIGURATIONS
11-3/4" [298mm]
3-1/4"
[83mm]
23-3/4" [603mm]
F Ceiling
Drywall Frame Type
**
Kit
Exposed Grid
Concealed T
Slot Grid
Flange
Type
Date
FLUORESCENT LAMPS
2' x 2' Recessed
E N E R G Y D ATA
Input Watts:
EB Ballast & STD Lamps @ 120V
2BX40T5 (78)
Luminaire Efficacy Rating
LER =FL56
Catalog Number: 2AC-2BX40
Yearly Cost of 1000 lumens,
3000 hrs at .08 KWH = $4.28
*Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
Trim
requirements.
Type
**Consult Pre Sales Technical Support.
G
***See Drywall Frame Kit Accessory
G or T
G or T
***
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
disconnecting power
ADF070949
08/02/2008 12:56:40 PM
®
2AC
2BX40
COMPACT
Troffer Series
