  • Page 1 3.该说明书的装订方式为： 钉装，;[ 14.控制面板 4.说明书警语及认证标志应满足CE/UL标准，CE：警语部分大写字母高度不低于3mm，CE标志不低于5mm，WEEE标志不低于7mm； 及功能 UL：大写字母字高不小于1/12”(2.11mm)，小写字母字高不小于1/16”(1.6mm)，“IMPORTANT SAFEGUARDS”，“SAVE THESE INSTRUCTIONS”等词，其字高不小于3/16”(4.8mm)，IMPORTANT SAFEGUARDS 必须在最前面。 5.产品应符合QMG-J53.021《产品说明书技术条件》的有关要求。 15.目录及 6.有ROHS指令要求的物料应符合美的企业标准QML-J11.006《产品中限制使用有害物质的技术标准》。 页码 16161000A22604 空气炸锅 说明书 MIDEA-MF-CY110A1 （MSA11D9ABB）-0501 说明书 标记 处数 更 改 文件 号 签 字 日 期 莫培新 李海棣 制 图 审 核 古广君 设 计...

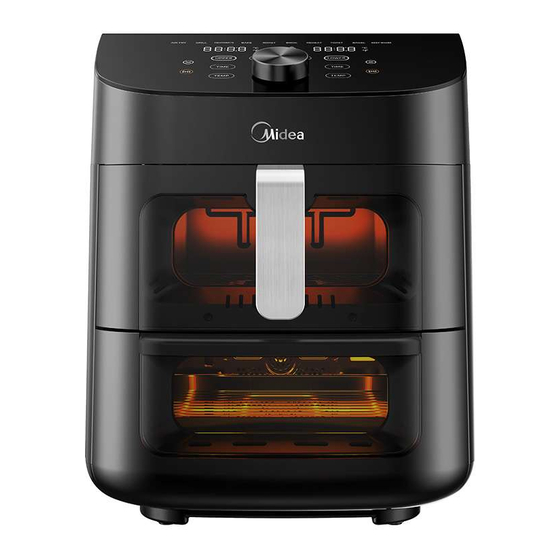

  • Page 2 TWO-ZONE AIR FRYER OVEN USER MANUAL MSA11D9ABB Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details. The diagram above is just for reference.

  • Page 4: Table Of Contents

    THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

  • Page 5: Safety Instructions

    IMPORTANT SAFEGUARDS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer.
  • Page 6 DO NOT use any accessories or attachments not ● authorized by MIDEA. The use of attachments not recommended by the manufacturer may cause injury, fire or electric shock. For household countertop use only. DO NOT use ●...
  • Page 7 DO NOT use appliance for anything other than intended ● use. DO NOT attempt to repair, replace, alter, or modify ● components of the appliance. This may cause electric shock, fire and/or injury, and will void the warranty. DO NOT tamper with any of the safety mechanisms. ●...
  • Page 8 WARNING The appliance's outer surfaces may become hot during ● use. DO NOT touch hot surfaces. Only use the air fryer basket handle to lift and carry the air fryer basket. Wear proper hand protection when handling hot components. Extreme caution must be used when moving the appliance.
  • Page 9 Do not put food in the Drip tray. ● The food height of Lower oven cavity is 1 inch from the ● upper electric heat tube. DO NOT dish wash the drip tray. ● When in operation, hot air is released through the air ●...
  • Page 10 using containers that aren't metal or glass. Do not cover crumb tray or any part of the oven with ● metal foil. This will cause overheating of the oven. IMPORTANT SAFEGUARDS Plug & Cord This appliance has a polarized plug (one blade is wider ●...
  • Page 11 Read this manual carefully and completely and retain for ● future reference. Failure to adhere to safety instructions may result in serious injury or damage. To avoid injury, read and understand the instructions in ● this user manual before attempting to use this appliance. The failure to follow any of the important safeguards ●...

  • Page 12: Specifications

    Frequency 60Hz Rated Power 1700W Capacity 11QT How To Find The Model Name And Serial Number Both the model name and serial number can be found on the rating label that is located on the bottom of the air fryer.

  • Page 13: Product Overview

    PRODUCT OVERVIEW Parts and Accessories Before using your new air fryer, make sure that all parts and accessories are included. Control panel Crisper plate Knob rubber bumpers Upper basket cavity Lower oven Upper basket cavity window Upper basket handle Upper basket Lower oven window Oven handle...
  • Page 14 OPERATING INSTRUCTIONS Control Panel 11 12* 13* Name Description • Any of the 10 functions can be used in the upper or lower cavity to cook a large variety of meals. The Functions temperature and time can be adjusted for each function.
  • Page 15 Name Description • At any time, touch to activate or deactivate LIGHT the light in both cavities. • The sync finish function will make both cavities finish cooking at the same time. After programming both cavities, touch to activate or deactivate the SYNC FINISH sync finish function.
  • Page 16 Display Messages Message Description • While programming, the display will show the set cook time. While cooking, the display will show the remaining cook time. • The display shows the set temperature. °F • Some recipes will display the "turn Food" reminder when the food is ready to be turned, flipped, or shook.
  • Page 17 Upper Cavity Cooking (Basket) 1. Place the crisper plate into the basket (crisper plate handle up) and evenly place food onto the crisper plate. 2. Insert the basket into the upper cavity. 3. Plug the air fryer into an appropriate power outlet and the air fryer will now be in standby mode.
  • Page 18 6. The preset cook time will now be flashing. Rotate and push the knob to adjust and select a cook time. If you want to further adjust the temperature or time, touch and rotate/push the knob to adjust the temperature or time. Note: The function can still be changed by touching 7.
  • Page 19 8. Approximately half-way through cooking, the left display will show “Turn Food” If recommended by the recipe, turn, flip, or shake the food. After 30 seconds the “Turn Food” will go away. 9. When cooking is complete, the left display will show “End” and there will be 3 beeps. The food is now ready to be removed.
  • Page 20 Lower Cavity Cooking (Oven) 1. Insert the drip tray into the lower cavity. Drip tray 2. Evenly place food on the lower tray. 3. Insert the grill tray into the lower cavity. Grill tray 4. Plug the air fryer oven into an appropriate power outlet and the air fryer will now be in standby mode.
  • Page 21 6. Rotate the knob to change the function and press the knob to select a function. 7. The preset cook time will now be flashing. Rotate and push the knob to adjust and select a cook time. If you want to further adjust the temperature or time, touch and rotate/push the knob to adjust the temperature or time.
  • Page 22 9. Approximately half-way through cooking, the right display will show “Turn Food”. If recommended by the recipe, turn, flip, or shake the food. After 30 seconds the “Turn Food” will go away. 10. When cooking is complete, the right display will show “End” and there will be 3 beeps.
  • Page 23 Two-Zone Cavity Cooking (Basket and Oven) 1. Place the crisper plate into the basket (handle up) and evenly place food onto the crisper plate. Then, evenly place food on the lower tray. 2. Insert the basket into the upper cavity and tray into the lower cavity. 3.
  • Page 24 6. The preset cook time will now be flashing. Rotate and push the knob to adjust and select a cook time. If you want to further adjust the temperature or time, touch and rotate/push the knob to adjust the temperature or time. Note: The function can still be changed by touching 7.
  • Page 25 8. With SYNC FINISH: After programming both cavities, touch to activate the sync finish function. If the sync finish function is activated, “SYNC FINISH” will appear and touching either will start both cavities. The cavity with less cook time will display “Hold”...
  • Page 26 10. Approximately half-way through cooking, the displays will show “Turn Food”. If recommended by the recipe, turn, flip, or shake the food. After 30 seconds the “Turn Food” will go away. 11. When cooking is complete, the displays will show “End” and there will be 3 beeps. The food is now ready to be removed.
  • Page 27 Cooking • These cooking options give your meals all the rich and crispy flavor of deep frying with with little to no oil. • The default time and temps are a starting point that you can experiment with to get the results you like best.
  • Page 28 Hints • Always place food evenly on the crisper plate and grill tray for best cooking results. • Overlapping food may result in uneven cooking performance. • To increase crispiness, small amounts of oil can be sprayed or brushed onto the food before cooking.

  • Page 29: App Set Up

    APP SET UP Download the MSmartHome app Register and log in Download MSmartHome by scanning Open the MSmartHome app, and the QR code below or searching for create a new account to start (you MSmartHome on the Apple App Store can also register through a or Google Play Store.
  • Page 30 NOTE • Make sure your devices are powered on. • Keep your mobile phone close to your device when you are connecting your device to the network. • Connect your mobile phone to the wireless network at home, and make sure you know the password of the wireless network.

  • Page 31: Cleaning And Maintenance

    CLEANING AND MAINTENANCE • Clean the basket, crisper plate and grill tray after each use. • Always unplug the air fryer and let it cool to room temperature before cleaning. Never use harsh chemical detergents, scouring pads, or powders on any of the parts or components.
  • Page 32 Any other servicing must be performed by an authorized representative. WARNING • Without proper cleaning, food and grease splatter may build up around the heating element. This can cause smoke, fire, and personal injury. • If you see or smell smoke, touch Cancel, unplug the appliance, and allow it to cool. Remove food residue or grease with a soft cloth and dishsoap.

  • Page 33: Troubleshooting

    TROUBLESHOOTING Problem Possible Reasons Solutions • Check that the power cord is firmly plugged into outlet. If this • Improper power cord and cannot solve the problem, please No power outlet connection contact the Customer Service Center at +1-866-646-4332. Display shows •...
  • Page 34 Problem Possible Reasons Solutions • For the best air frying perfor- mance, always use the crisper • Crisper plate not used in plate in the upper basket. The upper basket crisper plate allows air to flow underneath food and produces Food not the best cooking results.

  • Page 35: Year Limited Warranty

    Please note that failure to complete and submit this form does not diminish your warranty. In the event of a warranty period claim, question, comments or if service is required for this product, please contact us at the following: customerserviceusa@midea.com 1-866-646-4332...

  • Page 36: Trademarks, Copyrights And Legal Statement

    Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

  • Page 37: Disposal And Recycling

    DISPOSAL AND RECYCLING Important Instructions for Environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.

  • Page 38: Data Protection Notice

    European Economic Area. Further information are provided on request. You can contact our Data Protection Officer via MideaDPO@midea.com. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via...
  • Page 41 2022...
