Preparation for using your new TV – Rear panel

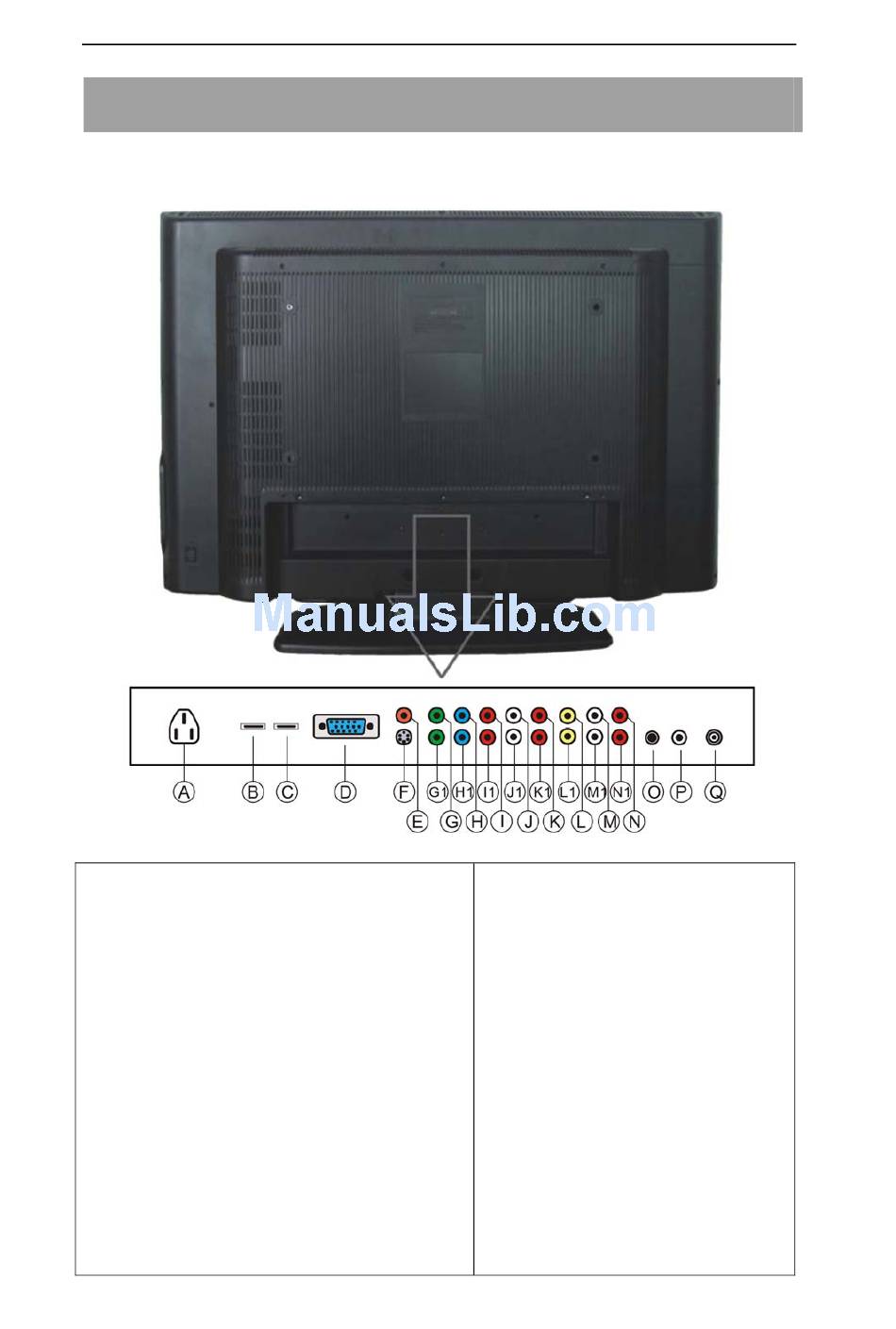

Rear panel

(The picture of the product may vary depending on the model)
HDMI Input
Input1: B
-
Input2: C
-
Component Input 1
Video: G, H , I
-
Audio: J, K
-
Component Input 2
Video: G1, H1, I1
-
Audio: J1, K1
-
AV1 Input
Video: L
-
Audio: M, N
-
AV2 Input
Video: L1
-
Audio: M1, N1
-
REAR PANEL
S-Video Input
VGA Input
AUDIO Output
OTHERS
- Video: F
- Audio: M, N
- Video: D
- Audio: O (3.5mm plug)
- Headphone: P (3.5mm plug)
- COAX Digital Out: E
- Power Input: A
- External Antenna: Q
