Summary of Contents for ProScan 32LB30QC

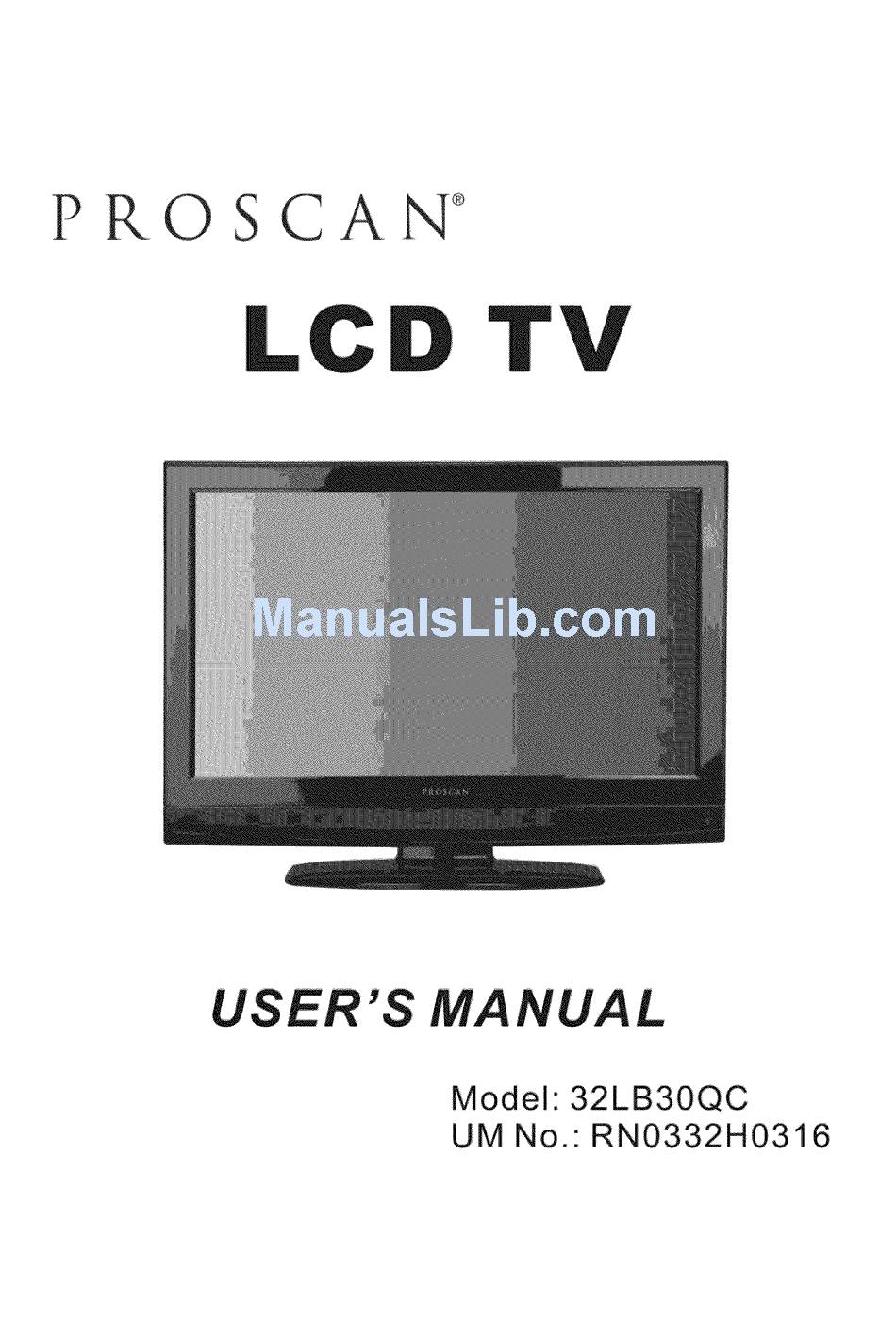

- Page 1 PROSCAN NUAL Model: 32LB30QC UM No." RN0332H0316...
-
Page 2: Fcc Notice
Class B digital device This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 3 CAUTION: 1o reduce the riskof electric shock, do not remove cover or back. No user- serviceable parts insTde. Refer Servicing to qualified service personnel. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could avoid the users' authority to operate this equipment.
-
Page 4: Important Safety Instructions
READ THESE INSTRUCTIONS. PROTECT THE POWER CORD FROM BEING WALKED KEEP THESE INSTRUCTIONS. ON OR PINCHED PARTICULARLY AT PLUGS, HEED ALL WARNINGS. CONVENIENCE RECEPTACLES, AND THE POINT FOLLOW ALL INSTRUCTIONS. WHERE THEY EXIT FROM THE APPARATUS. DO NOT USE THIS APPARATUS NEAR WATER. -
Page 5: Cleaning And Maintenance
Use this cloth to wipe the surface of the display panel, and then wipe it with a dry cloth, Welcome to the bright and vivid world of Proscan TV set. We hope that you will have many years enjoyment from your new select. -
Page 6: Table Of Contents
Tableof contents FCC NOTICE ..................... WARNING AND CAUTION ................IMPORTANT SAFETY INSTRUCTIONS ............CLEANING MAINTENANCE ..............DEAR PROSCAN CUSTOMER ..............SAFETY PRECAUTIONS ................INSTALLATION TV STAND ................ Preparation using your new TV ............. INITIAL SETUP..................FRONT PANEL ..................REAR PANEL .................... -
Page 7: Safetyprecautions
SafetyPrecautions ,_WARNING KEEP UNNEEDED SMALL PARTS AND OTHER OBJECTS OUT OF THE REACH OF SMALL CHILDREN. THESE OBJECTS CAN BE ACCIDENTALLY SWALLOWED. ALSO, BE CAREFUL ABOUT PACKAGING MATERIALS AND PLASTIC SHEETS. Set up Do not place the TV set on sloped or unstable surfaces. Do not place any objects on top of the TV set. - Page 8 SafetyPrecautions When using the TV set Do not bring your hands, face or objects close to the ventilation holes of the TV set. Top of the TV set is usually very hot due to the high temperature of exhaust air being released through the Ventilation holes. Burns or personal injuries can happen if any body parts are brought too close.
-
Page 9: Tv Standinstallation
TV STANDINSTALLATION Place the TV faced down on a soft cloth or cushion to protect the LCD panel from damage. Put the stand body into the stand base. Insert into 4 black screws (signed in picture below) tighten. Note: The 4 screws are completely the same. -
Page 10: Preparation For Using Your New Tv
Preparation for usingyour newTV- InitialSetup NOTE: When turn on TV first time, or clear all function, please do the initial setup. The initial setup menu will display in the belowing two conditions: A. The TV is turned on first time. B. -
Page 11: Front Panel
Preparation for usingyour newTV- FrontPanel Familiarizing Yourself with the Main Hardware (The picture of the product may vary depending on the model) A. Select signal input. (It changes to "ENTER" function when main menu displays ) B.Main Menu display and menu selection C. -
Page 12: Rear Panel
Preparation for usingyour newTV- Rearpanel Rear panel (The picture of the product may vary depending on the model) HDMI Input S-Video Input Video: F Input1: B Input2: C Audio: M, N Component Input 1 VGA Input Video: D Video: G, H, I Audio: J, K Audio: O (3.5mm plug) Component... -
Page 13: Connections And External Input Settings
Preparation for usingyour newTV - Connections 1. Checking Items before Connecting Please check the list below before connecting the product to other devices. < Check items before connecting > Check the instruction manual when connecting external devices. External products sometimes have different buttons and locations. -
Page 14: Using The Remote Control
Usingthe remotecontrol- Learningaboutremotecontrol POWER: Power on/off. SLEEP: Press to select a preset time interval to automatically shut the TV....ASPECT: Press to adjust the screen size. DISPLAY: Press to Check your current mode. --@ @ MTS: Press to select your favorite language in digital broadcasting. -
Page 15: Remote Control Instructions
Usingthe remotecontrol- Remotecontrolinstructions Inserting the batteries into the remote control Open the cover of battery cabin on the back of the remote control. Insert two AAA 1.5V batteries, ensuring the correct polarity (+/-). Close the cover. If the remote control is not working, see the checkpoints below. -
Page 16: Basic Operation
Basicoperation- ChoosingTV channel TURN ON LCD TV Connect the AC input cable to power the LCD TV. At this time the TV will enter standby mode and indicator show red. User POWER button or button on the remote control. Wait 5 second after switch off LCD TV then you can turn on LCD TV again. Using the CH + / CH - on the side panel or on the remote control. -
Page 17: Selecting Input Source
Basicoperation- Selectinginputsource Press the INPUT button to select TV, AV, S-Video, Component, VGA, HDMI inputs. Use the A / v to move the cursor and ENTER button to confirm the source. Press VOL+/- to adjust the volume. If you want to switch the sound OFF, press the MUTE. You can cancel this function by pressing MUTE or VOL+/-. -
Page 18: Setup Menu Operation
Setupmenuoperation-Adjust the OSDscreen Press the MENU button to display the main menu. Use _ / _- / A / v buttons to select and adjust the available menus. NOTE: The OSD (On Screen Display) function enables you to adjust the screen status conveniently since it provides graphical presentation. -
Page 19: Video Menu Options
Setupmenuoperation- Videomenuoptions NOTE: In this manual, the OSD (On Screen Display) may be different from your TV's in colors. Press the MENU on the side panel or MENU on the remote control and then use A / T to select the Video menu, press ENTER button to enter it (see the picture below), Use A / v to select what you want to adjust in the VIDEO menu. - Page 20 Setupmenuoperation- Videomenuoptions Color Temperature: To select the mode ..Standard, Warm, User, Cool. And the "R Gain, G Gain, B Gain" numbers in "User" mode is set by yourself. DNR (Dynamic Noise Reduction) To remove unwanted artifacts in video, user can adjust DNR mode: Medium, Strong, Auto, Off, Low.
-
Page 21: Audio Menu Options
Setupmenuoperation- Audio menuoptions Press MENU on the side panel or on the remote control and then use A / v to select the AUDIO menu, press ENTER button to enter it (see the picture below). Use A / v to select what you want to adjust in the AUDIO menu. Press ENTER or _ button to adjust (according to the guiding sign in the bottom right corner of the menu). -
Page 22: Tv Menu Options
Setupmenuoperation- TV menuoptions Press MENU on the side panel or on the remote control and then use A / T to select the TV menu, press ENTER button to enter it(see the picture below), Use A / T to select what you want to adjust in the TV menu. Press ENTER or b. -
Page 23: Setup Menu Options
Setupmenuoperation- Setupmenuoptions Press MENU on the side panel or on the remote control and then use A / T to select the SETUP menu. Use ,i, / T to select what you want to adjust in the SETUP menu. Press ENTER or _ button to adjust (according to the guiding sign in the bottom right corner of the menu). When you are satisfied with your adjustment. - Page 24 Setupmenuoperation- Setupmenuoptions Auto Synchronization Press _ / b. button to set auto synchronization On/Off. Timer Press _ / b. button to set the auto power on and off timer. Sleep Timer To select the sleep timer as 5/10/15/30/45/60/90/120/180/240 minutes/off. Caption Select "Caption", press ENTER button to enter the submenu (digital functions are only available under DTV signal).
- Page 25 Setupmenuoperation- Setupmenuoptions Caption Style: press to select one of As Broadcast and Custom, when you select broadcast, the others are disable and can not be adjusted. ® Font Size: press / b to select one of Medium/Large and Small. Font Color: press <...
-
Page 26: Parental Menu Options
Setupmenuoperation- Parentalmenuoptions Press MENU on the side panel or on the remote control and then use ,L / v to select the PARENTAL menu. Enter the original password 0000 to enter the parental menu (see the picture below). Use • / T to select what you want to adjust in the PARENTAL menu. - Page 27 Setupmenuoperation- Parentalmenuoptions • TV-Y - All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages two six. • TV-Y7 - Directed for older children. Themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of seven.
- Page 28 Setupmenuoperation- Parentalmenuoptions C - Children. C8+ - Viewers should be 8 or order. G - General Audience. PG - Parental guidance suggested. 14+ - Restricted. Viewers should be 14 or older. 18+ - Restricted. Viewers should be 18 or older. Canadian French Ratings Press ENTER button to enter, and use <...
- Page 29 Setupmenuoperation- Parentalmenuoptions Input the new password in the first blank, and input it again in the second blank to confirm. Clear All To clear all the settings and return to the default factory setting. This function will clear all the setup menu values and channel map in the TV, but it wilt not affect the current use. The clearing up will work after user turns off the TV.
-
Page 30: Component Menu Options
Setupmenuoperation- Componentmenuoptions Press MENU on the side panel or on the remote control and then use < / _. to select the OSD menu in Component mode. Use A / v to select what you want to adjust in the each menu. Press ENTER or _, button to adjust (according to the guiding sign in the bottom right corner of the menu). -
Page 31: Vga Menu Options
Setupmenuoperation- VGAmenuoptions Press MENU on the side panel or on the remote control and then use < / _. to select the Video menu in VGA mode. Use A / T to select what you want to adjust in the Video menu. Press ENTER button to select it and then use ,t ! =, to adjust When you are satisfied with your adjustment,... -
Page 32: Hdmi Menu Options
Setupmenuoperation- HDMImenuoptions Note: Phase- This function allows you to remove any horizontal noise and clear or sharpen the image of characters. Clock- This function is to minimize any vertical bars or stripes visible on the screen background. And the horizontal screen size also will change. -
Page 33: Appendix
Appendix-Tr0ublesh00ting Identifying Problems If there are any problems using the product, please first consult the list below. If the list below does not solve the problem, call our Customer Service Center immediately. Setup and Connection The TV won't turn on. Check your power cable connection. •... - Page 34 Appendix-Tr0ublesh00ting drills. • Disfunctioning channels. Check if the channel has been selected correctly. Try changing the position of the antenna. • Picture with white and black dots. Check if your antenna is damaged or any connections are broken. Replace your antenna. •...
- Page 35 Appendix-Tr0ublesh00ting Monitor • The PC Screen continually appears and disappears. Check the connection between the TV and the computer and see if the connector is locked. • A "There is no signal "message appears. This happens if the signal from the video card is exceeded for the maximum resolution or frequency...
-
Page 36: Removing Tv Stand
Appendix-Removing T V Stand If you decide to install the wall mount your LCD TV, always use a VESA standard wall mount appropriate for the size and weight of the LCD TV. CAUTION • Be sure to follow the instructions. Incorrect installation of the stand/wall... -
Page 37: Wall Mounting Unit Specification
Appendix-Wall MountingUnit Specification Unit Dimension(unit: Screw Diameter Screw Length(unit: 400 x 200 Remark: The specification of screw is just used on the back cabinet. NOTE: Wall mount bracket is not included with TV and mounting of wall mount bracket to wall may vary depending on brand and size of bracket, Customer should consult bracket mounting... -
Page 38: Safety Warnings
For Universal Remote Control brands listed below, please use accompanying Proscan codes and refer to your Universal Remote Control User Manual for basic instruction for changing... -
Page 39: Tv Specification
Appendix-TV Specification Model 32LB30QC Diagonal display size 31.5 inches Television system American TV standard ATSC/NTSC system Audio system MTS/SAP VHF: 2~13 UHF: 14~69 CATV: 1~125 Channel coverage Digital Terrestrial Broadcast(8VSB): 2~69 Digital cable (64/256 QAM): 1~135 PC mode 640x480/60Hz, 800x600/60Hz, 1024x768/60Hz YPbPr/YCbCr mode...
