CUSTOM EDITION
Please read this manual and save it
with your original sales receipt.
Tools needed for assembly: Phillips Screwdriver
(not included); Assembly Tool (included). Use
only with a Power Wheels
Rechargeable Battery and Power Wheels
12 Volt Charger with Type 12V Connector
(both included). Requires four "C" (LR4) alkaline
batteries (not included) for FMRradio/Simulated
CD Player/Digital Clock/Microphone operation.

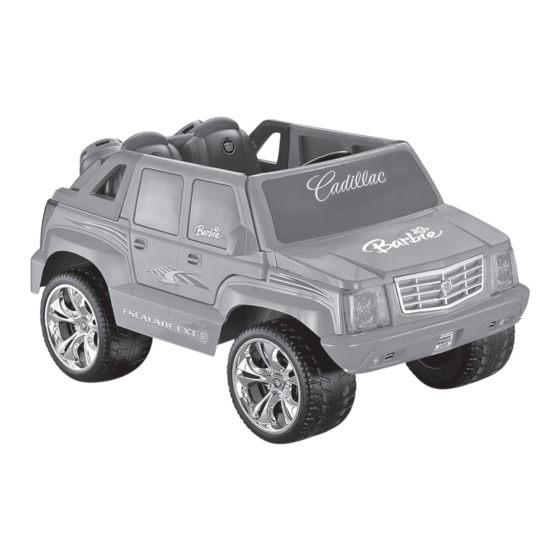

Product features may vary
from the picture above.
12 Volt Lead Acid
®
®
Owner's Manual
with Assembly
Instructions
For Model J5246
Advertisement
Table of Contents
Related Manuals for Fisher-Price POWER WHEELS Cadillac ESCALADE CUSTOM EDITION
Summary of Contents for Fisher-Price POWER WHEELS Cadillac ESCALADE CUSTOM EDITION
- Page 1 ® ® CUSTOM EDITION Please read this manual and save it with your original sales receipt. Tools needed for assembly: Phillips Screwdriver (not included); Assembly Tool (included). Use only with a Power Wheels 12 Volt Lead Acid ® Rechargeable Battery and Power Wheels ®...
-
Page 2: Table Of Contents
400 authorized service centers nationwide. Our authorized • Use this vehicle ONLY outdoors. Most interior flooring can be service centers will repair or replace parts under warranty at no extra damaged by riding this vehicle indoors. Fisher-Price will not be ®... -
Page 3: B Warnings And Cautions
WARNINGS AND CAUTIONS ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. -
Page 4: C Parts
PARTS • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. 2 Doors (Left and Right) Vehicle... - Page 5 PARTS Steering Column 2 Front Wheels (Left and Right) Steering Wheel 2 Wheel Covers Speaker Box Assembly 2 Wings (Left and Right) 2 Headlights (Left and Right) 2 Door Plates 2 Bushings 2 Hubcaps 2 Taillights (Left and Right) J5246pr-0920...
- Page 6 PARTS 12 Volt Battery 2 Short Seat Belts 12 Volt Charger " Washer – 2 " -16 Lock Nut – 2 Long Seat Belt #8-32 x " Screw – 1 #8-32 Lock Nut – 1 #6 x 1 " Screw – 1 #8 x "...
-
Page 7: D Parts Diagram
PARTS DIAGRAM Note: Some parts shown are assembled on both sides of the vehicle. Parts Not Shown Vehicle Seat Speaker Box Assembly Front End Short Seat Belts - 2 Steering Wheel "-16 Lock Nuts - 2 " x 1 " Screws - 2 Bumper Long Seat Belt Steering Column... - Page 8 BATTERY CHARGING ELECTRICAL HAZARD CAUTION WARNING • Battery can fall out and injure a child Use the charger in dry locations only. if vehicle tips over. Always use battery retainer. About Thermal Fuses • PREVENT FIRE Your Power Wheels 12 volt battery is equipped with a built-in - Never modify the electrical system.
-
Page 9: Ebattery Charging
BATTERY CHARGING ASSEMBLY WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical Battery items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle. - Page 10 ASSEMBLY " -16 Lock Nut Front Axle Front Wheel Assembly Tool • Place a " -16 lock nut (rounded side out) onto a front axle. Hint: There is a right and a left front wheel. Place the right wheel IMPORTANT: Tighten the lock nut firmly using the closed end of the (marked R) on the passenger side of the vehicle, and the left wheel assembly tool.
- Page 11 ASSEMBLY Front End Battery Compartment TOP VIEW Vehicle " x 1 " screws inside of the battery compartment and • Insert two into the front end of the vehicle. Tighten the screws. • Fit the front end onto the vehicle. •...
- Page 12 ASSEMBLY Bumper Grille " screws into the bumper and tighten. • Insert seven #8 x " screws the top of the grille. Tighten the screws. • Insert two #8 x Grille Bumper • Fit the grille onto the bumper. • Push down to fit the tabs on the grille into the slots in the bumper. •...
- Page 13 ASSEMBLY Doors Headlights • Fit the headlights (left and right) onto the bumper. • Fit the door pegs onto the holes near the front end of the vehicle. Hint: There is a left and right door. They are designed to be assembled one way.
- Page 14 ASSEMBLY Windshield/Dash Dash Connectors Radio Connectors " screws into each plate and tighten. • Insert three #8 x • Open the doors on the vehicle. • Place the windshield/dash on top of the front end of the vehicle. • Plug both dash connectors together. •...
- Page 15 ASSEMBLY Steering Metal Vehicle Column Bar Hole Hole BOTTOM VIEW " screws into the base of the windshield/dash. • Insert four #8 x Tighten the screws. • Turn the vehicle over. • Wipe the steering column with a paper towel to remove any excess lubricant.
- Page 16 ASSEMBLY Assembly Tool DASH VIEW " screw through the hole in the end of the • Insert a #8-32 x steering column. " screw into the hole in the base of the steering • Insert a #6 x 1 • Attach a #8-32 lock nut (rounded side out) on the end of the screw. wheel.
- Page 17 ASSEMBLY Hood Loosen These Screws DASH VIEW • Locate the FM Radio/Simulated CD Player/Digital Clock on the dash. • Loosen both screws in the battery compartment door. • Remove the battery compartment door. • Insert four, new "C" (LR14) alkaline batteries. Hint: We recommend using alkaline batteries for longer life.
- Page 18 ASSEMBLY TOP VIEW Seat Short Seat Belts Seat Long Seat Belt Slots • Insert the two tabs on the front edge of the seat into the slots in the vehicle. • Insert the fastener end of a short seat belt strap through the slot near the outer edge of the seat.
- Page 19 ASSEMBLY Wings Taillight Tabs • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. • First apply the inside edge of a label to the back end of the •...
- Page 20 ASSEMBLY Speaker Box Assembly Speaker Connector Speaker Connector • Position the speaker box assembly over the back end of the vehicle. • Plug both speaker connectors together. " screws into the top of the speaker assembly. • Insert three #8 x Hint: If the connectors do not fit together, do not force them.
- Page 21 DECORATION Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...
-
Page 22: Gdecoration
DECORATION REAR VIEW X1000 DASH VIEW J5246pr-0920... -
Page 23: H Battery Installation
BATTERY INSTALLATION IMPORTANT! Use only a Power Wheels 12 volt lead-acid ® rechargeable battery. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels 12 volt charger before ®... -
Page 24: I Battery Care And Disposal
BATTERY CARE AND DISPOSAL Care Disposal If a battery leak develops, avoid contact with the leaking acid and • Your Power Wheels battery is a non-spillable, sealed lead-acid ® place the damaged battery in a plastic bag. See information below battery. -
Page 25: J Safe Driving Rules
SAFE DRIVING RULES Teach Safety Rules to Children RIDING HAZARD While children can quickly develop the skill necessary to drive this vehicle, it is important to remember that their judgment skills are still WARNING very immature. Unsupervised driving by children can lead to serious injury. -
Page 26: K Vehicle Operation
VEHICLE OPERATION IMPORTANT! Use this vehicle ONLY outdoors. Most interior floor- ing can be damaged by riding this vehicle indoors. Fisher-Price ® will not be responsible for damage to the floor if the vehicle is used indoors. Beginner Use - Low Speed Drive •... -
Page 27: L Fm Radio/Simulated Cd Player/Digital Clock/Microphone Use
FM RADIO/SIMULATED CD PLAYER/ DIGITAL CLOCK/MICROPHONE USE FM Radio Station/ Time Display Volume Scan Reset Power Scan Eject Minute Adjust Hour Adjust Track Track Simulated Main Back Forward Reset Power/Volume • Press the power button to turn on or off. •... -
Page 28: Mcharge Indicator
CHARGE INDICATOR VEHICLE CARE • Check all screws, cap nuts and their protective coverings regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover. -
Page 29: Ofcc Note
FCC NOTE LIMITED WARRANTY (United States Only) Bumper-to-Bumper* Limited Warranty Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC *One year limited warranty from the date of Rules. -
Page 30: Qproblems And Solutions Guide
PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels Consumer Relations, toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through ®... - Page 31 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Vehicle was running but Loose wires or loose connectors Check all wires and connectors. Make sure the suddenly stopped motor harness connector is tightly plugged into the battery, and that there are no loose wires around the motors. Tripped thermal fuse The built-in thermal fuse may "trip"...
- Page 32 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Vehicle runs in low speed, but High speed lock-out not disconnected The vehicle was pre-set to run only in low speed. does not run in high speed To allow the vehicle to run in low and high speed, you must disconnect the High Speed Lock-Out.
- Page 33 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Sometimes the vehicle doesn’t Loose wire or connector Check all wires around the motors and all connectors to run, but other times it does make sure they are tight. Motor or electrical switch damage Contact your local Power Wheels ®...
- Page 34 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION FM Radio does not function Simulated CD is inserted Press the eject button to switch back to FM radio use. Power is off Power automatically turns off after about one hour of non-use. Press the power button to turn it back on.
- Page 35 H4433pr-0920 J5246pr-0920...
- Page 36 For the location nearest you, visit us on-line at www.powerwheels.com. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2005 Mattel, Inc. All Rights Reserved. Fisher-Price and Power Wheels are US trademarks of Mattel, Inc. Cadillac, the Wreath & Crest Emblem, Escalade, all related Emblems...
