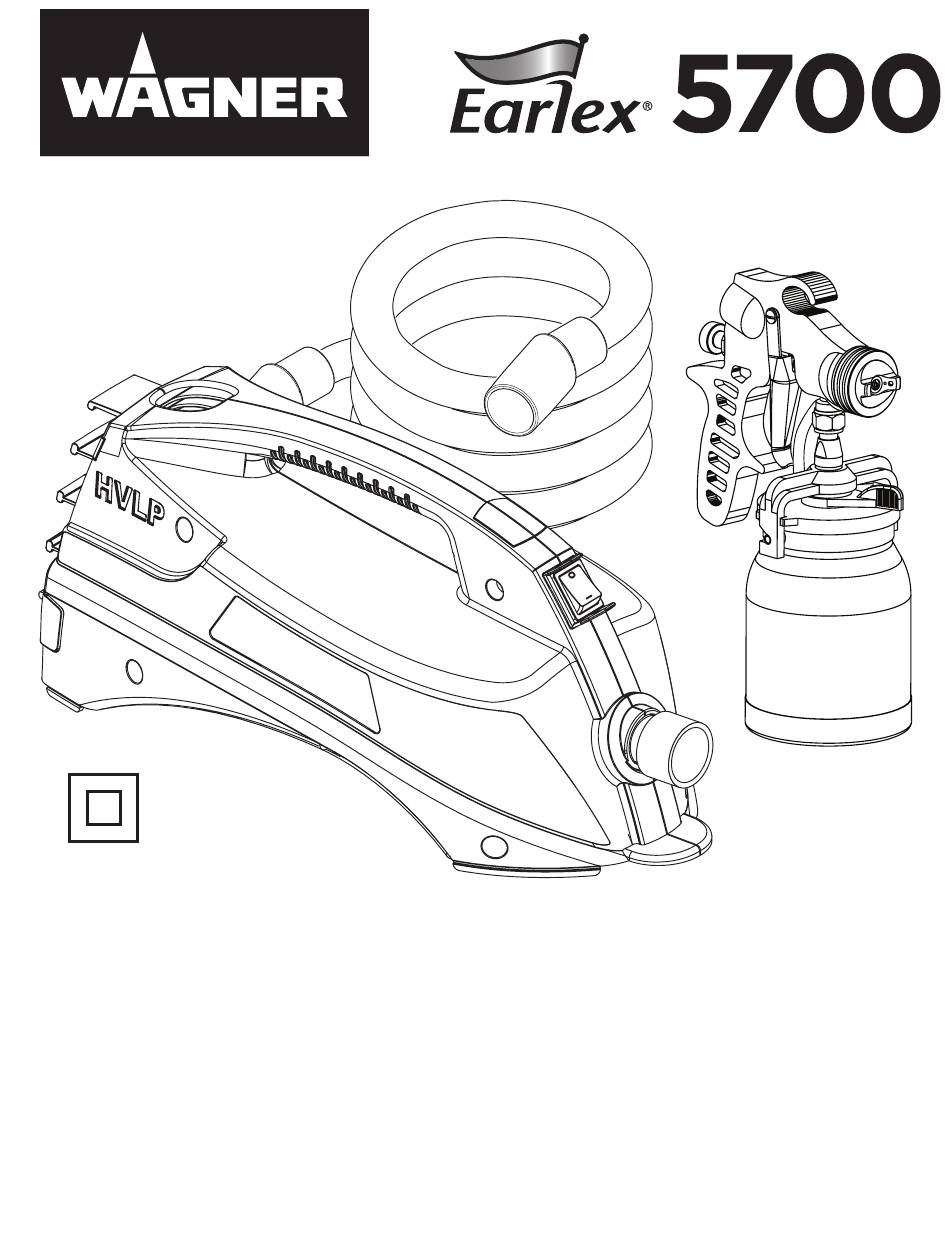

- Page 1 Double insulated Double isolation Aislamiento doble OWNER‘S MANUAL • MANUEL DE L‘UTILISATEUR • MANUAL DE USARIO READ THIS MANUAL FOR COMPLETE INSTRUCTIONS • LIRE CE MANUEL POUR OBTENIR DES DIRECTIVES COMPLÈTES • LEA ESTE MANUAL PARA OBTENER LAS INSTRUCCIONES COMPLETAS PLEASE READ AND SAVE THIS INSTRUCTION MANUAL ENGLISH •...
-
Page 2: Table Of Contents
IMPORTANT SAFETY INFORMATION TABLE OF CONTENTS SERVICING OF A DOUBLE-INSULATED PRODUCT IMPORTANT SAFETY INFORMATION ........2-3 CONTROLS AND FUNCTIONS ..........4-5 In a double-insulated product, two systems of insulation are MATERIAL PREPARATION ............6 provided instead of grounding. No grounding means is provided on a double-insulated product, nor should a means for grounding ASSEMBLY ................ -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION SAFETY HAZARDS HAZARD: EXPLOSION OR FIRE HAZARD: ELECTRIC SHOCK Flammable vapors, such as solvent and paint This product can cause injury due to electric shock. vapors, in work area can ignite or explode. PREVENTION: • Never submerge electrical parts. •... -
Page 4: Controls And Functions
CONTROLS AND FUNCTIONS Spray gun Material flow control Needle Air cap Fluid nozzle Trigger Spray direc on plate Locking lever Air cap Air cap ring Material container Pickup tube Air hose Turbine handle Turbine ON/OFF switch Filter housing Viscosity cup Fluid p removal wrench Air hose adapter FLUID TIPS AND NEEDLES... - Page 5 CONTROLS AND FUNCTIONS ON/OFF SWITCH The ON/OFF switch turns power to the turbine on and off. The ON/OFF switch is located on top of the carrying handle of the turbine. MATERIAL FLOW CONTROL The material flow control determines the amount of spray material that is sprayed from the spray nozzle.
-
Page 6: Material Preparation
THINNING Your Wagner Earlex 5700 is supplied with a viscosity cup. Viscosity is a technical term used to indicate if a product is very thin or very thick. If thin, the viscosity is said to be low, while if very thick the viscosity is said to be high. Viscosity is measured in seconds. In order to spray some materials they need to be “thinned”... -
Page 7: Assembly
ASSEMBLY NEVER point the spray gun at any part of the body. Make sure the power cord is unplugged during assembly. A en on Fill the container with the material to be sprayed. Align the pickup tube: Loosen the nut above the container that allows the lid to spin the pickup tube into position. -
Page 8: Sprayer Controls
SPRAYER CONTROLS Spray performance will depend upon a number of factors: material thickness, spray pattern selected, and material flow. Testing different control settings will help you achieve the desired results. See descriptions below to help with your project. MATERIAL FLOW CONTROL The material flow control determines the amount of material that is sprayed from the spray gun. -
Page 9: Proper Spraying Technique
PROPER SPRAYING TECHNIQUE The room you are spraying must be properly SURFACE PREPARATION STOP masked off in order to prevent overspray from All objects to be sprayed should be thoroughly cleaned before covering anything you do not want sprayed. spraying material on them. Areas not to be sprayed may, in Make sure you have properly masked the room. -
Page 10: Cleanup
CLEANUP When cleaning, use the appropriate cleaning solution (warm, soapy water for latex materials; mineral spirits for oil-based materials). FLUSHING THE SPRAY GUN / CONTAINER O = OFF Never clean air cap or air holes in the nozzle with sharp metal objects. Do not use solvents or lubricants containing silicone. - Page 11 CLEANUP CLEANING THE SPRAY GUN Turn the turbine off and make sure power cord is unplugged. Remove the air hose from the rear of the spray gun. Unscrew the air cap ring (1) and remove the air cap (2) and spray directional plate (3).
-
Page 12: Maintenance
MAINTENANCE REPLACING THE FILTER Before every use, you should inspect the air filters in the turbine to see if it is excessively dirty. If it is dirty, follow these steps to replace it. A en on Never operate your unit without the air filters. Dirt could be sucked in and interfere with the function of the unit. -
Page 13: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Problem A: Little or no material flow 1. Nozzle clogged. 1. Clean. 2. Suction tube clogged. 2. Clean. 3. Material flow setting too low. 3. Increase material flow setting. 4. No pressure build up in container. 4. -
Page 14: Parts List
PARTS LIST • LISTE DE PIÈCES • LISTA DE PIEZAS ENGLISH • FRANÇAIS • ESPAÑOL... - Page 15 PARTS LIST • LISTE DE PIÈCES • LISTA DE PIEZAS Part No. English Français Español N˚ de piéce Description Description Descripción Pieza No. L0151 Air Cap Ring Anneau du chapeau d’air Anillo del soporte de la boquilla 2354029 Air Cap Chapeau d’air Soporte de la boquilla de aire L0162...
-
Page 16: Limited Warranty
Este producto, fabricado por la Wagner Spray Tech Corporation (Wagner), está garantizado contra defectos de materiales y de mano de obra por dos años a partir de la fecha de compra siempre y cuando se utilice de acuerdo con las recomendaciones e intrucciones impresas de Wagner. Esta garantía no cubre daños ocasionados por el uso incorrecto, accidentes, negligencia por parte del usario o el desgaste normal.
