Rear and side panel features

Right Side
NOTE:
For rear panel features and cabling, the MLC Plus 100, MLC Plus 100 AAP, MLC Plus 200, and MLC Plus 200 AAP
are identical, so in this section the MLC Plus 100 represents all of those models. The rear panel of the MLC Plus 50 has one
COM port instead of two, and does not have a volume control port, but it is otherwise the same as the other models.
MLC Plus 100
Right Side
Figure 4. MLC Plus 50/100/200 Series Side (Left) and Rear Panel (Right) Features

Cabling and features

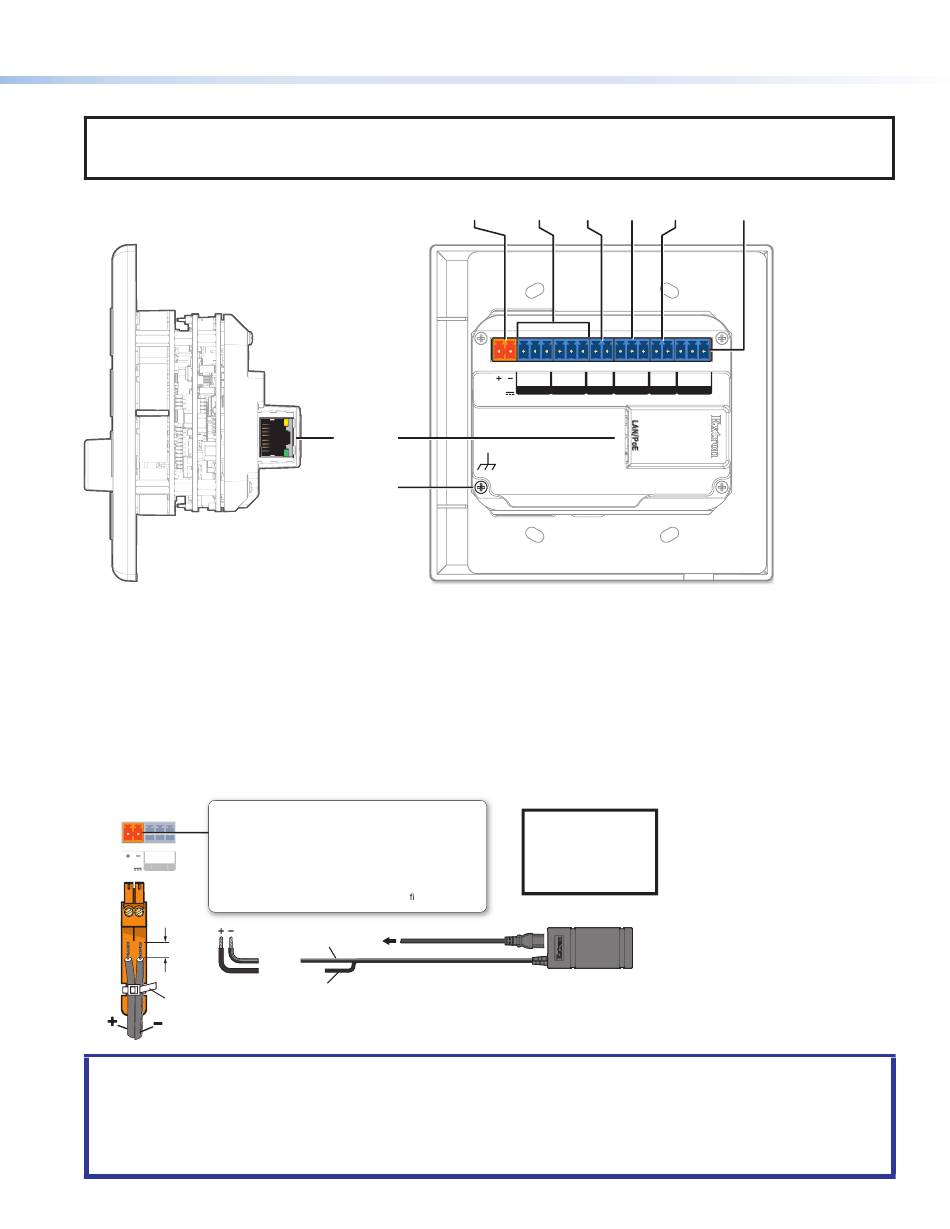

Attach cables using the following wiring diagrams as a guide. Full details are available in the MLC Plus 50/100/200 Series User Guide.
Power
The MLC Plus supports Power over Ethernet (PoE) (see
Alternatively, you can power the controller using an optional Extron 12 VDC, 0.5 A desktop power supply, as shown below.
Power Input, External Power Supply (optional)
Rear Panel
• Connect to an Extron 12 VDC,
0.5 A power supply.
• If PoE is available, the MLC Plus
uses PoE.
Tx Rx G
POWER
COM 1
• If PoE is dropped (disconnects), the
12V
0.3A MAX
controller switches seamlessly to
the external 12 VDC power supply,
if it is installed at this port.
3/16"
(5 mm)
Max.
– Return
+12 VDC input
Tie Wrap
Smooth Ridged
ATTENTION:
• Always use a power supply provided by or specified by Extron. Use of an unauthorized power supply voids all
regulatory compliance certification and may cause damage to the supply and the end product.
• Utilisez toujours une source d'alimentation fournie ou recommandée par Extron. L'utilisation d'une source d'alimentation
non autorisée annule toute certification de conformité réglementaire, et peut endommager la source d'alimentation que
l'unité.
(Ethernet)
connector
and LEDs
Grounding
screw
MLC Plus 50 Rear Panel
Power
input
LAN/PoE
(Ethernet)
connector
and LEDs
Grounding
screw
MLC Plus 100 Rear Panel
Control and power — LAN (Ethernet) and PoE
• Front panel buttons
blink during boot-up.
• Once the MLC Plus
is powered and
operational, the
buttons are lit
according to
con guration.
To
AC
Ridged
power
Ground
all devices.
Smooth
COM IR Volume Digital
(RS-232) output control input
Tx Rx G Tx Rx G S G V C G IN G
POWER
COM 1 COM 2 IR VOL D IN
12V
0.3A MAX
LAN/ PoE
NOTE: Check the
polarity of the
power supply
before connecting
it to the controller.
External
Power Supply
(12 VDC, 0.5 A max.)
Relays
1 2 C
RELAYS
on the next page).
