- Page 1 BEHDIN98 ® STREET GLIDE® AND ROAD GLIDE® MODELS...
- Page 2 Thank you for choosing our product! Please read the instructions carefully so you will know how to operate your product properly. If there are any technical questions, please contact: Customer care: (805) 751-4853 & Live chat Online support: www.bossaudio.com/support IMPORTANT Please enter below the Serial No.
-
Page 3: Table Of Contents
Table of Contents Introduction and Compatibility ..........................2 Package Contents ..............................2 Important ................................3 Control Panel Description ...........................4 Wiring .................................5 Mounting ................................6 Power on/off ..............................7 Set Clock ................................7 Adjust Volume ..............................7 Adjust Screen/Button Illumination ........................7 Key-Press Tone ..............................7 Listen to Radio ..............................8 Bluetooth Streaming ............................9 USB Playback ..............................10 Sound Settings ..............................11... -
Page 4: Important
Important Please read and understand all instructions before you use your product. Failure to follow the instructions could result in injury and/or damage that could potentially void the warranty. Safety Precautions • Do not disassemble or modify this product. This can result in short circuits, fires, electric shocks or other hazards. -
Page 5: Control Panel Description
Control Panel Description Dedicated mount bracket Fasten a dedicated external amplifier (modeled • In USB/Bluetooth play, select the previous or “BHD3F”, sold separately) on top of the unit. next audio file; Hold down to fast search. • In radio source, press briefly to tune to a radio station. -
Page 6: Wiring
Wiring USB Port See the section “Installation Precautions”. Disconnect the negative terminal of the (Never cut) BT Antenna vehicle battery prior to wiring. Always run signal wires away from power Blue/White cables to reduce the possibility of noise. Radio Antenna AUX-IN (3.5mm) Power Antenna/Amplifier Antenna 23-Pin Male Connector... -
Page 7: Mounting

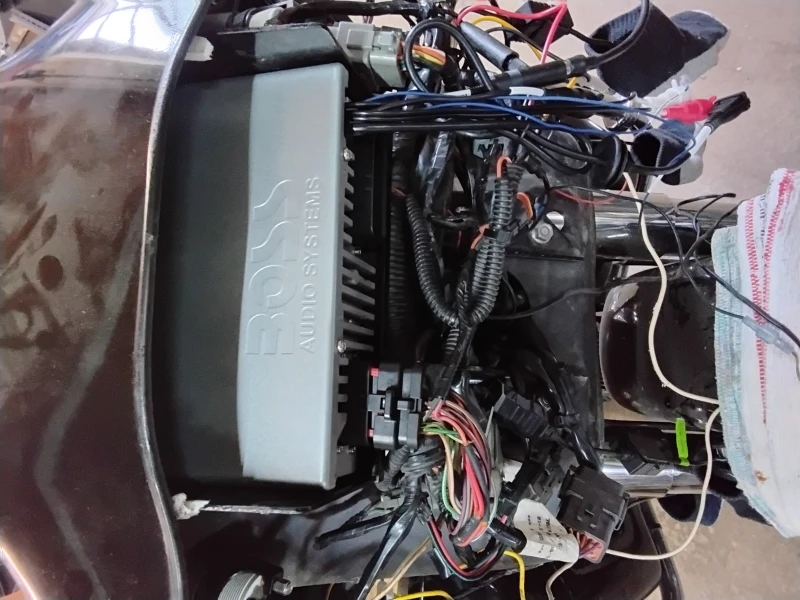

Mounting See the section “Installation Precautions”. Disconnect the negative terminal of the vehicle battery prior to installation. Install the unit where it does not interfere with your driving. If you must modify the vehicle for the installation, make sure you do not impair the safety and structural integrity of the vehicle. -
Page 8: Power On/Off
Power on/off • To power the unit on, press - When powered on, the unit switches to last selected source and the button lights are illuminated. • To power the unit off, press and hold - When powered off, the display and the button lights are turned off. Set Clock Press and hold to enter system settings. -
Page 9: Listen To Radio
Listen to Radio You can listen to FM and AM radio, and preset the radio stations. The preset radio stations will be retained if the unit is disconnected from the vehicle’s battery. Select a Radio Band Press to select radio source. The radio icon is displayed. Press repeatedly to select FM1, FM2, FM3, AM1 or AM2. -
Page 10: Bluetooth Streaming
On your mobile device, enable Bluetooth then select “Boss Audio ELITE BEHDIN98” to pair the unit with your mobile device. If prompted for password, input “0000” on your mobile device. -
Page 11: Usb Playback
Playback Control When the unit connects to your mobile device, you can then play audio files from your mobile device. Music will be streamed to the unit. - During playback, the display scrolls the following information: Artist Name/Song Title/Play Time/Album Name. -
Page 12: Sound Settings
Select Play Mode During USB playback, hold down twice to enter USB menu. When a USB menu option is displayed, press briefly until “REPEAT” or “RANDOM” option is displayed. Then rotate the function knob to select a play mode. - REPEAT ONE: Play the current track repeatedly. - REPEAT FLD: Play the current music folder repeatedly. -
Page 13: System Settings
System Settings This section helps you change the system settings of this unit. When powered on, press and hold to enter system settings. Press repeatedly to select a setting option (shown below). Then rotate the function knob to adjust values or settings. Press to exit the settings and the new settings will be saved. -
Page 14: Troubleshooting
Troubleshooting If you have problems using this product, check the following points before you request service. If you still have a problem, contact our Customer Service for further assistance. Problem Solution No power This unit is powered through connection to your Harley-Davidson factory ®... -
Page 15: Specifications
Specifications Audio Max output power ........72 W x 4 (@ 2 Ohms), 48W x 4 (@ 4 Ohms) Amplifier class ..........A/B (2 Ohms stable) Speaker impedance ........≥2 Ω Frequency response ........20 Hz - 20 kHz 3.5mm AUX input sensitivity ......1000 mV Pre-amp outputs .......... - Page 16 General Power supply ..........9.6 ̶ 14.4VDC Current consumption ........max 7A Zero current draw memory ......Yes (retain memory if battery is disconnected) Screen ............3” (76mm), monochrome LCD display Ingress protection ........IPX6-rated front panel, water resistant, dustproof UV protected front panel ......
- Page 17 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 18 BOSS Audio Systems 3451 Lunar Court • Oxnard, CA 93030 0523 ®...
