Replacement parts
Spindle and
Spindle
Handle
Retainer
Assembly
w/ screw
#1
#2
21800-01
21500-02
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model
Number and Serial Number of your tool available when you call will allow us to serve you quickly and accurately. Some parts are shown for
reference only, and may not be available individually.
Specifications
Stock no.
Model no.
Jaw width (in.)
Maximum opening (in.)
Throat depth (in.)
Pipe jaw capacity (in.)
Net weight, approx. (lbs.)
WILTON
427 New Sanford Road
LaVergne, Tennessee 37086
Ph.: 800-274-6848
www.wiltontools.com

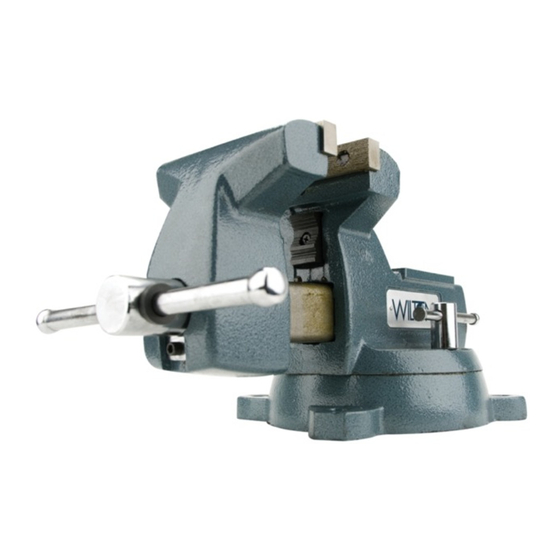

#21800, Mechanics' Vise (model 748B)
Jaw Insert
Assembly w/
Pipe Jaws w/
four screws
two screws
#3
#4
21800-03
21500-04
21800
748B
8
8-1/4
4-3/4
1/4 – 3-1/2
91-1/2
Casing Nut w/
Lock Nut
two pins
Assembly
#5
#6
21800-05
21500-06
Note: See reverse side for important safety instructions.
Copyright © 2014 WILTON, a Division of JPW Industries, Inc.
Locking Pads
Outer Ring
(pair)
only
#7
#8
9040030
21500-09
Part No. M-21800
Rev D 06/2020
Swivel Base
Assembly,
Complete
#9
21500-10
