Page 4: General Specifications

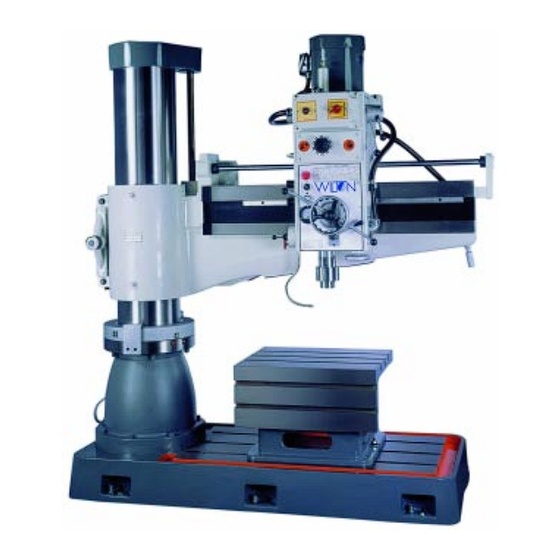

General specifications The Wilton Model 1230 is a powerful and versatile radial arm drill press. The drill head is mounted on an arm and can move along the arm to position the spindle over the work piece. The arm, itself, can be rotated on its support column to allow centering the spindle over the work piece. - Page 5 Read and follow these simple rules for best results and full benefits from your machine. Used properly, Wilton’s machinery is among the best in design and safety. However, any machine used improperly can be rendered inefficient and unsafe. It is absolutely mandatory that those who use our products be properly trained in how to use them correctly.
- Page 6 attachment to do a job it was not designed for. 16. Use only recommended accessories and follow manufacturers instructions pertaining to them. 17. Keep hands in sight and clear of all moving parts and cutting surfaces. 18. All visitors should be kept at a safe distance This machine should be grounded in accor- dance with the National Electrical Code and local codes and ordinances.
- Page 7 Both the box table and the base surface are slotted to accept a suitably sized T-slot clamp. Before begining any work on the drill press, anchor the work piece, and the box table, too, if used, to be certain the workpiece and/or box table will not move when the drill, tap or boring tool enters the workpiece.
- Page 8 The Model 1230 uses a #4 Morse taper in the spindle to secure tooling. Any drill, milling cutter, or tool holder with a #4MT can be inserted into the quill. The first step in removing or inserting any tooling is to be absolutely certain the machine cannot be accidentally started during the insertion or removal operation.
- Page 9 The Model 1230 has limit switches on the quill which cuts off electric power to the drive motor when the quill has reached either the upper or lower limit of its travel.
- Page 10 feed rates, plus a neutral position where the power feed does not operate on the quill. It is recommended that when doing operations which do not require power feed that the dial be set to the neutral position. This minimizes any wear on the power feed mechanism.
- Page 11 (depending upon which way you turn the wheel and the direction the spindle is turning) until you stop turning the control wheel. If your Model 1230 was connected to its service branch correctly, there will be a service disconnect with an external power cutoff lever or switch which disconnects the drill press from the service branch.
- Page 12 1. Turn the switch in the direction of the arrow on the red button -- clockwise. The switch is reset and the other spindle motor controls can be used. An ammeter on the control console is used to monitor the load on the spindle drive motor. It is connected into one of the three power lines which supply the main drive motor.
- Page 13 There is no need to hold it in position to keep the spindle running. The only maintenance for the Model 1230 is lubrication and changing of the coolant according to the schedule, below.
- Page 14 1. Lift the drill press from its shipping skid according to the diagram, below. 2. Secure the drill press to the floor The drill press MUST be anchored to the floor according to the layout diagram below. Failure to anchor the machine properly, according to these diagrams, could result in the machine tipping over and consequent damage to the machine and possible injury or DEATH to the machine operator...
- Page 15 Electrical set-up should be performed only by a licensed electrician who is familiar with national and local electrical codes. The Model 1230 is shipped after testing all functions and circuits under electrical power specified for the machine and motors. The only...
-
Page 17: Replacement Parts
Replacement Parts This section provides exploded view illustrations that show the replacement parts for the Wilton 4 foot arm, Model 1230 Radial Drill. Also provided are parts listings that provide part number, description, and quantity. The item numbers shown on the illustration relate to the item number on the facing page of the parts listing. - Page 18 Exploded View - Column and Base...
- Page 19 Parts List - Column and Base Ref no. Wilton part no. Description 5232911 Base 5232921 Bolt 5232931 Needle bearing 5232941 Internal column 5232951 Bolt 5232961 Top bearing cover 5232971 Thrust bearing 5232981 Fixed brg. housing 5232991 Thrust bearing 5233011 Washer...
- Page 20 Parts List - Column Gear Box Ref no. Wilton part no. Description 5235751 Bolt 5235761 Washer 5235771 Bushing 5235781 Round bar 5235791 Plain washer 5235811 5235821 5235831 Bolt 5235841 Chain frame 5235851 Screw 5235861 Limit switch 5235871 Retaining ring Ref no. Wilton part no.
- Page 21 Parts List - Arm (Front) 5233311 Lamp cover 5233321 Screw 5233331 Lamp 5233341 Lamp seat 5233351 Arm rack 5233361 Bolt 5233371 5233381 Locking shaft 5233391 Oil fill cup 5233411 Fixed clamping block 5233421 Bolt 5233431 Locking nut 5233441 Thrust bearing 5233451 Plain washer 5233461...
- Page 22 Exploded View - Arm (Rear)
- Page 23 Parts List - Arm (Rear) Ref no. Wilton part no. Description 5236011 Motor 5236021 Gear 5236031 5236041 Bolt 5236051 5236061 Bolt 5236071 Upper cover 5236081 Taper bearing 5236091 Gear 5236111 Washer 5236121 Bolt 5236131 Gear case cover 5236141 Gear case...
- Page 24 Parts List - Riser Mechanism Ref no. Wilton part no. Description 5232451 Motor 5232461 5232471 Screw 5232481 Adapter 5232491 Plastic sheet 5232511 Screw 5232521 Adapter 5232531 Bolt 5232541 Cover 5232551 Oil seal 5232561 Bearing 5232571 5232581 5232591 Shaft 5232611 Screw...
- Page 25 Exploded View - Head...
-
Page 26: Parts List - Head
Parts List - Head Ref no. Wilton part no. Description 5233551 Hand wheel lock nut 5233561 Hand wheel 5233571 Plastic knob 5233581 Feed handle 5233591 5233611 Clutch housing 5233621 Stopper cotter 5233631 Spring 5233641 5233651 Dial 5233661 Dial seat 5233671... - Page 27 Parts List - Head Ref no. Wilton part no. Description 5234751 Oil level gage 5234761 Gear box 5234771 Gear 5234781 Spring 5234791 Steel ball 5234811 Sleeve 5234821 Worm gear sleeve 5234831 Worm gear 5234841 Bolt 5234851 Gear 5234861 3-step speed change lever...
- Page 28 Parts List - Rear of Head Ref no. Wilton part no. Description 5235411 Bolt 5235421 Eccentric shaft 5235431 Gear box 5235441 Bolt 5235451 Adjustable collar 5235461 Adjustable collar 5235471 Bearing bracket 5235481 Cam shaft 5235491 Cam shaft sleeve 5235511 Bearing bracket...
- Page 29 Parts list - Flood Coolant System Ref no. Wilton part no. 5232251 5232261 5232271 5232281 5232291 5232311 5232321 5232331 5232341 Description Ref no. Wilton part no. Fixed blade Cross screw Hose HH Screw Coolant pump Fitting Elbow Fitting Elbow Description...
- Page 30 Notes:...
