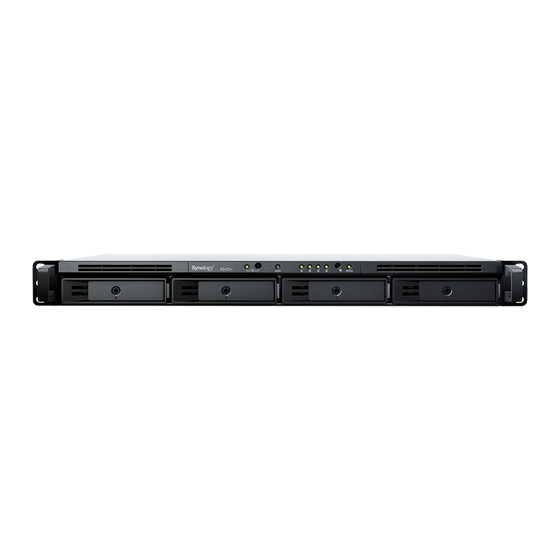

- Page 1 Synology NAS RS422+ Hardware Installation Guide...
-
Page 2: Table Of Contents
Safety Instructions Chapter 2: Hardware Setup Tools and Parts for Component Installation Install Rack Mounts Install Drives Install Network Upgrade Module Start up Your Synology NAS Chapter 3: Install DSM on Synology NAS Install DSM with Web Assistant Learn More Synology_HIG_RS422+_20211214... -
Page 3: Package Contents
Chapter Before You Start Synology NAS RS422+ is an enterprise server consisting of both system hardware and the software operating system, DiskStation Manager (DSM). This manual will guide you through all configuration aspects of your RS422+, including the hardware components, setup procedures, and system maintenance. -
Page 4: Synology Rs422+ At A Glance
1. Press to power on your Synology NAS. Power Button 2. To power off your Synology NAS, press and hold until you hear a beep sound and the Power LED starts blinking. Displays warnings regarding fan or temperature. For more ALERT Indicator information, see "Other LED Indicators". -
Page 5: System Modes And Led Indicators
System Modes and LED Indicators System Modes and Definitions There are 7 system modes in Synology NAS. The system modes and their definitions are as below: System mode Definition Synology NAS is powering on when you press the power button or restarting when Powering on you run operations in DSM. - Page 6 • Enter hibernation then wake up from hibernation: DSM is ready for use > Hibernation > DSM is ready for use • Shutdown Synology NAS: DSM is ready for use > Shutting down > Powered off • Power failure with UPS attached: DSM is ready for use >...
-
Page 7: Other Led Indicators
Manager > HDD/SSD for more information. 2 Please try to restart your Synology NAS or re-insert the drives, then run the HDD/SSD manufacturer's diagnostic tool to check the health status of the drives. If you can sign in to DSM, please run the built-in S.M.A.R.T. -
Page 8: Hardware Specification
• Relative Humidity: 5% to 95% RH Note: Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information. Support for exFAT can be enabled by purchasing and downloading exFAT Access in Package Center. 8 Chapter 1: Before You Start... -
Page 9: Spare Parts
System Fan 40*40*20 mm PSU 100W_3 PSU 100W Open Frame Optional Accessories With Synology accessories, you can customize your Synology NAS to fit different business environments without worrying about compatibility and stability. Visit www.synology.com/compatibility for more information. 9 Chapter 1: Before You Start... -
Page 10: Safety Instructions
Safety Instructions Keep away from direct sunlight and away from chemicals. Ensure a stable environment with no abrupt changes in temperature or humidity. Place the unit right side up at all times. Keep the unit away from liquids. Before cleaning, unplug the power cord. Do not use chemical or aerosol cleaners. Wipe with damp paper towels. -
Page 11: Chapter 2: Hardware Setup
• Rail mounting kit (please see the Optional Accessories section to find out the suitable rail kit for cabinet installation) Warning: We suggest mounting your Synology NAS on a cabinet before installing any drives since the heavy weight will increase the installation difficulty. Install Rack Mounts 1 Fix the two rack mount kits on both sides with the screws provided. - Page 12 2 Install drives: • For 3.5" drives: Place the drive in the drive tray. Turn the tray upside down and tighten screws into the four spots indicated below to secure the drive in place. • For 2.5" drives: Place the drive in the drive tray. Turn the tray upside down and tighten screws into the four spots indicated below to secure the drive.
-
Page 13: Install Network Upgrade Module
If you plan to create a RAID volume, we recommend installing drives of identical size to make the best use of drive capacity. Install Network Upgrade Module Your Synology NAS has a Network Upgrade slot which allows you to install network upgrade module for LAN port expansion. To install a network upgrade module 1 Shut down your Synology NAS. -
Page 14: Start Up Your Synology Nas
1 Use the LAN cable to connect the Synology NAS to your switch, router, or hub. 2 Connect one end of the AC power cord to the power port of your Synology NAS. Connect the other end to a power outlet. -
Page 15: Chapter 3: Install Dsm On Synology Nas
3 Enter either of the following into the address bar of your browser: find.synology.com synologynas:5000 4 Web Assistant will be launched in your web browser. It will search for and find the Synology NAS within the local network. The status of your RS422+ should be Installed. - Page 16 Section 5. License Limitations. The license set forth in Sections 1, 2 and 3 applies only to the extent that you have ordered and paid for the Product and states the entirety of your rights with respect to the Software. Synology reserves all rights not expressly granted to you in this EULA.
- Page 17 Arbitration Law and related enforcement rules of the country in which Synology Inc. was organized. In such cases, the arbitration will be limited solely to the dispute between you and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis.
- Page 18 Section 3. Limited Warranty and Remedies 3.1 Limited Warranty. Subject to Section 3.2, Synology warrants to the Customer that each Product (a) will be free of material defects in workmanship and (b) under normal use will perform substantially in accordance with Synology's published specifications for the Product during the Warranty Period.
- Page 19 Section 4. Limitations of Liability 4.1 Force Majeure. Synology will not be liable for, or be considered to be in breach of or default under this Warranty on account of, any delay or failure to perform as required by this Warranty as a result of any cause or condition beyond its reasonable control (including, without limitation, any act or failure to act by Customer).
- Page 20 Arbitration Association, except as otherwise provided below. The arbitration will be conducted before a single arbitrator, and will be limited solely to the dispute between Customer and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis. The arbitration shall be held in King County, Washington, U.S.A.
- Page 21 5.9 Entire Agreement. This Warranty constitutes the entire agreement, and supersedes any and all prior agreements, between Synology and Customer related to the subject matter hereof. No amendment, modification or waiver of any of the provisions of this Warranty will be valid unless set forth in a written instrument signed by the party to be bound thereby.
- Page 22 FCC Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 23 この装置は、クラス A 機器です。この装置を住宅環境で使用すると電波妨 害を引き起こすことがあります。この場合には使用者が適切な対策を講ずる よう要求されることがあります。 VCCI 一 A...
