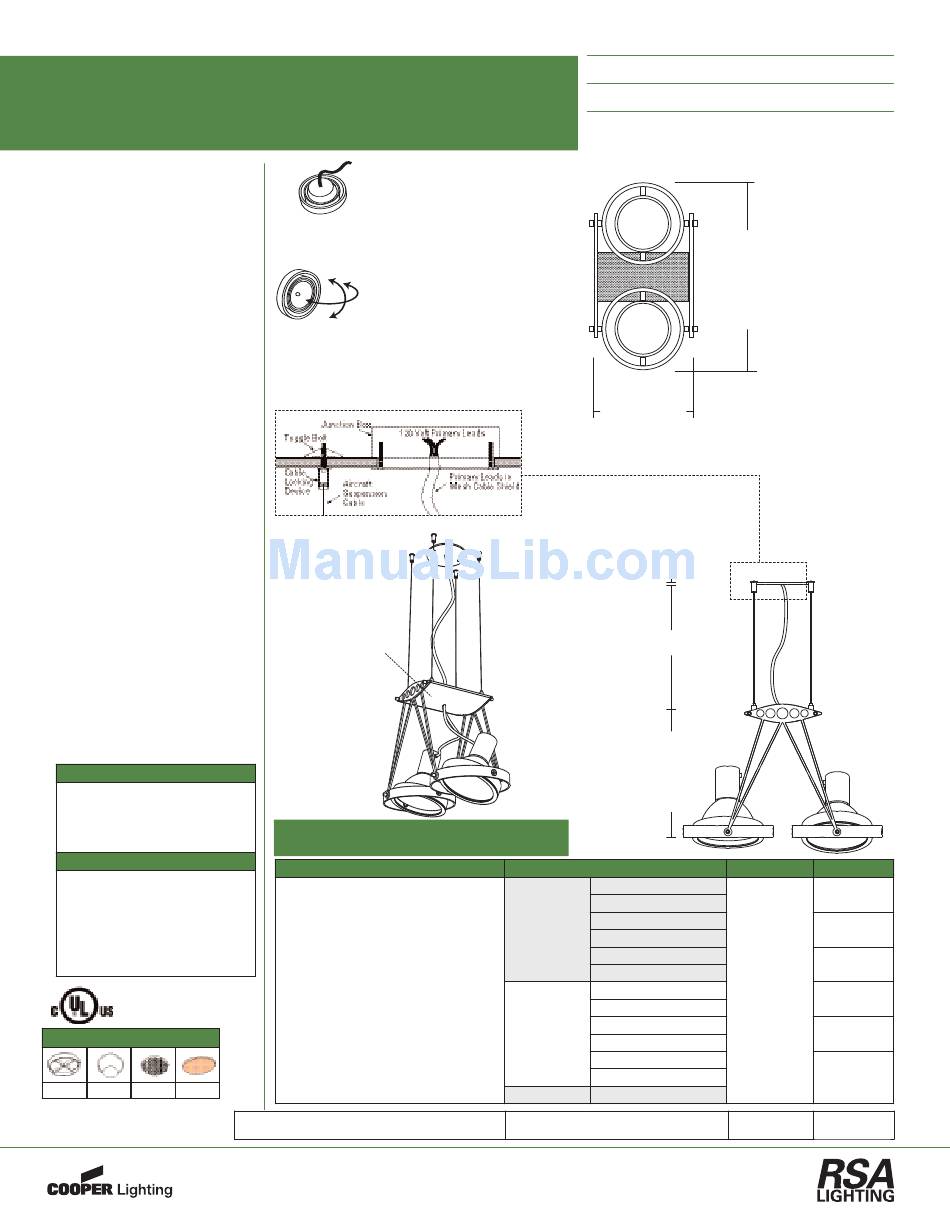

COMBOLIGHT® CYBER Series • CCC
TWO (2) Light Adjustable Suspended Multi-Lamp Luminaire
Fixture Configuration "A" • Lamp Groups 1, 2 & 3
Low Voltage or Line Voltage
DESCRIPTION:
A suspended multi-lamp luminaire.
Fixture is suspended from the ceil-
ing with 1/16" steel cable.
CONSTRUCTION:
All aluminum construction with
durable powder coat finish.
Perforated metal enclosure for
transformers and/or electrical
wiring provides cooler operation.
LAMP ASSEMBLY:
Two lamps mounted in adjustable
double gimbal lamp holders. Dual
axis 90º x 90º locking adjustability.
ELECTRICAL:
Low voltage models are wired for
use with integral electronic trans-
formers with fuse and short circuit
protection. Custom configurations
are available for remote or canopy
mounted transformers - consult
RSA factory for details. Low volt-
age and Line Voltage models are
dimmable.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Label: UL, CSA and New York
Calendar
GRID CONFIGURATION "A"
This sheet is for Grid Configuration
"A". To see other grid configura-
tions, consult other ComboLight
Cyber Series spec sheets.
USING THIS SPEC SHEET
This fixture is dimensioned
according to lamp type. Please
select lamp from either Lamp
Group 1, 2 or 3 - and then refer to
the appropriate dimensions of fix-
ture as shown above.
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
SPECIFY -
Standard lamp back cover for
AR111 models hides lamp
terminals and connections.
90º
90º
Adjustable double gimbal
lamp holder accepts up to
two optical accessories
Cable Mounting Detail
x 4
Integral Electronic
Transformers on
Low Voltage models.
Custom configurations are available for remote
transformers - consult RSA factory for details.
Cat. # / Description
CCC - Adjustable Suspended
Multi-Lamp Luminaire
CCC
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
Lamp Group 1
4.41"
Lamp Group 2
6.15"
Lamp Group 3
6.25"
0.19" (Coverplate)
Cable Suspension Length up to 72"
Lamp Group 1
5.00"
Lamp Group 2
5.00"
Lamp Group 3
10.13"
Lamp Type
Lamp Group 1 11 - MR16 12V 50W
12 - MR16 12V 75W
13 - AR70 12V 20W
14 - AR70 12V 50W
15 - PAR16 120V
16 - PAR20 120V
Lamp Group 2 21 - PAR30 120V
22 - AR111 12V 35W
23 - AR111 12V 50W
24 - AR111 12V 75W
25 - AR111 12V 100W
26 - PAR36 12V 50W
Lamp Group 3 31 - PAR38 120V
___
Lamp Group 1
9.08"
Lamp Group 2
12.50"
Lamp Group 3
13.51"
Grid Configuration Finish
A - Two Light BK - Black
WH - White
S - Silver
PC - Polished
Chrome
PT - Custom
A
___
