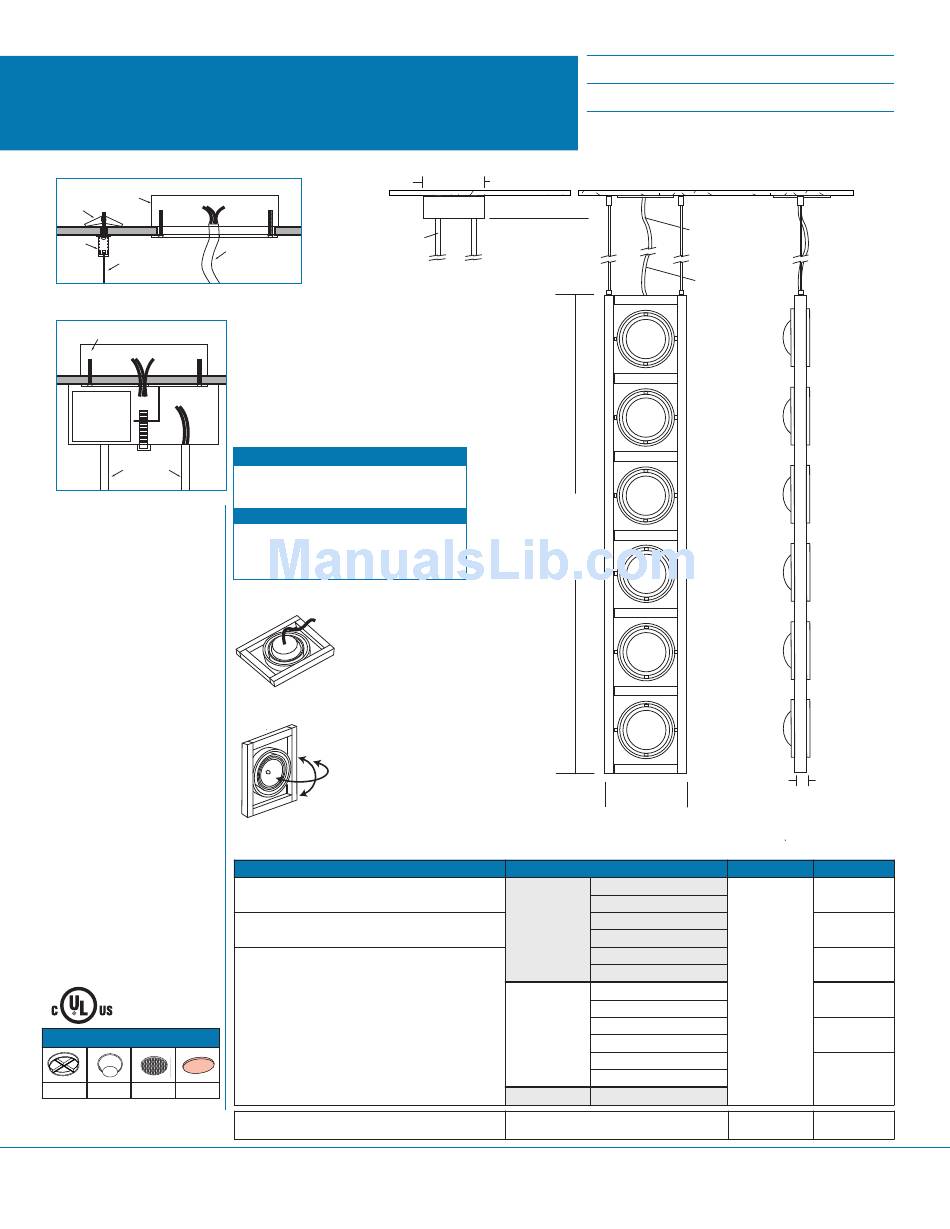

COMBOLIGHT® GALLERIA Series • CGSV - CGCV
SIX (6) Light Vertical Suspended
Grid Configuration "E" • Lamp Groups 1, 2 & 3
Line Voltage or Low Voltage for Remote Transformer
Cable Mounting Detail (CGSV)
Junction Box
120 Volt Primary Leads
Toggle Bolt
Cable
Locking
Aircraft
Device
Suspension
x 2
Cable
Stem Mounting Detail (CGCV)
Junction Box
120 Volt Primary Leads
Optional 12V
Socket
Electronic
Wires
Transformer
from
(Low Voltage
Lamp
models only)
Stem
Suspension
x 2
DESCRIPTION:
A vertically suspended, grid style
multi-lamp fixture. Can be suspend-
ed with cable or .375" diameter
pipe stem.
CONSTRUCTION:
All aluminum construction. Grid is
made of .75" square aluminum tub-
ing with .062" wall thickness.
LAMP ASSEMBLY:
Six lamps mounted in adjustable
double gimbal lamp holders. Dual
axis 90º x 90º locking adjustability.
ELECTRICAL:
Low voltage models are wired for
use with remote transformers. For
integral transformers, see spec
sheets for model number CGSVI or
CGCVI. For Metal Halide see spec
sheets for models CGSVM or
CGCVM. Dimmable.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Label: UL, CSA and New York
Calendar
This sheet represents a standard
configuration. Custom configura-
tions are available with Galleria
fixtures. Consult RSA for details.
Optional Accessories - Details on Other Side
Baffle
Snoots
Louvers Lenses
SPECIFY -
RSA
LIGHTING
Stem
Primary Leads in
Mesh Cable Shield
Junction Box
Toggle Bolt
Cable
Locking
Aircraft
Device
Suspension
Cable
GRID CONFIGURATION "E"
This sheet is for Grid Configuration "E". To see other
grid configurations, consult other ComboLight
Galleria Series spec sheets.
IMPORTANT: USING THIS SPEC SHEET
This fixture is dimensioned according to lamp type.
Please select lamp from either Lamp Group 1, 2 or 3 -
and then refer to the appropriate dimensions of fixture
as shown above.
Standard lamp back cover for
AR111 models hides lamp
terminals and connections.
90º
90º
Adjustable double gimbal
lamp holder accepts up to
two optical accessories
Cat. # / Description
CGSV - Vertical Cable Suspension
CGCV - Vertical Stem Suspension
___
®
Catalog #
Type
Project
4.75" x 6.00"
CGCV
2.5" Depth
1" Depth
Front View
Integral Xfmr.
120V Models
CGSV Cable Suspension x 2
or CGCV Stem Suspension x 2
Specify Length
120 Volt Primary Leads
Primary Leads in
Mesh Cable Shield
Lamp Group 1
31.65"
Lamp Group 2
40.65"
Lamp Group 3
44.85"
Lamp Type
Lamp Group 1 11 - MR16 12V 50W
12 - MR16 12V 75W
13 - AR70 12V 20W
14 - AR70 12V 50W
15 - PAR16 120V
16 - PAR20 120V
Lamp Group 2 21 - PAR30 120V
22 - PAR36 12V 50W
23 - AR111 12V 35W
24 - AR111 12V 50W
25 - AR111 12V 75W
26 - AR111 12V 100W
Lamp Group 3 31 - PAR38 120V
___
RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
©2003 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice.
CGSV Mounting
4.63" Round J-Box
Coverplate
Power Cord
Lamp Group 1
.75"
5.90"
Lamp Group 2
7.40"
Lamp Group 3
8.10"
Grid Configuration Finish
E - Six Light
E
BK - Black
WH - White
S - Silver
PC - Polished
Chrome
PT - Custom
