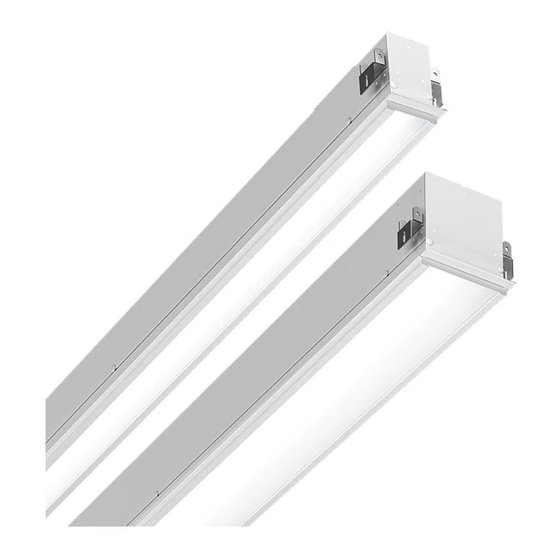

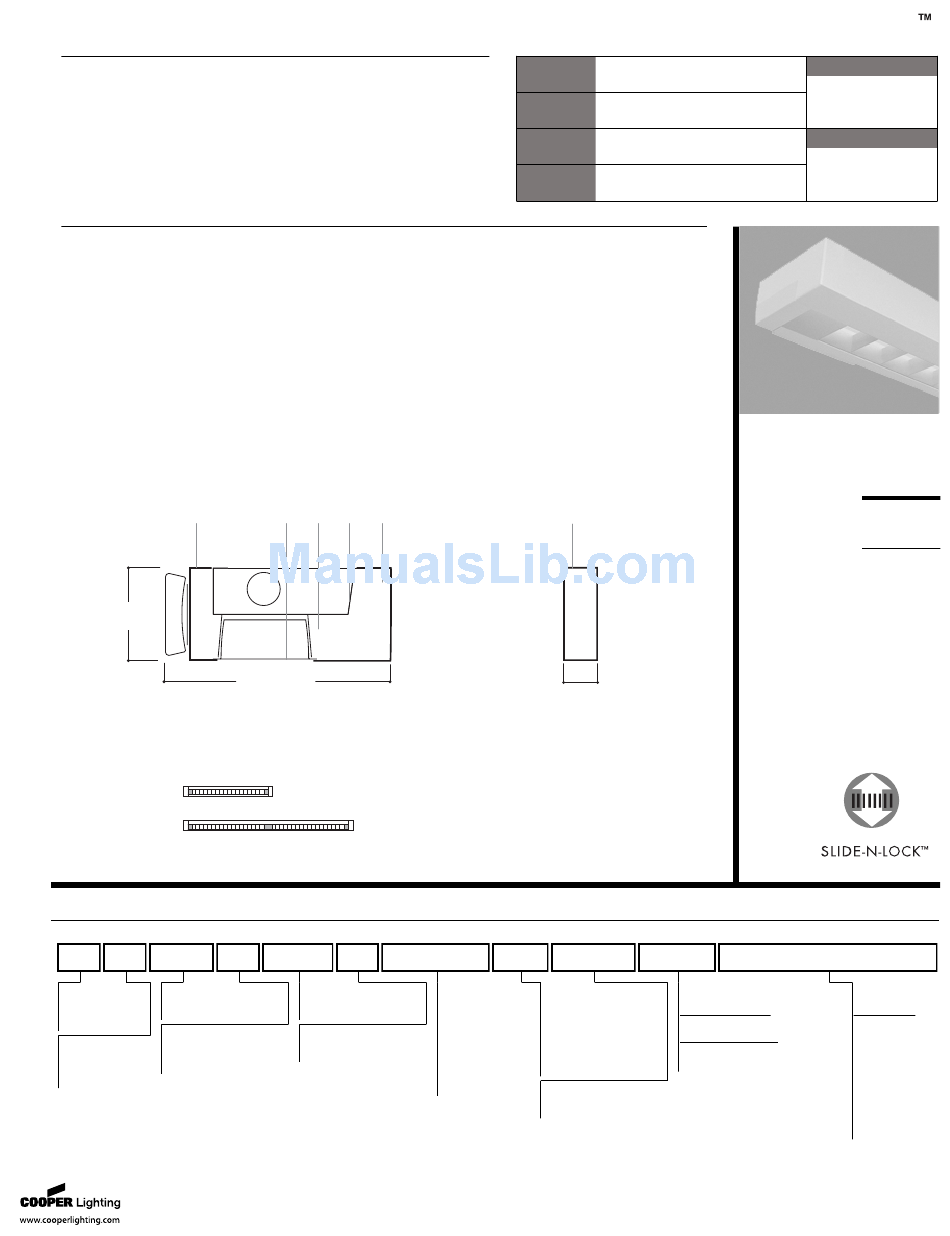

Cooper Lighting Corelite 1T8 Specifications

DESCRIPTION
Corelite's Traverse Wall Mount is an asymmetric direct-indirect fluorescent
luminaire that features a rugged aluminum construction, sleek modern
styling and cross blade louver. Our Slide-N-Lock(TM) optics accessory
allows the designer to adjust the amount of uplight and downlight for a
particular application. The Traverse Wall may be mounted over standard
2"x4" J-Boxes for individual or continuous configuration using 4' and 8'
modular sections. The Traverse Wall is suited for open office perimeters,
private offices, conference rooms, corridors and public spaces.
SPECIFICATION FEATURES
A ... Construction
Housing is 6063 T5 aluminum
extrusion forming a 2-7/8"
rectangular profile. Standard 4'-0"
and 8'-0" fixture lengths combine
for continuous runs.
B ... End Caps
Standard end caps are precision
die-cast aluminum, mechanically
attached without exposed
fasteners.
C ... Louver
A continuous semi-specular
aluminum parabolic 1-1/4" blades
spaced 2-1/4" on-center with a
2-3/4" opening.
A
2-7/8"
[73mm]
M O D U L E S A N D D I M E N S I O N S *
48" [1219mm]
96" [2438mm]
*Dimensions do not include end caps.
ORDERING INFORMATION
Sample Number: TW-WB-1T8-1C-UNV-SU-WA-8
Series Optics Down
TW Traverse B Cross Blade Louver
= =
Wall
Number of
Optics Up
Lamps
S Specular
= 1 1 Lamp
=
W White
=
Notes: 1 Not all options available. Please consult your Cooper Lighting Representative for
availability. Specifications and dimensions subject to change without notice.
D ... Reflectors
Reflector pan is painted with a
highly reflectance white powder
coat finish. Optional die-formed
side reflector is a highly specular
anodized aluminum.
E ... Electrical
Fixtures are prewired with quick
wire connectors and use UL listed
Class P, 265ma T8 instant start
universal voltage electronic
ballasts. Power factor of 95% with
less than 10% THD. Fixtures and
electrical components certified to
UL and CUL standards.
C E D F
6-7/8" [174mm]
Lamp Type
T8 32W T8 (4' unit)
=
Number of Circuits 1
1 1 Circuit
=
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
F ... Finish
Fixture housings are standard
white using electrostatically
applied polyester powder coat
paint.
Mounting
Fixture mounts directly to existing
structure over a 2" x 4" standard
electrical box mounted horizontally
into the wall. Refer to installation
section for details.
B
1-1/4" [31mm]
E n d C a p S i d e V i e w
Wiring 1 Voltage 1
C Standard Circuit 120 120V
= =
D Dimming 277 277V
= =
E Emergency 347 347V
= =
B Battery Pack UNV Universal
= =
(120V-277V)
T Nightlight
=
Y Daylight
=
Suspension
SU-WA Surface/Wall Mount
=
CORELITE
Type
Date
C r o s s B l a d e L o u v e r
Traverse Wall
Wall Mount
Light Distribution
Indirect - 68.8%
Run Length Options
Individually Mounted Slide-N-Lock™
DL1
Luminaires may be 4' or 8' in length
Continuously Mounted
DL2
Standard row configurations over 8'
DL3
consist of 4' and 8' sections
DL4
DL5
DL6
DL7
DL8
ADE071096
07/20/2007 6:03:47 PM
1T8
Direct/Indirect
Direct - 31.2%
