Quick Use and Setup Guide
Important Notice/Warning . . . . . . . . . . . . . . . . . . . .1
Basic Cable TV Connections . . . . . . . . . . . . . . . . .1
Basic Antenna TV Connections . . . . . . . . . . . . . . . .1
Basic TV Operation . . . . . . . . . . . . . . . . . . . . . . . .2
Remote Control Button Descriptions . . . . . . . . . . . .2
Remote Battery Installation . . . . . . . . . . . . . . . . . . .3
C
ABLE
Y our Cable TV input into your home may be a single (75 ohm)
cable or a converter box installation. In either case, the con-
nection to the TV is very easy. Follow the steps below to connect
your cable signal to your new television.
If your cable signal comes directly from a round 75Ω coaxial
cable use the following steps:
1
Connect the open end of the round Cable Company sup-
plied cable to the 75Ω input on the TV. Screw it down finger
tight.
2
Plug the television in to the wall outlet and turn the TV on.
Refer to the AUTOPROGRAM feature to program all the
available channels on your cable signal.
If your cable signal comes from a cable box, use the following
steps:
3
Connect the open end of the round Cable Company sup-
plied cable to the cable signal IN(put) plug on the back of
the Cable Box.
4
Using a separate round coaxial cable, connect one end to the
OUT(put) plug on the back of the Cable Box.
5
Connect the other end of the round coaxial cable to the
75Ω input on the back of the television. Screw it down finger
tight.
6
Plug the television in to the wall outlet and turn the TV on.
Refer to the TUNER (page 3) and AUTOPROGRAM (page
4) features of this Quick Use Guide. TUNER should be set to
the CABLE option. AUTOPROGRAM can be set to program
all the available channels on your cable signal into the televi-
sion's memory.
A
NTENNA
A
combination antenna receives normal broadcast chan-
nels (VHF 2–13 and UHF 14–69). Your connection is
easy because there is only one 75Ω (ohm) antenna plug on
the back of your TV, and that's where the antenna goes.
1
If your antenna has a round cable (75 ohm) on the end,
then you're ready to connect it to the TV.
If your antenna has flat, twin-lead wire (300 ohm), you
first need to attach the antenna wires to the screws on a
300- to 75-ohm adapter.
2
Push the round end of the adapter (or antenna) onto the
75Ω (ohm) plug on the back of the TV. If the round end of
the antenna wire is threaded, screw it down finger tight.
3
Plug the television in to the wall outlet and turn the TV
on. Refer to the TUNER (page 3) and AUTOPROGRAM
(page 4) features of this Quick Use Guide. TUNER should be
set to the ANTENNA option. AUTOPROGRAM can be set to
program all the available channels on your cable signal into
the television's memory.
C
ONTENTS
How to Use the Installation Features . . . . . . . . . .3-4
Using the Language Control . . . . . . . . . . . . . . . . . .3
Setting the Tuner Mode Control . . . . . . . . . . . . . . .3
How to Automatically Program Channels . . . . . . . .4
How to Add and Delete Channels . . . . . . . . . . . . . .4
How to Name (Label) Channels . . . . . . . . . . . . . . . .4

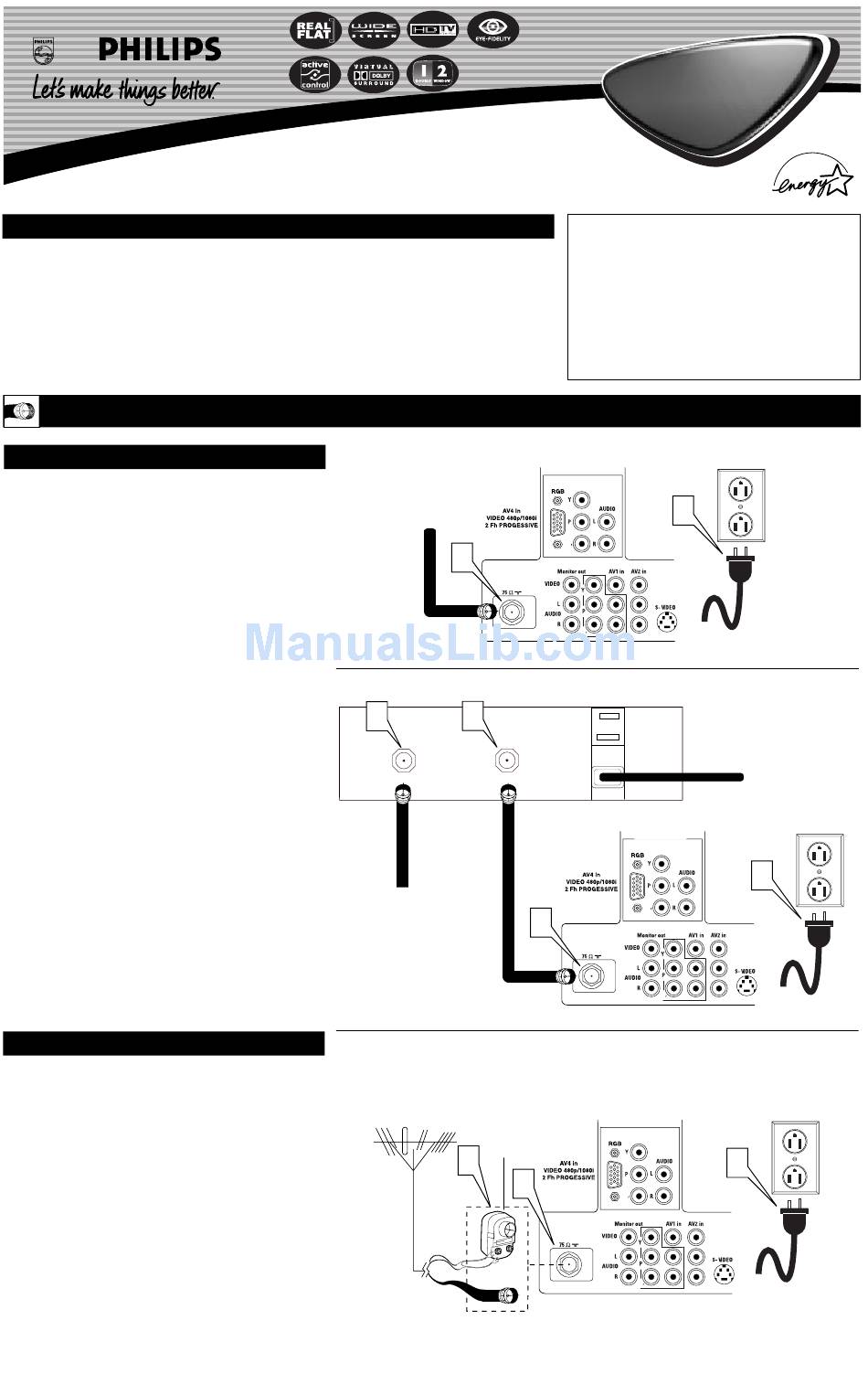

B
ASIC
TV
Direct Cable Connection:
Cable Box Connection:
TV
Antenna Connection:
broadcast channels 2-13 (VHF) and 14-69 (UHF).
TV C
ONNECTIONS
Cable signal coming from
Cable Company (Round
75Ω coaxial cable)
1
3 4
INPUT
OUTPUT
Cable Signal IN from
the Cable Company
Outdoor or Indoor Antenna
(Combination VHF/UHF)
The combination antenna receives normal
300 to 75-ohm
Adapter
1
2
Twin
Lead Wire
Round 75Ω
Coaxial Cable
from Antenna
Color TV
Color TV
IMPORTANT
NOTE: This owner's manual is used with several
different television models. Not all features (and
drawings) discussed in this manual will necessar-
ily match those found with your television set.
This is normal and does not require that you con-
tact your dealer or request service.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD DO NOT EXPOSE THIS UNIT TO
RAIN OR EXCESSIVE MOISTURE.
2
b
P
b
P
Jack Panel Back of TV
Jack Panel
Round 75Ω Back of TV
Coaxial Cable
b
P
5
b
P
Jack Panel
Back of TV
b
P
b
P
AC Power
Wall Outlet
Power Plug
from back of TV
Jack Panel Back
of Cable Box
AC Power
Wall Outlet
6
Power Plug
from back of TV
AC Power
Wall Outlet
3
Power Plug
from back of TV
