Cooper Lighting FAIL-SAFE CFE-4 Series Specification Sheet

DESCRIPTION

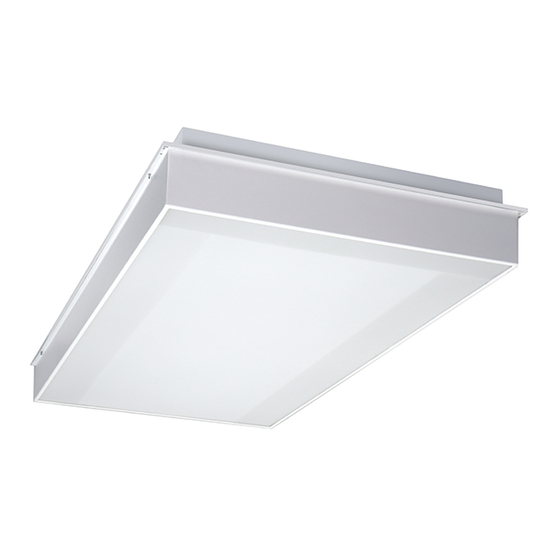

The Fail-Safe CFE-4 Series Clean Room Troffer is enclosed and gasketed to
maintain ceiling integrity and protect against infiltration of particles and
airborne bacteria. The housing and door are designed to work with 2"
inverted "T" ceiling grids. Sealed housing and door frame allow relamping
without contamination of the clean areas. These luminaires are U.L. listed
and C.S.A. certified for wet locations and are manufactured in accordance to
USDA, FDA, NSF and Federal Standard 209E guidelines. 200 PSI Hose Down
Rating standard.
SPECIFICATION FEATURES
Application
The CFE-4 luminaires are ideal for
I.E.S. Class 1,000, 10,000 and
100,000 clean room environments.
Applications include clean rooms,
technical and biomedical labs, and
food processing/testing centers.
A ... Construction
Nominal 4-3/4" deep recessed,
one-piece housing made of
20-gauge cold rolled steel;
die-formed and seam-welded to
create a sealed chamber. Gasketed
wiring access cover.
B ... Electrical
Standard Class P, CBM/ETL ballast.
MOUNTING DATA
LAMP CONFIGURATIONS
Specifications and Dimensions subject to change without notice.
C ... Finish
Electrostatically applied baked
white polyester powder enamel
finish. Minimum reflectance 90%.
Multistage cleaning cycle, iron
phosphate coating with rust
inhibitor. Conveyorized application
and curing time accurately
controlled at an elevated
temperature.
D ... Frame/Shielding
Flush-mounted extruded
aluminum door frame with mitered
corners and baked white enamel
finish. Flexi-seal closed-cell foam
gasketing is used between lens
frame and housing.
A B C
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Frame/Shielding Cont.
One-piece extruded lens gasket
provides a dependable seal
between the lens and lens frame.
Lens is clear extruded with prisms
positioned inside fixture and
smooth surface on outside for easy
cleaning. Other shielding options
include prismatic polycarbonate.
E ... Hinging/Latching
Two slide-latches with safety
screws secure lens frame in the
closed position. Lens frame hinges
and is removable without the use
of tools.
D E
DOOR FRAME
FAIL-SAFE
®
Type
Date
CFE-4
64W - 160W
2' x 4' FLUORESCENT
RECESSED STATIC
Clean Room Troffer
2" Grid
ADC041638
