Planet WNAP-6325 Quick Installation Manual

Quick Installation Guide
WNAP-6325

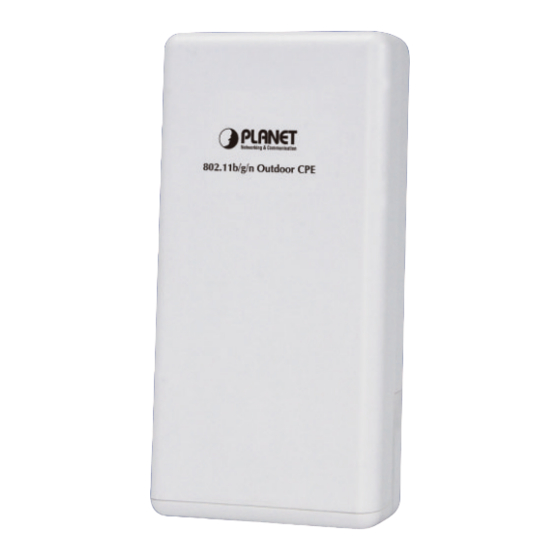

300Mbps 802.11n Wireless Outdoor CPE
1. Package Contents
Thank you for choosing PLANET WNAP-6325. Before installing the
AP, please verify the contents inside the package box.
WNAP-6325
PoE Injector & Power Cord
If there is any item missing or damaged, please
contact the seller immediately.
Note
Bottom Panel Description – Port
Reset Button
LAN2
4. Hardware Installation
STEP 1: (A) Push the latch on the bottom of the WNAP-6325
to remove the sliding cover.
Quick Guide
Plastic Strap x 1
– 1 –
Grounding Terminal
PoE LAN
1
– 3 –
2. Installation Precautions
Caution
3. Physical Introduction
Rear Panel Description – LED Indication
(B) Plug the RJ45 Ethernet cable into the PoE LAN Port of the
WNAP-6325. Then, slide back the cover of the WNAP-6325
to finish the installation.
STEP 2: Plug the power cord into the DC port and the other
2
1. Users MUST use a proper and well-installed
surge arrestor and grounding wired with the
WNAP-6325; otherwise, a sudden lightning
could cause fatal damage to the WNAP-6325.
EMD (Lightning) DAMAGE IS NOT COVERED
UNDER WARRANTY.
2. Users MUST use the "Power cord and PoE
Injector" shipped in
WNAP-6325. Use of other options will cause
damage to the WNAP-6325.
Power LED LAN 1 LED
LAN 2 LED Wireless LED
– 2 –
3
side into the AC socket. Then, plug the RJ45 cable
(as shown in picture 4 under Step 1) into the POE
port of the PoE injector.
Ethernet Cable
Data
24V PoE Injector
PoE Port
Ethernet Cable
Data+Power
2
– 4 –
the box with the
4
PC
1
Power
Data In
PoE Out
